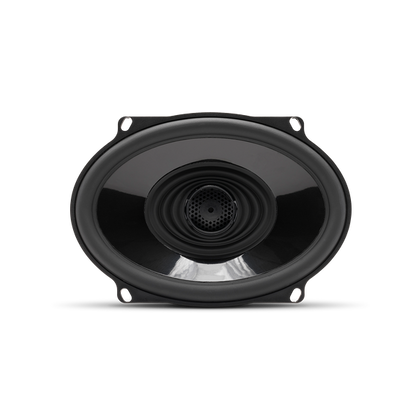

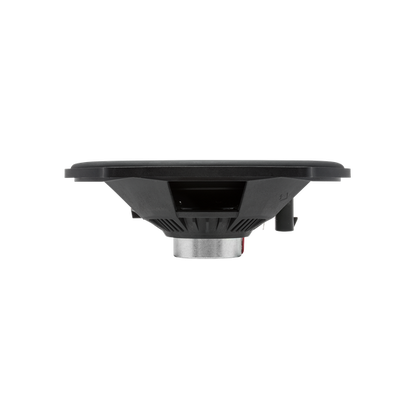

Rockford Fosgate TMS57
Rockford Fosgate TMS57
SKU:TMS57
Couldn't load pickup availability
5"x7" Replacement Speakers for Harley-Davidson® Speaker Lids

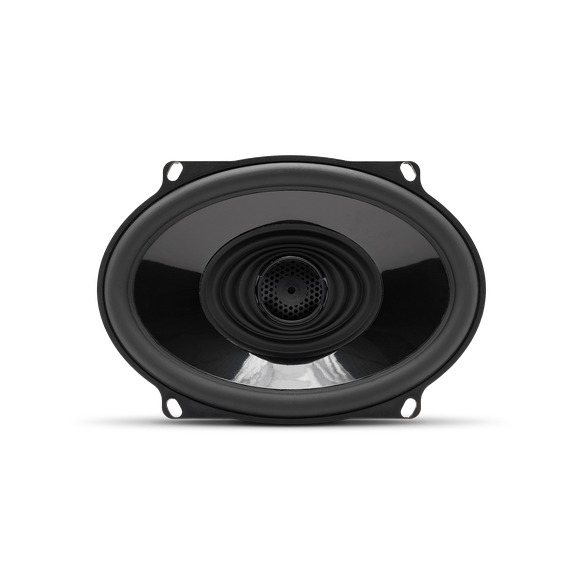

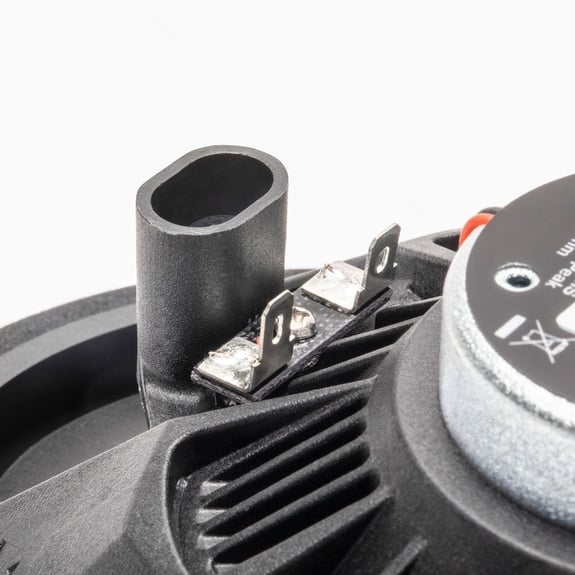

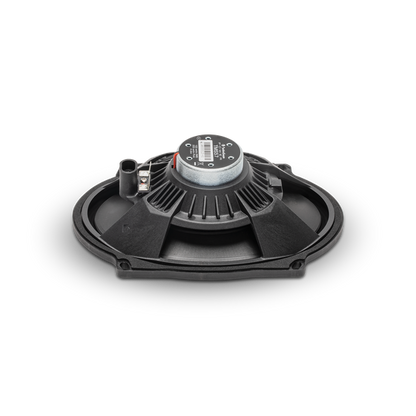

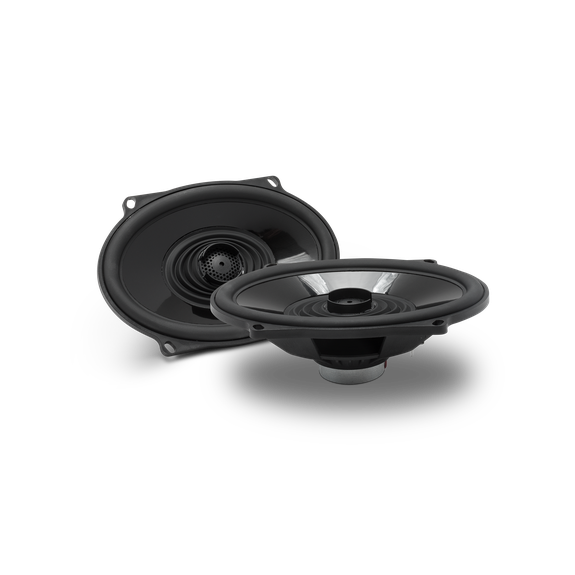

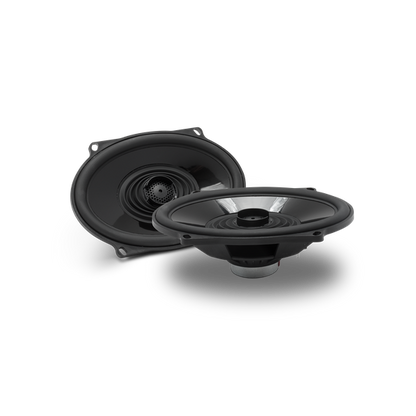

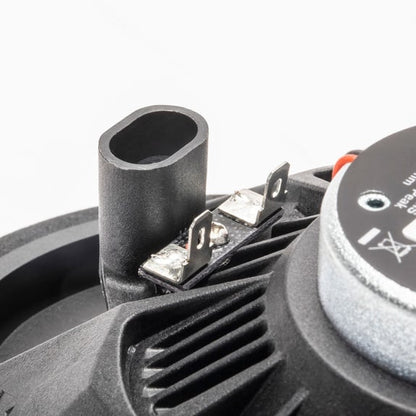

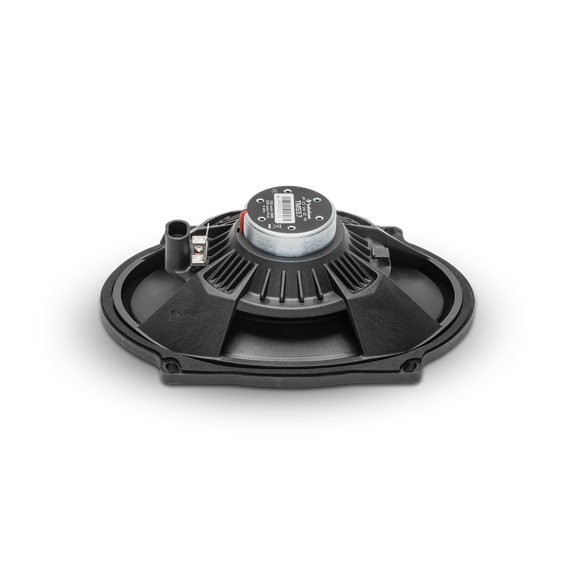

The TMS57 full range coaxial speaker is designed to replace existing 5"x7" 2-way coaxial speakers in factory equipped Harley-Davidson® "Boom!™ Audio" and "Boom!™ Audio Stage-I" bag lids. The TMS57 features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.
Specification
| Specification | Details |
|---|---|
| Sensitivity | 89 dB (1W/1m)92 dB (2.8V @ 1m) |
| Impedance | 4Ω |
| CEA-2031 | CEA-2013 Guidelines |
| Speaker Type | 2-Way |
| Midrange Size (Nominal Diameter) | 5" × 7" |

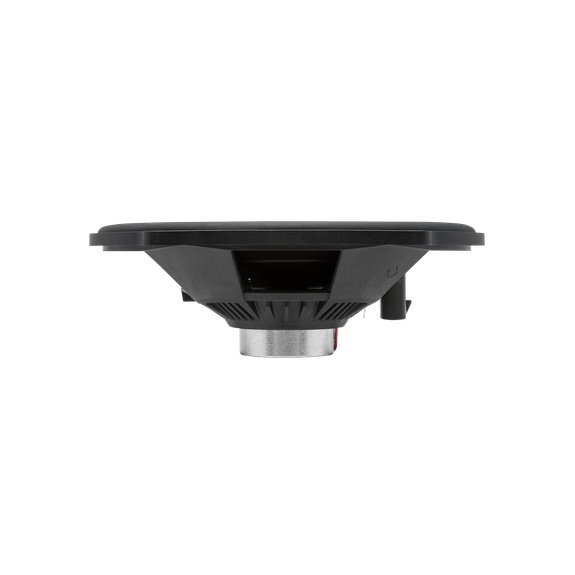

| Midrange Mounting Depth | 2.2" (55 mm) |
| Frequency Response | 61 Hz – 20 kHz |
| Power Handling | 100 Watts RMS |
| Grille/Trim Ring Included | No |
| Mounting Hardware | Yes |
| Included In The Box | (2) TMS57(2) Aluminum Diamond-R Badges |
| Shipping Weight | 2.95 Lbs. (1.34 Kg) |
Compatibility
| YEAR | MAKE | MODEL | OPTION |
|---|---|---|---|
| 2014 – Current | Harley-Davidson® | Electra Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 – Current | Harley-Davidson® | Ultra Limited | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 – Current | Harley-Davidson® | Street Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2014 – Current | Harley-Davidson® | Road Glide | Boom!™ Audio Stage-I Saddlebag Speaker |
| 2006 – 2013 | Harley-Davidson® | Road King | Boom!™ Audio Saddlebag Speaker |
| 2006 – 2013 | Harley-Davidson® | Electra Glide | Boom!™ Audio Saddlebag Speaker |
| 2006 – 2013 | Harley-Davidson® | Street Glide | Boom!™ Audio Saddlebag Speaker |
| 2006 – 2013 | Harley-Davidson® | Road Glide | Boom!™ Audio Saddlebag Speaker |
