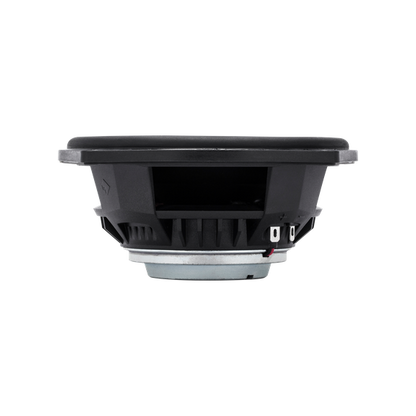

Rockford Fosgate TMS5
Rockford Fosgate TMS5
SKU:TMS5
Regular price
$439.99 USD
Regular price
Sale price
$439.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power Harley-Davidson® 5.25" Full Range Tour-Pak Speakers (1998-2013)

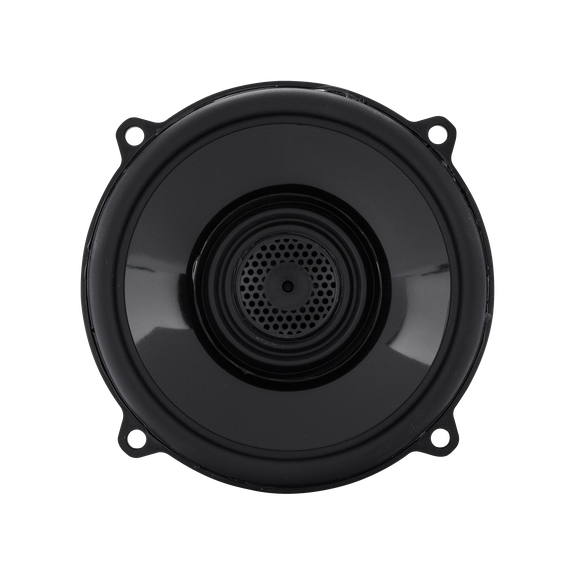

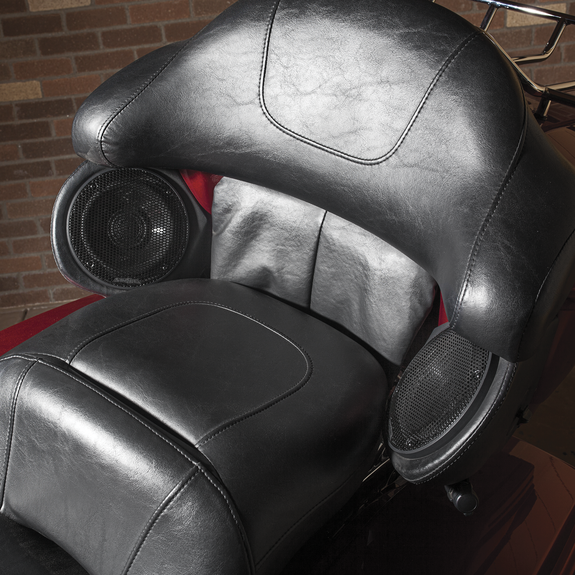

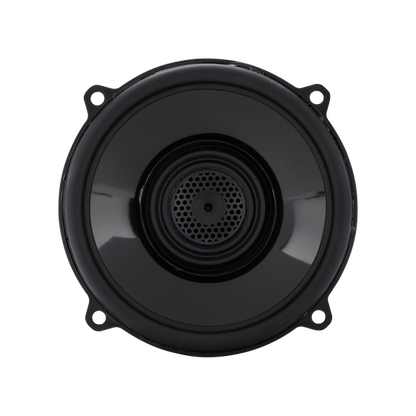

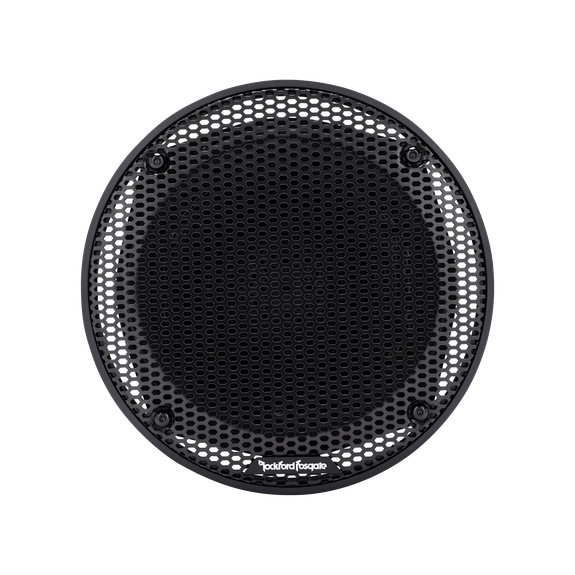

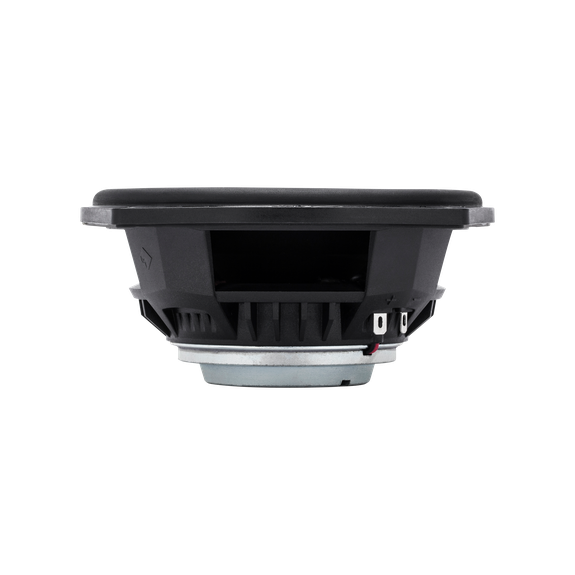

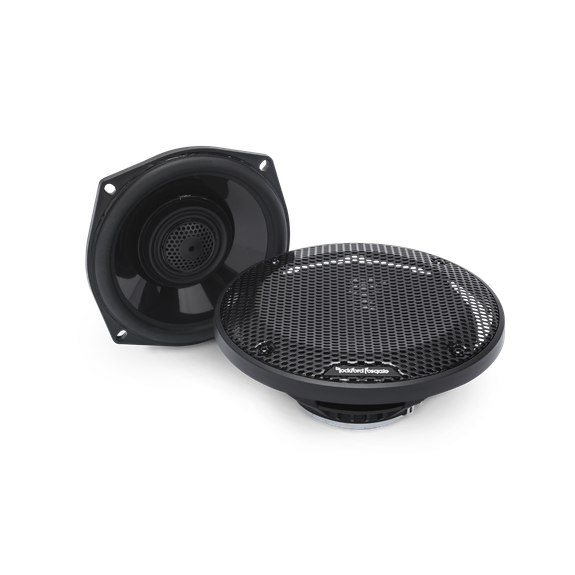

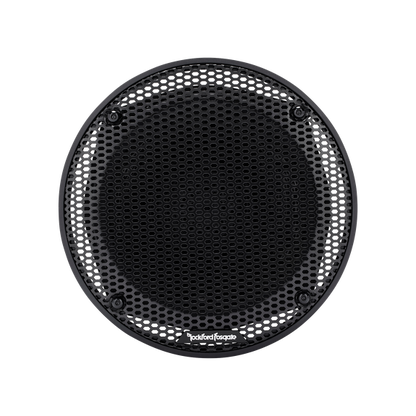

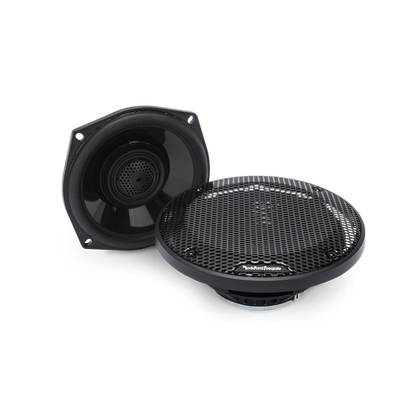

The TMS5 is a full range coaxial speaker designed to fit the Tour-Pak speaker locations of the 1998 - 2013 model year Harley-Davison® Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.
FEATURES AT A GLANCE
- Element Ready design that is weather and water resistant
- Carbon Fiber Reinforced Polypropylene Cone
- Santoprene VAST Surround
- Co‐Molded Cone and Surround
- Poly‐Cotton Spider
Specification
| Specification | Details |
|---|---|
| Power Handling (MAX) | 130 Watts MAX |
| CEA-2031 Compliant | Yes |
| Voice Coil Diameter (in/mm) | 1.40" (35.6 mm) |
| Speaker Type | 2-Way Coax |
| Frequency Response (Hz) | 64 Hz – 20 kHz |
| Nominal Impedance (Ohms) | 4-Ohm |
| Midrange Size (Nominal Diameter) | 5.25" |
| Power Handling (RMS) | 65 Watts RMS |
| Tweeter Mounting Depth | N/A |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | Yes |
| Sensitivity (dB @ 2.83V/1M) | 94 dB |
| Crossover | Built-in tweeter crossover |
| Sensitivity (dB @ 1W/1M) | 91 dB |
| Midrange Mounting Depth | 2.05" (52.0 mm) |
| Included In The Box | (2) Speakers(2) Speaker Grilles(1) Hardware Pack |
