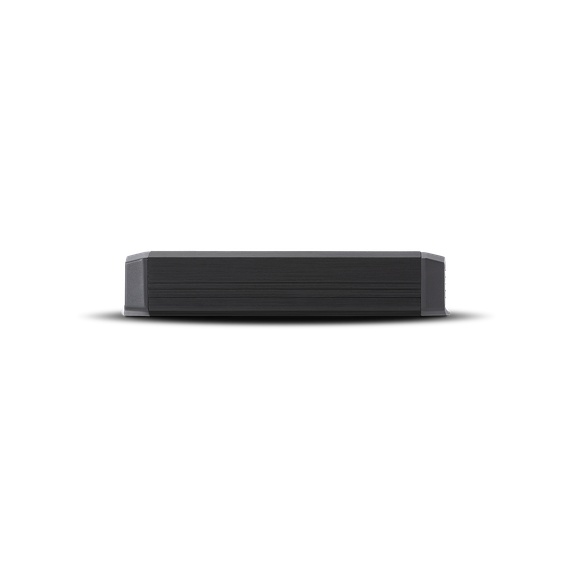

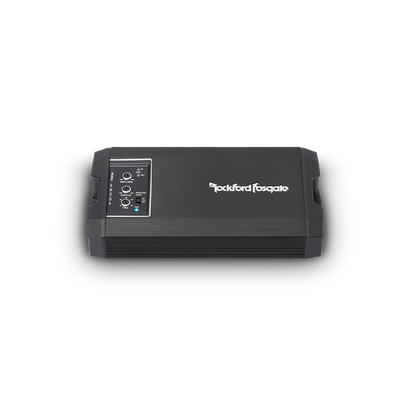

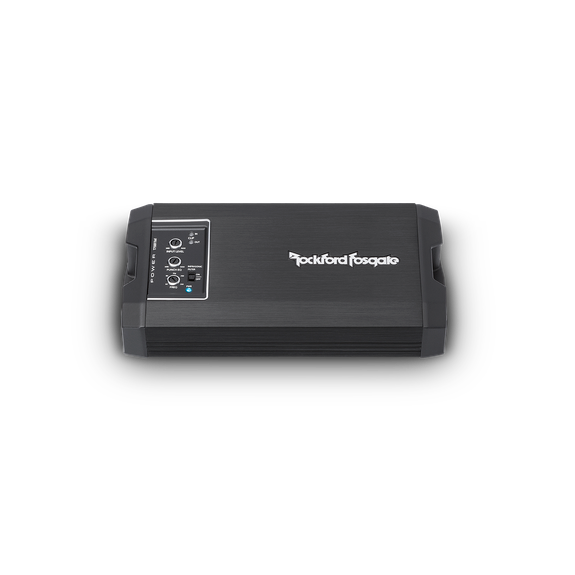

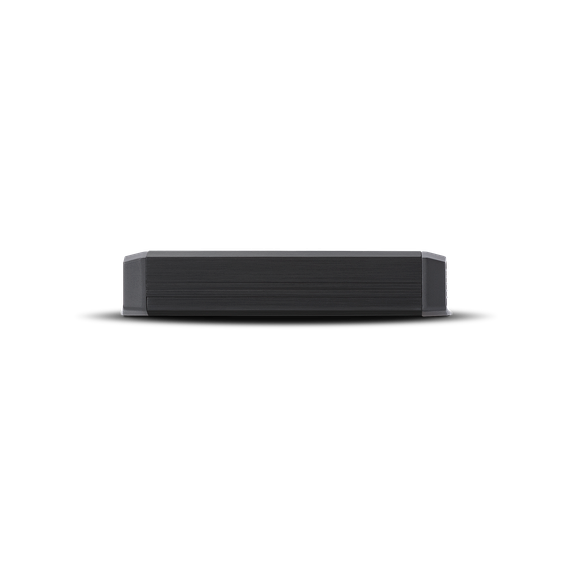

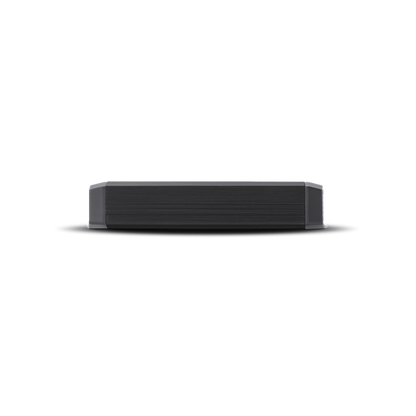

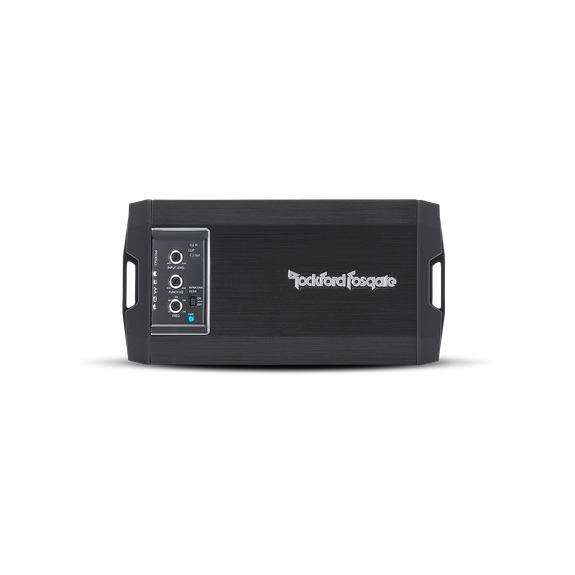

Rockford Fosgate T750X1bd
Rockford Fosgate T750X1bd
SKU:T750X1bd
Regular price
$549.99 USD
Regular price
Sale price
$549.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

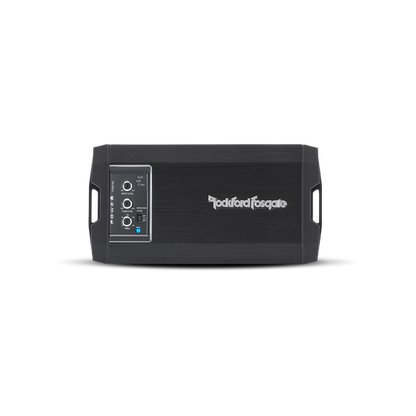

Power 750 Watt Class-bd Mono Amplifier
The Power T750X1bd is an ultra-compact, Class bd 750 Watt mono amplifier. It features high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 750 Watts RMS |
| Rated Power (RMS Continuous Power) | 500 W × 1 @ 4-Ohm750 W × 1 @ 2-Ohm750 W × 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 538 W × 1 @ 4-Ohm909 W × 1 @ 2-Ohm990 W × 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20 Hz – 230 Hz ±1 dB |
| Input Sensitivity | 150 mV – 12 V |
| Circuit Topology Class | Class BD |
| Efficiency (Average) | >85% |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4-Ohm<1.0% @ 2-Ohm<1.0% @ 1-Ohm above 35 Hz |

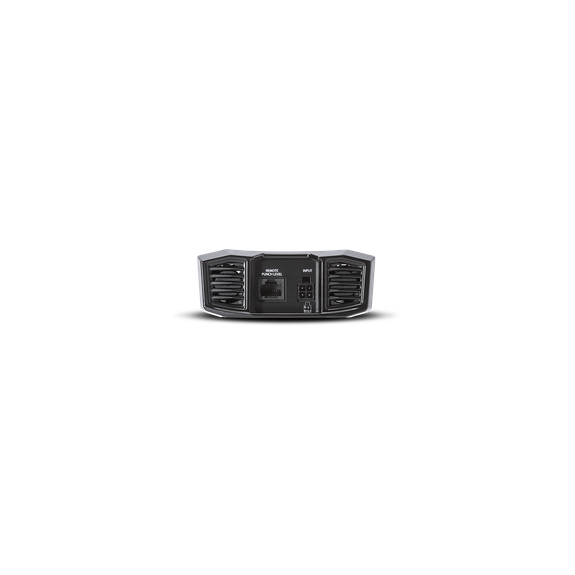

| Signal Input | High/Low Level Input: 4-Pin harness |
| Signal Output | — |
| Tone Controls | Bass: 0 to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass: 50–250 Hz @ 12 dB/octave ButterworthInfrasonic: 28 Hz @ 12 dB/octave Butterworth |
| Remote Controls | Optional PLC2 provides Punch Level Control |
| Visual Indicators | Power: Blue LEDProtect: Red LEDInput Clip: Red LED³Output Clip: Blue/Violet/Red LED¹²³ |
| LED Color Legend | Blue: <0.5% THDViolet: 1% THDRed: 10%+ THD |
| Power Wire Gauge | 8 AWG |

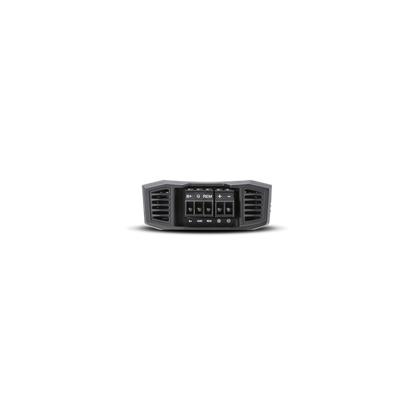

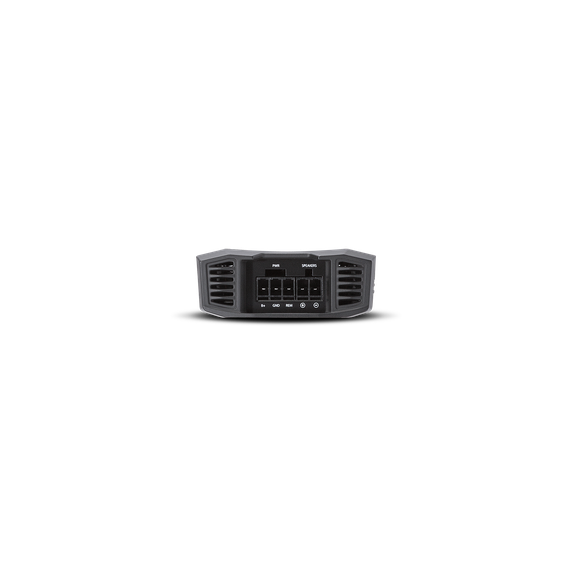

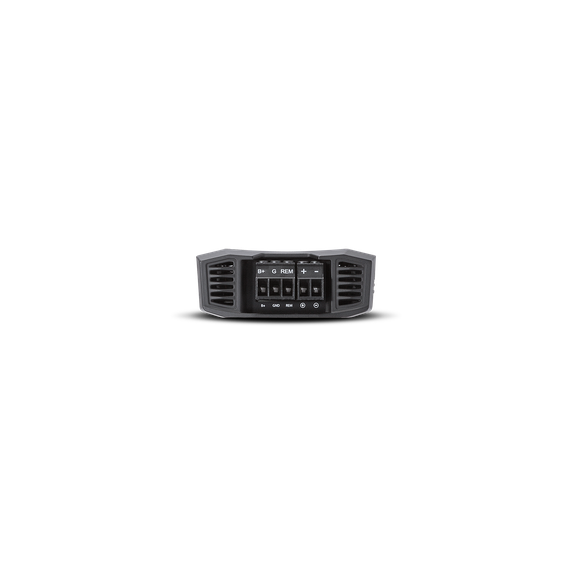

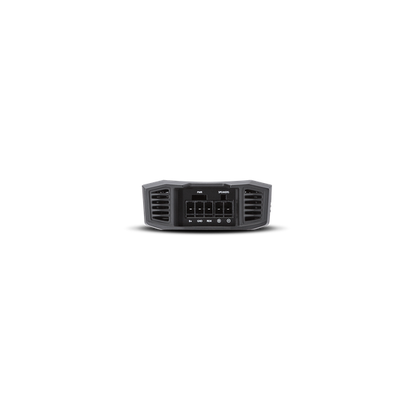

| Power Input Connector | Detachable Compression Terminal |
| Speaker Wire Gauge | 10 AWG |
| Speaker Output Connector | Detachable Compression Terminal |
| Cooling | Dual Fan Cooled |
| Heatsink | Extruded Aluminum |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 100 A (not included) |
| Average Current Draw (13.8 V Music) | Not specified |
| Maximum Current Draw (13.8 V Sinewave) | 86 A |
| Suggested Alternator | Not specified |
| Included in the Box | Not specified |
| Dimensions (H × W × D) | 1.6 × 4.3 × 8.3 in.4.1 × 10.8 × 21.1 cm |
| Shipping Weight | 3.44 lbs (1.56 kg) |
