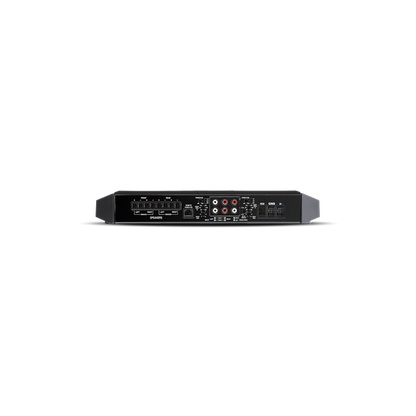

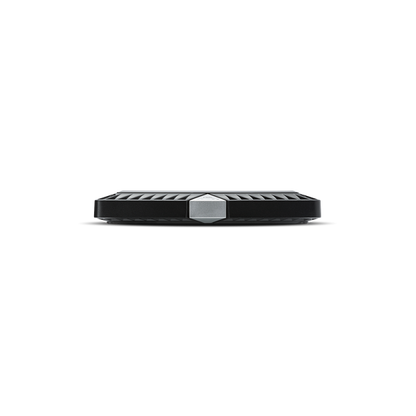

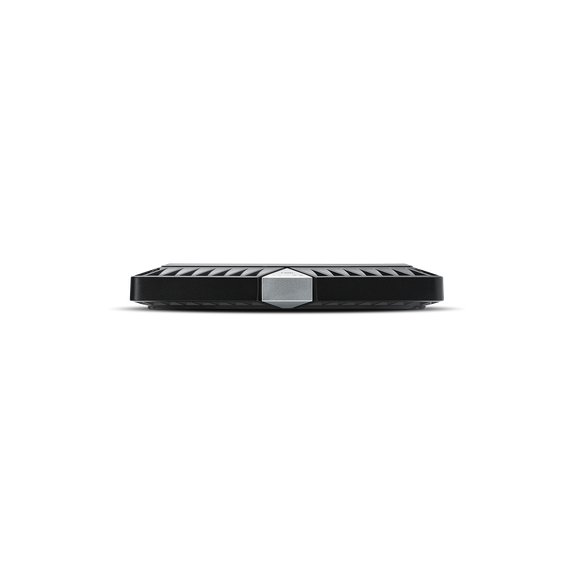

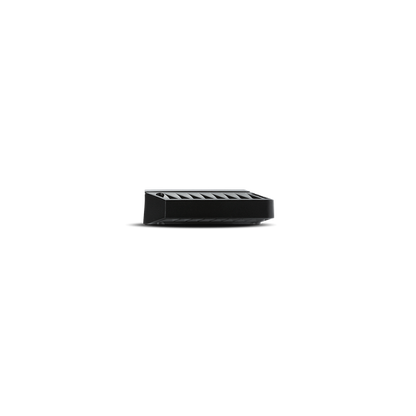

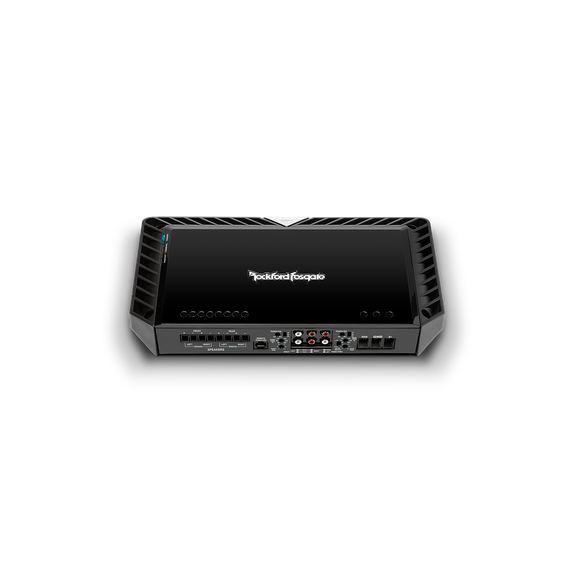

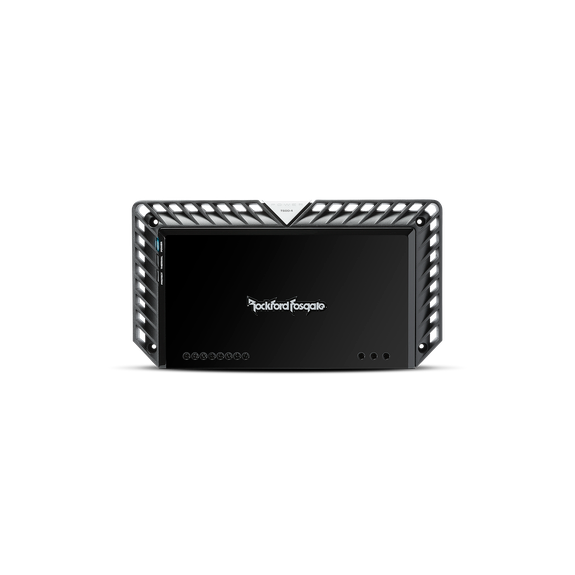

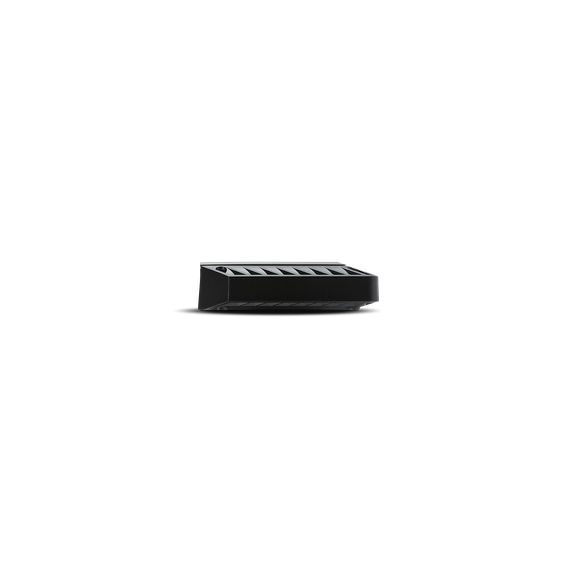

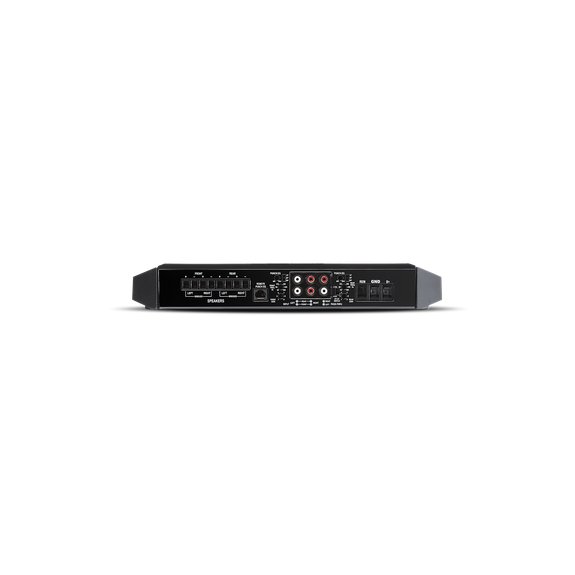

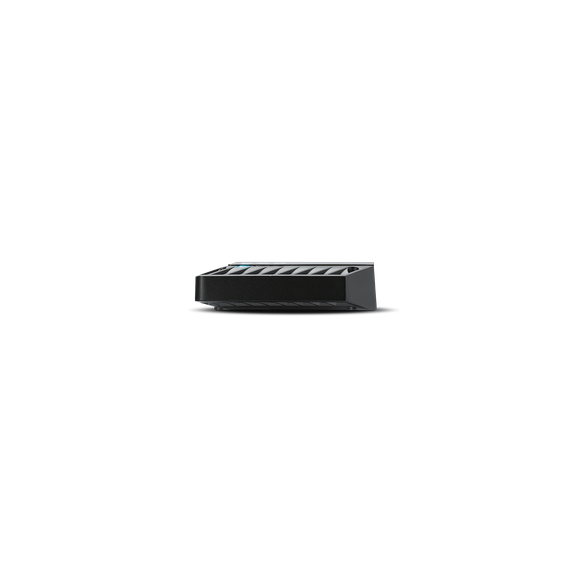

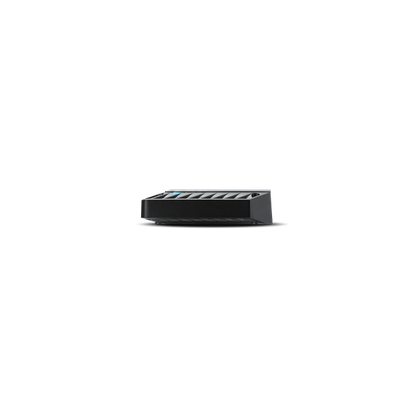

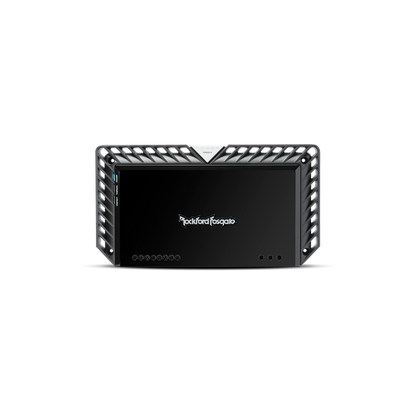

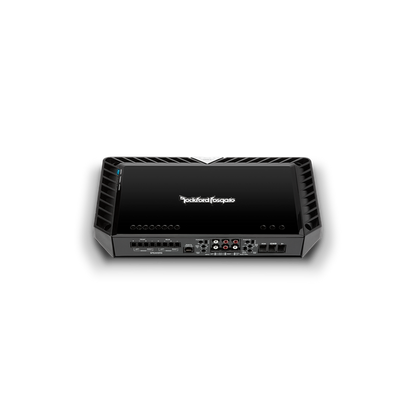

Rockford Fosgate T600-4
Rockford Fosgate T600-4
SKU:T600-4
Regular price
$659.99 USD
Regular price
Sale price
$659.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power 600 Watt 4-Channel Amplifier
The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power (Sum of Rated Power) | 600 Watts RMS |
| Rated Power (RMS Continuous Power) | 100 W × 4 @ 4-Ohm150 W × 4 @ 2-Ohm300 W × 2 @ 4-Ohm Bridged2-Ohm × 2 Bridged Stable |
| Dynamic Power (PVC/PowerCube®) | Front Channels: 139 W × 2 @ 4-Ohm 0° Res; 236 W × 2 @ 2-Ohm 0° ResRear Channels: 140 W × 2 @ 4-Ohm 0° Res; 236 W × 2 @ 2-Ohm 0° Res |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz ±1 dB |
| Input Sensitivity | 150 mV – 4 V |
| Circuit Topology Class | Class A/B |
| Efficiency (Average) | 70% @ 4-Ohm64% @ 2-Ohm |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4-Ohm<1.0% @ 2-Ohm |
| Signal Input | Front Low Level: 1 RCA pairRear Low Level: 1 RCA pairInput Switch: 2CH / 4CH |
| Signal Output | Low Level: 1 RCA pair |
| Tone Controls — Front Channels | Punch EQTreble: 0 dB to +12 dB @ 12 kHzBass: 0 dB to +18 dB @ 45 Hz |
| Tone Controls — Rear Channels | Punch EQTreble: 0 dB to +12 dB @ 12 kHzBass: 0 dB to +18 dB @ 45 Hz |
| Crossover Controls — Front | High-Pass (HP): 50–500 Hz @ 24 dB/octave ButterworthLow-Pass (LP): 50–500 Hz @ 24 dB/octave Butterworth |
| Crossover Controls — Rear | High-Pass (HP): 50–500 Hz @ 24 dB/octave ButterworthLow-Pass (LP): 50–500 Hz @ 24 dB/octave Butterworth |
| Remote Controls | Optional Remote Punch EQ — overrides rear-channel built-in Punch EQ |
| Visual Indicators | PowerThermalProtect |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG – 18 AWG |
| Speaker Output Connector | Screw terminal barrier strip |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 80 A (not included) |
| Average Current Draw (13.8 V Music) | 40 A |
| Maximum Current Draw (13.8 V Sinewave) | 80 A |
| Suggested Alternator | 75 A |
| Included in the Box | Not specified |
| Dimensions (H × W × D) | 2.14 × 8.14 × 14.91 in.5.42 × 20.68 × 37.86 cm |
| Shipping Weight | 12.00 lbs (5.44 kg) |
