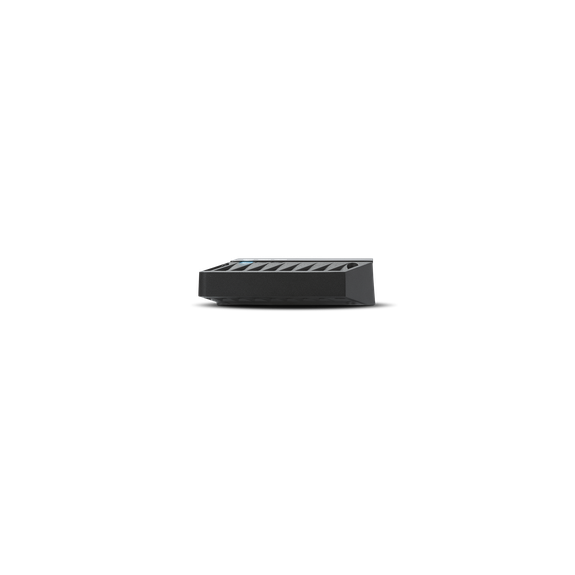

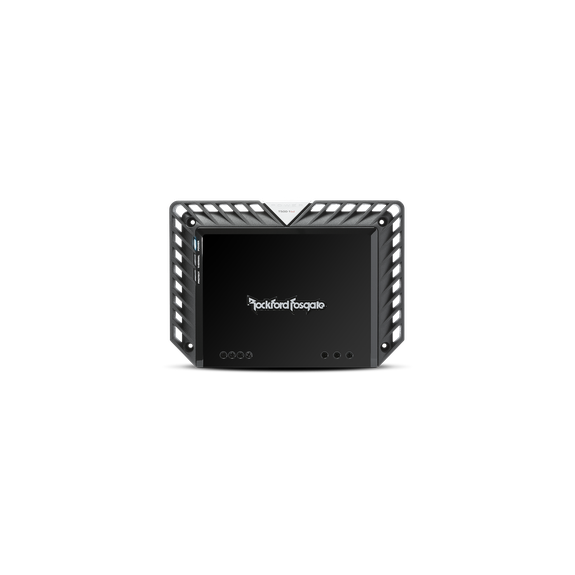

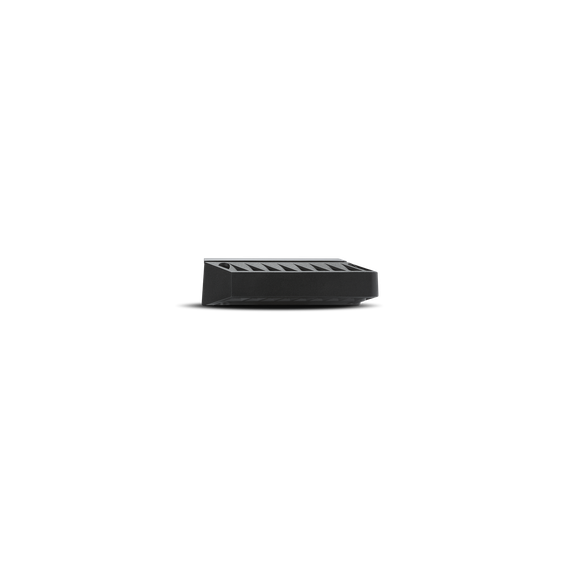

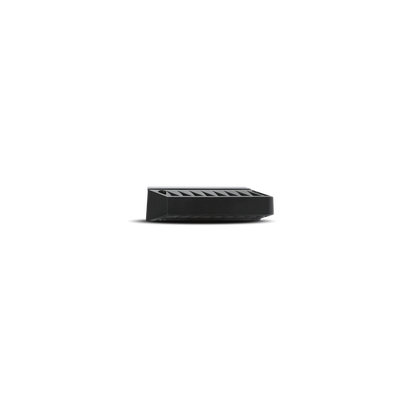

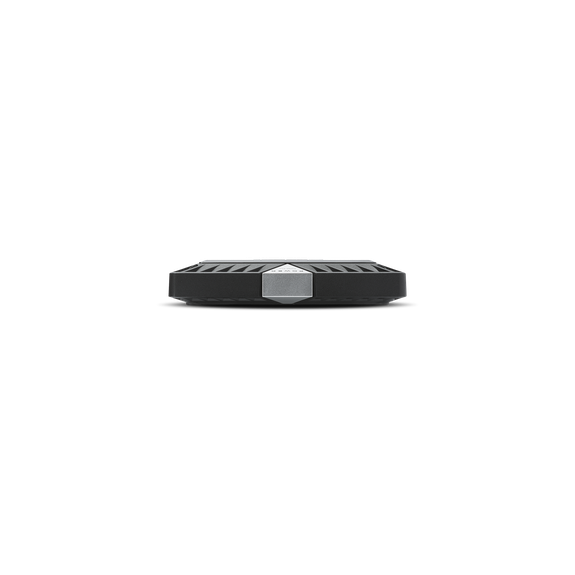

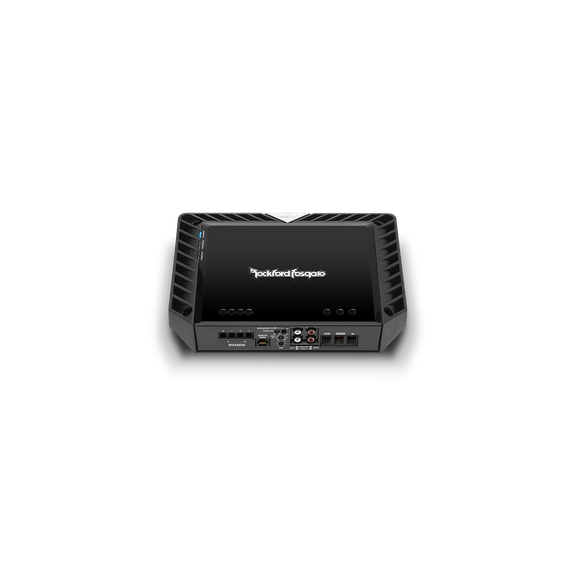

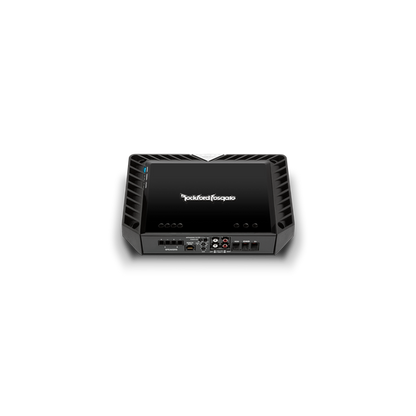

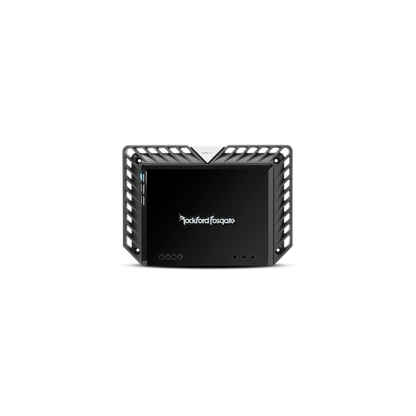

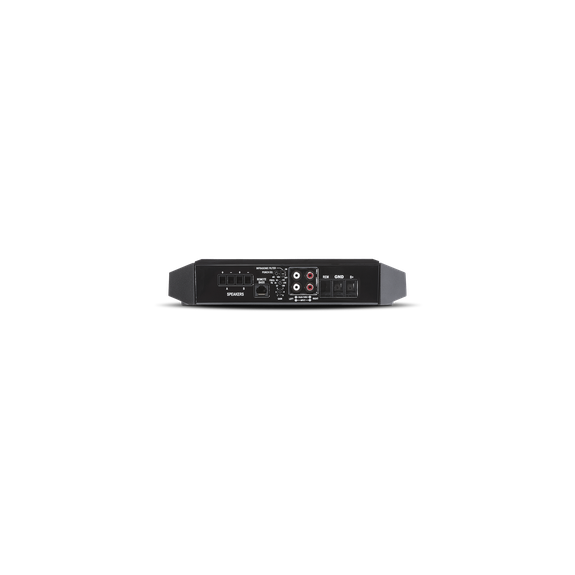

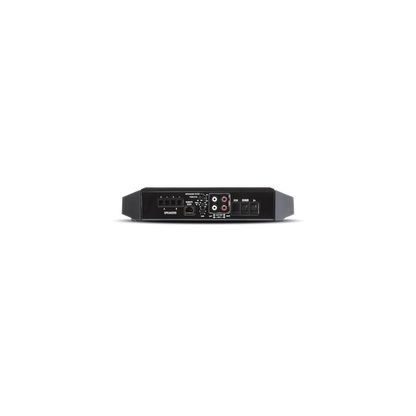

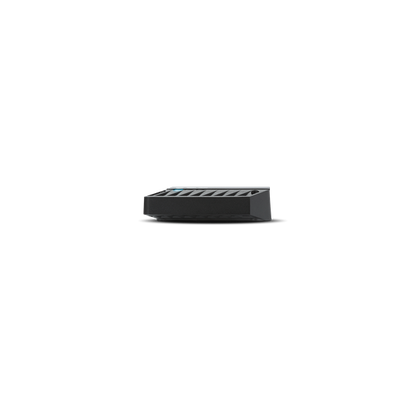

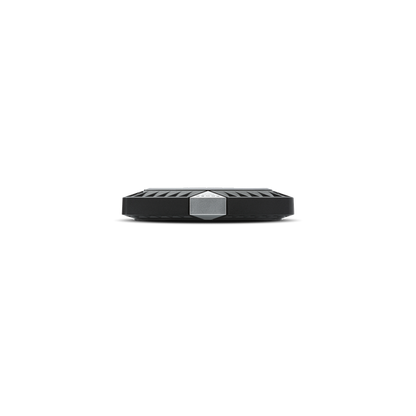

Rockford Fosgate T500-1bdCP
Rockford Fosgate T500-1bdCP
SKU:T500-1BDCP
Regular price
$549.99 USD
Regular price
Sale price
$549.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power 500 Watt Class-bd Constant Power Amplifier
The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 500 Watts RMS |
| Rated Power (RMS Continuous Power) | 300 W × 1 @ 4-Ohm500 W × 1 @ 2-Ohm500 W × 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 328 W × 1 @ 4-Ohm537 W × 1 @ 2-Ohm707 W × 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20 Hz – 250 Hz ±0.5 dB |
| Input Sensitivity | 150 mV – 4 V |
| Circuit Topology Class | Class BD |
| Efficiency (Average) | 86.2% @ 4-Ohm82.3% @ 2-Ohm73.4% @ 1-Ohm |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4-Ohm<1.0% @ 2-Ohm<1.0% @ 1-Ohm |
| Signal Input | Low Level: 1 RCA pair |
| Signal Output | Low Level: 1 RCA pair |
| Tone Controls | Bass: 0 dB to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass (LP): 35–250 Hz @ 24 dB/octave ButterworthInfrasonic Filter: −3 dB @ 28 Hz, 12 dB/octave |
| Remote Controls | Optional Remote Punch Bass EQ(Overrides built-in Punch Bass EQ) |
| Visual Indicators | PowerThermalProtect |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG – 18 AWG |
| Speaker Output Connector | Screw Terminal Barrier Strip |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 80 A (not included) |
| Average Current Draw (13.8 V Music) | 35 A |
| Maximum Current Draw (13.8 V Sinewave) | 70 A |
| Suggested Alternator | 75 A |
| Included in the Box | Not specified |
| Dimensions (H × W × D) | 2.14 × 8.14 × 11.41 in.5.42 × 20.68 × 28.97 cm |
| Shipping Weight | 13.39 lbs (6.07 kg) |
