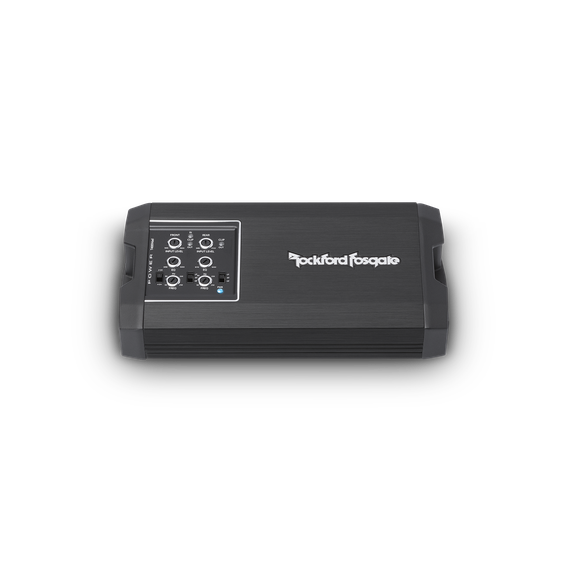

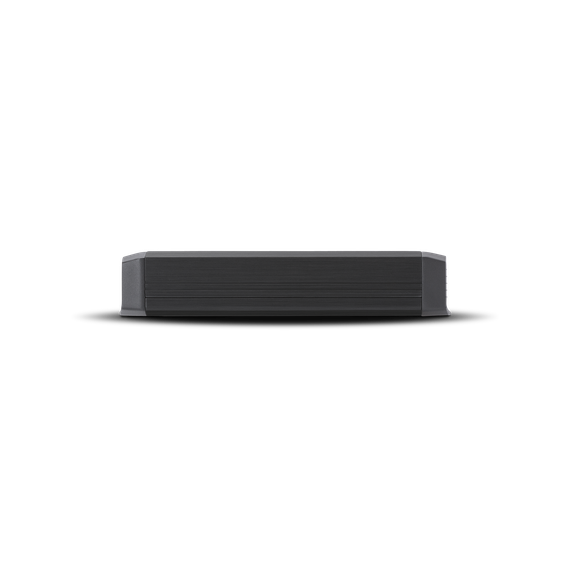

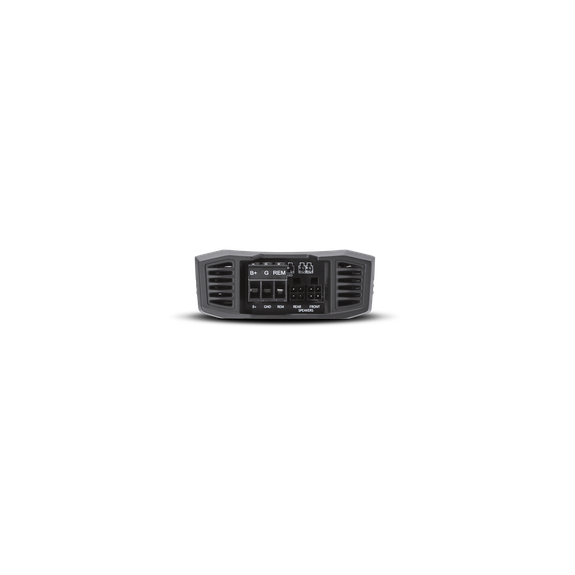

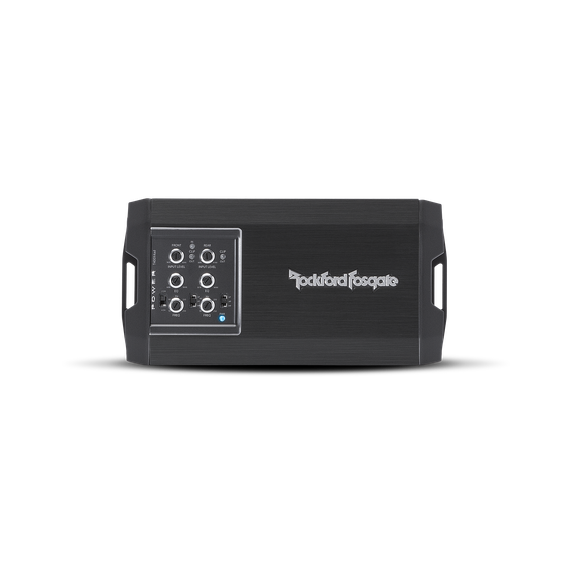

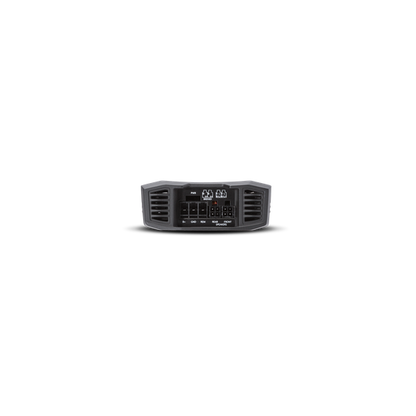

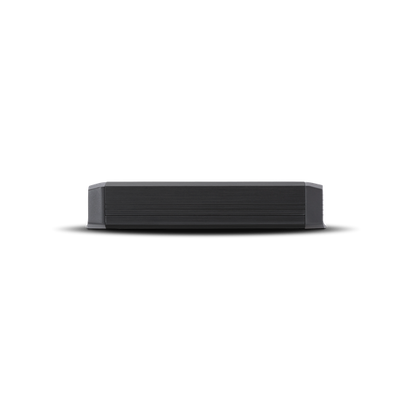

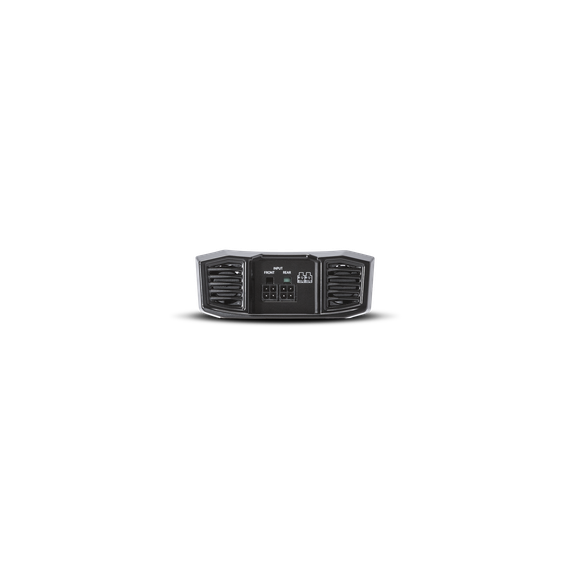

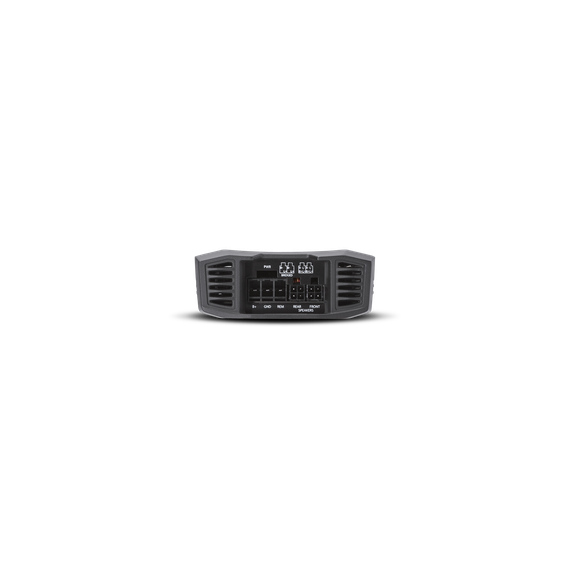

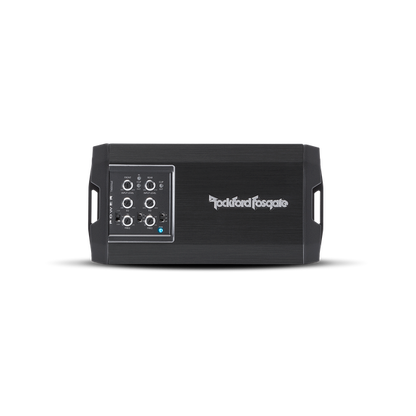

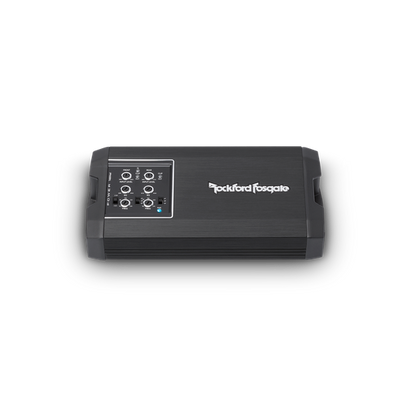

Rockford Fosgate T400X4ad
Rockford Fosgate T400X4ad
SKU:T400X4AD
Regular price
$569.99 USD
Regular price
Sale price
$569.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power 400 Watt Class-ad 4-Channel Amplifier

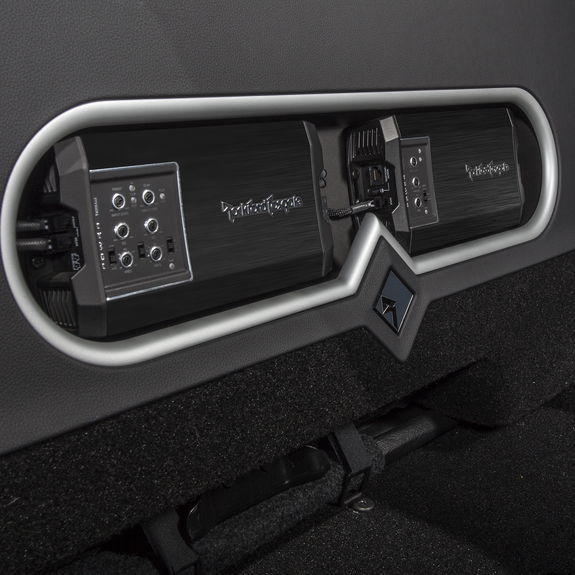

The Power T400X4ad is an ultra-compact, high efficiency 400 Watt 4-channel amplifier. Features multi-impedance Constant Power, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power | 400 Watts |
| Rated Power (RMS Continuous Power) | 100 Watts × 4 @ 4Ω100 Watts × 4 @ 2Ω200 Watts × 2 @ 4Ω Bridged |
| Dynamic Power (PVC/PowerCube®) | 128 Watts × 4 @ 4Ω152 Watts × 4 @ 2Ω290 Watts × 2 @ 4Ω Bridged |
| Bridgeable | YesFront Terminals: Left (+), Right (-)Rear Terminals: Left (+), Right (-) |
| Frequency Response | 20 Hz – 20 kHz ±1 dB |
| Input Sensitivity | 150 mV – 12 V |
| Circuit Topology Class | Class AD |
| Efficiency (Average) | >75% |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |
| Signal Input | Front High/Low Level Input: 4-Pin HarnessRear High/Low Level Input: 4-Pin Harness |
| Signal Output | — |
| Tone Controls | Treble: 0 to +14 dB @ 12.5 kHzBass: 0 to +18 dB @ 45 Hz |
| Crossover Controls | High-Pass: 50–250 Hz @ 12 dB/octave ButterworthLow-Pass: 50–250 Hz @ 12 dB/octave ButterworthAll-Pass: Yes |
| Remote Controls | — |
| Visual Indicators | Power: Blue LEDProtect: Red LEDInput Clip: Red LED³Output Clip: Blue/Violet/Red LED¹,²,³LED Color Legend:¹ BLUE: <0.5% THD² VIOLET: 1% THD³ RED: 10%+ THD |
| Power Wire Gauge | 8 AWG |
| Power Input Connector | Detachable Compression Terminal |
| Speaker Wire Gauge | 16 AWG |
| Speaker Output Connector | Front: 4-Pin HarnessRear: 4-Pin Harness |
| Cooling | Dual Fan Cooled |
| Heatsink | Extruded Aluminum |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 60 A |
| Average Current Draw (13.8 V Music) | 28 A |
| Max. Current Draw (13.8 V Sinewave) | 55 A |
| Suggested Alternator | 75 A |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.6 × 4.3 × 8.3 in4.1 × 10.8 × 21.1 cm |
| Shipping Weight | 3.4 lbs (1.54 kg) |
