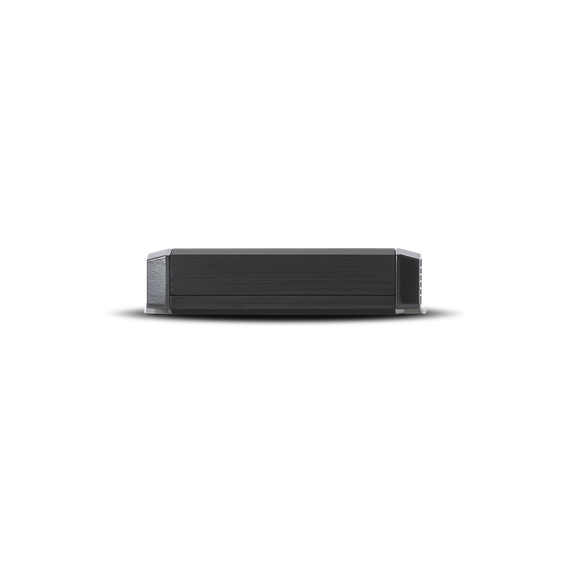

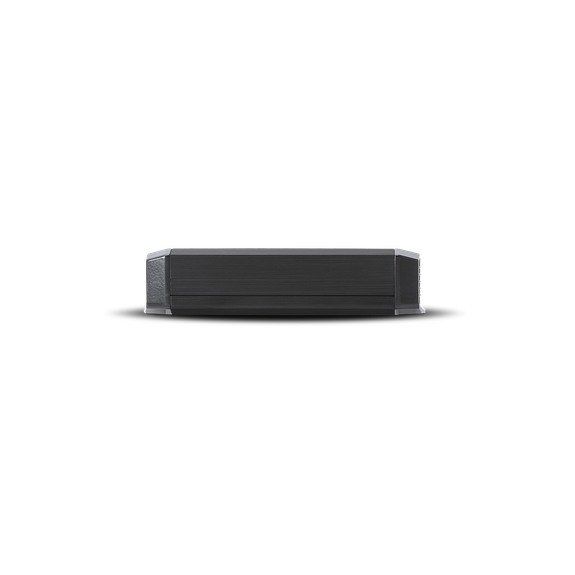

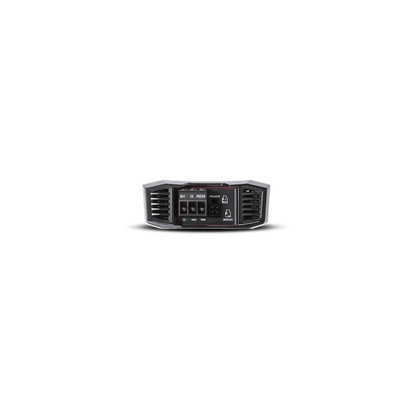

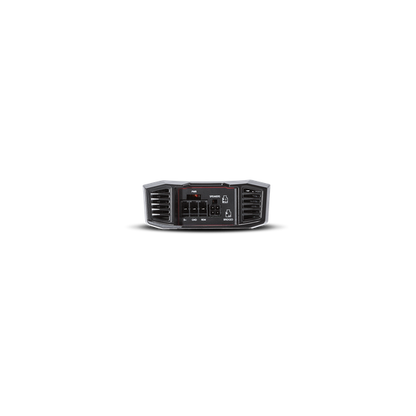

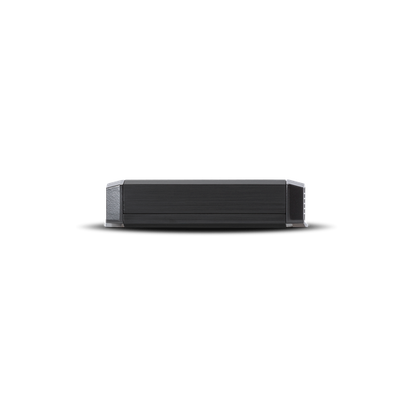

Rockford Fosgate T400X2ad.
Rockford Fosgate T400X2ad.
SKU:T400X2AD
Regular price
$459.99 USD
Regular price
Sale price
$459.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power 400 Watt Class-AD 2-Channel Amplifier

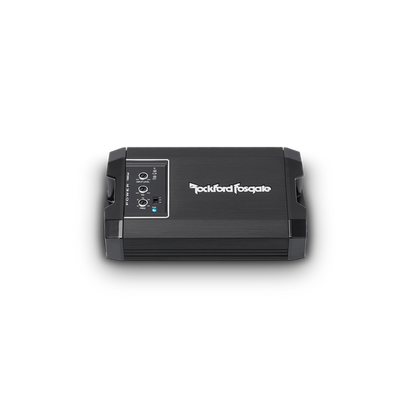

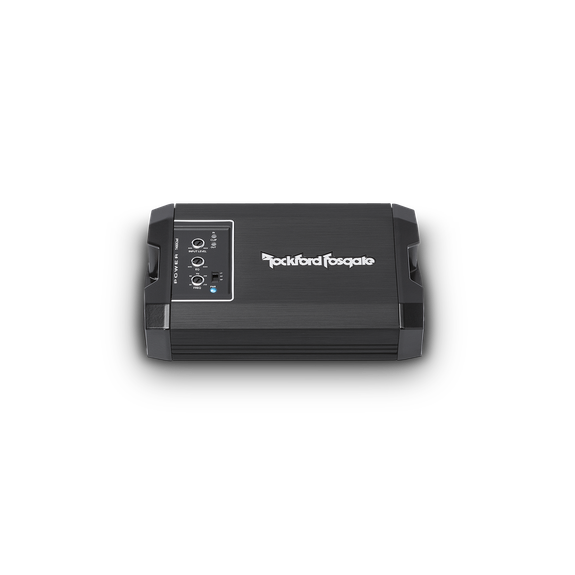

The Power T400X2ad is an ultra-compact, high efficiency 400 Watt stereo amplifier. Features multi-impedance Constant Power, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 2 |
| Total Power | 400 Watts |
| Rated Power | 200 W × 2 @ 4 Ω200 W × 2 @ 2 Ω400 W × 1 @ 4 Ω Bridged |
| Dynamic Power | 223 W × 2 @ 4 Ω248 W × 2 @ 2 Ω449 W × 1 @ 4 Ω Bridged |
| Bridgeable | YesTerminals: Left (+), Right (−) |
| Frequency Response | 20 Hz–20 kHz ±1 dB |
| Input Sensitivity | 150 mV–12 V |
| Circuit Topology Class | Class AD |
| Efficiency (Average) | >75% |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4 Ω<1.0% @ 2 Ω |

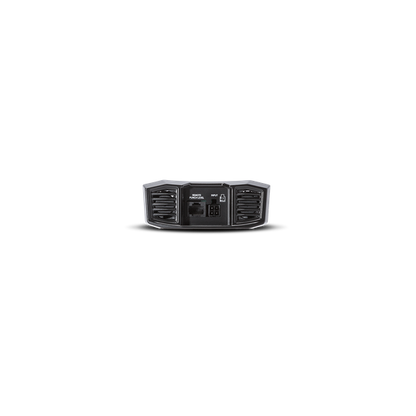

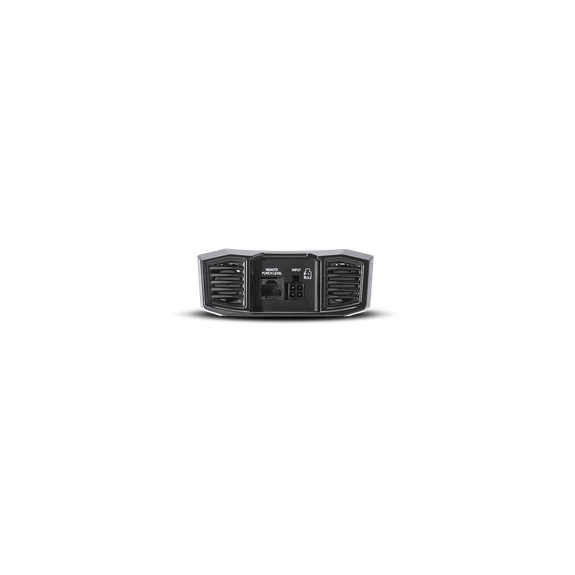

| Signal Input | High/Low Level Input: 4-Pin Harness |
| Signal Output | — |
| Tone Controls | Treble: 0 to +14 dB @ 12.5 kHzBass: 0 to +18 dB @ 45 Hz |
| Crossover Controls | High-Pass: 50–250 Hz @ 12 dB/octave ButterworthLow-Pass: 50–250 Hz @ 12 dB/octave ButterworthAll-Pass: Yes |
| Remote Controls | Optional PLC2 provides Punch Level Control |
| Visual Indicators | Power: Blue LEDProtect: Red LEDInput Clip: Red LEDOutput Clip: Blue/Violet/Red LEDBlue: <0.5% THD · Violet: 1% THD · Red: 10%+ THD |
| Power Wire Gauge | 8 AWG |

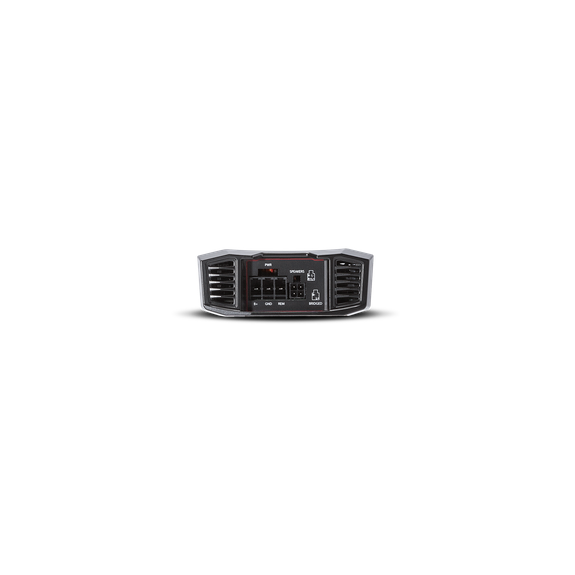

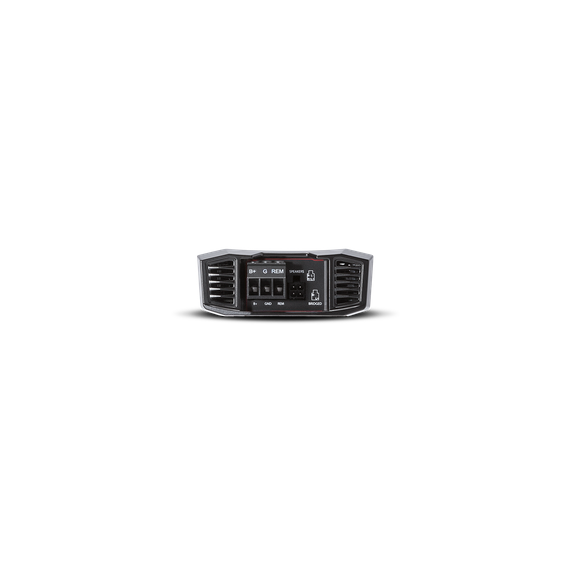

| Power Input Connector | Detachable Compression Terminal |
| Speaker Wire Gauge | 16 AWG |
| Speaker Output Connector | 4-Pin Harness |
| Cooling | Dual Fan Cooled |
| Heatsink | — |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 60 A (Not Included) |
| Average Current Draw (13.8 V Music) | 23 A |
| Max. Current Draw (13.8 V Sinewave) | 45 A |
| Suggested Alternator | 75 A |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.6 × 4.3 × 7 in4.1 × 10.8 × 17.8 cm |
| Shipping Weight | 2.9 lb (1.31 kg) |
