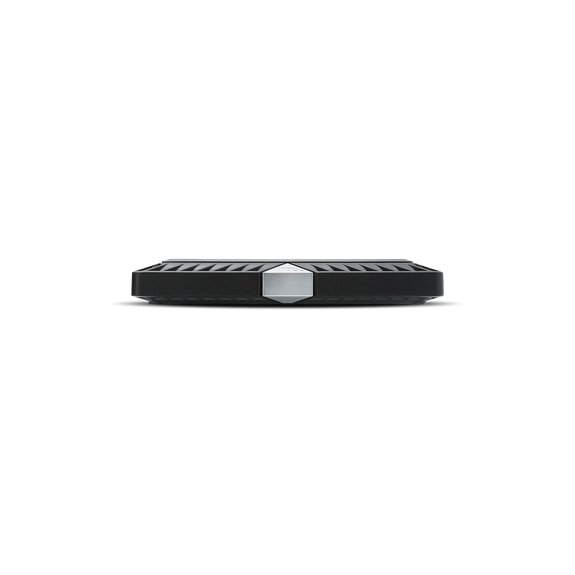

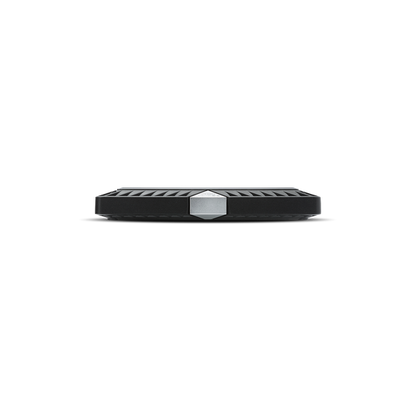

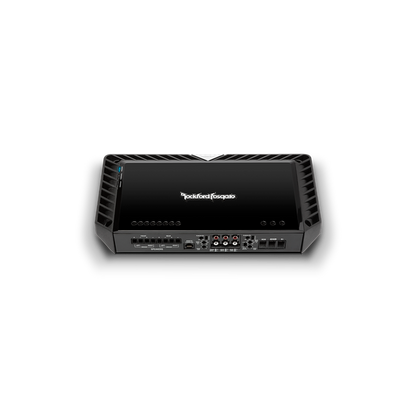

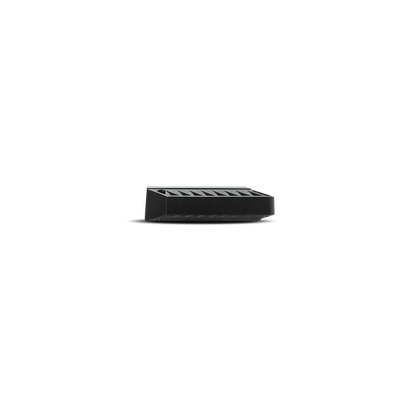

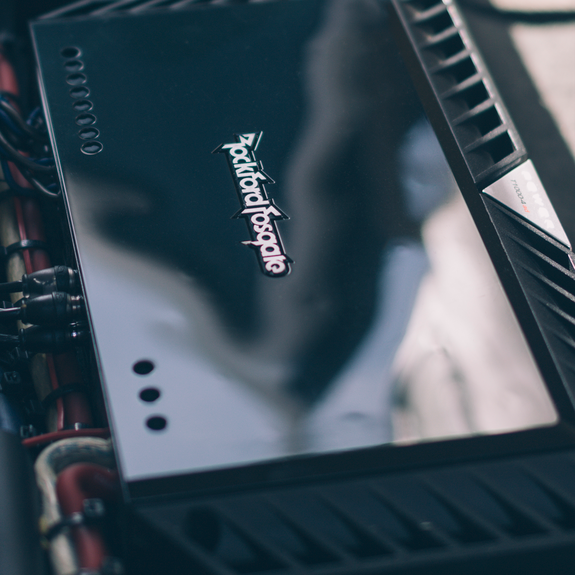

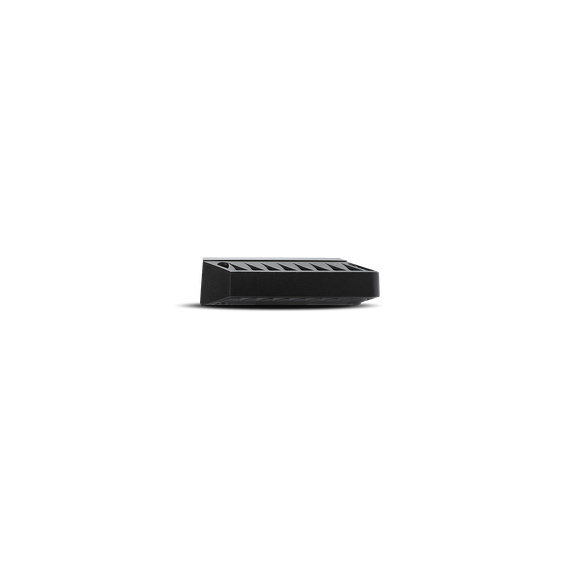

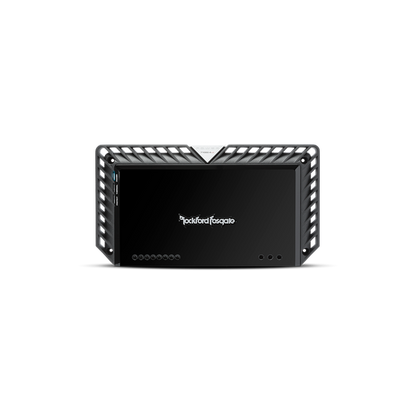

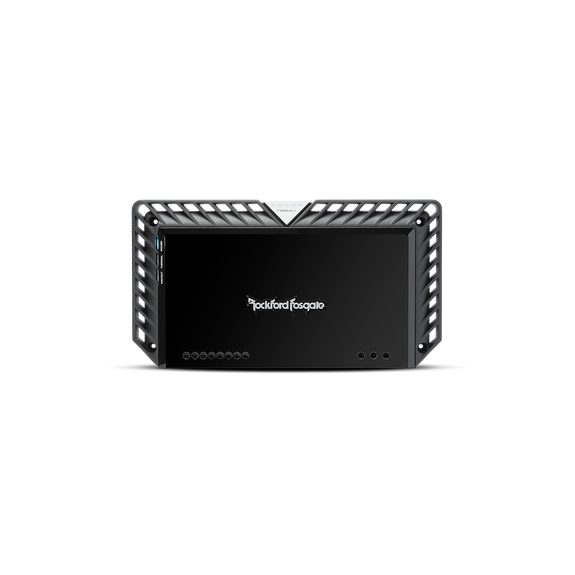

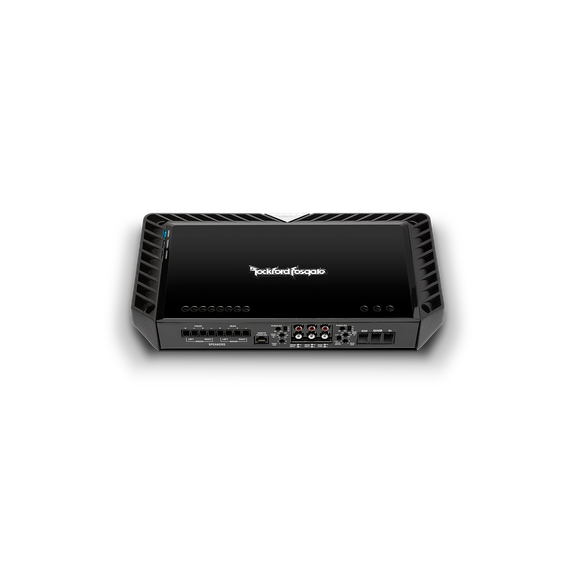

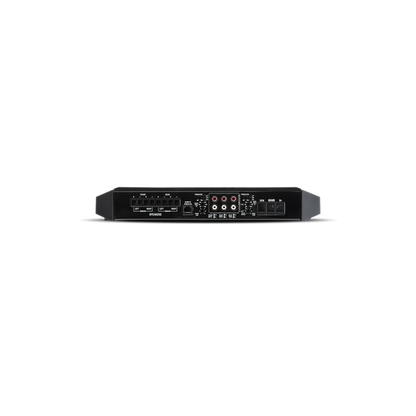

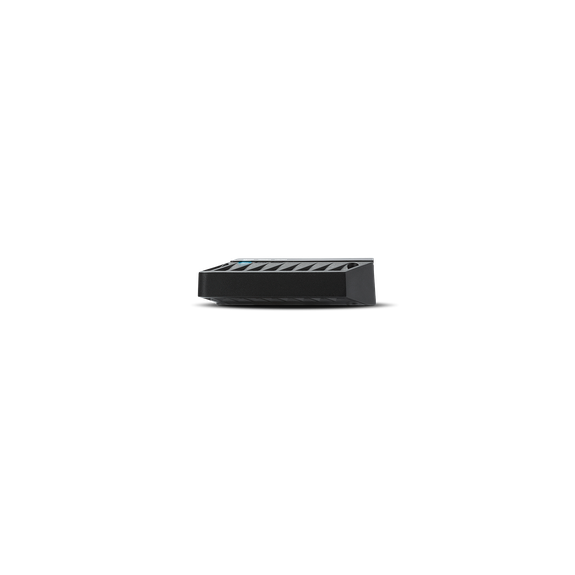

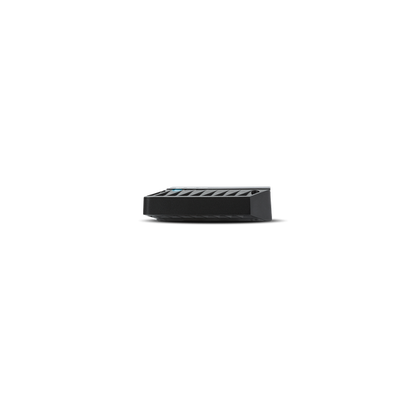

Rockford Fosgate T1000-4AD
Rockford Fosgate T1000-4AD
SKU:T1000-4AD
Regular price
$1,099.99 USD
Regular price
Sale price
$1,099.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power 1,000 Watt Class-ad Full-Range 4-Channel Amplifier
The T1000-4AD is a high-performance 4-channel car amplifier designed to deliver powerful and clean audio output. With a Class-AD design and Constant Power technology, it ensures efficient power delivery and minimal distortion. The amplifier features a Dynamic Thermal Management cooling system, which utilizes forced air to dissipate heat evenly across the amp and out through the large heatsinks, resulting in cooler internal components and higher efficiency.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power (Sum of Rated Power) | 1000 Watts RMS |
| Rated Power (RMS Continuous Power) | 250 W × 4 @ 4-Ohm250 W × 4 @ 2-Ohm250 W × 4 @ 1-Ohm500 W × 2 @ 4-Ohm Bridged500 W × 2 @ 2-Ohm Bridged |
| Dynamic Power (PVC/PowerCube®) | 270 W × 4 @ 4-Ohm 0° Res327 W × 4 @ 2-Ohm 0° Res365 W × 4 @ 1-Ohm 0° Res619 W × 2 @ 4-Ohm Bridged654 W × 2 @ 2-Ohm Bridged |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz ±1 dB |
| Input Sensitivity | 150 mV – 5 V |
| Circuit Topology Class | Class AD |
| Efficiency (Average) | 84.1% @ 4-Ohm81.6% @ 2-Ohm81% @ 1-Ohm |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4-Ohm<1.0% @ 2-Ohm |

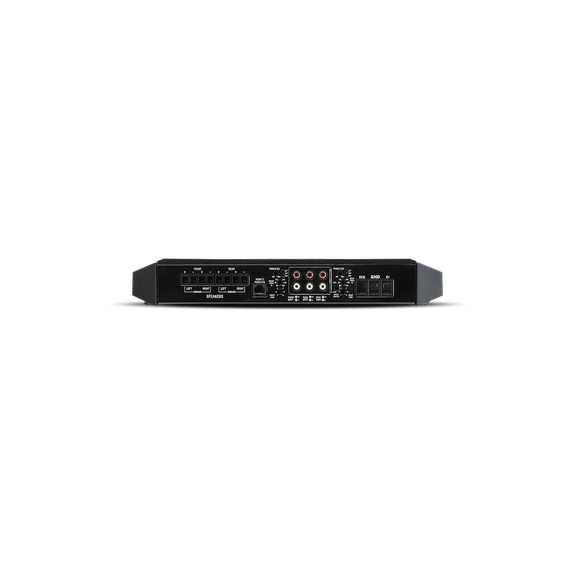

| Signal Input | Front Channels: 1 RCA pairRear Channels: 1 RCA pairInput Switch: 2CH / 4CH |
| Signal Output | 1 RCA pair |
| Tone Controls — Front Channels | Treble: 0 dB to +12 dB @ 12 kHzBass: 0 dB to +18 dB @ 45 Hz |
| Tone Controls — Rear Channels | Treble: 0 dB to +12 dB @ 12 kHzBass: 0 dB to +18 dB @ 45 HzFunction depends upon crossover setting (LP/AP/HP) |
| Crossover Controls — Front Channels | High-Pass (HP): 50 Hz – 500 Hz @ 24 dB/octave ButterworthLow-Pass (LP): 50 Hz – 500 Hz @ 24 dB/octave Butterworth |
| Crossover Controls — Rear Channels | High-Pass (HP): 50 Hz – 500 Hz @ 24 dB/octave ButterworthLow-Pass (LP): 50 Hz – 500 Hz @ 24 dB/octave Butterworth |
| Remote Controls | Optional Remote PEQ — overrides rear-channel built-in Punch EQ |
| Visual Indicators | Power: Blue LEDThermal: Red LEDProtect: Yellow LED |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG – 16 AWG |
| Speaker Output Connector | Block |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 150 A (not included) |
| Average Current Draw (13.8 V Music) | 60 A |
| Maximum Current Draw (13.8 V Sinewave) | 120 A |
| Suggested Alternator | 75 A |
| Included in the Box | Not specified |
| Dimensions (H × W × D) | 2.14 × 8.14 × 14.91 in5.42 × 20.68 × 37.86 cm |
| Shipping Weight | 14.45 lbs (6.55 kg) |
