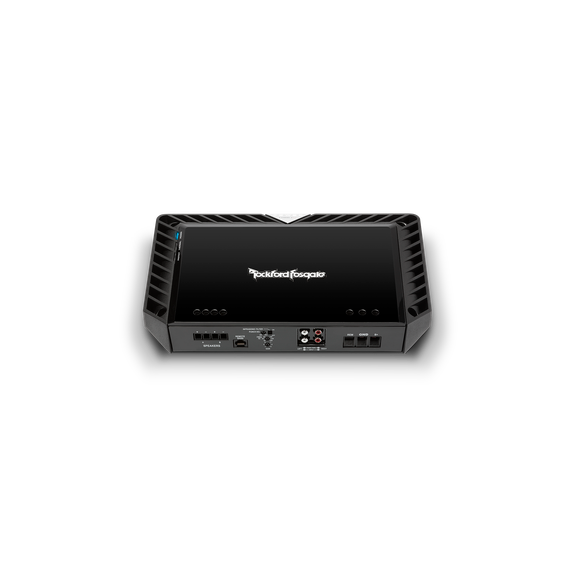

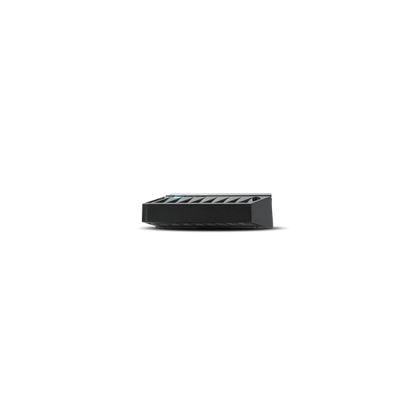

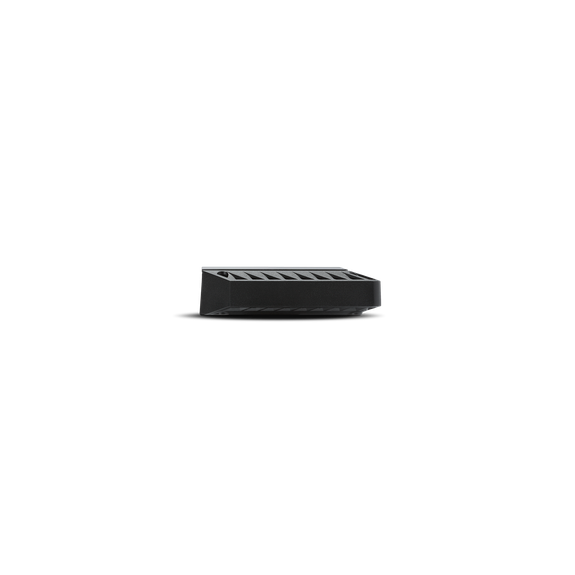

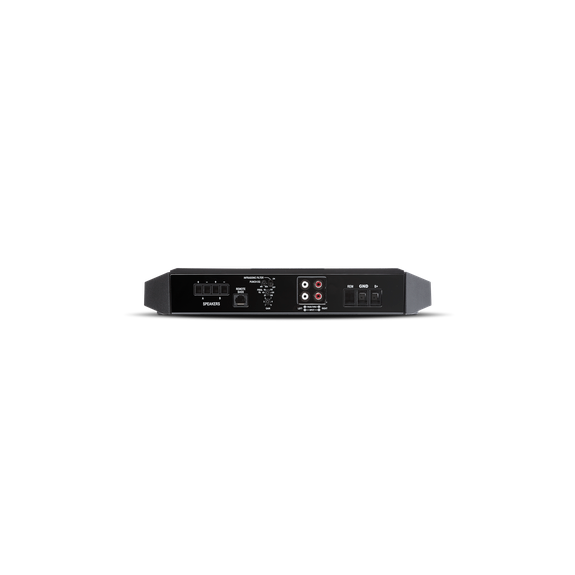

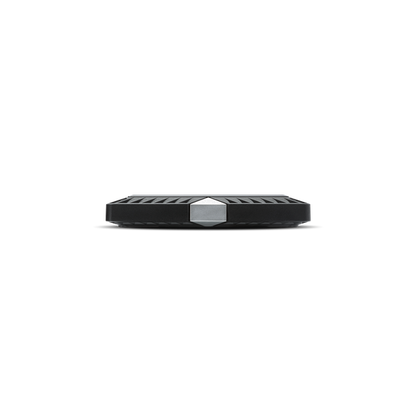

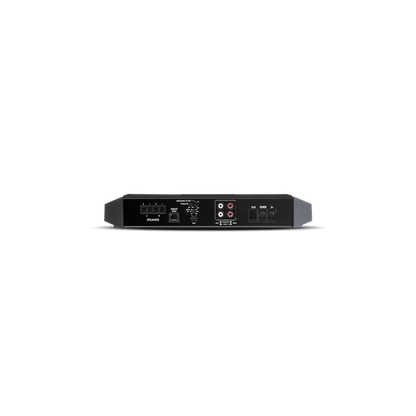

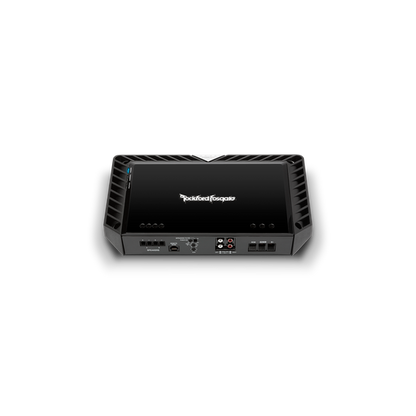

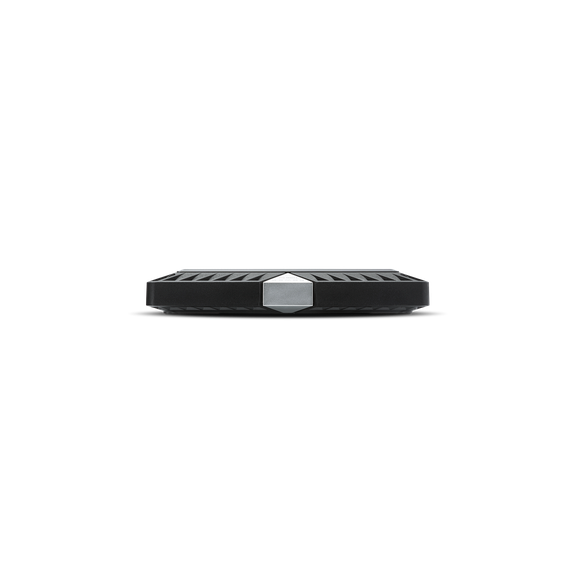

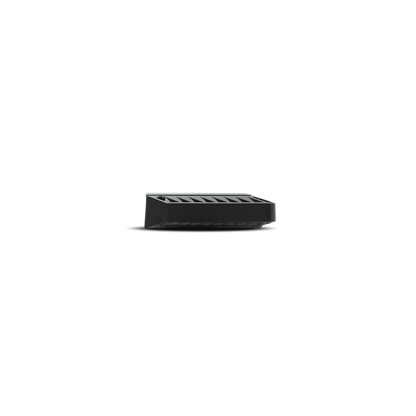

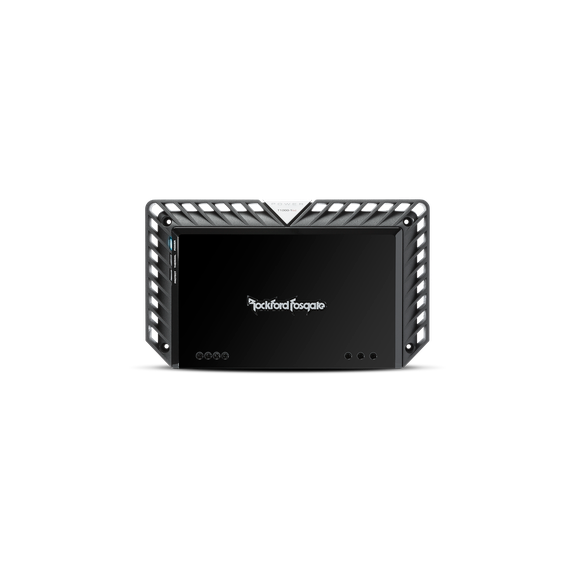

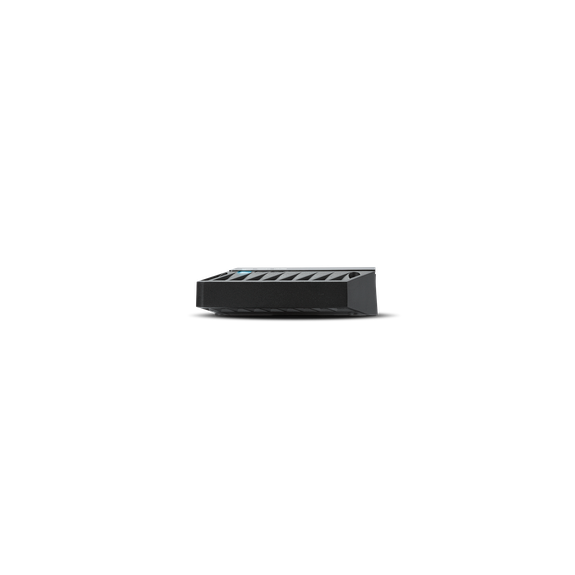

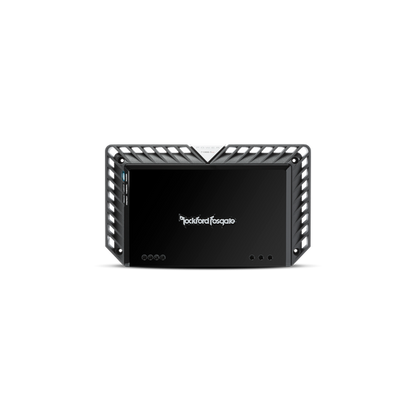

Rockford Fosgate T1000-1bdCP
Rockford Fosgate T1000-1bdCP
SKU:T1000-1BDCP
Regular price
$659.99 USD
Regular price
Sale price
$659.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Power 1,000 Watt Class-bd Constant Power Amplifier
The T1000‑1BDCP is a powerful mono subwoofer amplifier built for strong bass performance. It delivers 1,000 watts RMS with stability down to 1-ohm loads, thanks to its class‑BD topology and Constant Power design. It features MOSFET power & output stages, dynamic thermal management, and versatile tuning controls (low-pass, subsonic filters, bass boost) so you can fine‑tune it for any subwoofer setup.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 1000 Watts RMS |
| Rated Power (RMS Continuous Power) | 700 W × 1 @ 4-Ohm1000 W × 1 @ 2-Ohm1000 W × 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 772 W × 1 @ 4-Ohm1299 W × 1 @ 2-Ohm1395 W × 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20 Hz – 250 Hz ±0.5 dB |
| Input Sensitivity | 150 mV – 4 V |
| Circuit Topology Class | Class BD |
| Efficiency (Average) | 85.6% @ 4-Ohm82.1% @ 2-Ohm70% @ 1-Ohm |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4-Ohm<1.0% @ 2-Ohm<1.0% @ 1-Ohm |
| Signal Input | 1 RCA pair |
| Signal Output | 1 RCA pair |
| Tone Controls | Bass: 0 dB to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass (LP): 35–250 Hz @ 24 dB/octave ButterworthInfrasonic: 12 dB/octave Butterworth, −3 dB @ 28 Hz |
| Remote Controls | Optional Remote PEQ — overrides built-in Punch Bass |
| Visual Indicators | Power: Blue LEDThermal: Red LEDProtect: Yellow LED |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Block |
| Speaker Wire Gauge | 8 AWG – 18 AWG |
| Speaker Output Connector | Block |
| Cooling | Convection |
| Heatsink | Yes |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 150 A (not included) |
| Average Current Draw (13.8 V Music) | 70 A |
| Maximum Current Draw (13.8 V Sinewave) | 140 A |
| Suggested Alternator | 100 A |
| Included in the Box | Not specified |
| Dimensions (H × W × D) | 2.14 × 8.14 × 13.66 in.5.44 × 20.68 × 34.69 cm |
| Shipping Weight | 12.2 lbs (5.53 kg) |
