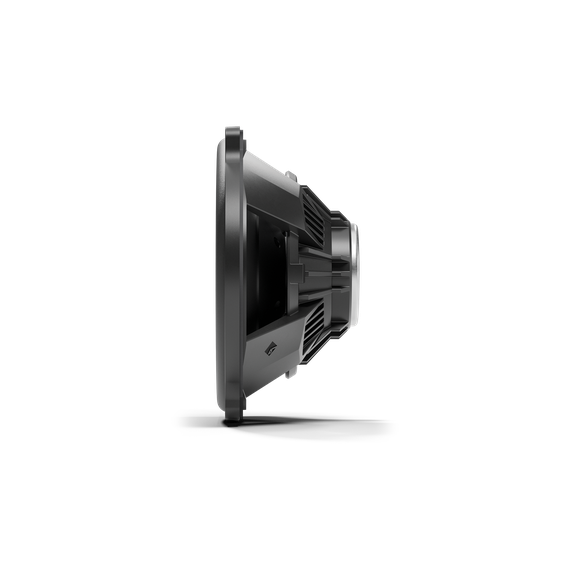

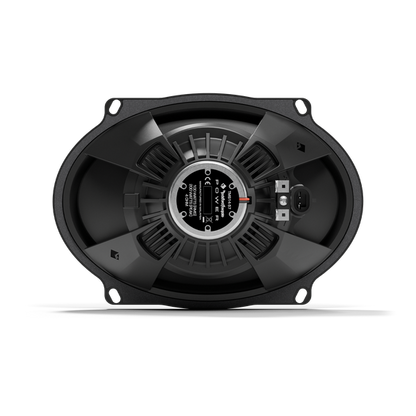

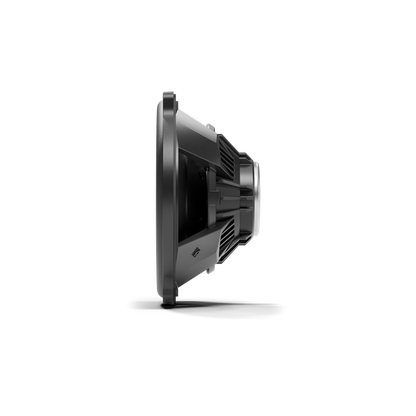

Rockford Fosgate TMS14-57
Rockford Fosgate TMS14-57
SKU:TMS14-57
Couldn't load pickup availability

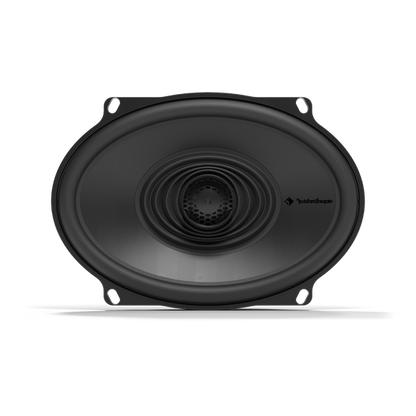

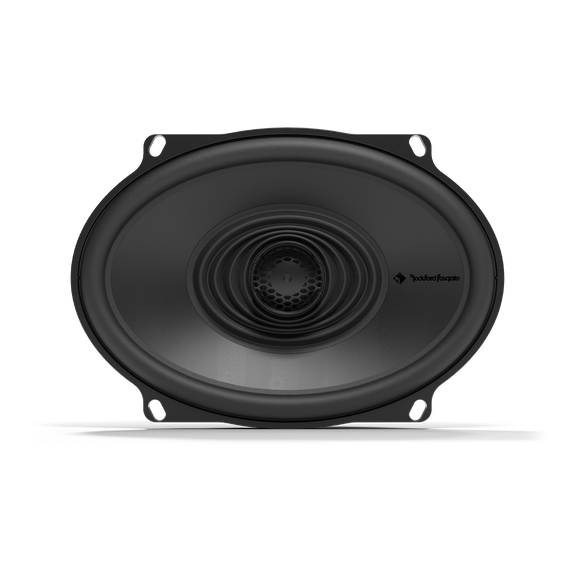

5x7” 2-Way Speakers for 2014-2020 Harley-Davidson Speaker Lids (Gen-2)
The next generation of TMS motorcycle speakers revolutionizes on-bike audio with unparalleled sound quality. Engineered for the ultimate listening experience, they deliver a perfectly balanced sound profile, enhanced mids, powerful bass, and ultra-clear highs. Crafted from premium materials, these speakers set a new standard for performance, durability and reliability for the motorcycle environment.
PURPOSE-BUILT FOR CVO

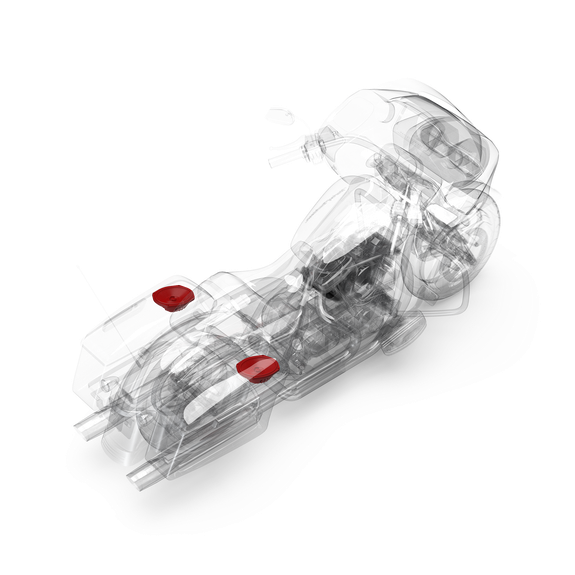

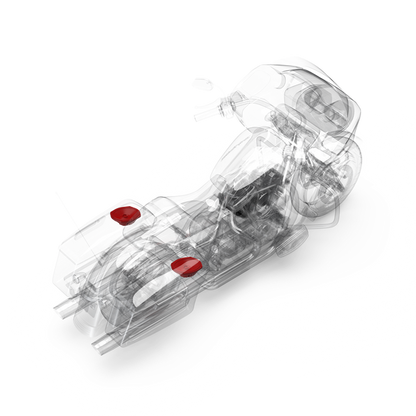

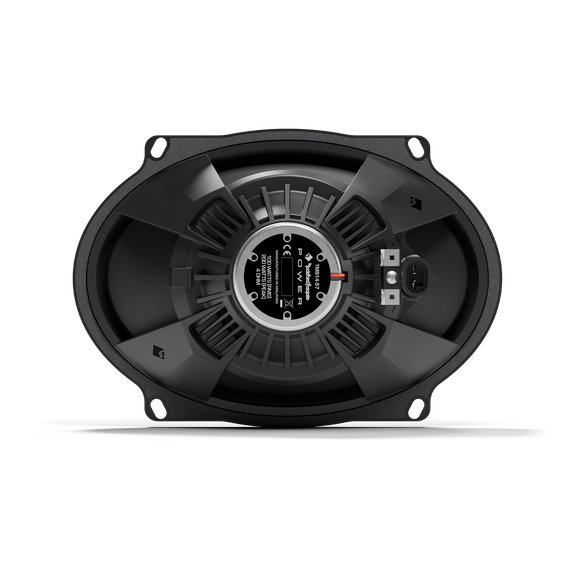

The TMS14-57 is designed to be sold with the Rockford Fosgate HD14-STG2 audio kit for fitment on 2014-2020 Harley-Davidson® motorcycles with CVO speaker lids. This updated version features an extended low-end response and a new radiator ring to more efficiently dissipate heat.

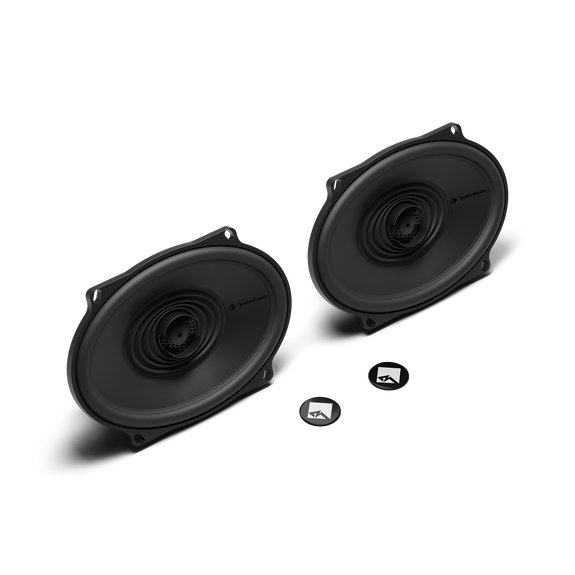

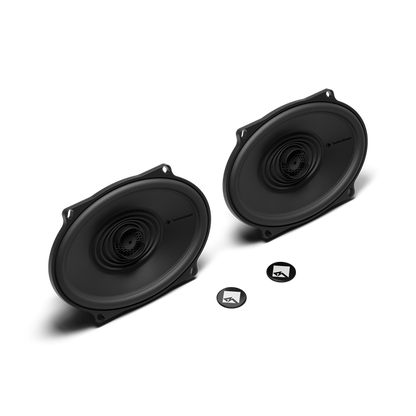

INCLUDED ITEMS:

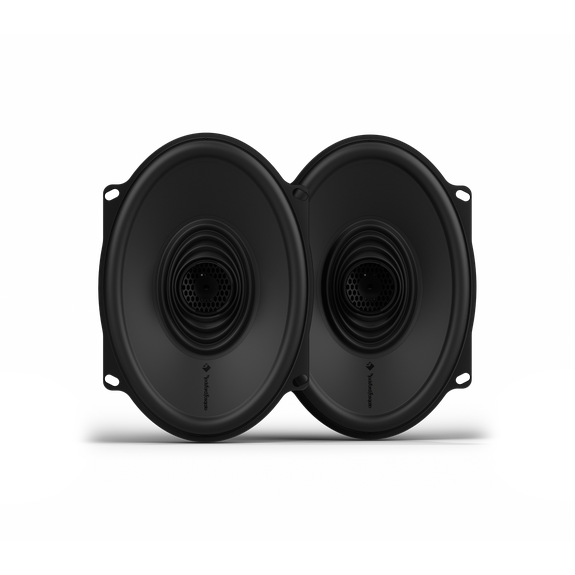

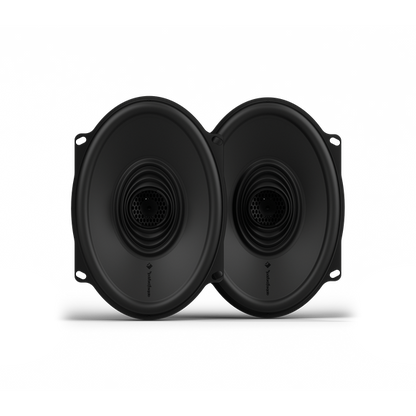

• (2) 5x7" Speakers
• (2) Diamond-R Badges
Specification
| Specification | Details |
|---|---|
| CEA-2031 Compliant | Yes |
| Midrange Size (Nominal Diameter) | 5" × 7" |
| Speaker Type | 2-Way |
| Nominal Impedance (Ohms) | 4Ω |
| Frequency Response (Hz) | 50 Hz – 20 kHz |
| Voice Coil Diameter (in/mm) | 1.5" (38.6 mm) |
| Power Handling (RMS/Peak) | 100 Watts RMS200 Watts Peak |
| Fs (Free Air Resonance) | 73 Hz |
| Qts | 0.7 |
| Vas (cu. ft. / Liters) | 0.22 cu. ft. (6.1 Liters) |
| Sensitivity (dB @ 1W/1M) | 89.8 dB |
| Sensitivity (dB @ 2.83V/1m) | 92.8 dB |
| XMax (in/mm) | 2.5 mm |
| Tweeter Crossover | 4 kHz @ 12 dB/Octave |
| Midrange Mounting Depth | 2.2" (56 mm) |
| Mounting Hardware | No |
| Grille/Trim Ring Included | No |
| Included In The Box | (2) TMS14-57 Speakers(2) Aluminum Diamond-R Badges |
| Shipping Weight | 2.9 Lbs. (1.3 Kg) |
