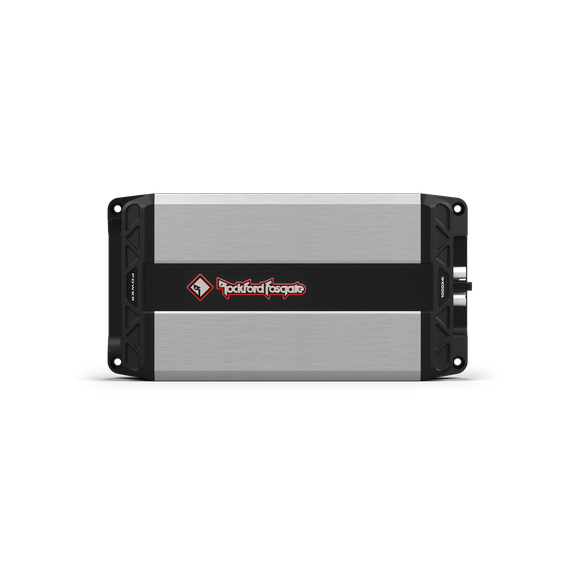

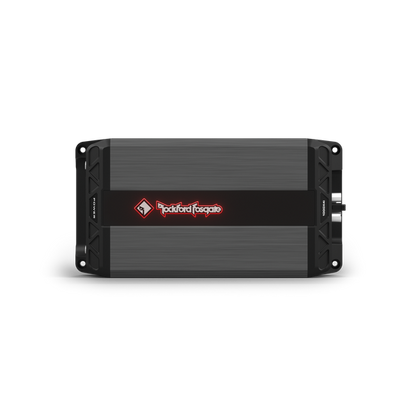

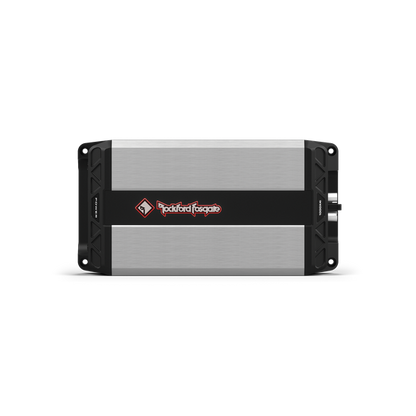

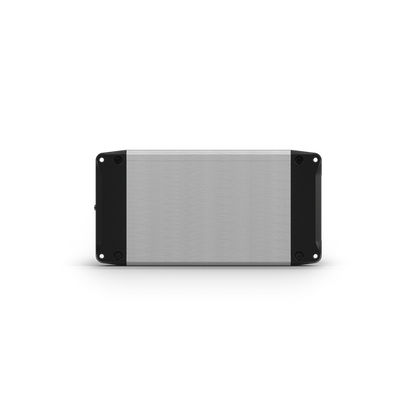

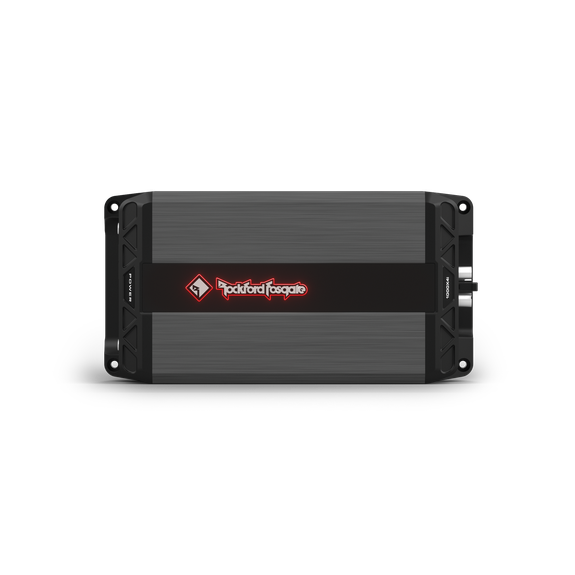

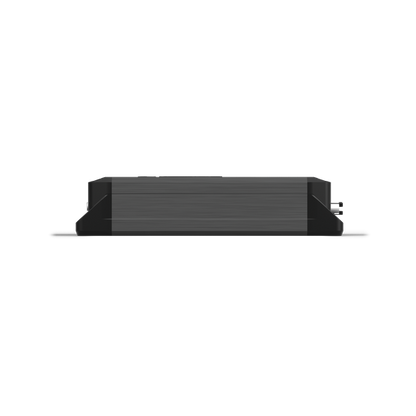

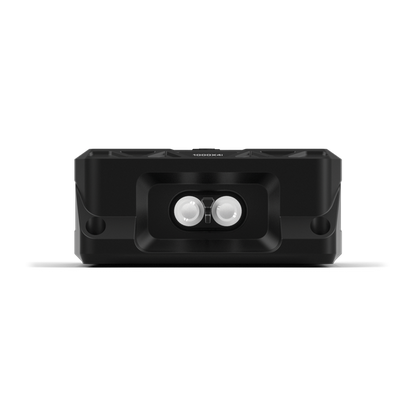

Rockford Fosgate TMA-1000X4i
Rockford Fosgate TMA-1000X4i
SKU:TMA-1000X4i
Couldn't load pickup availability

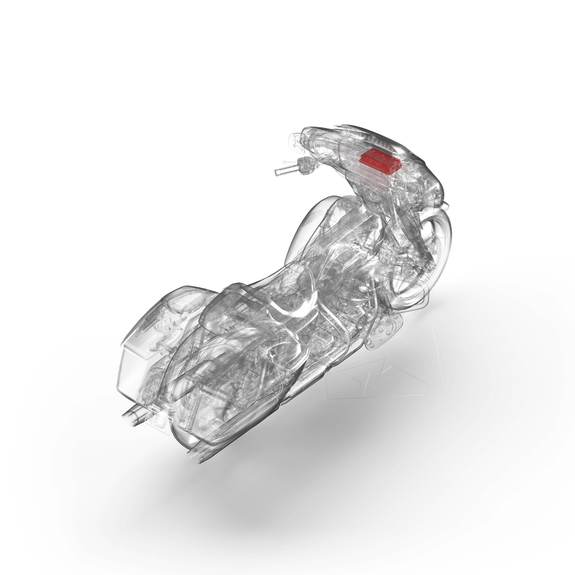

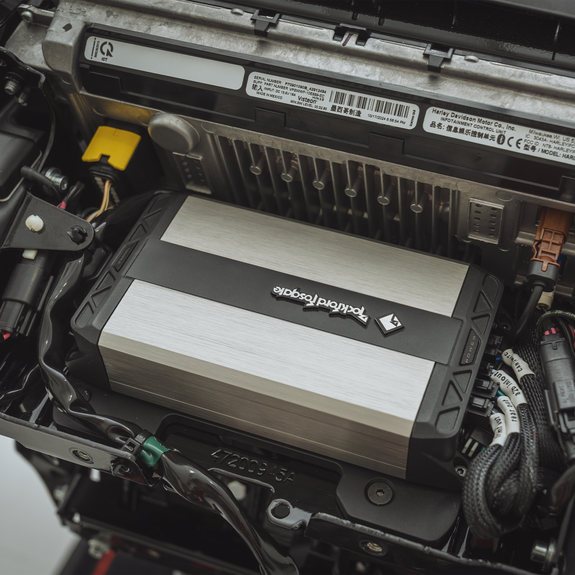

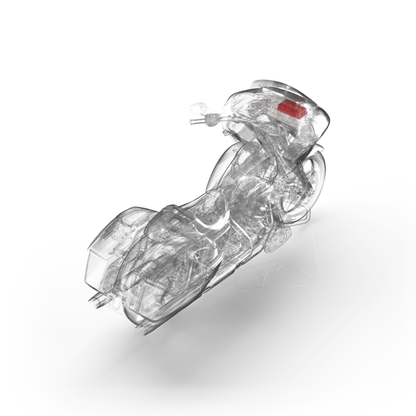

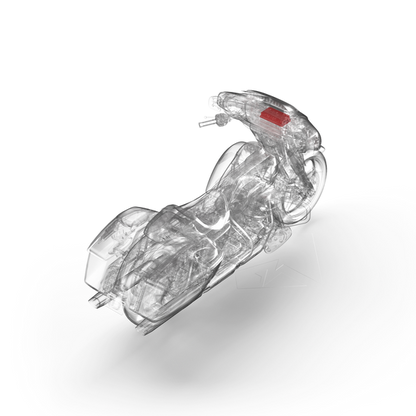

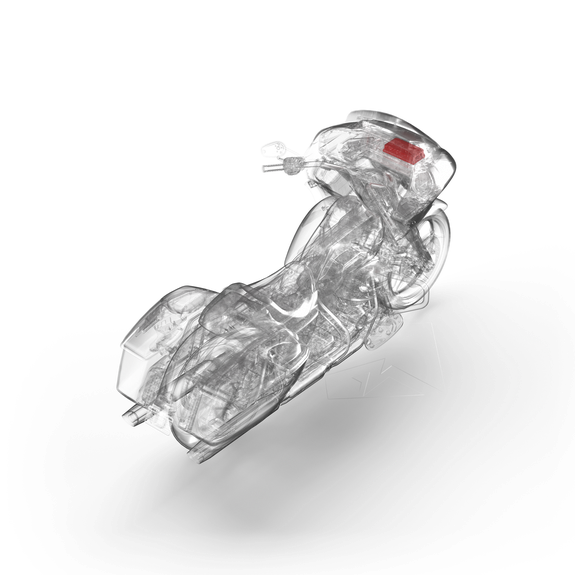

Digital 1,000 Watt 4-Channel IPX4 Amplifier for 2024+ Harley-Davidson®
Introducing the all-new TMA-1000x4i Digital Amplifier, where uncompromising precision meets relentless power. Engineered exclusively for 2024 and newer Harley-Davidson® motorcycles equipped with Skyline® OS, this amplifier redefines motorcycle audio performance. Packing 1,000 watts of power into a compact, Element-Ready™ chassis, the TMA-1000x4i is built to dominate on the open road. No radio flashing. No hassle. Just seamless integration, Bluetooth® connectivity, and refined output. This amplifier is only sold with the HD24-STG2 & HD24-STG3 kit.
Loud. Clear. Relentless.
The TMA-1000X4i is a 1,000 Watt 4-channel amplifier purpose-built for aftermarket Harley-Davidson® audio upgrades with support for up to 8-speaker systems. The amplifier features a built-in A2B interface for direct and seamless integration with the Harley-Davidson® Skyline™ OS. IPX4 and Element Ready™ protection allows the amp to withstand the harsh outdoor elements like water spray, dust, and UV rays. Several advances in cooling technology have been combined with our legendary unregulated power supply to deliver high dynamic power output in an unprecedentedly small chassis.
Works Best With:
RFK-HD24 amp install kit
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power (Sum of Rated Power) | 1000 Watts |
| Rated Power (RMS Continuous Power) | CTA-2006 Continuous Power Rating ≤1.0% THD+N200 Watts × 4 @ 4Ω200 Watts × 4 @ 2Ω400 Watts × 2 @ 4Ω Bridged/Mono |
| Dynamic Power (PVC/PowerCube®) | CTA-2006 Dynamic Power Rating250 Watts × 4 @ 4Ω300 Watts × 4 @ 2Ω600 Watts × 2 @ 4Ω Bridged/Mono |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz |
| Input Sensitivity | A2BFRONT LEVEL: -30 dB to 0 dBREAR LEVEL: -30 dB to 0 dB• GREEN LED: -30 to -5 dB• ORANGE LED: -4 to -3 dB• RED LED: -2.5 to 0 dB |
| Circuit Topology Class | Class-A/D |
| Efficiency (Average) | 80.3% |
| Total Harmonic Distortion (THD+Noise) | <1.0% THD+N @ Rated Power |

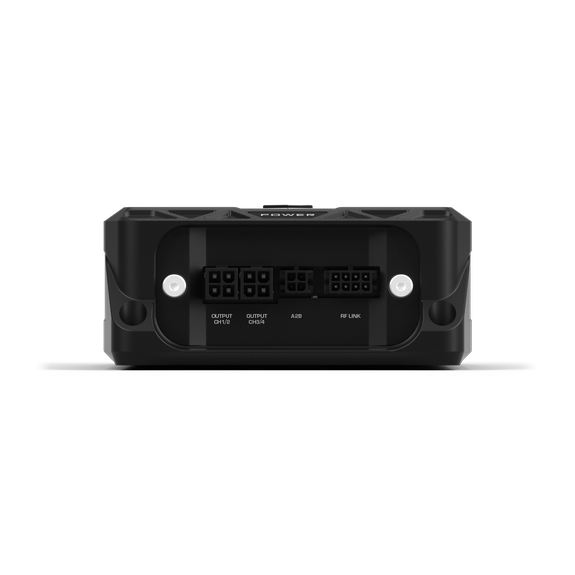

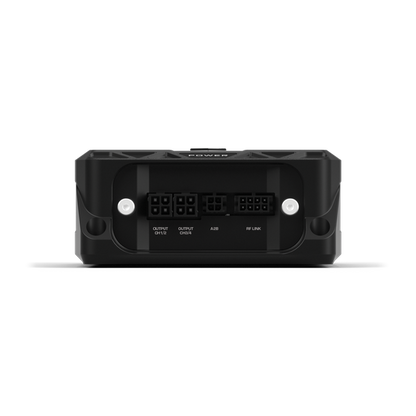

| Signal Input | A2B Digital Bus4-Pin Molex |
| Signal Output | A2B Digital Bus4-Pin Molex |
| Tone Controls | — |
| Crossover Controls | HIGH-PASS: 50–250 Hz @ 12 dB/Octave ButterworthLOW-PASS: 50–250 Hz @ 12 dB/Octave ButterworthALL-PASS: Yes |
| Remote Controls | RF Connect App • iOS • Android |
| Visual Indicators | RED SOLID: Normal OperationRED FLASH: Fault ("Active Recovery" Enabled)BLUE SOLID: BLE ConnectedBLUE FLASH: BLE ActivityGREEN FLASH: A2B Activity |
| Power Wire Gauge | 4 AWG |

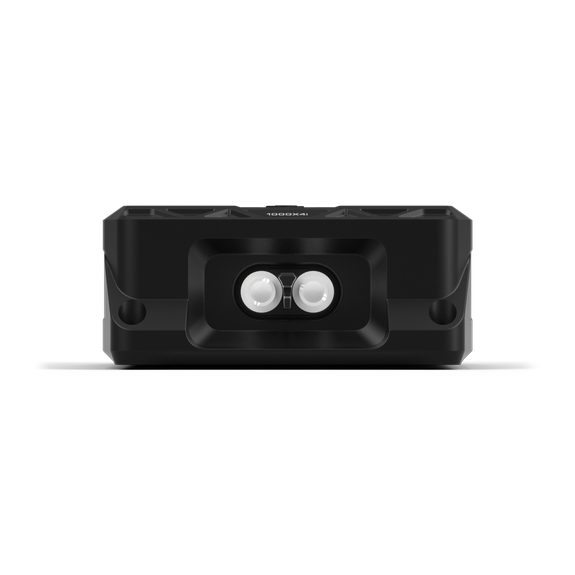

| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 16 AWG |
| Speaker Output Connector | 4-Pin Molex |
| Cooling | Convection |
| Heatsink | Extruded Aluminum |
| Operating Voltage | 8 – 16 V DC |
| Recommended Fuse (not included) | 60 A MAXI |
| Average Current Draw (13.8V Music) | 27 A |
| Max. Current Draw (13.8V Sinewave) | 76 A |
| Suggested Alternator | Factory Equipped 50 A |
| Included in the Box | (1 ea) TMA-1000X4i Amplifier(1 ea) ER5N Power Connector |
| Dimensions (H × W × D) | 1.92" × 4.39" × 8.56"(48.85 mm × 111.54 mm × 217.46 mm) |
| Shipping Weight | 4 Lbs. (1.8 Kg) |
