Rockford Fosgate RFK-HDRKM5
Rockford Fosgate RFK-HDRKM5
SKU:RFK-HDRKM5
Couldn't load pickup availability
Complete Amp Install Kit for Select 1998+ Harley-Davidson Road King (Gen-2)
The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience.
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Compatibility Chart: Please review below tab for fitment before purchasing
UNRELENTING PERFORMANCE

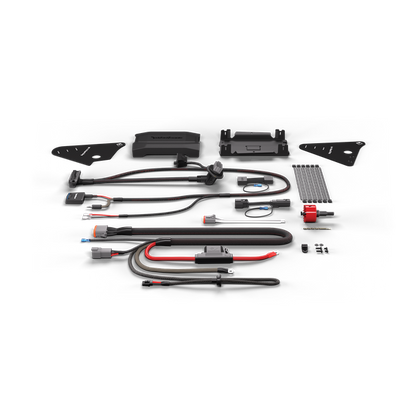

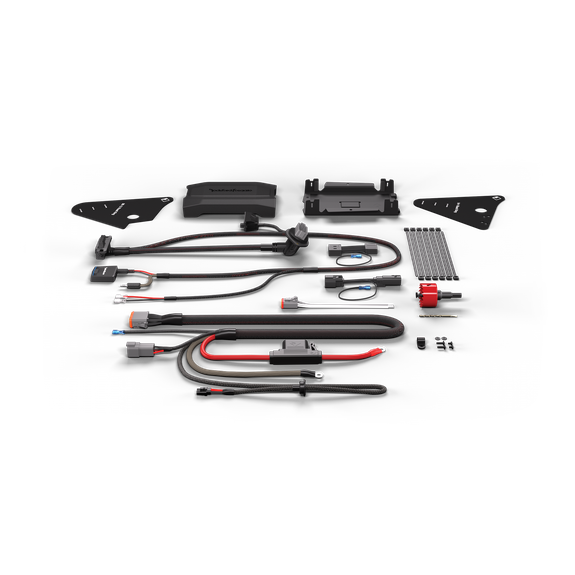

The RFK-HDRKM5 is a complete amplifier installation kit for Harley-Davidson® Road King models that include:
• (1) Bluetooth interface

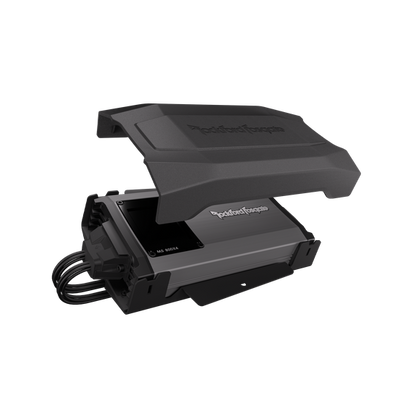

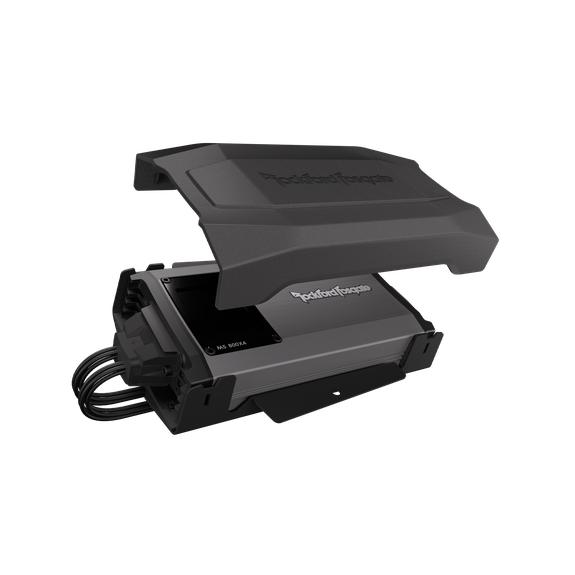

• (1) Amp installation bracket

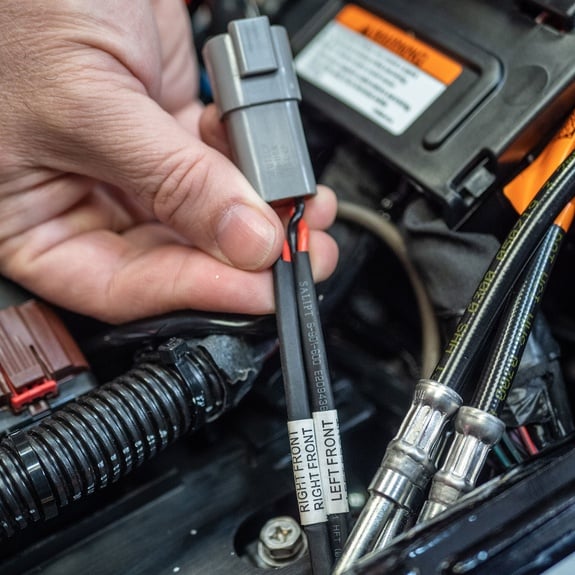

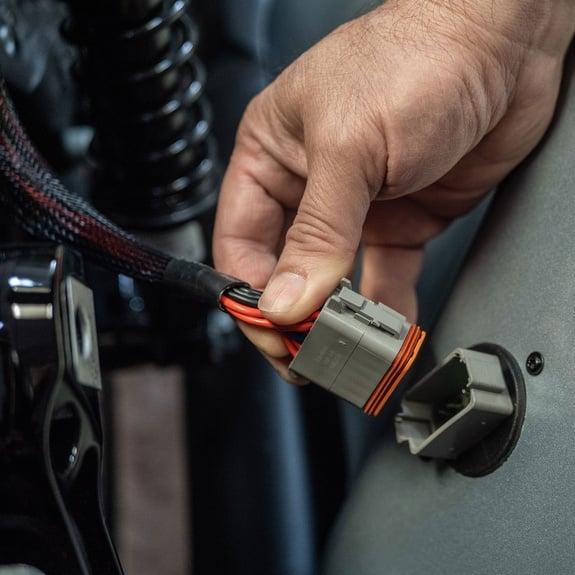

• (1) Plug-n-play wiring harness

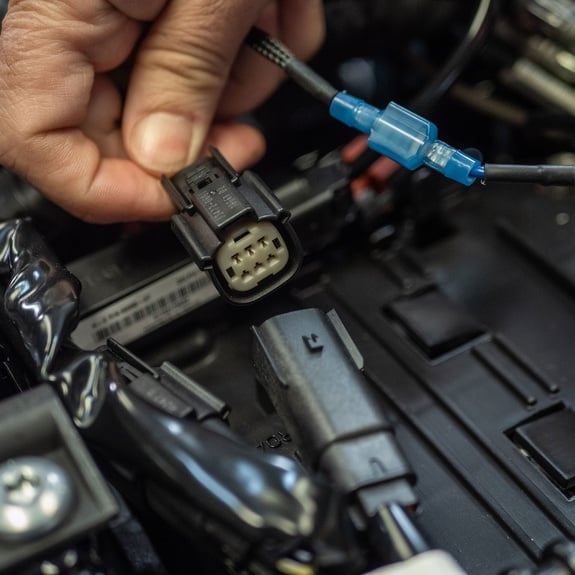

• (1) Front lower expansion pigtail
For 2014+ Road King models, add:
• (1) M5-800X4 amplifier
• (1) TMS69BL14 saddlebag kit
For 1998-2013 Road King models, add:
• (1) M5-800X4 amplifier
• (1) TMS69BL9813 saddlebag kit
Specification
| Category | Specification |
|---|---|
| Amplifier Compatibility | M5-800X4 (sold separately) |

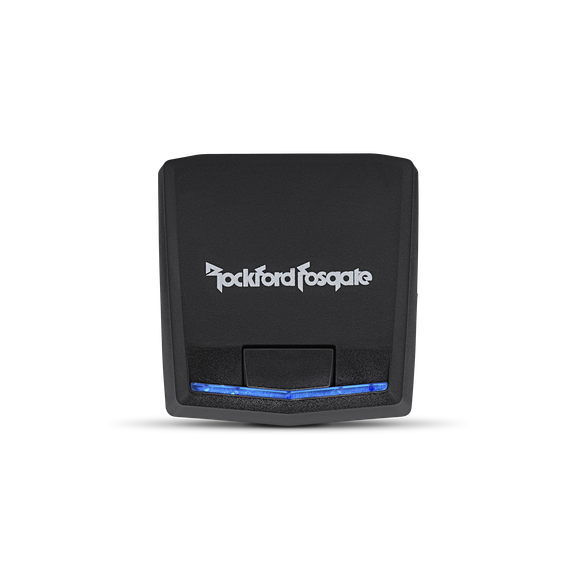

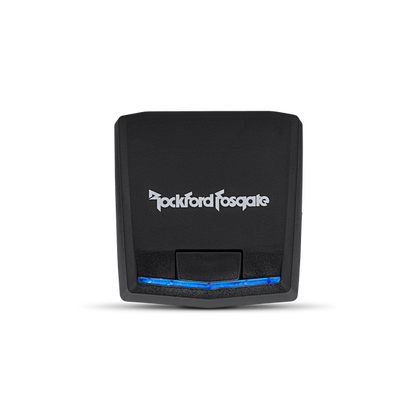

| Bluetooth Receiver | RFBTRCA (included) |
| Dual Amp Installation Kit | No |
| Battery PWR/GND Gauge | 8 AWG |
| Amplifier PWR/GND Gauge | 8 AWG |
| Speaker Wire Gauge | 16 AWG |
| Fuse Size | 60 Amp |
| Fuse Type | MAXI |
| Shipping Weight | 4.2 lbs. (1.9 kg) |
| Included – 1510-74542-01 Amp Mounting Plate | 1 |
| Included – 1510-74041-01 Amp Cover Top | 1 |
| Included – 1415-73761-01 2014+ Drill Template ABS | 1 |
| Included – 1415-73471-01 98-13 Drill Template ABS | 1 |
| Included – 1560-72393-01 Power Wire Harness | 1 |
| Included – 1560-76476-01 Main Wire Harness | 1 |
| Included – 1560-72391-01 2014+ Brake Wire Harness | 1 |
| Included – 1560-72392-01 9813 Brake Wire Harness | 1 |
| Included – 1560-62039-01 Lower Expansion Pigtail | 1 |
| Included – 1125-75397 Alcohol Wipe | 1 |
| Included – 1610-76332-01 Adhesive Promoter | 1 |
| Included – 1130-76319-01 AP PACK | 1 |
| Included – 45mm Hole Saw | 1 |
| Included – Drill Bit Ø3.5mm × 70mm | 1 |
| Included – Cable Clamp | 1 |
| Included – Pan Head Phillips, M3.0x0.5, 12mm | 2 |
| Included – Pan Head Phillips, M3.0x0.5, 5mm | 2 |
| Included – M3 Flat Washer 3.2mm ID × 9mm OD | 2 |
| Included – Zip Ties | 12 |
