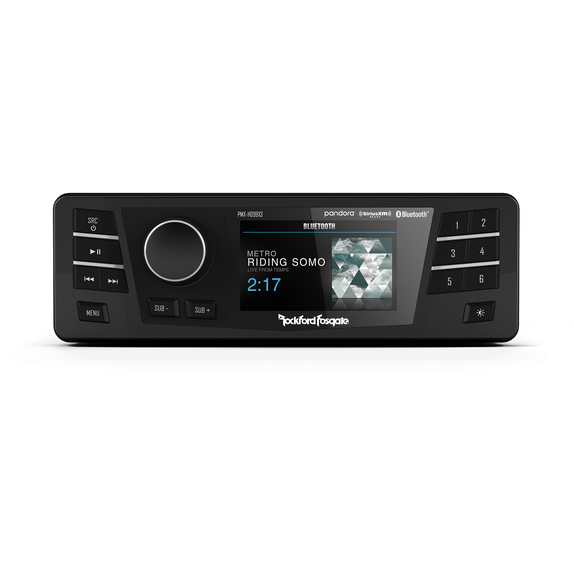

Rockford Fosgate PMX-HD9813
Rockford Fosgate PMX-HD9813
SKU:PMX-HD9813
Couldn't load pickup availability
Digital Media Receiver for Select 1998-2013 Harley-Davidson Models

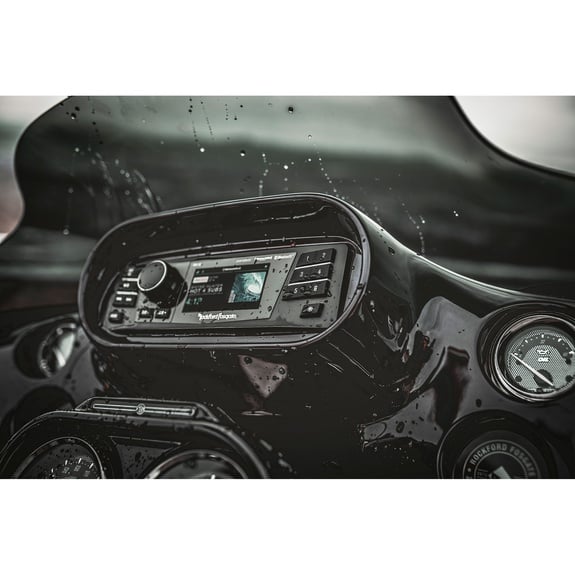

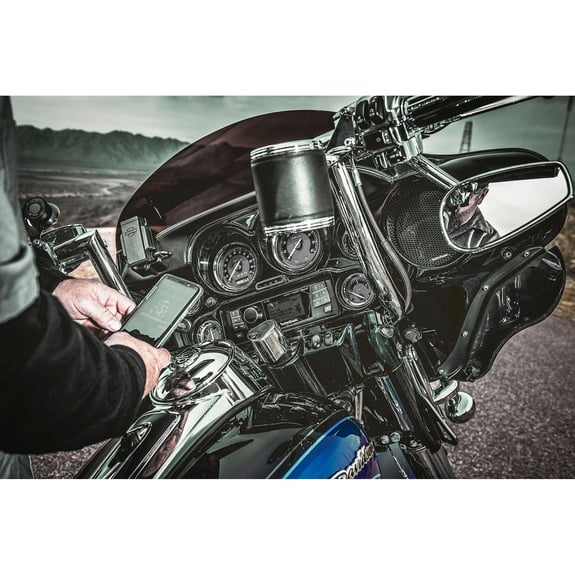

Direct replacement digital media receiver for select 1998 - 2013 Harley-Davidson® motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls. Refer to our COMPATIBILITY chart to verify fitment before purchasing.
Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately.) PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra’s, and factory equipped satellite radio systems. Estimated Installation Time: 1 HOUR.
Specification
| Category | Specification |
|---|---|
| Crossover | Sub-Out variable from 60 Hz – 120 Hz |
| Channel Separation – RCA | > 50 dB |
| Channel Separation – High-Level | > 50 dB |
| Output Impedance | < 500 Ohms |
| Signal-to-Noise Ratio – RCA 2V | > 85 dB |
| Signal-to-Noise Ratio – High Level (CEA-2006) | > 75 dB |
| Signal-to-Noise Ratio – Max Wrms | > 80 dB |
| CEA-2006 Power Rating | 25W × 4 @ 4Ω RMS |
| Maximum Output Power | 50W × 4 @ 2Ω MAX |
| THD+N | ≤ 1.0% |
| RCA Output Voltage – Front | 4 V Max |
| RCA Output Voltage – Rear | 4 V Max |
| RCA Output Voltage – Sub | 4 V Max |
| Idle Current | < 2 Amps |
| Frequency Response – RCA | 20 Hz – 20 kHz |
| Frequency Response – High-Level | 20 Hz – 20 kHz |
| Operating Voltage | 9.5 – 16 VDC |
| THD+N – 4 Ohms | < 1.0% |
| Clock | Yes |
| USB Version | 2.0 |
| USB Capacity | 32 GB max; 255 Folders max; 999 Songs max |
| USB Format – Windows | FAT32 |
| USB Format – Mac | MS-DOS (FAT) |
| AM Tuner – Range | 530 – 1710 kHz |
| AM Tuner – Sensitivity | 40 dB |
| AM Tuner – Frequency Response | 45 Hz – 2.4 kHz |
| FM Tuner – Range | 87.9 – 107.9 MHz |
| FM Tuner – Sensitivity | 8 dB |
| FM Tuner – Frequency Response | 20 Hz – 15 kHz |
| Display – Nominal Size | 3" Color TFT |
| Display – Resolution | 960 × 240 |
| Display – Brightness | 380 nits |
| Display – Contrast | 400 |
| Display – Pixels | 320 × 240 |
| Display – View Angle | 120° |
| Supported Media Formats | MP3, WMA |
| Shipping Weight | 4.75 lbs. (2.15 kg) |
| Made for iPhone Models | iPhone XS Max, XR, 8 Plus, 7 Plus, SE, 6s, 6, 5c, XS, X, 8, 7, 6s Plus, 6 Plus, 5s, 5 |
| Made for iPod Models | iPod touch (5th generation), iPod touch (6th generation) |
| USB Output Current | 1.5 A |
| Bluetooth® | 3.0 + EDR, A2DP 1.3 |
| Dimensions – Faceplate (H × W × D) | 2.7" × 8.4" × 0.7" |
| Dimensions – Faceplate (Metric) | 68.4 × 213 × 17.1 mm |
| Dimensions – Chassis (H × W × D) | 2.5" × 8.2" × 7.5" |
| Dimensions – Chassis (Metric) | 63.5 × 209.3 × 191 mm |
