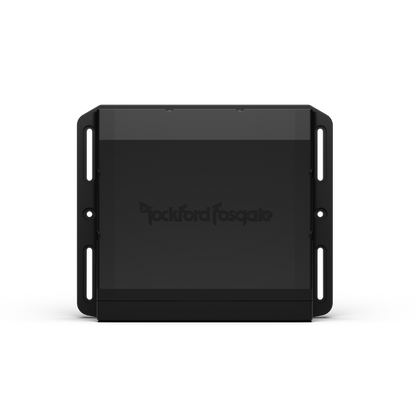

Rockford Fosgate PMX-6BB
Rockford Fosgate PMX-6BB
SKU:PMX-6BB
Couldn't load pickup availability

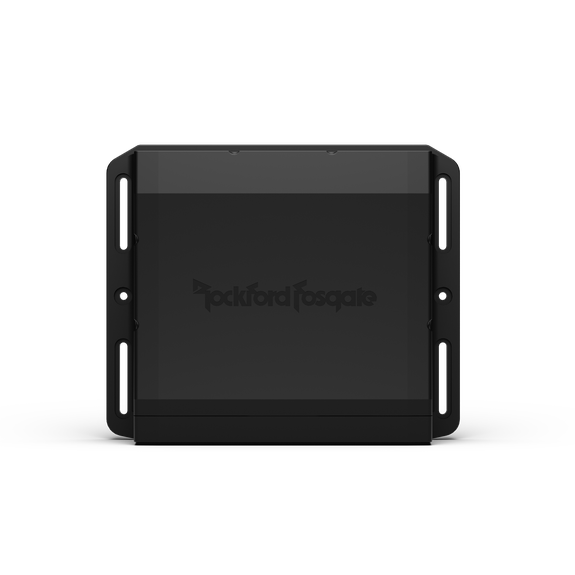

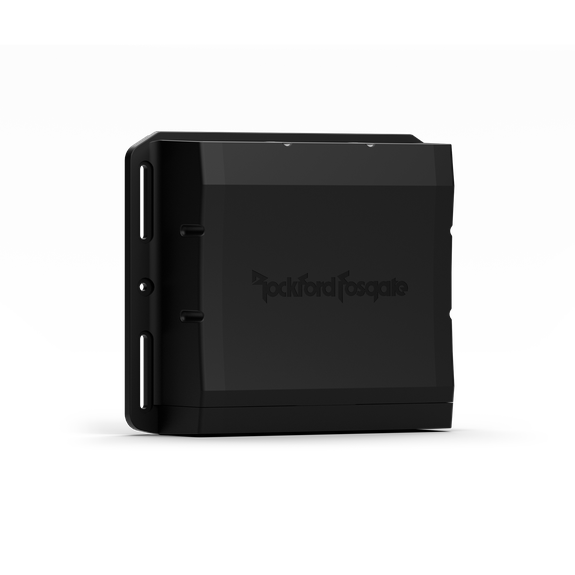

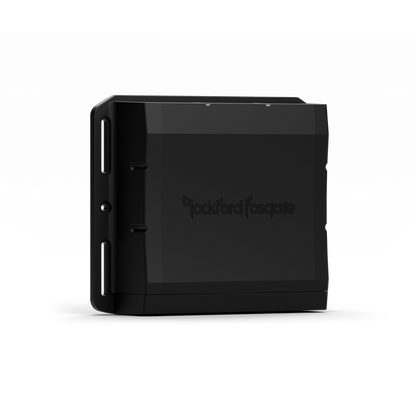

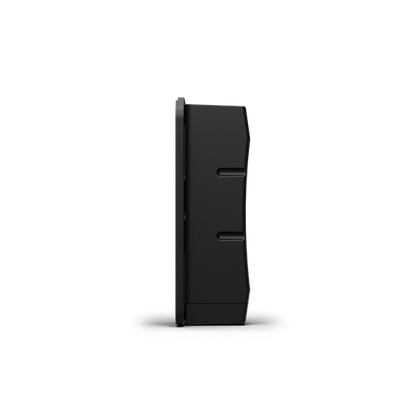

Punch Marine Hide-Away AM/FM/WB 2-Zone Digital Media Receiver
The PMX-6BB is a hidden digital media receiver designed for effortless audio control through the MFD display. Its internal 200-watt amplifier can power up to 8 speakers and features independent subwoofer controls for precise bass tuning. With dual-zone functionality, users can separately adjust the volume and EQ for each zone, providing a tailored audio experience wherever you are on the boat.
Complete Control: Equipped with NMEA 2000 connectivity, this system allows users to fully control their audio through the Multi-Function Display. Its extended compatibility supports up to three PMX-1R remotes and a PMX-8DH TFT display head for enhanced control options
Dual Zone Functionality: Designed to let users independently manage the volume and EQ for each zone, this system ensures a personalized audio experience, no matter where you are on the boat
Independent Sub Level Control: With independent sub level control, you can adjust the subwoofer output to match your exact listening preference without altering the tuning of the other speakers
Element Ready™: Purpose built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to water, vibration and UV rays, making sure all your audio components perform regardless of the conditions
EFFORTLESS CONTROL
The PMX-6BB is a hide-away digital media receiver black box designed for use with Compatible MFD's, and works with the PMX-8DH controller or the PMX-1R remote. The PMX-6BB has built-in CAN-bus functionality for connection to NMEA2K systems, so no external CAN-bus adaptor is needed. It features Single source, Dual zone audio control and is SXM ready.

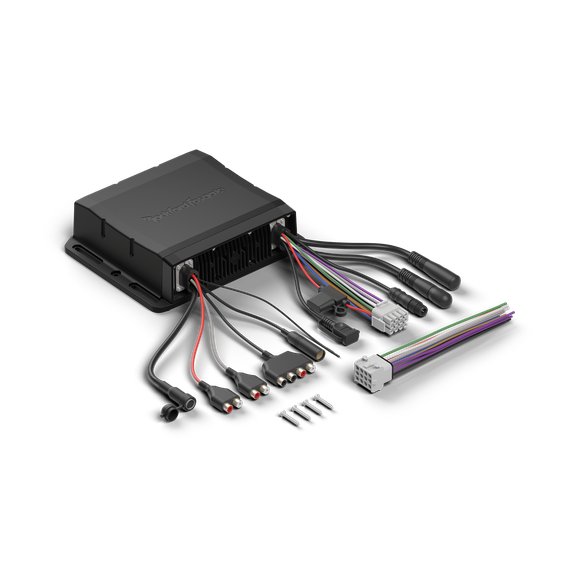

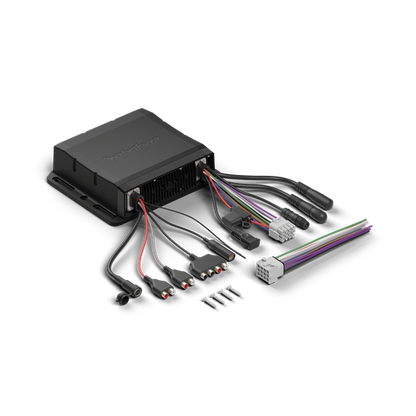

INCLUDED ITEMS:
• (1) PMX-6BB (display head sold separately)
• (4) Mounting Screws
Specification
| Item | Details |
|---|---|
| Bluetooth® (Yes/No) | Yes |
| Pandora® Internet Radio (Yes/No) | Yes |
| Multi-Source (Yes/No) | No |
| SiriusXM-Ready® (Yes/No) | Yes |
| Apple®/Android™ Compatible (Yes/No) | Yes |
| Clock (Yes/No) | No |
| Steering Wheel Control Ready (Yes/No) | No |
| Multi-Zone (Yes/No) | Yes |
| Speaker Outputs (Yes/No) | Yes |
| USB Charging (Yes/No) | Yes |
| AUX Input (Yes/No) | Yes |
| Power Output | CTA-2006 Power Rating — 25W × 4 @ 4Ω RMS / 50W × 4 @ 2Ω Peak / ≤1.0% THD+N |
| Frequency Response | 20 Hz – 20 kHz |
| Speaker Impedance | 4Ω / 2Ω |
| RCA Outputs | Zone-1: 2-Pair (Left/Right + SUB/SUB)Zone-2: 1-Pair (Left/Right) |
| RCA Output Voltage | 4V RMS — Does not clip at full output |
| RCA Output Impedance | 500Ω |
| Aux Inputs | 1-Pair (Left/Right) |
| Aux Input Sensitivity | 500 mV |
| AM Tuner Frequency Range | 530 kHz – 1710 kHz |
| Number Of Presets | 18 FM / 12 AM / 6 WB / 18 SXM |
| FM Tuner Frequency Range | 87.5 MHz – 107.9 MHz |
| FM Tuner Sensitivity | 8 dB |
| AM Tuner Usable Sensitivity | 40 dB |
| WB Tuner Frequency Range | 162.40 – 162.55 (US & Canada) |
| Bluetooth Version | 5.0 |
| Bluetooth Supported Profiles | A2DP v1.3, AVRCP v1.6, HFP v1.6, PBAP v1.2, SPP v1.2 |
| USB Version | 2.0 |
| USB Capacity | 32 GB max, 255 Folders max, 999 Songs max |
| USB Type | Type A |
| USB Output Current | 500 mV |
| Android Compatibility | Bluetooth® Only |
| Made for iPhone | Yes |
| Audio Format Compatibility | MP3 / WMA / FLAC |
| Required SiriusXM® Module | SXV300 |
| EQ Type | Graphic |
| EQ Bands | 7 |
| Device Type | Digital-Media Receiver |
| Audio Zones | 2 |
| Audio Sources | 1 |
| Display Size | — |
| Compatible Remotes | PMX-8DH / PMX-1R(3 Remote Limit, 100 ft Total Wired Distance) |
| Operating Voltage | 10.5 V – 16 V |
| Back Panel Cutout | N/A |
| Fuse Rating | 15 A |
| FCC ID# | 2AA7S-PMX-8BBPMX-6BB dual certified with PMX-8BB |
| In The Box | (1) PMX-6BB multi-media black box(4) Phillips pan head tapping screws, 25 mm |
| Dimensions (HxWxD) | 8.3" × 6.9" × 2.2" (210 mm × 175 mm × 56 mm) |
| Shipping Weight | 3 lbs. (1.36 kg.) |
