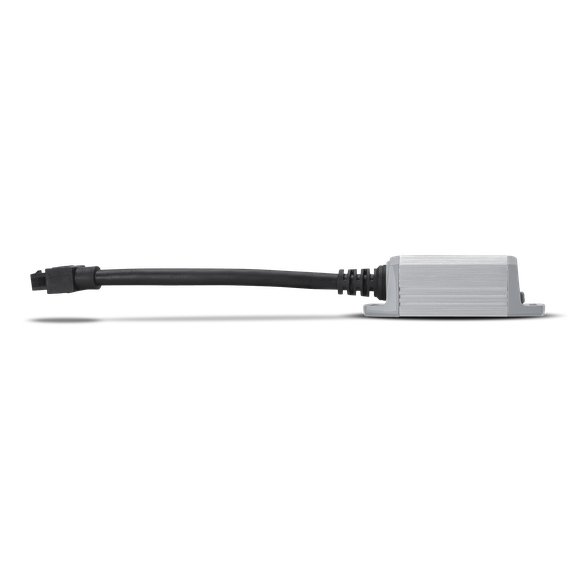

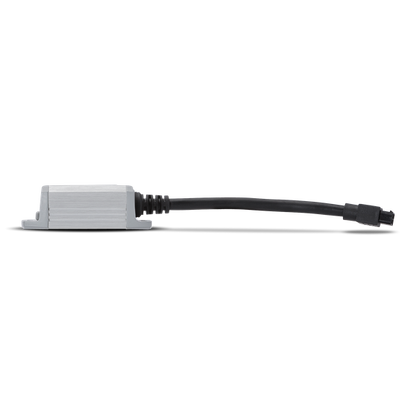

Rockford Fosgate PM100X1K
Rockford Fosgate PM100X1K
SKU:PM100X1K
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

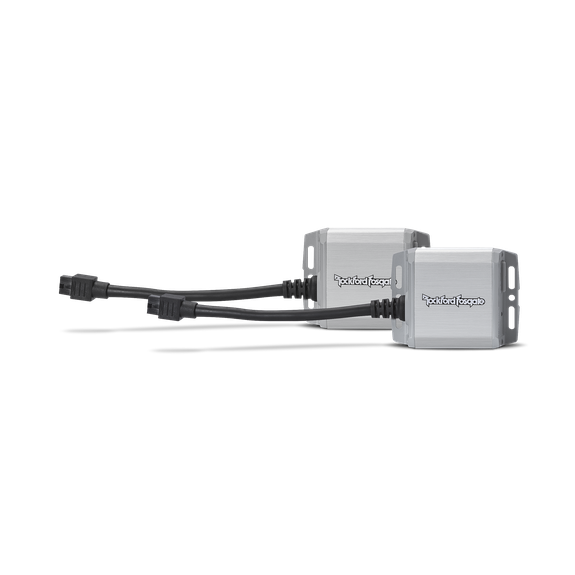

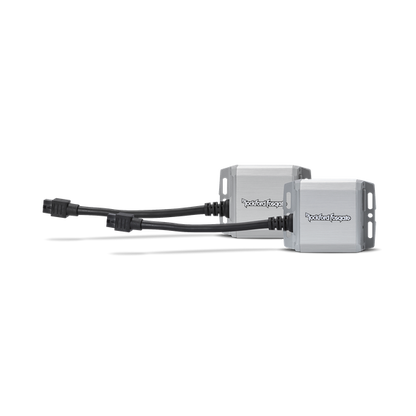

Punch 100 Watt Full-Range Element Ready Mono Amplifier (pair)

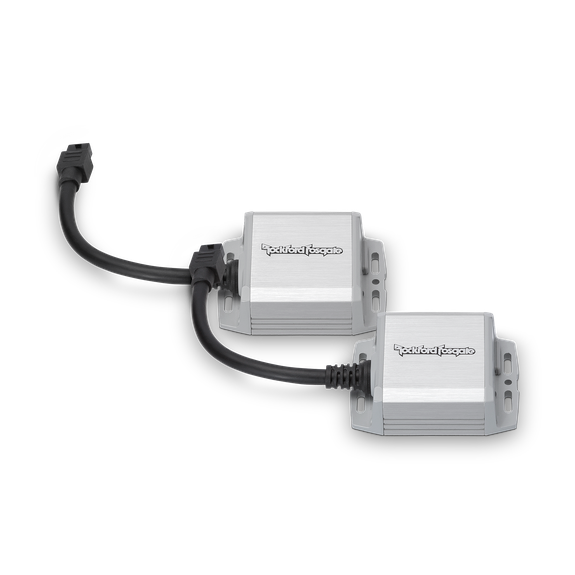

The PM100X1 is a 100 Watt dynamic power mono amp using DC and AC voltages present on existing radio speaker outputs. This design allows connection to a speaker wire without running a B+ cable. It also presents a safe load to the radio amp circuit to eliminate excessive wear and tear on the radio, making it ideal for aftermarket radios. The conformal coated PCB and enclosure are IPX6 rated for the next level in Element Ready™ protection against water, dust and UV rays. The PM100X1K is a kit that ships as a pair (2 pcs).
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power | 100 Watts |
| Rated Power (RMS Continuous Power) | 60 Watts × 1 @ 4Ω100 Watts × 1 @ 2Ω |
| Dynamic Power (PVC/PowerCube®) | 61 Watts × 1 @ 4Ω109 Watts × 1 @ 2Ω |
| Bridgeable | No |
| Frequency Response | 60 Hz – 20 kHz ±1.0 dB |
| Input Sensitivity | — |
| Circuit Topology Class | — |
| Efficiency (Average) | — |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |
| Signal Input | — |
| Signal Output | — |
| Tone Controls | — |

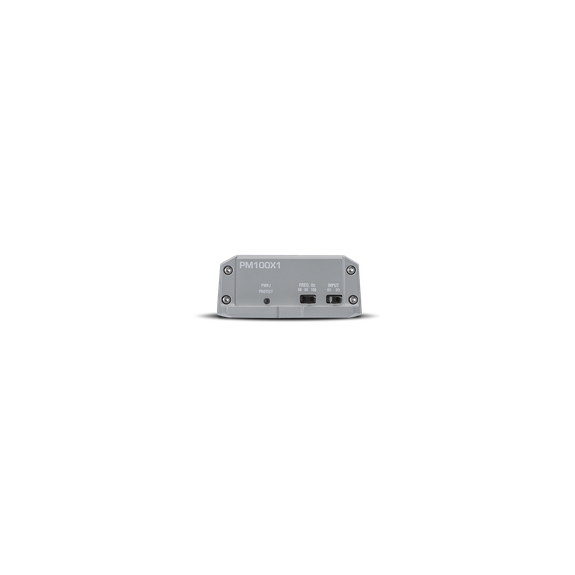

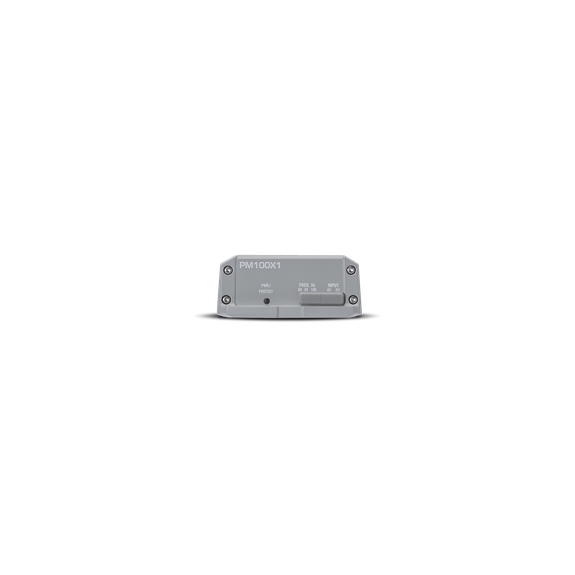

| Crossover Controls | High-Pass: Selectable 60 Hz, 80 Hz, 100 Hz @ 12 dB/Octave Butterworth |
| Remote Controls | — |
| Visual Indicators | Power/Protect LED |
| Power Wire Gauge | — |
| Power Input Connector | — |
| Speaker Wire Gauge | — |
| Speaker Output Connector | — |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse | — |
| Average Current Draw (13.8 V Music) | — |
| Max. Current Draw (13.8 V Sinewave) | — |
| Suggested Alternator | — |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.3" × 3" × 3.9"(3.3 cm × 7.62 cm × 9.91 cm) |
| Shipping Weight | 2.8 lbs. (1.27 kg) |
