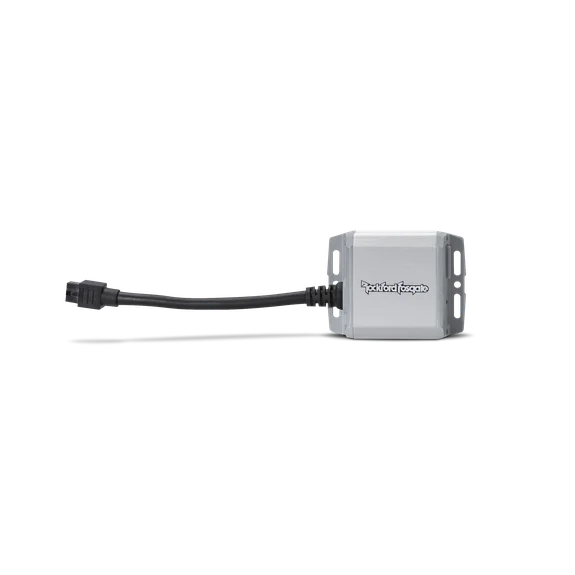

Rockford Fosgate PM100X1
Rockford Fosgate PM100X1
SKU:PM100X1
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch 100 Watt Full-Range Element Ready Mono Amplifier (pair)
The PM100X1 is a 100 Watt dynamic power mono amp using DC and AC voltages present on existing radio speaker outputs. This design allows connection to a speaker wire without running a B+ cable. It also presents a safe load to the radio amp circuit to eliminate excessive wear and tear on the radio, making it ideal for aftermarket radios. The conformal coated PCB and enclosure are IPX6 rated for the next level in Element Ready™ protection against water, dust and UV rays. The PM100X1K is a kit that ships as a pair (2 pcs).
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power | 100W |
| RMS Power | 60W × 1 @ 4Ω / 100W × 1 @ 2Ω |
| Dynamic Power | 61W × 1 @ 4Ω / 109W × 1 @ 2Ω |
| Bridgeable | No |
| Frequency Response | 60Hz–20kHz ±1.0 dB |
| Amplifier Class | Not specified |
| THD + Noise | <1.0% @ 4Ω / <1.0% @ 2Ω |
| High-Pass Crossover | Selectable 60Hz / 80Hz / 100Hz, 12 dB/octave Butterworth |
| Visual Indicators | Power/Protect LED |
| Cooling | Convection |
| Operating Voltage | 9–16 VDC |
| Dimensions | 1.3″ × 3″ × 3.9″ (3.3 × 7.62 × 9.91 cm) |
| Shipping Weight | 2.8 lbs (1.27 kg) |
