Rockford Fosgate P3V2-25
Rockford Fosgate P3V2-25
SKU:P3V2-25
Couldn't load pickup availability

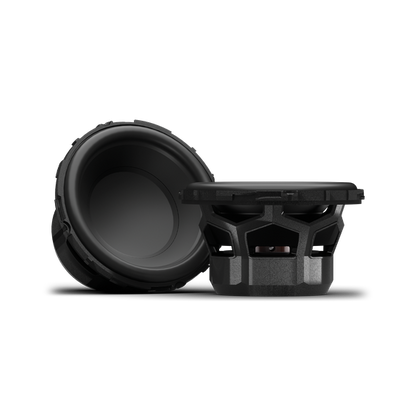

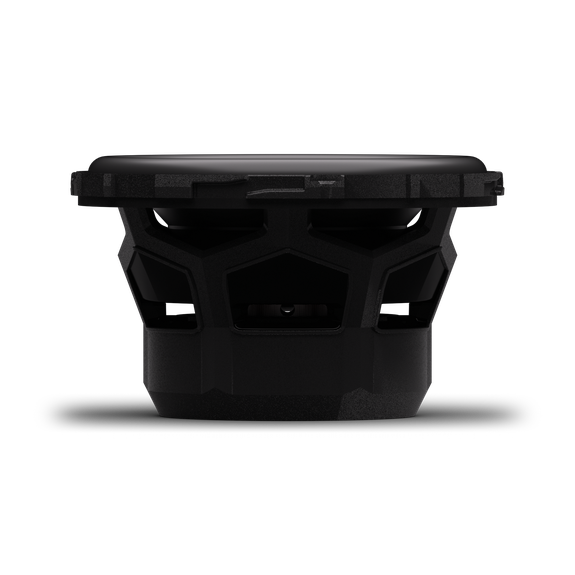

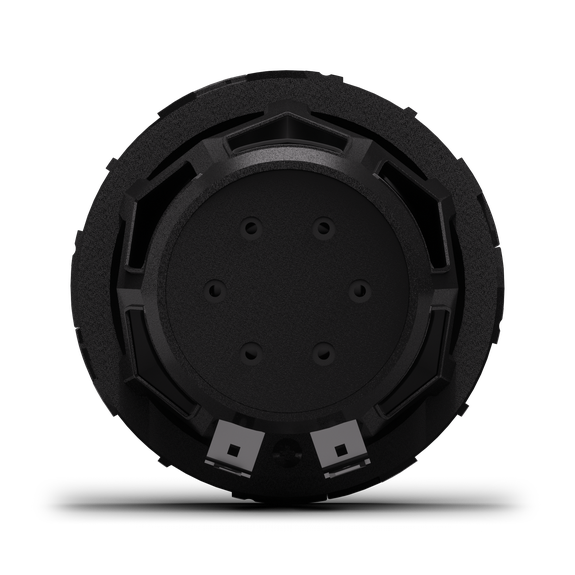

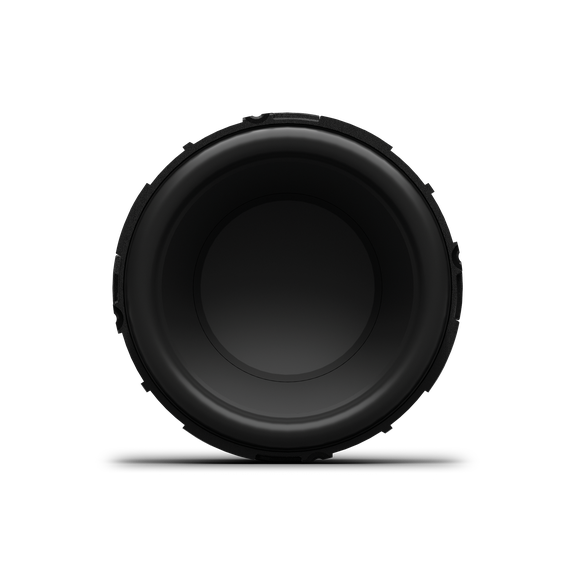

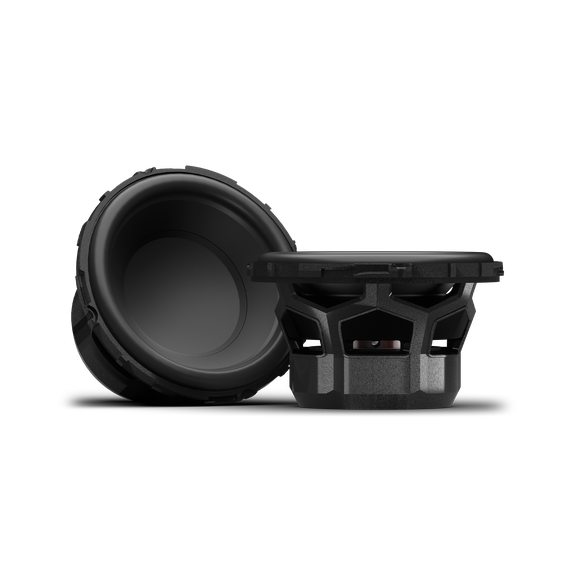

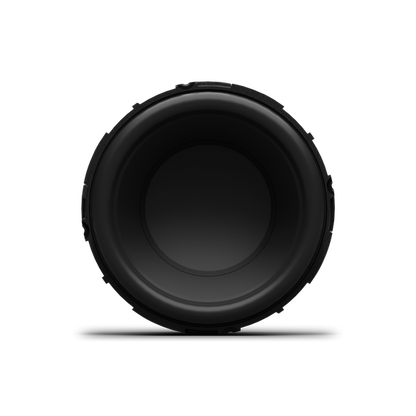

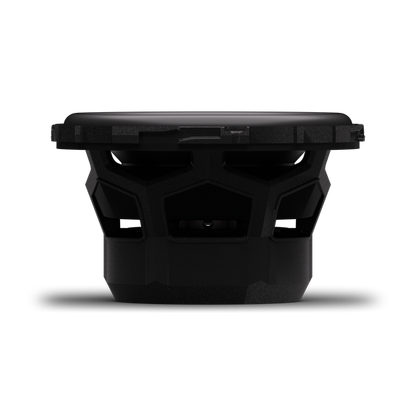

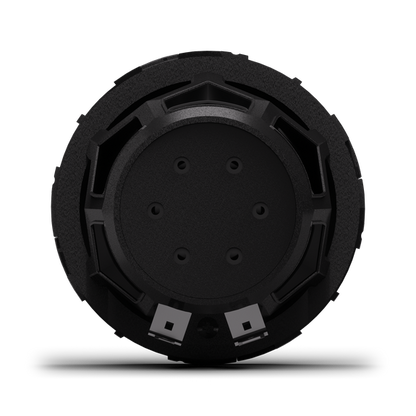

Punch P3 2.5” Component Midrange
The family of P3 PUNCH speakers were engineered to fit and built to put you in control. The P3V2-25 is designed for 3-way speaker systems to deliver a precise and immersive audio experience. Three independent drivers ensure every frequency range is reproduced with exceptional clarity and accuracy. A larger cone area and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility: The Multi-Configuration Crossover Chassis (M.C.3) breaks down into separate units, giving you total freedom to route and wire your setup your way. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0™ technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene™ surrounds and Nomex® spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Engineered to Fit. Built to Perform.
The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3V2-25 speakers are designed for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.

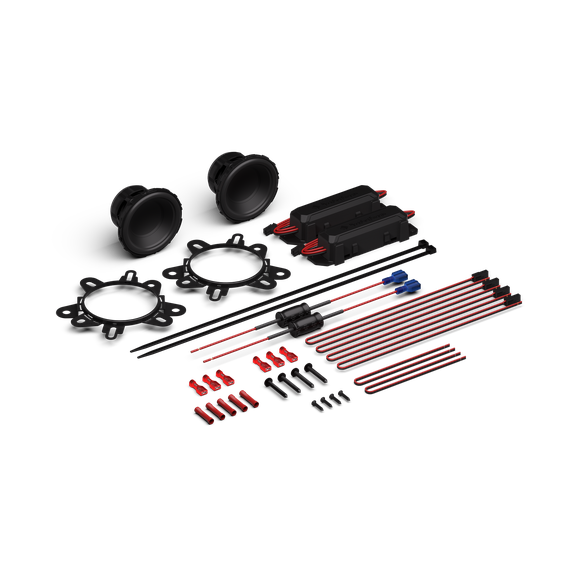

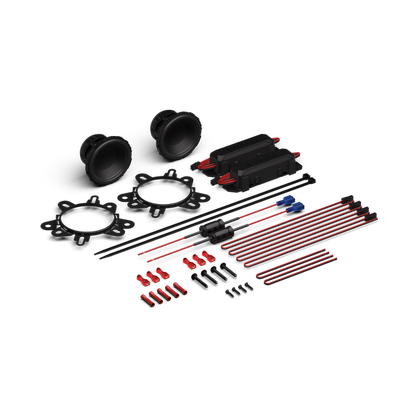

Kit Includes:
• (2) 2.5" 4Ω Midrange

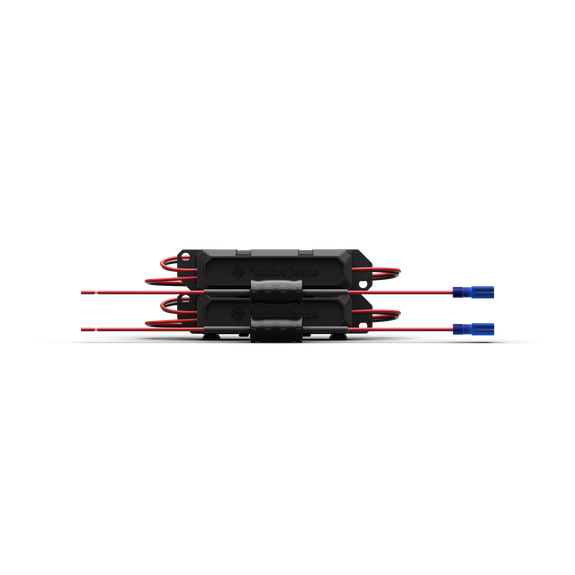

• (2) Bass Blocker Crossovers
• (2) Midbass Crossovers (2x MID)

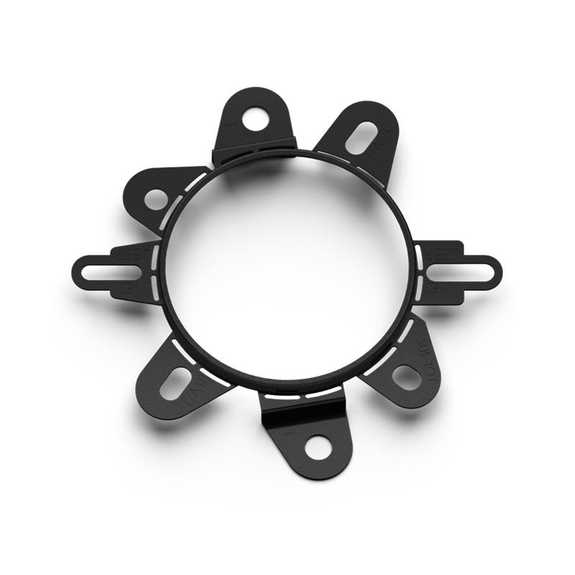

• (2) OEM Adaptors
• Installation Hardware
Specification
| Specification | Details |
|---|---|
| CTA-2031 Compliant | Yes |
| Speaker Type | Component System |
| Piezo Size (Nominal Diameter) | — |
| Tweeter Size (Nominal Diameter) | — |
| Midrange Size (Nominal Diameter) | 2.5" |
| Woofer Size (Nominal Diameter) | — |
| Nominal Impedance | 4 Ω |
| Frequency Response | 135 Hz – 15 kHz |
| Voice Coil Diameter | 1.00" (25.4 mm) |
| Crossover | See details below |

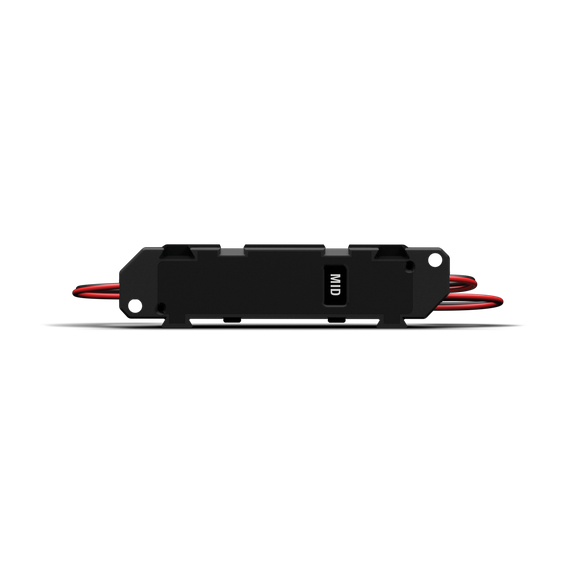

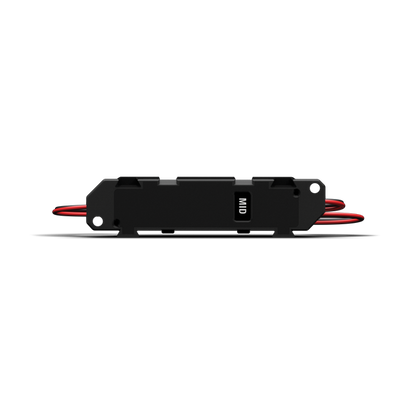

| Midrange Crossover | BP 600 Hz – 6 kHz @ 6 dB/octave (external) |
| Midrange Bass Blocker | HP 1,200 Hz @ 6 dB/Octave (33 µF) |
| Fs | 180 Hz |
| Sensitivity (1W/1M) | 82 dB |
| Sensitivity (2.83V/1M) | 85 dB |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Mounting Depth (No Motor Cover) | — |
| Mounting Depth (With Motor Cover) | — |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.47" (37.3 mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.60" (40.6 mm) |
| Midrange Front Side Clearance | 0.26" (6.5 mm) |
| Midrange Cutout Diameter | 2.54" (64.5 mm) |
| Removable Motor Cover | No |
| Grille/Trim Ring Included | No |
| Mounting Hardware | Yes |
| Shipping Weight | 2 lbs. (0.91 kg) |
| Included in the Box | (2) 2.5" 4 Ω Speakers(2) FLWR Twist-Lock Adaptors (multi)(1) 2.5" Speaker Cut-Out Template(2) Passive Crossover Networks (Midrange)(2) 18" Crossover Wiring Extensions(2) 33 µF Non-Polarized Capacitors (Bass Blocker)(4) Self-Tapping Phillips #8 × 32 mm (Speaker)(4) Self-Tapping Phillips #4 × 16 mm (Crossover)(2) Zip Ties 4.8 mm × 350 mm(2) 18 AWG Red/Black Speaker Wire, 205 mm(3) 18 AWG (–) Female Crimp Spade Connectors (.187")(3) 18 AWG (+) Female Crimp Spade Connectors (.250")(6) 18 AWG Crimp Butt Connectors |
