Rockford Fosgate P2V2-TS
Rockford Fosgate P2V2-TS
SKU:P2V2-TS
Couldn't load pickup availability

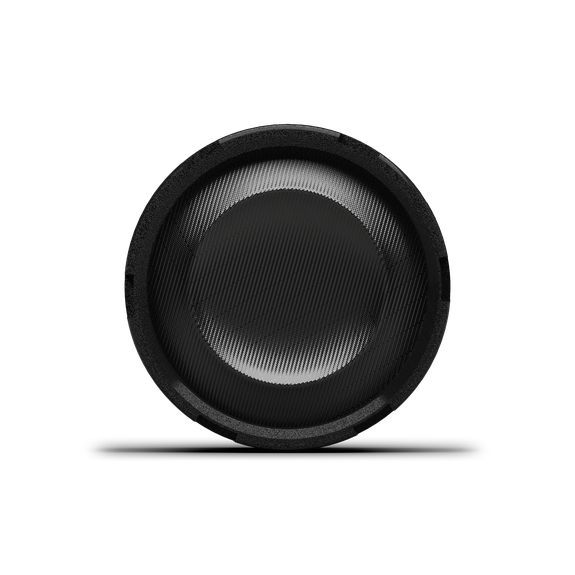

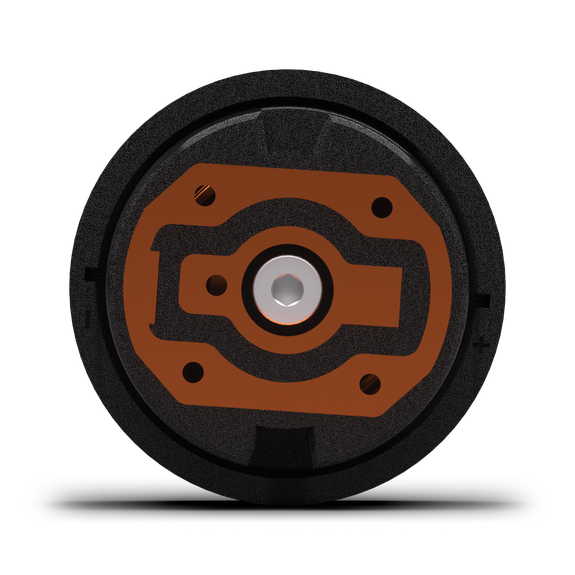

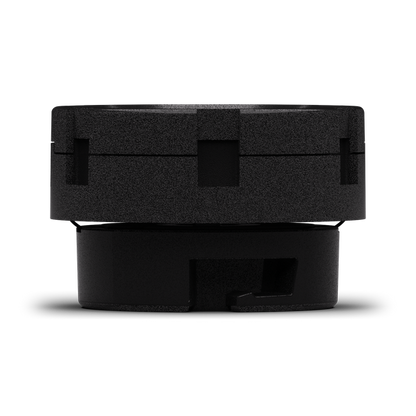

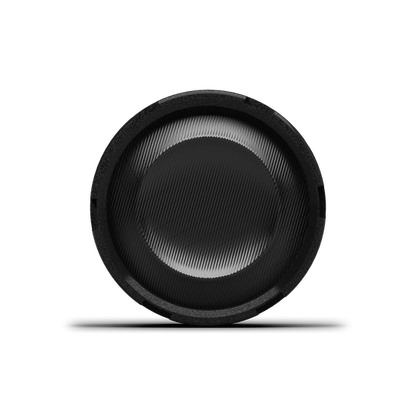

Punch P2 3/4” Inverted Dome Tweeters
The family of P2 PUNCH speakers were engineered to fit and built to put you in control. The P2V2-TS tweeter kit are great replacements for frequency limited tweeters and can supplement existing audio system for exceptional high-frequency response, allowing you to hear the details in your music. The precision-tuned tweeter configuration and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today’s modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

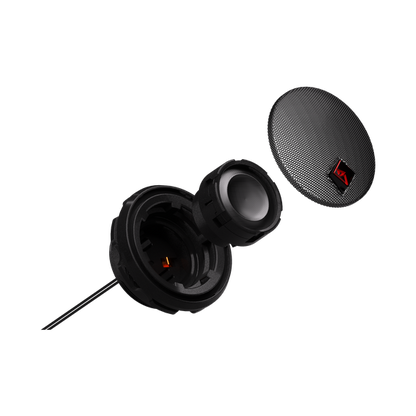

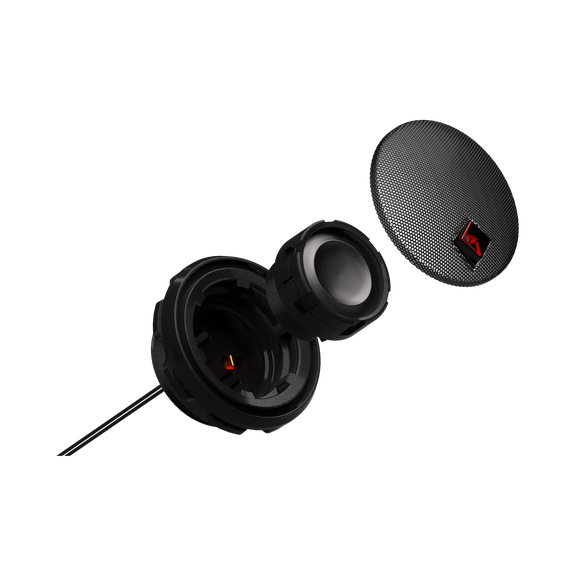

Superior Flexibility: With a versatile convertible design, these speakers can be configured as either component or coaxial systems to suit your setup. The Interchangeable Locking Mechanism (I.L.M.) lets you lock and unlock the tweeter from the wired mounting cup with zero hassle. This flexible design allows you to take even more control over your install layout and tweeter location. All engineered to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. Every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Engineered to Fit. Built to Perform.

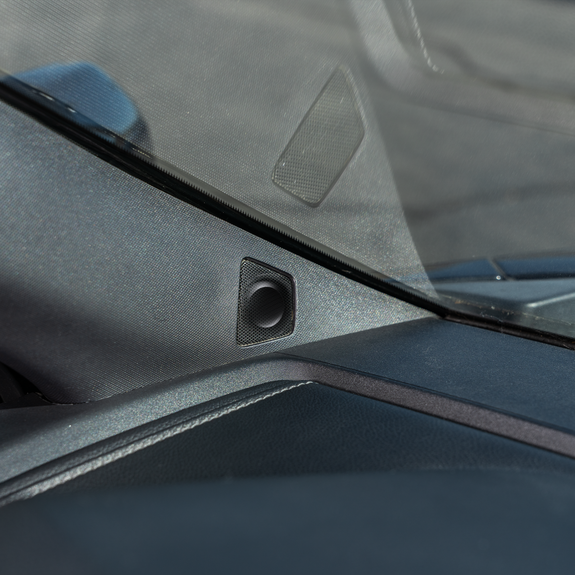

The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. Use the P2V2-TS as a fast drop-in or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.

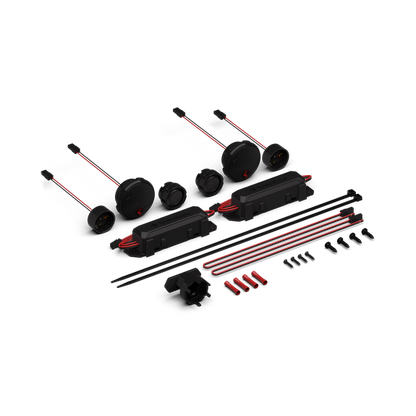

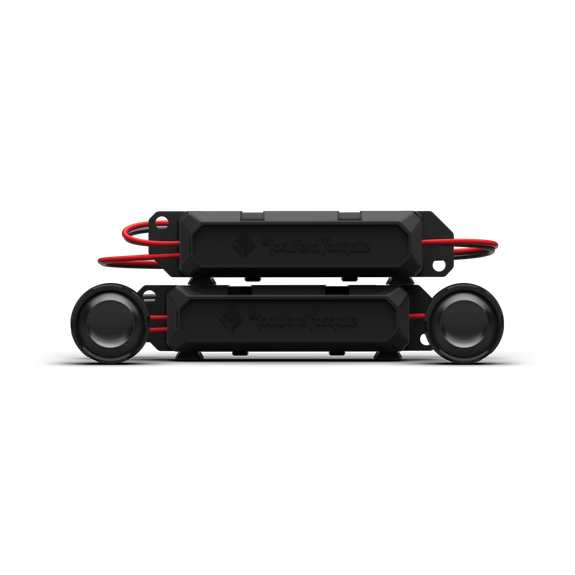

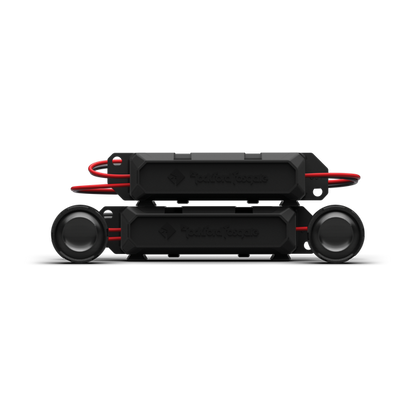

Kit Includes:
• (2) 3/4" 4Ω Tweeters

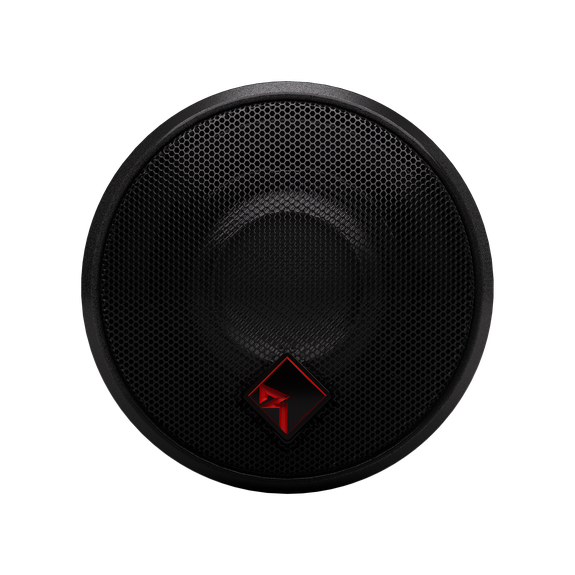

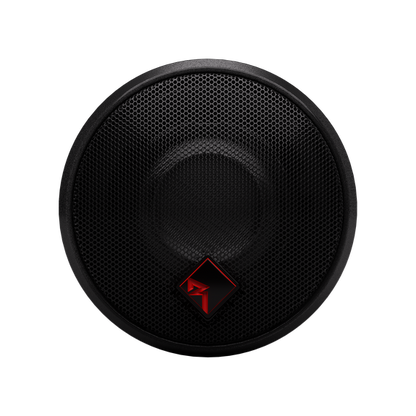

• (2) Flush Mount Cups
• (2) Surface Mount Cups

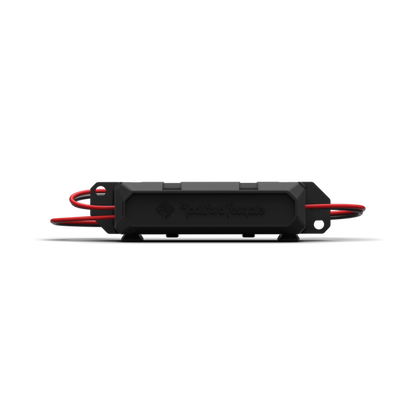

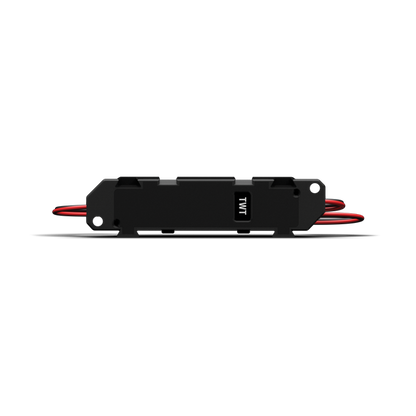

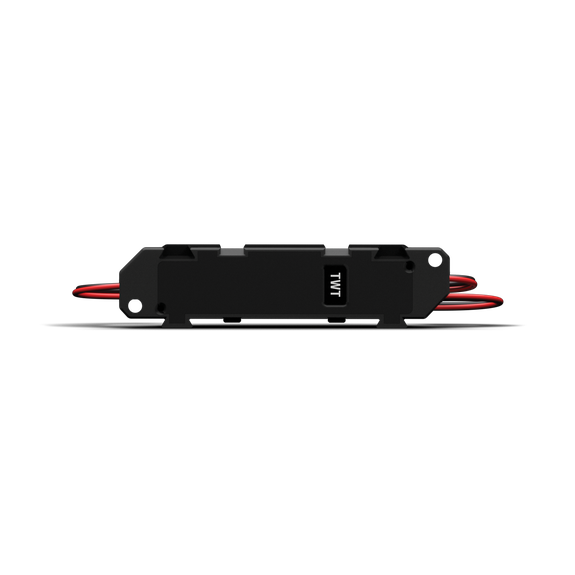

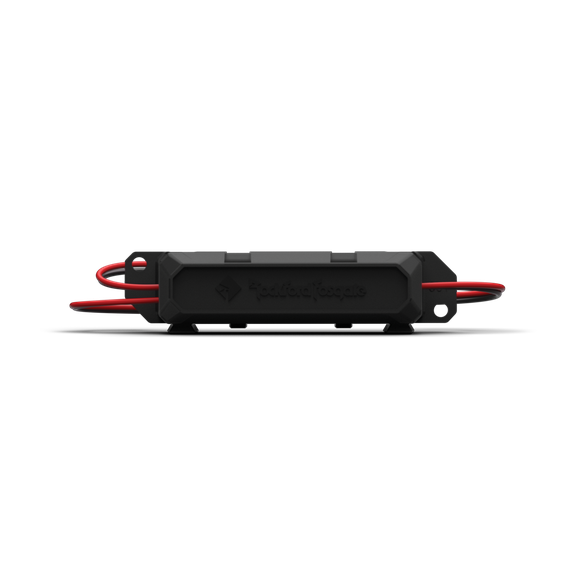

• (2) Crossovers
Specification
| Specification | Details |
|---|---|
| CTA-2031 Compliant | Yes |
| Speaker Type | Convertible |
| Midrange Size (Nominal Diameter) | — |
| Tweeter Size (Nominal Diameter) | 3/4" (19 mm) |
| Piezo Size (Nominal Diameter) | — |
| Nominal Impedance | 4 Ω |
| Frequency Response | 3.5 – 25 kHz |
| Voice Coil Diameter | 0.75" (19 mm) |
| Crossover | See details below |
| Tweeter High-Pass | 9 kHz @ 12 dB/octave |
| Tweeter Attenuation | 0 dB or -3 dB |
| Fs | 3.5 kHz |
| Power Handling (RMS) | 75 Watts RMS |
| Power Handling (Peak) | 150 Watts Peak |
| Sensitivity @ 1W/1M | 90 dB |
| Sensitivity @ 2.83V/1M | 93 dB |
| Mounting Diameter | Flush Mount: 1.54" (39 mm)Surface Mount: 1.22" (31.1 mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | — |
| Rear-Loading Depth (Twist-Lock Adaptor) | — |
| Mounting Depth (With Motor Cover) | — |
| Mounting Depth (No Motor Cover) | Flush Mount: 0.78" (19.9 mm)Surface Mount: 0.57" (14.4 mm) |
| Front Side Clearance | Flush: 0.44" (11.2 mm)Surface: 0.49" (12.4 mm) |
| Removable Motor Cover | No |
| Grille/Trim Ring Included | Yes |
| Mounting Hardware | No |
| Shipping Weight | 1 lb. (0.45 kg.) |

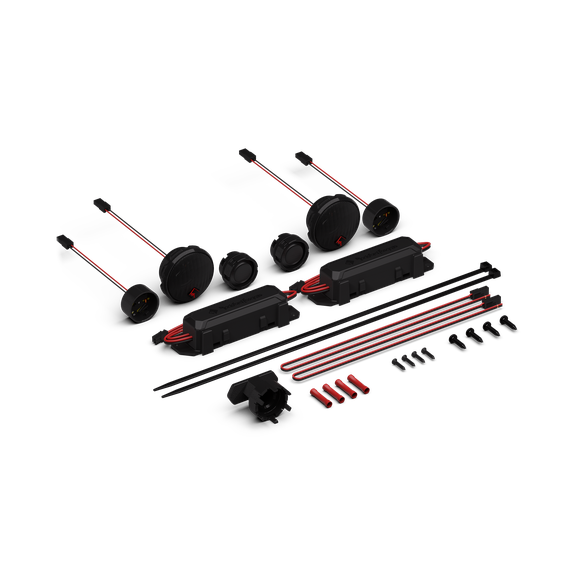

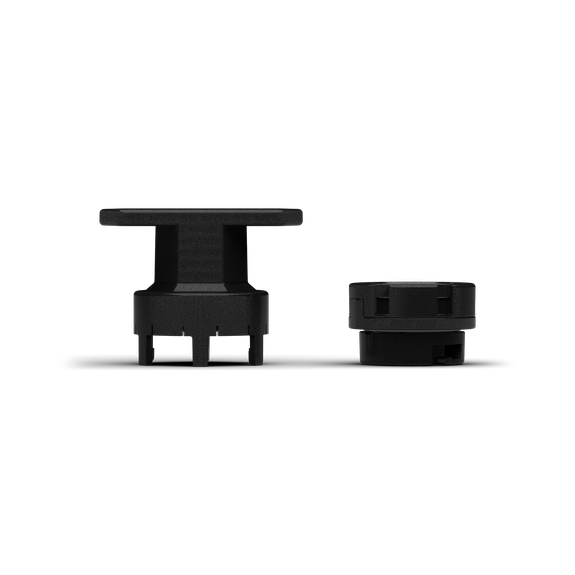

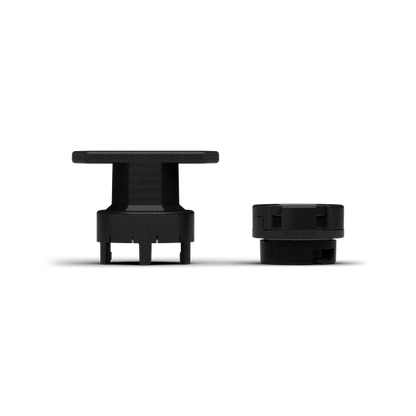

| Included in the Box | (2) 3/4" 4 Ω Tweeters(2) Flush-Mount Tweeter Cups(2) Surface-Mounting Tweeter Cups(1) Tweeter Removal Tool(2) Passive Crossover Networks (Tweeter)(4) Self-Tapping Phillips #4 × 16 mm (Tweeter)(4) Self-Tapping Phillips #8 × 20 mm (Crossover)(2) 18" Crossover Wiring Extensions(4) 18 AWG Crimp Butt Connectors(2) Zip Ties 4.8 mm × 350 mm |
