Rockford fosgate M2D4-10S
Rockford fosgate M2D4-10S
SKU:M2D4-10S
Couldn't load pickup availability
M2 10" DVC 4Ω Color Optix™ Sealed Enclosure Marine Subwoofer
The M2D4-10S is a 10” DVC 4-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Sold individually (1 each).
Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller (sold separately) and App.
Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.

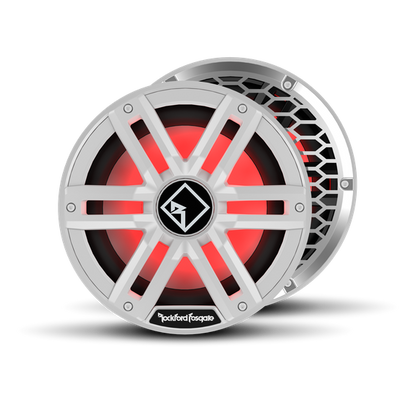

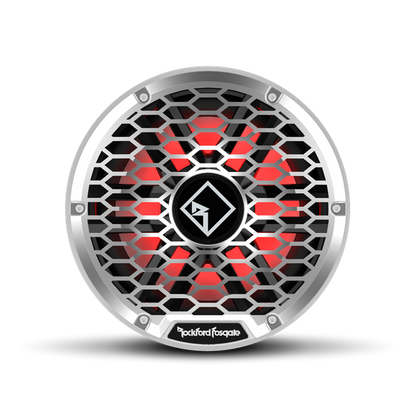

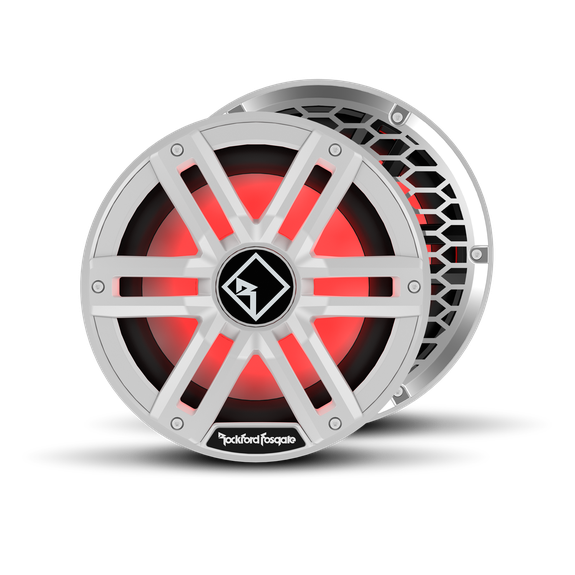

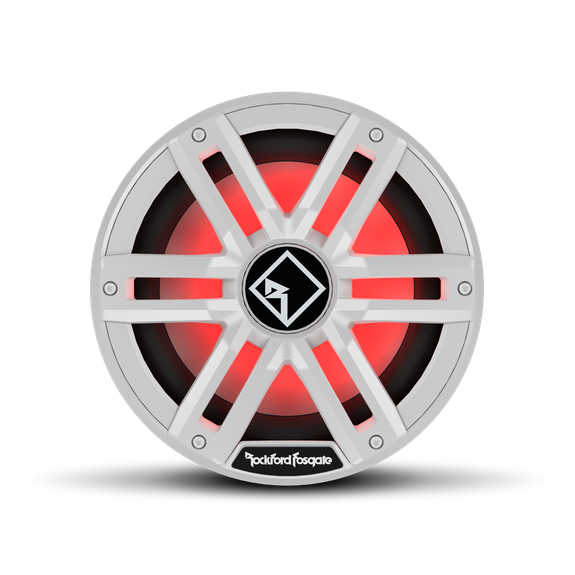

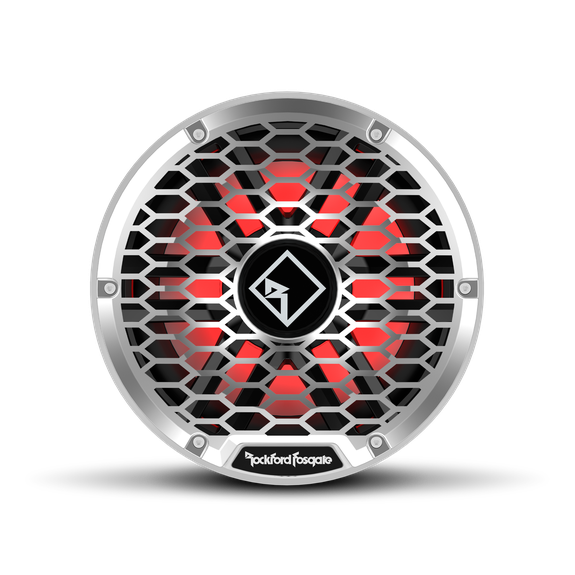

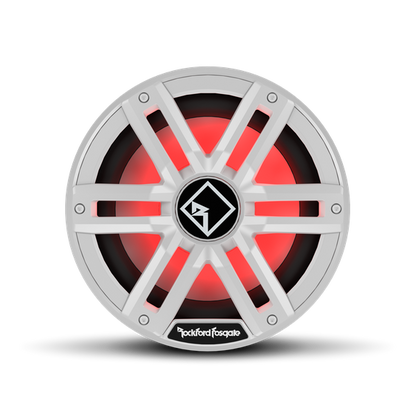

Grille Customization: Multiple grille options provides a customized look by using either the stainless-steel grille or the “sport” grille inserts, allowing you to dial in your personalized-on water experience.

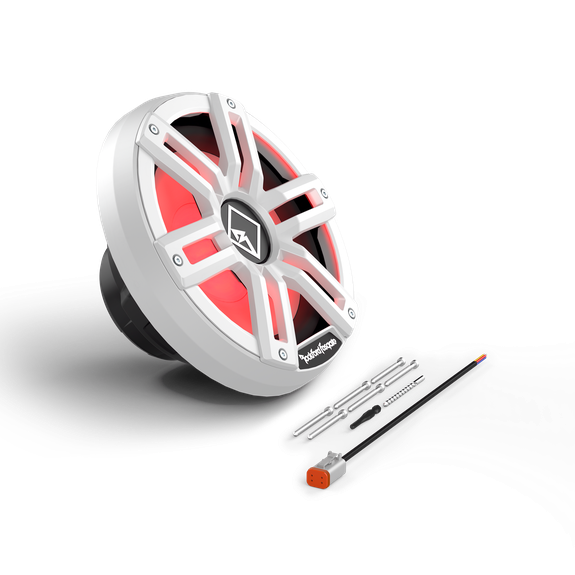

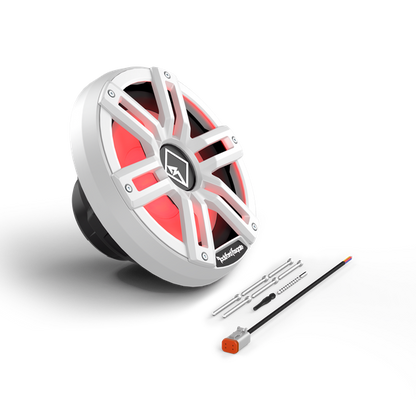

True Marine Ecosystem: Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.
Specification
| Specification | Details |
|---|---|
| Size | 10" |
| Voice Coil Type | Dual Voice Coil |

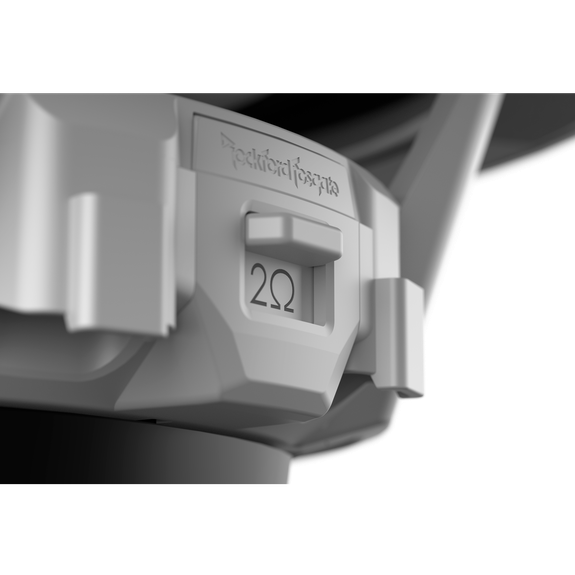

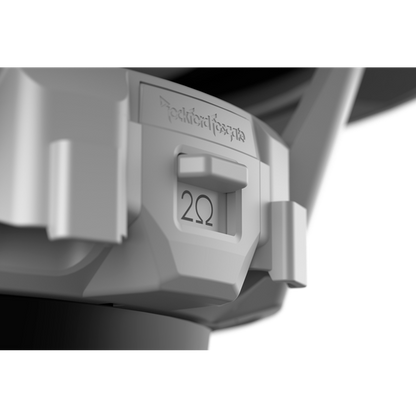

| Nominal Impedance | 2-Ohm or 8-Ohm Switchable |
| Power Handling | 400 Watts RMS |
| Voice Coil Diameter | 1.95" (49.53 mm) |
| Magnet Weight | 32.9 oz. (0.9 Kg) |
| Fs | 28 Hz |
| Re | 6.5 Ohms |
| Le | 3.43 mH |
| Sd | 363 cm² |
| Qms | 5.18 |
| Qes | 1.07 |
| Qts | 0.89 |
| Vas | 38.2 |
| SPL | 86 dB @ 1W/1m |
| Xmax | 12.0 mm |
| Sealed Box Volume (Vb) | 0.5 cu. ft. (14 Liters) |
| Woofer Displacement | 0.07 cu. ft. (2.03 Liters) |
| Speaker Connector | Deutsch™ and 1/8" Spade |
| Cutout Diameter | 8.87 in. (225.3 mm) |

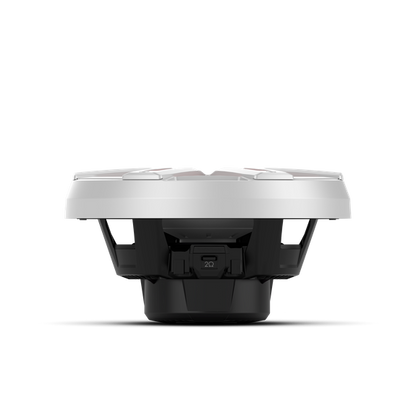

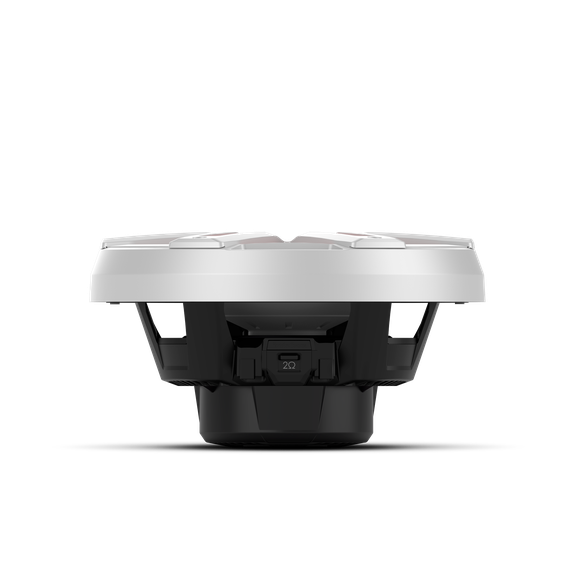

| Mounting Depth | 4.24 in. (107.7 mm) |
| Shipping Weight | 8.5 Lbs. (3.85 Kg) |
