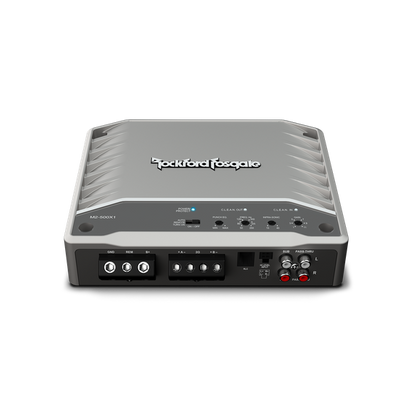

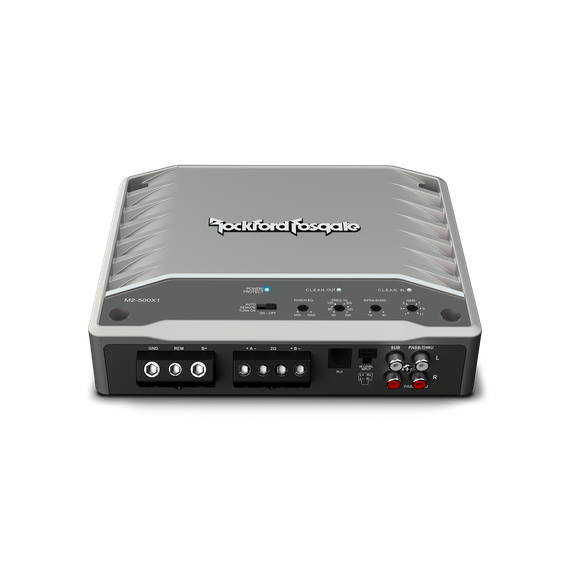

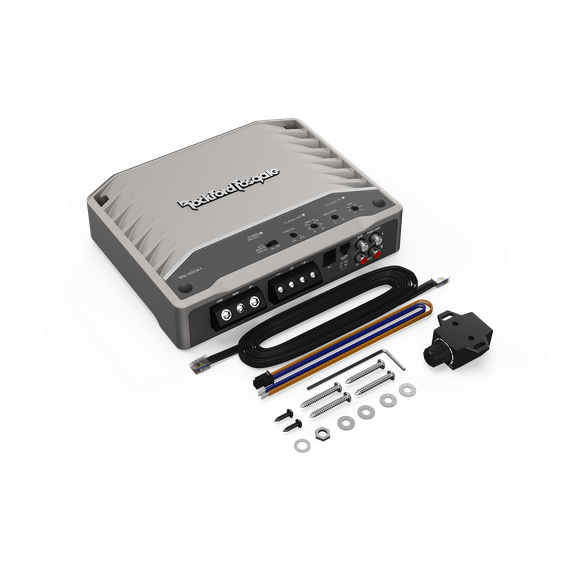

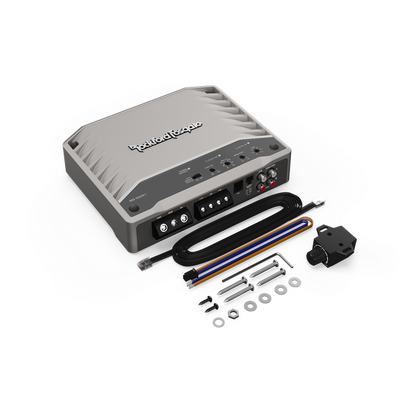

Rockford Fosgate M2-500X1

Name: Rockford Fosgate M2-500X1
Brand: Rockford Fosgate
SKU: M2-500X1
Price: 349.99 USD
Availability: InStock

SKU:M2-500X1

$349.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

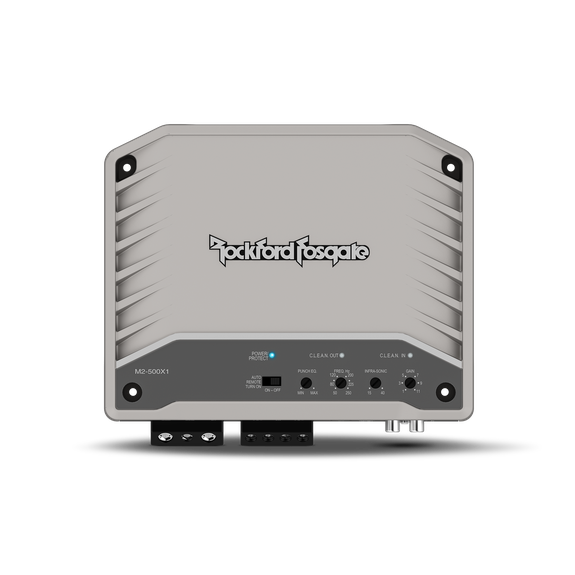

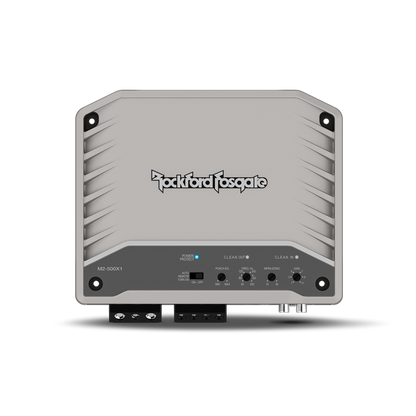

M2 500 Watt Mono Element Ready™ Amplifier

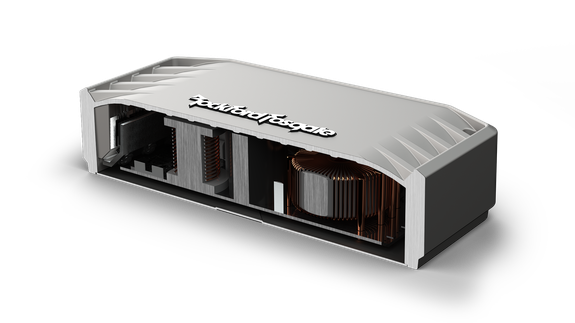

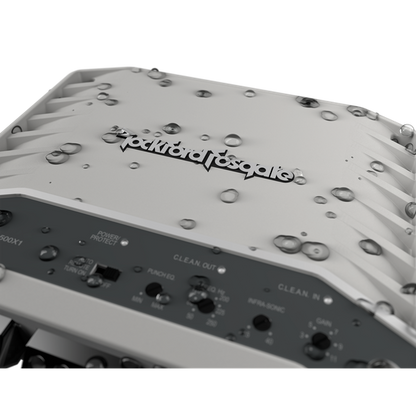

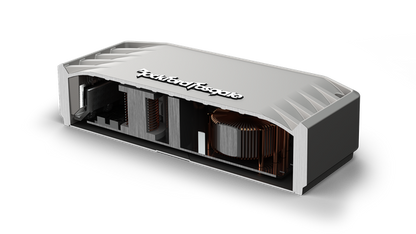

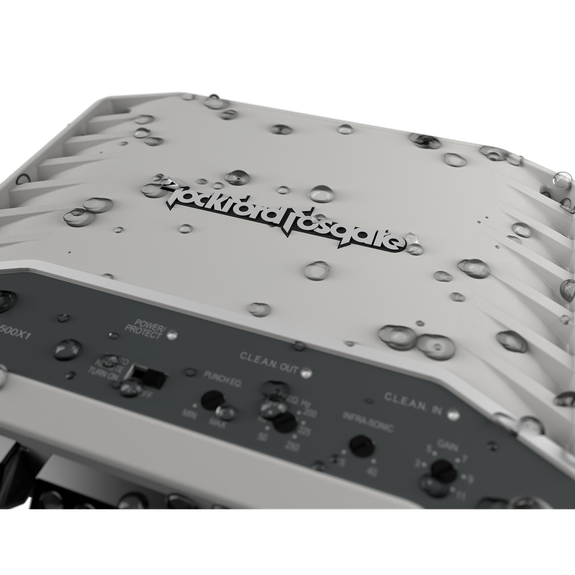

Designed to withstand the elements, the M2-500X1 Element Ready™ amplifier is a 500 watt, class-D model, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	1
Total Power	500W
RMS Power	300W × 1 @ 4Ω / 500W × 1 @ 2Ω
Dynamic Power	350W × 1 @ 4Ω / 590W × 1 @ 2Ω
Bridgeable	No
Frequency Response	20Hz–250Hz
Input Sensitivity	Low-Level: 150mV–4V / High-Level: 450mV–12V
Amplifier Class	Class-D
THD + Noise	<1.0% @ 4Ω / <1.0% @ 2Ω

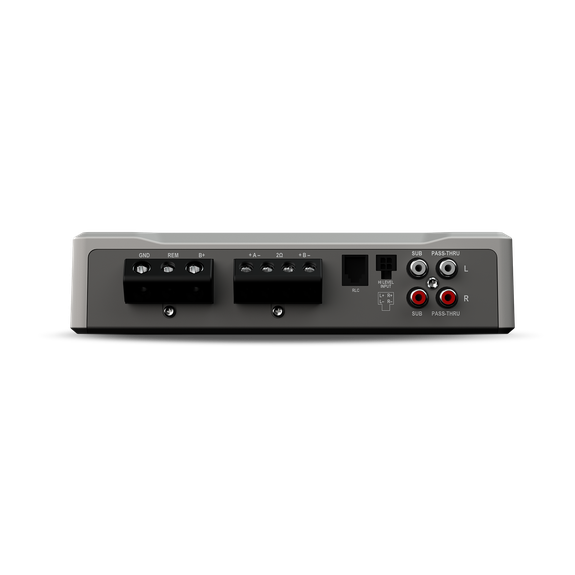

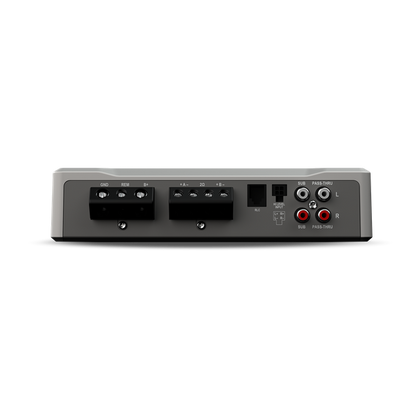

Signal Input	2 RCA low-level / 4-pin Molex high-level
Signal Output	2 RCA pass-through
Tone Control	0 to +18 dB @ 45Hz
Low-Pass Crossover	50–250Hz, 12 dB/octave Butterworth
Infrasonic Filter	15–40Hz, 12 dB/octave Butterworth
Remote Control	Yes
Visual Indicators	Power/Protect, C.L.E.A.N. In/Out
Power Wire Gauge	4 AWG
Speaker Wire Gauge	8 AWG
Power Connector	Compression terminal block
Speaker Connector	Compression terminal block
Cooling	Convection
Operating Voltage	9–16 VDC
Recommended Fuse	80A
Max Current Draw	52A @ 13.8V sinewave
Dimensions	1.9″ × 6.8″ × 8.5″ (4.9 × 17.3 × 21.5 cm)
Shipping Weight	4.8 lbs (2.18 kg)
