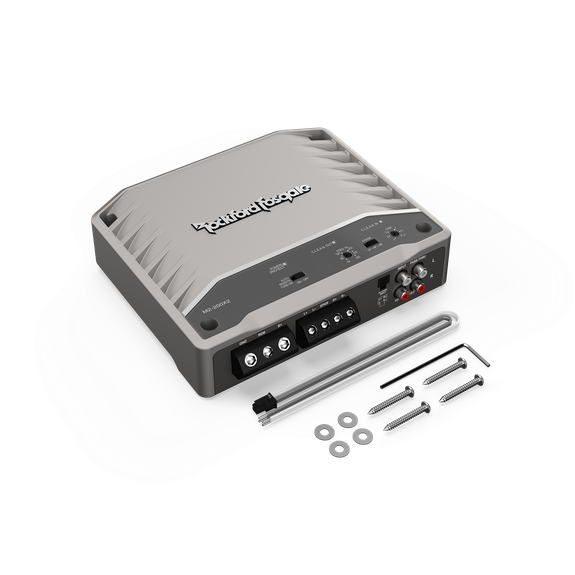

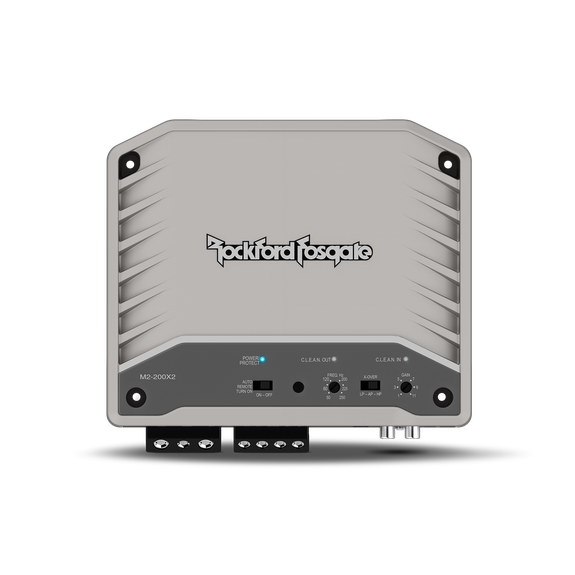

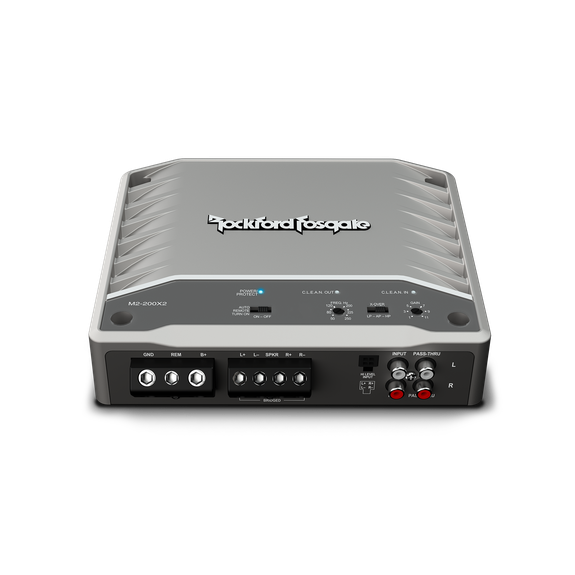

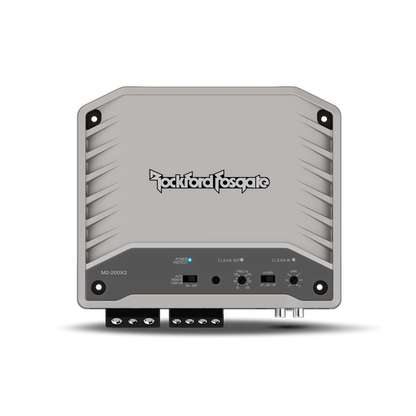

Rockford Fosgate M2-200X2
Rockford Fosgate M2-200X2
SKU:M2-200X2
Regular price
$299.99 USD
Regular price
Sale price
$299.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

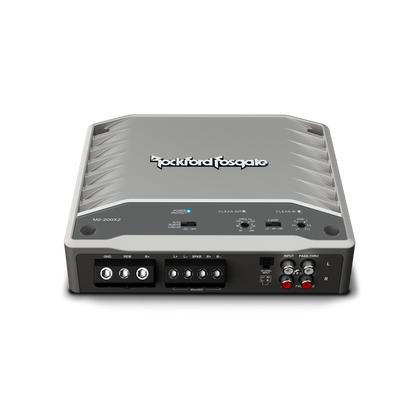

M2 200 Watt 2-Channel Element Ready™ Amplifier

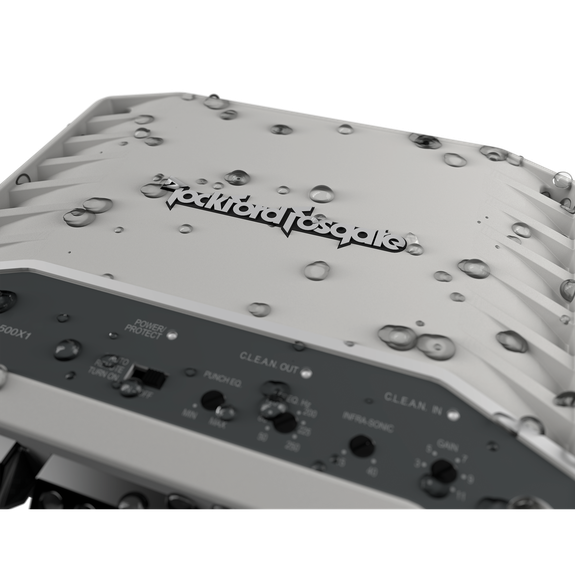

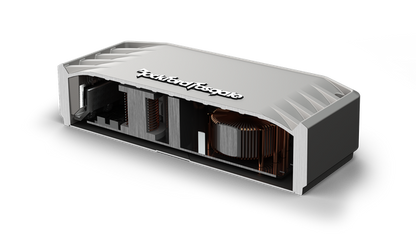

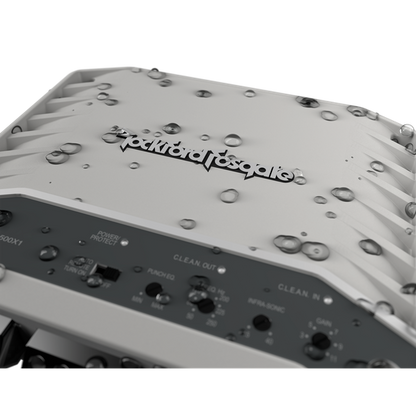

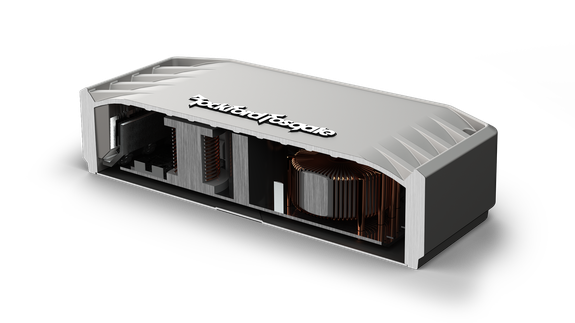

Designed to withstand the elements, the M2-200X2 Element Ready™ amplifier is a 200 watt, full-range class-D model, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 2 |
| Total Power | 200W |
| RMS Power | 50W × 2 @ 4Ω / 100W × 2 @ 2Ω / 200W × 1 @ 4Ω Bridged |
| Dynamic Power | 60W × 2 @ 4Ω / 107W × 2 @ 2Ω / 215W × 1 @ 4Ω Bridged |
| Bridgeable | Yes |
| Frequency Response | 20Hz–20kHz |
| Input Sensitivity | Low-Level: 150mV–4V / High-Level: 450mV–12V |
| Amplifier Class | Class-D |
| THD + Noise | <1.0% @ 4Ω / <1.0% @ 2Ω |

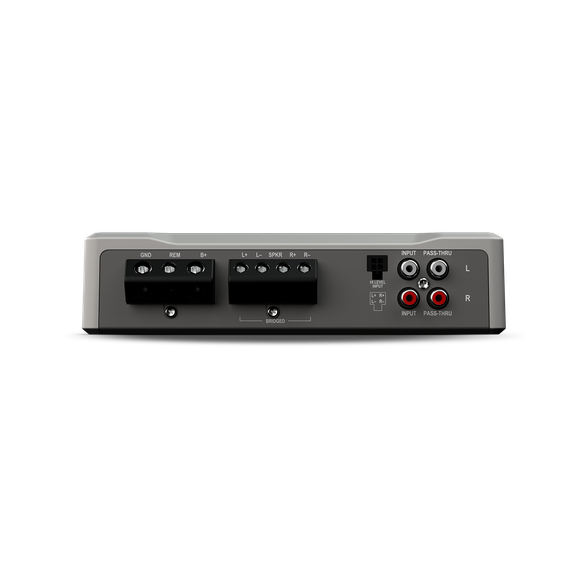

| Signal Input | 2 RCA low-level / 4-pin Molex high-level |
| Signal Output | 2 RCA pass-through |
| Tone Controls | None |
| High-Pass Crossover | 50–250Hz, 12 dB/octave Butterworth |
| Low-Pass Crossover | 50–250Hz, 12 dB/octave Butterworth |
| All-Pass | Yes |
| Remote Controls | No |
| Visual Indicators | Power/Protect, C.L.E.A.N. In/Out |
| Power Wire Gauge | 4 AWG |
| Speaker Wire Gauge | 8 AWG |

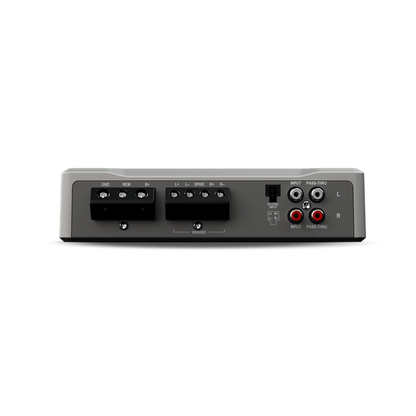

| Power/Speaker Connectors | Compression terminal blocks |
| Cooling | Convection |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 30A |
| Max Current Draw | 18A @ 13.8V sinewave |
| Dimensions | 1.9″ × 6.8″ × 8.1″ (4.9 × 17.3 × 20.5 cm) |
