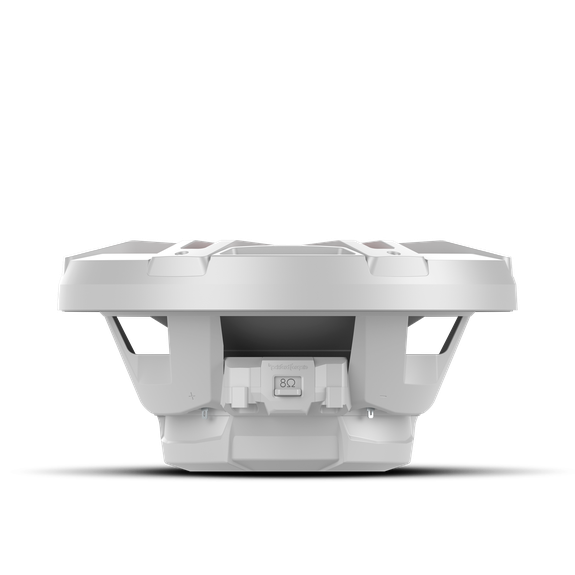

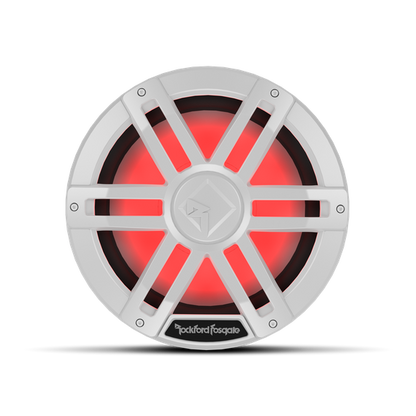

Rockford Fosgate M1D4-12
Rockford Fosgate M1D4-12
SKU:M1D4-12
Regular price
$319.99 USD
Regular price
Sale price
$319.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

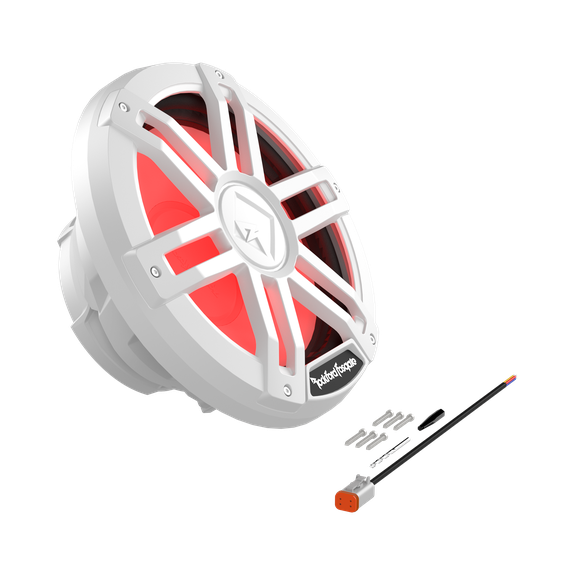

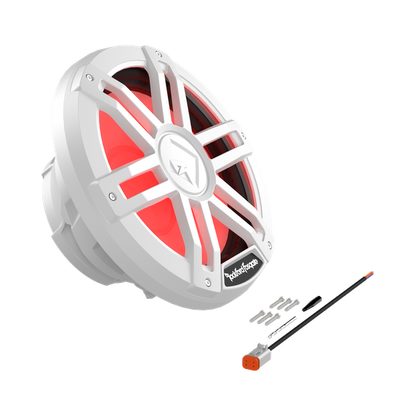

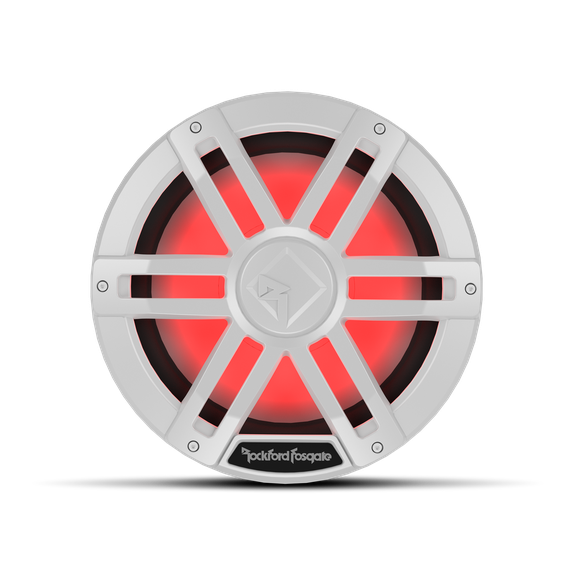

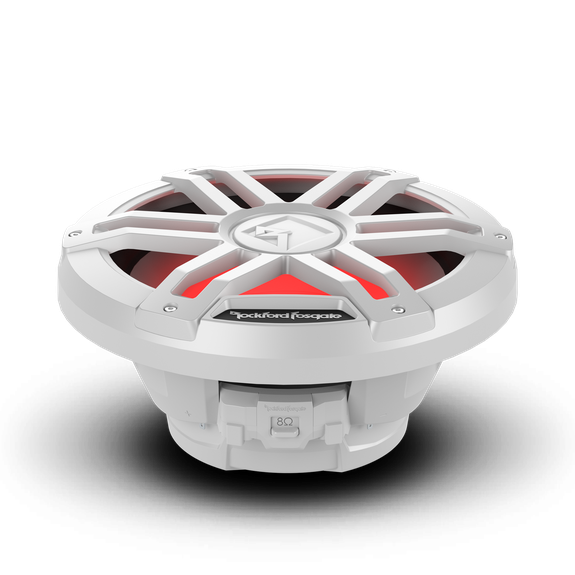

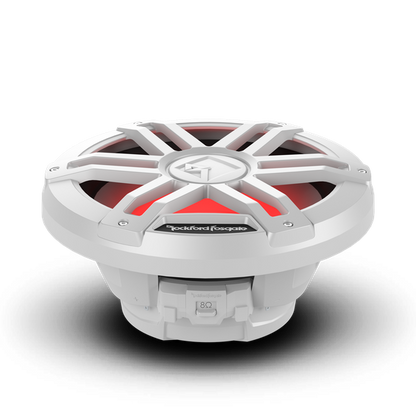

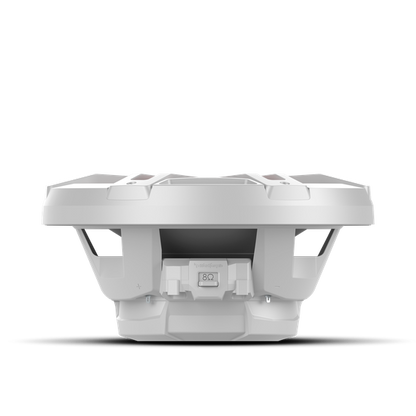

M1 12" DVC 4Ω Color Optix™ Marine Subwoofer
The M1D4-12 Color Optix™ 12” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller (sold separately) and App.
Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.
True Marine Ecosystem: Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.
Specification
| Specification | Details |
|---|---|
| Size | 12" |
| Voice Coil Type | Dual Voice Coil |

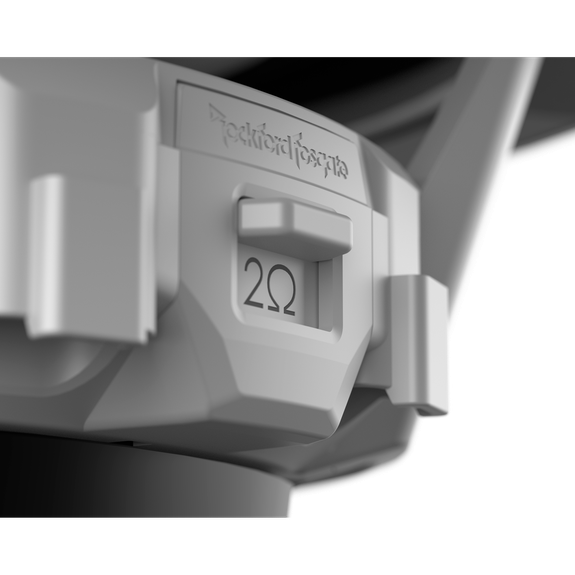

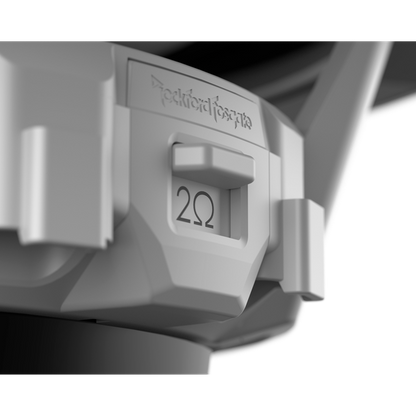

| Nominal Impedance | 2-Ohm or 8-Ohm Switchable |
| Frequency Response | 20 Hz - 750 Hz |
| Power Handling | 300 Watts RMS / 1200 Watts PEAK |
| Voice Coil Diameter | 2" (50 mm) |
| Magnet Weight | 39.75 oz. (1.13 Kg) |
| Fs | 27 Hz |
| Re | 7.6 Ohms |
| Le | 3.40 mH |
| Sd | 585.4 cm² |
| Qms | 8.20 |
| Qes | 0.63 |
| Qts | 0.59 |
| Vas | 113.1 |
| SPL | 92 dB @ 1W/1m |
| Xmax | 6.0 mm |
| Vented Box Volume (Vb) | 2.45 cu. ft. (69.38 Liters) |
| Sealed Box Volume (Vb) | 1.65 cu. ft. (46.72 Liters) |
| Woofer Displacement | 3.49 (0.12 Liters) |
| Speaker Connector | Deutsch™ |
| Cutout Diameter | 10.85" (275.6 mm) |
| Mounting Depth | 6.65" (169.1 mm) |
| Shipping Weight | 9 Lbs. (4.1 Kg.) |
