Rockford fosgate M1D2-10
Rockford fosgate M1D2-10
SKU:M1D2-10
Couldn't load pickup availability

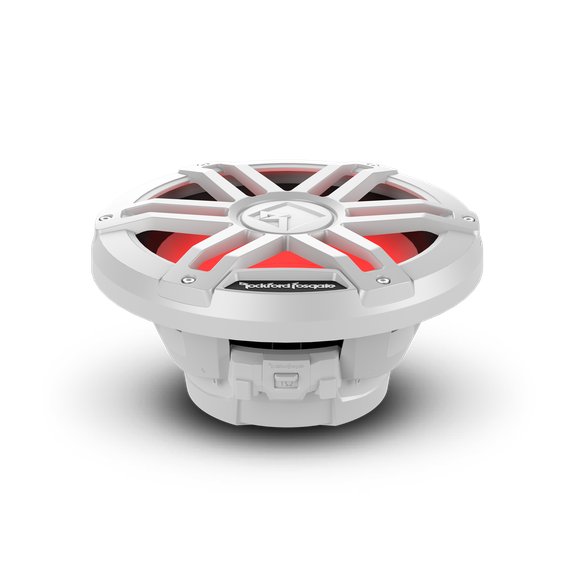

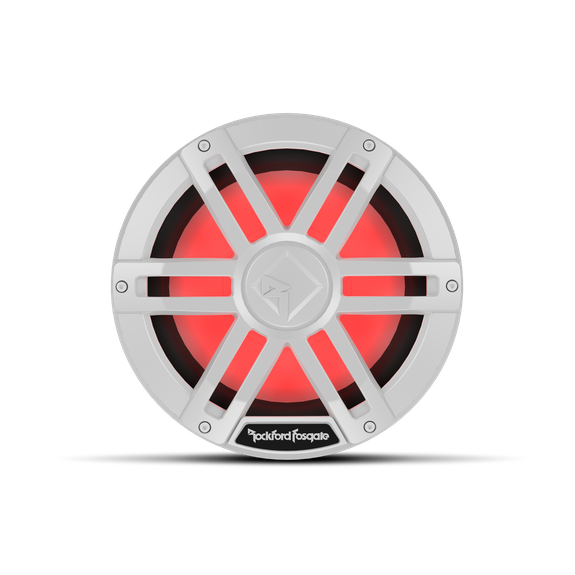

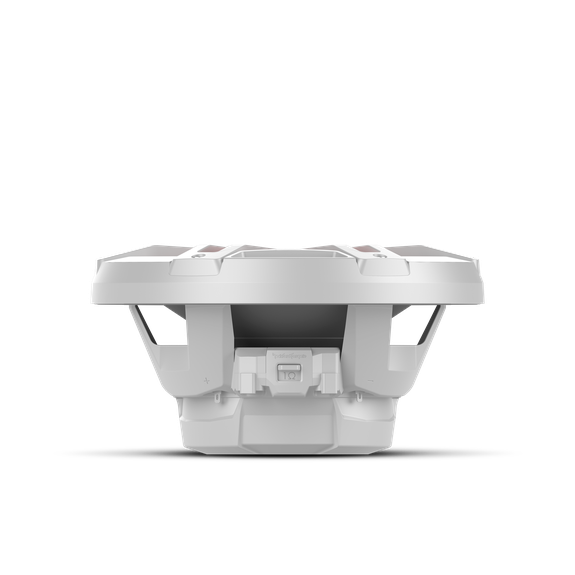

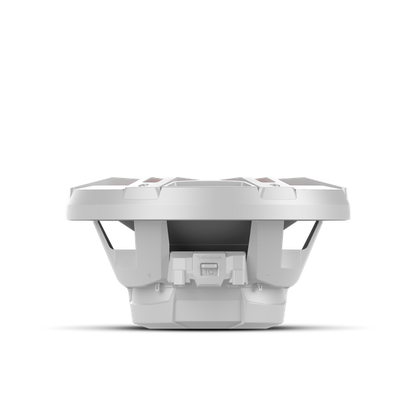

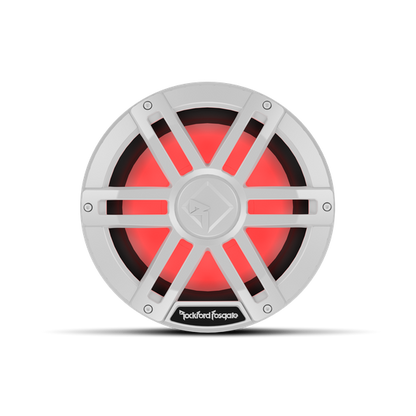

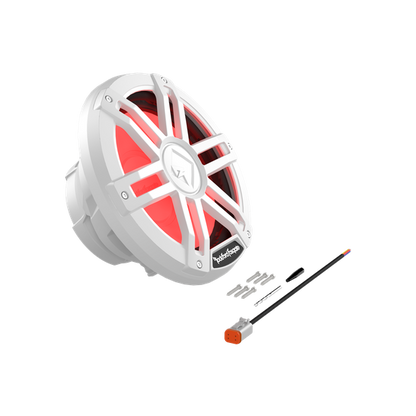

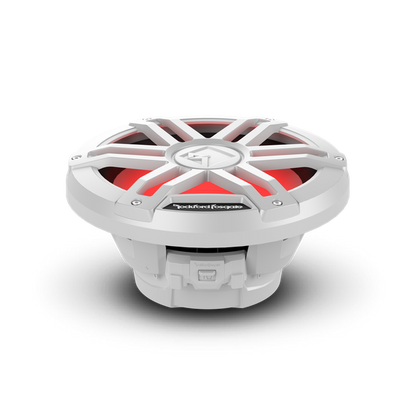

M1 10" DVC 2Ω Color Optix™ Marine Subwoofer

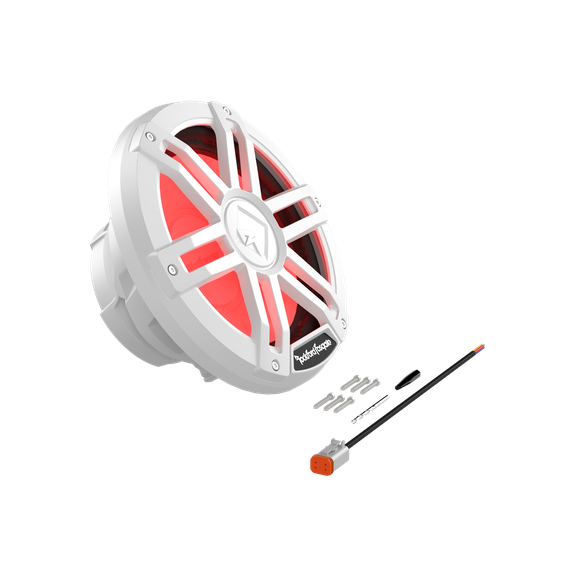

The M1D2-10 Color Optix 10 DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).Color Optix Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix plug-and-play controller (sold separately) and App.Element Ready Purpose Built for the Marine Environment, Rockfords Element Ready products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.True Marine Ecosystem Integrated Deutsch Amphenol connections provide industry leading marine plug-and-play connectivity and flexible install options.Color OptixRequires PMX-RGBcontroller and RF Connect App Color Optix Speakers | Launch Color Optix Speakers | Overview Color Optix Controller | OverviewThe M1D2-10 Color Optix 10 DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, & light the way for your journey!
Specification
| Specification | Value |
| Size | 10" |
| Voice Coil Type | Dual Voice Coil |

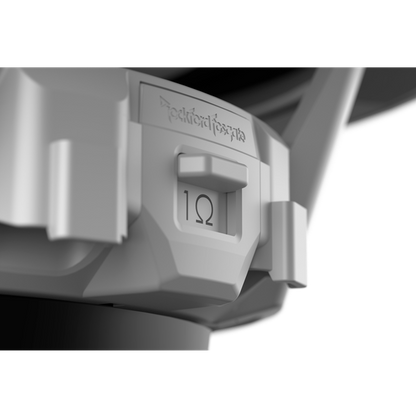

| Nominal Impedance | 1-Ohm or 4-Ohm Switchable |
| Frequency Response | 20 Hz – 750 Hz |
| Power Handling | 300 Watts RMS / 1200 Watts PEAK |
| Voice Coil Diameter | 2.0" (50 mm) |
| Magnet Weight | 47.70 oz. (1.35 kg) |
| Fs (Resonant Frequency) | 34 Hz |
| Re (DC Resistance) | 3.7 Ohms |
| Le (Voice Coil Inductance) | 2.22 mH |
| Sd (Cone Area) | 394.1 cm² |
| Qms (Mechanical Q) | 7.80 |
| Qes (Electrical Q) | 0.47 |
| Qts (Total Q) | 0.44 |
| Xmax (Linear Excursion) | 7.0 mm |
| Vas (Equivalent Volume) | 44.2 L |
| SPL (Sensitivity) | 91.5 dB @ 1W/1m |
| Woofer Displacement | 0.10 cu. ft. (2.80 L) |
| Speaker Connector | Deutsch™ |
| Cutout Diameter | 8.90 in. (226 mm) |
| Mounting Depth | 4.23 in. (107.4 mm) |
| Shipping Weight | 8.6 lbs (3.9 kg) |
