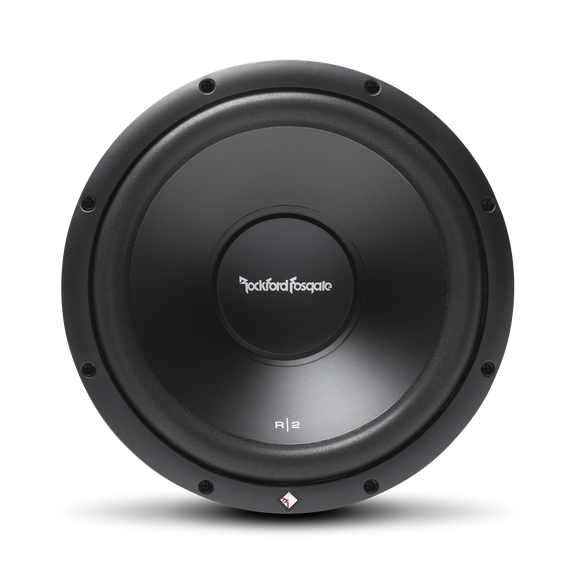

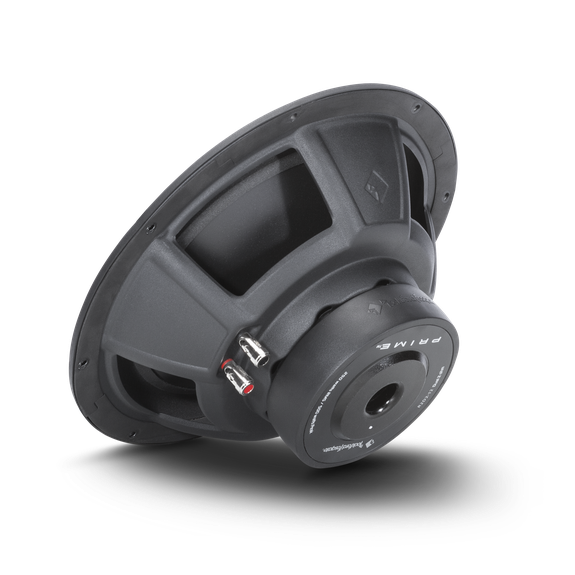

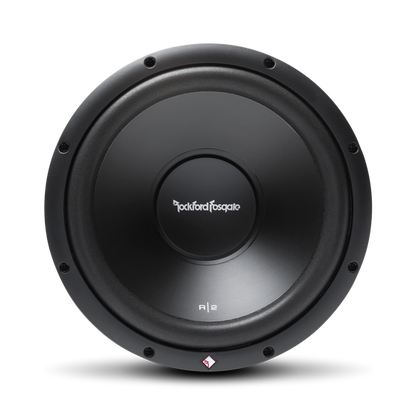

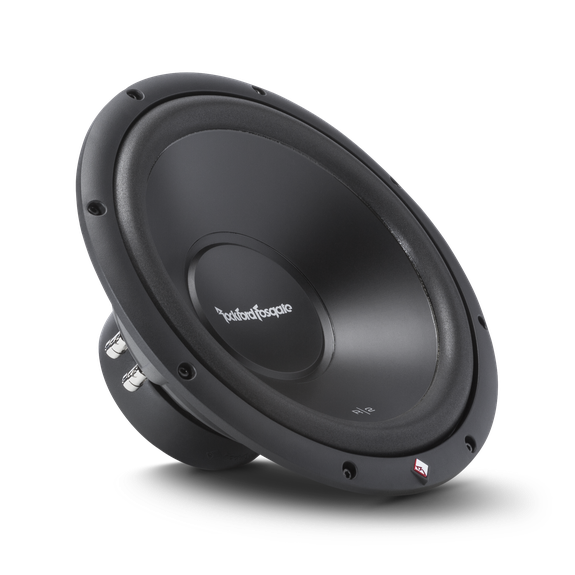

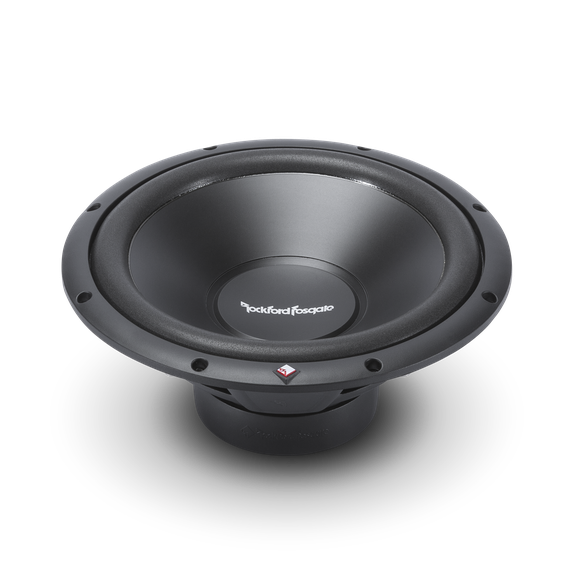

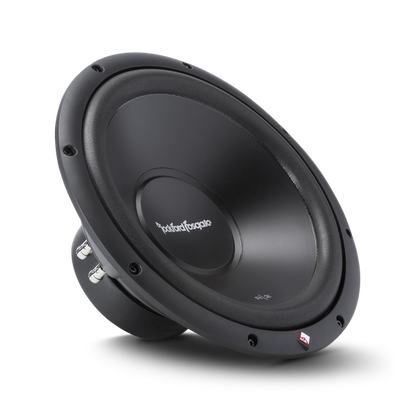

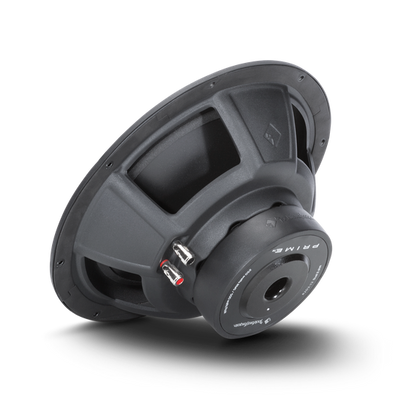

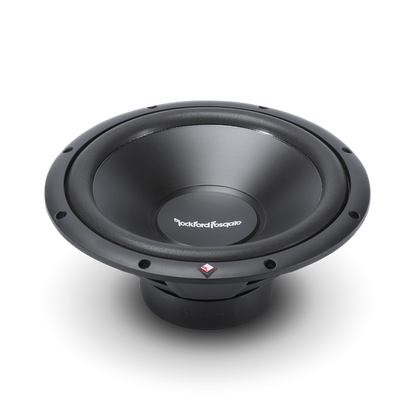

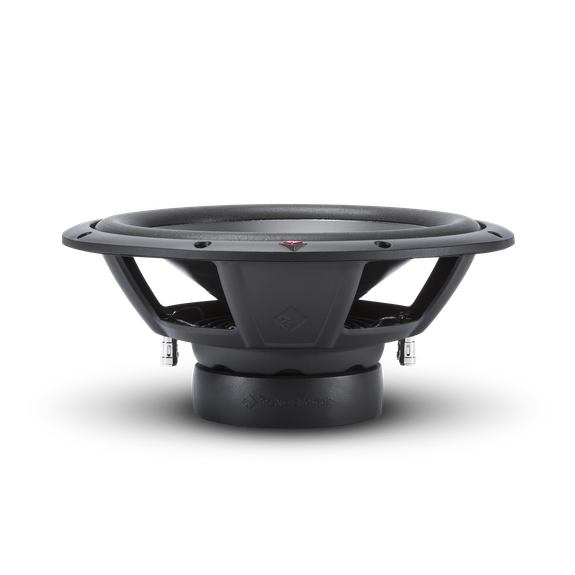

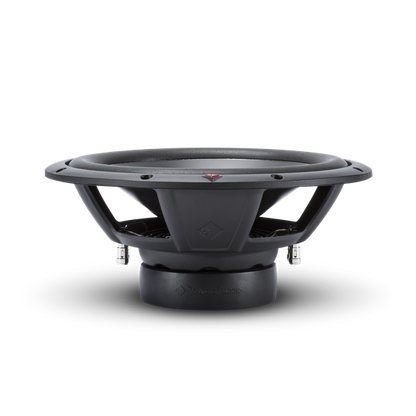

Rockford Fosgate R2D2-12

Rockford Fosgate R2D2-12

SKU:R2D2-12

Regular price $119.99 USD
Regular price Sale price $119.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
Ask A Product Expert
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

Prime 12" R2 2-Ohm DVC Subwoofer

Car Audio Fanatics wanting big bass can rely on the Prime R2D2-12 subwoofer. This 12” subwoofer handles 250 Watt RMS and the 2-Ohm Dual Voice Coil design lets you to wire them in various configurations.Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 12" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.

FEATURES AT A GLANCE

  • StampCast basket with integrated spider venting
  • Mica reinforced polypropylene cone
  • Integrated PVC trim ring
  • Optimized for both sealed and vented enclosures
  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Anodized aluminum voice coil former

Specification

Specification Value
CEA-2031 Compliant Yes
Size 12"
Voice Coil Type Dual Voice Coil (DVC)
Nominal Impedance Dual 2 Ω
Subwoofer Type Standard
Sd 539.1 cm²
Re 3.80 Ω
Vas 66.4 L
Qms 8.29
Qes 0.62
Qts 0.58
Le 3.9 mH
Fs 34.6 Hz
Voice Coil Diameter 2" (51 mm)
Speaker Connector Dual 12 AWG compression
Power Handling (RMS) 250 W
Power Handling (Max) 500 W
Magnet Weight 47.7 oz (1.35 kg)
Mounting Depth 5.067" (128 mm)
Woofer Displacement 0.046 ft³ (1.3 L)
Cutout Diameter 11.25" (285 mm)
SPL @ 1 W/1 m 88.7 dB
Xmax 6.5 mm
Shipping Weight 9.9 lb (4.49 kg)
Sealed Box Volume (Vb) 1.02 ft³ (28.8 L)
Vented Box Volume (Vb) 1.79 ft³ (50.6
