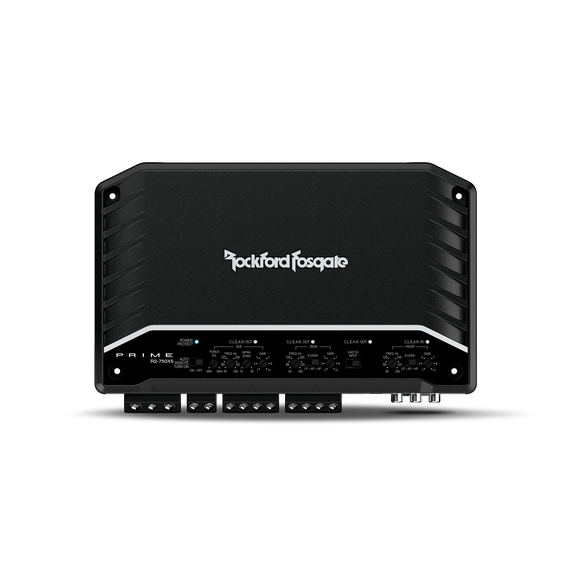

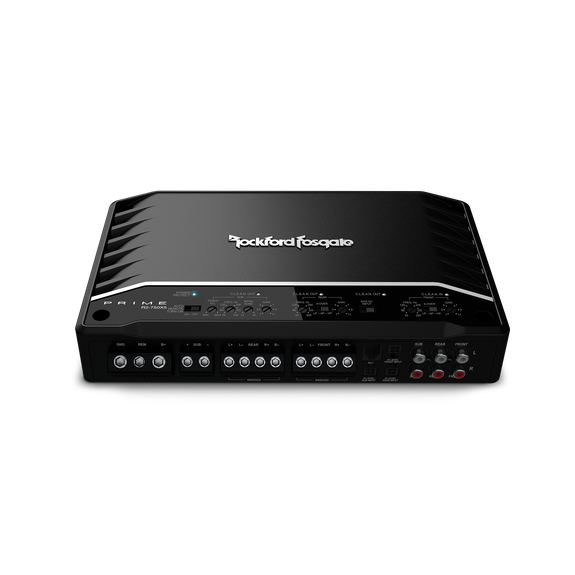

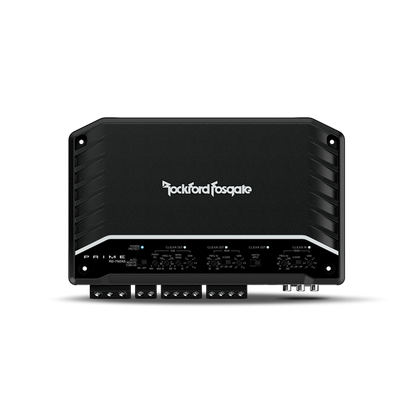

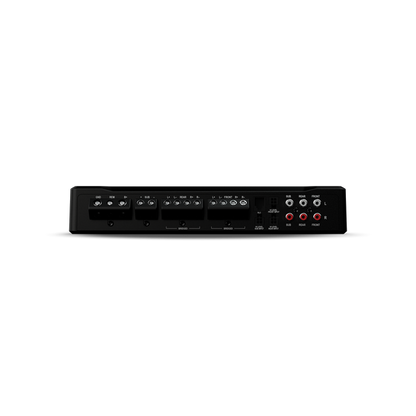

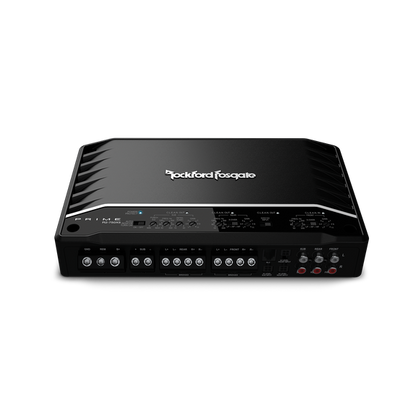

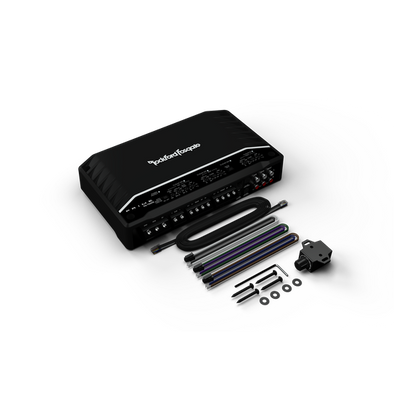

Rockford Fosgate R2-750X5
Rockford Fosgate R2-750X5
SKU:R2-750X5
Regular price
$539.99 USD
Regular price
Sale price
$539.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Prime 750 Watt 5-Channel Amplifier
Primed for Performance, the R2-750X5 is a 750 watt rated, full-range class-D amplifier capable of operating at 4Ω or 2Ω stereo with a mono subwoofer channel that can be run at 4Ω or 2Ω. The front/rear stereo channels can also be run at a 4Ω bridged/mono load. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more dynamic power as voltage increases, and an integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 5 |
| Total Power | 750 Watts |
| Rated Power | 50 W × 4 + 200 W × 1 @ 4 Ω100 W × 4 + 350 W × 1 @ 2 Ω200 W × 2 + N/A @ 4 Ω Bridged/Mono |
| Dynamic Power | 70 W × 4 + 241 W × 1 @ 4 Ω114 W × 4 + 426 W × 1 @ 2 Ω234 W × 2 + N/A @ 4 Ω Bridged/Mono |
| Bridgeable | Yes |
| Frequency Response | 20 Hz–20 kHz |
| Input Sensitivity | Low-Level: 150 mV–4 VHigh-Level: 450 mV–12 V |
| Circuit Topology Class | Class-D |
| Efficiency (Average) | — |
| Total Harmonic Distortion (THD+Noise) | Front/Rear 4 Ω: <1.0%Front/Rear 2 Ω: <1.0%Sub 4 Ω: <1.0%Sub 2 Ω: <1.0% |

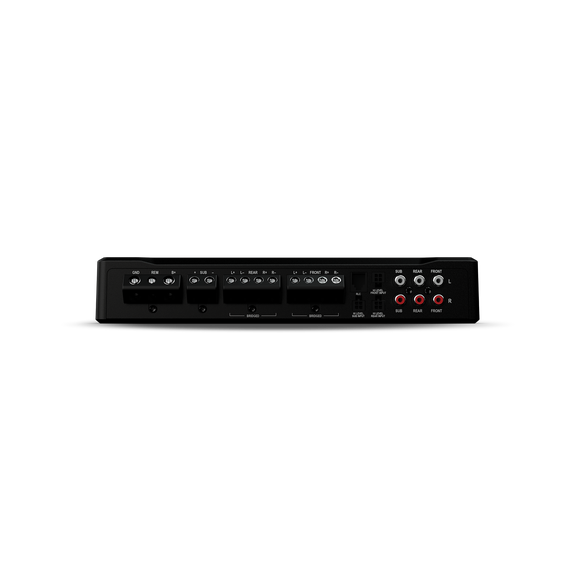

| Signal Input | Front Low-Level: 2 RCAFront High-Level: 4-Pin MolexRear Low-Level: 2 RCARear High-Level: 4-Pin MolexSub Low-Level: 2 RCASub High-Level: 4-Pin MolexInput Switch: 2/4/5 Input (RCA/Hi-Level) |
| Signal Output | N/A |
| Tone Controls | 0 to +18 dB @ 45 Hz |
| Crossover Controls | Front HP: 50–250 Hz @ 12 dB/octave ButterworthFront LP: 50–250 Hz @ 12 dB/octave ButterworthRear HP: 50–250 Hz @ 12 dB/octave ButterworthRear LP: 50–250 Hz @ 12 dB/octave ButterworthSub LP: 50–250 Hz @ 12 dB/octave ButterworthSub Infrasonic: 15–40 Hz @ 12 dB/octave Butterworth |
