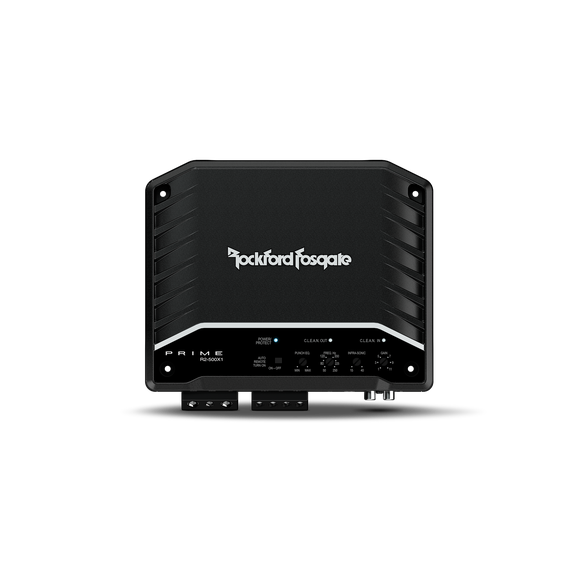

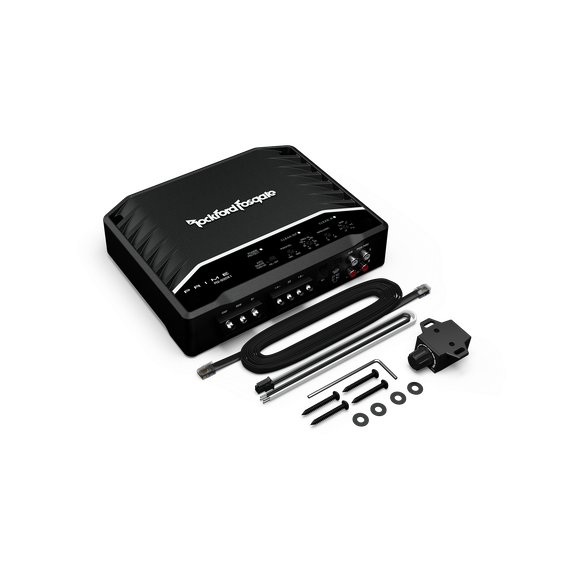

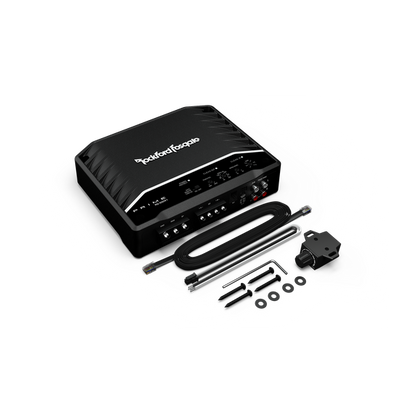

Rockford Fosgate R2-500X1
Rockford Fosgate R2-500X1
SKU:R2-500X1
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

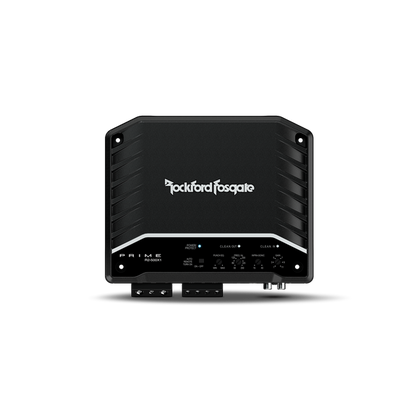

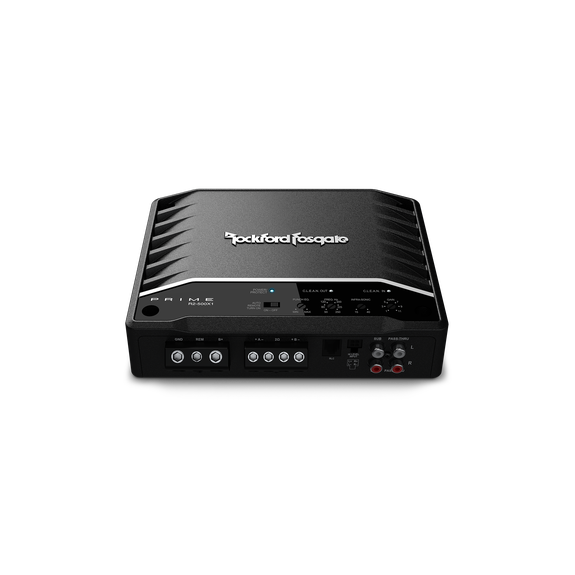

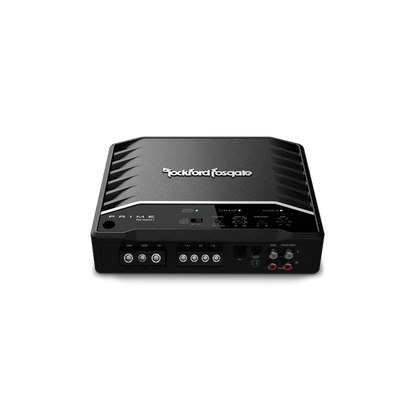

Prime 500 Watt Mono Amplifier

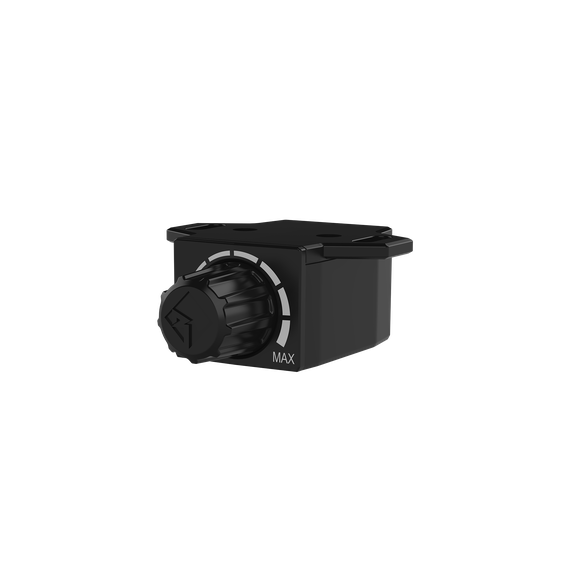

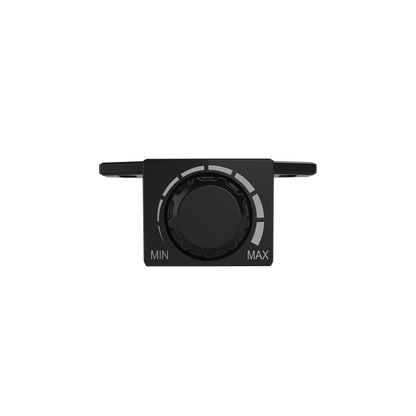

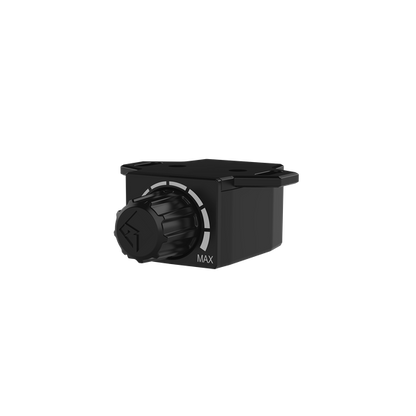

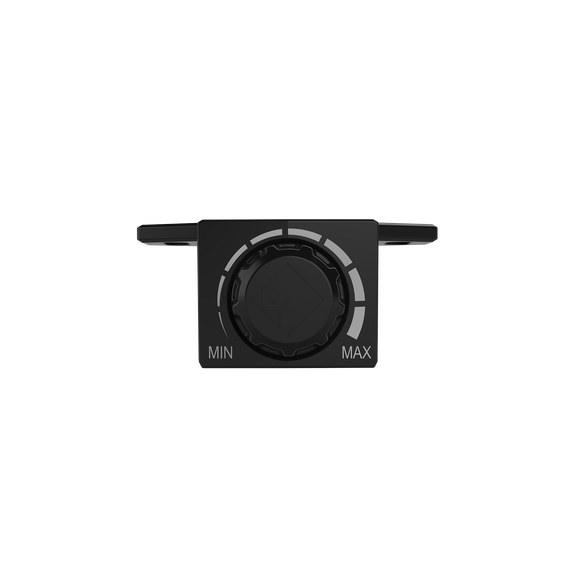

Primed for Performance, the R2-500X1 is a 500 watt, class-D amplifier capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power | 500 Watts |
| Rated Power (RMS Continuous Power) | 300 Watts × 1 @ 4Ω500 Watts × 1 @ 2Ω |
| Dynamic Power (PVC/PowerCube®) | 350 Watts × 1 @ 4Ω590 Watts × 1 @ 2Ω |
| Bridgeable | No |
| Frequency Response | 20 Hz – 250 Hz |
| Input Sensitivity | Low-Level: 150 mV – 4 VHigh-Level: 450 mV – 12 V |
| Circuit Topology Class | Class-D |
| Efficiency (Average) | — |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |

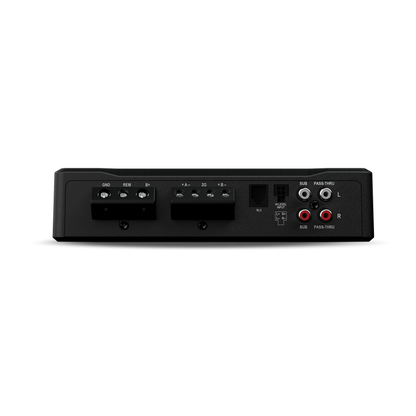

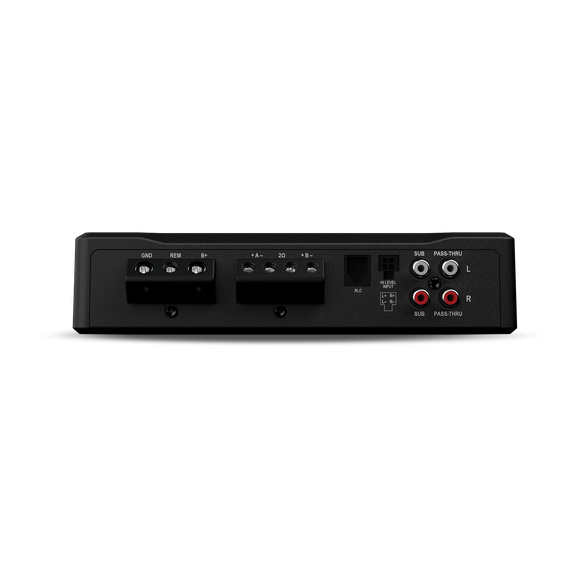

| Signal Input | Low-Level: 2 RCAHigh-Level: 4-Pin Molex |
| Signal Output | Low-Level: 2 RCA(Pass-Thru active with RCA or Hi-Level input) |
| Tone Controls | 0 to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthInfrasonic: 15 Hz – 40 Hz @ 12 dB/Octave Butterworth |
| Remote Controls | Yes |
| Visual Indicators | POWER (Blue) / PROTECT (Red)C.L.E.A.N. IN (Red)C.L.E.A.N. OUT (Blue/Red) |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse | 80 A |
| Average Current Draw (13.8 V Music) | — |
| Max. Current Draw (13.8 V Sinewave) | 52 A |
| Suggested Alternator | — |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.9" × 6.8" × 8.5"(4.9 cm × 17.3 cm × 21.5 cm) |
| Shipping Weight | — |
