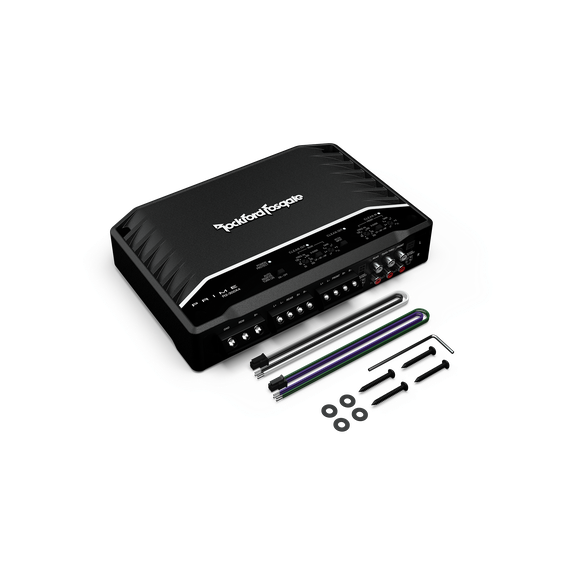

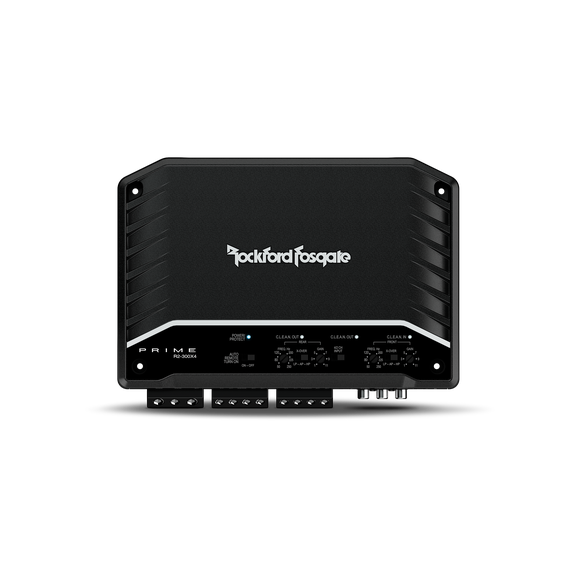

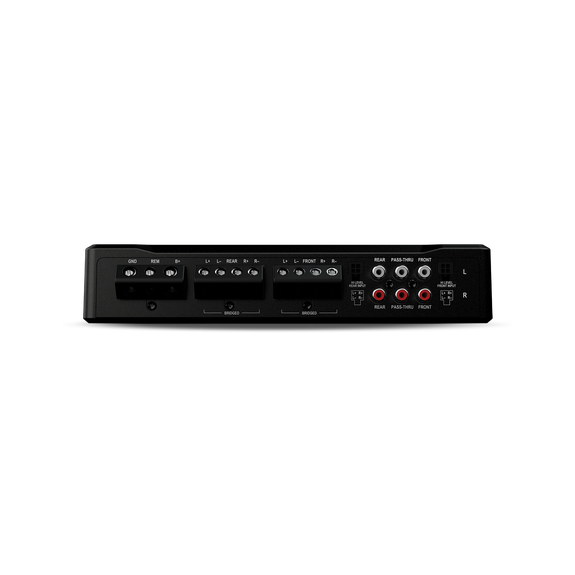

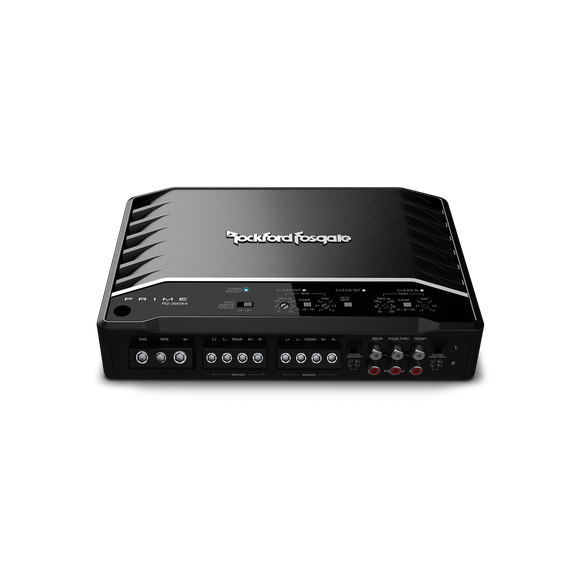

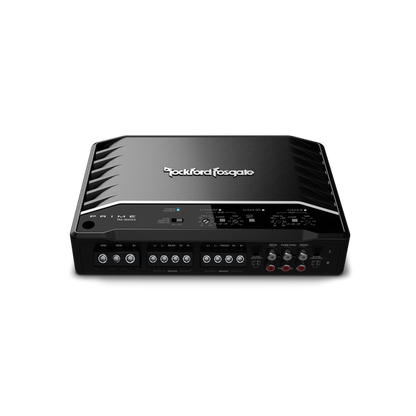

Rockford Fosgate R2-300X4
Rockford Fosgate R2-300X4
SKU:R2-300X4
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Prime 300 Watt 4-Channel Amplifier
Primed for Performance, the R2-300X4 is a 300 watt, full-range Class-D amplifier capable of operating at 4Ω or 2Ω stereo and 4Ω bridged/mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power | 300 Watts |
| Rated Power (RMS Continuous Power) | 50 Watts × 4 @ 4Ω75 Watts × 4 @ 2Ω150 Watts × 2 @ 4Ω Bridged/Mono |
| Dynamic Power (PVC/PowerCube®) | 70 Watts × 4 @ 4Ω115 Watts × 4 @ 2Ω230 Watts × 2 @ 4Ω Bridged/Mono |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz |
| Input Sensitivity | Low-Level: 150 mV – 4 VHigh-Level: 450 mV – 12 V |
| Circuit Topology Class | Class-D |
| Efficiency (Average) | — |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |
| Signal Input | Front Low-Level: 4 RCAFront High-Level: 4-Pin MolexRear Low-Level: 4 RCARear High-Level: 4-Pin MolexInput Switch: 2/4 Input (works for RCA/Hi-Level inputs) |
| Signal Output | Low-Level: 2 RCA(Pass-Thru active with RCA or Hi-Level input) |
| Tone Controls | No |
| Crossover Controls | Front High-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthFront Low-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthRear High-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthRear Low-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthAll-Pass: Yes |
| Remote Controls | No |
| Visual Indicators | POWER (Blue) / PROTECT (Red)C.L.E.A.N. IN (Red)C.L.E.A.N. OUT Front (Blue/Red)C.L.E.A.N. OUT Rear (Blue/Red) |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse | 60 A |
| Average Current Draw (13.8 V Music) | — |
| Max. Current Draw (13.8 V Sinewave) | 39 A |
| Suggested Alternator | — |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.9" × 6.8" × 10.1"(4.9 cm × 17.3 cm × 25.5 cm) |
| Shipping Weight | — |
