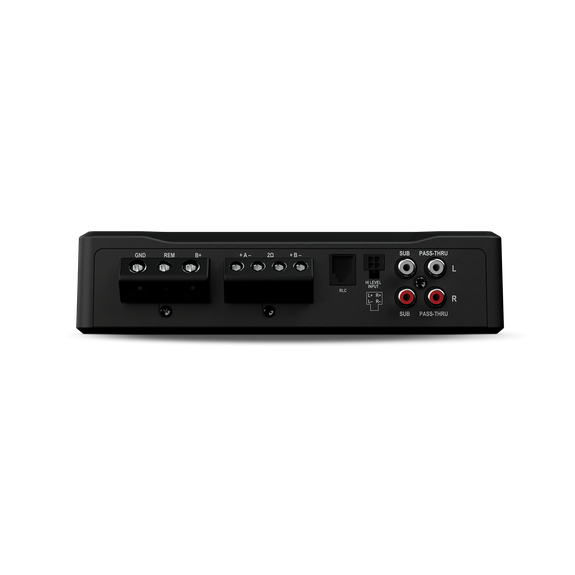

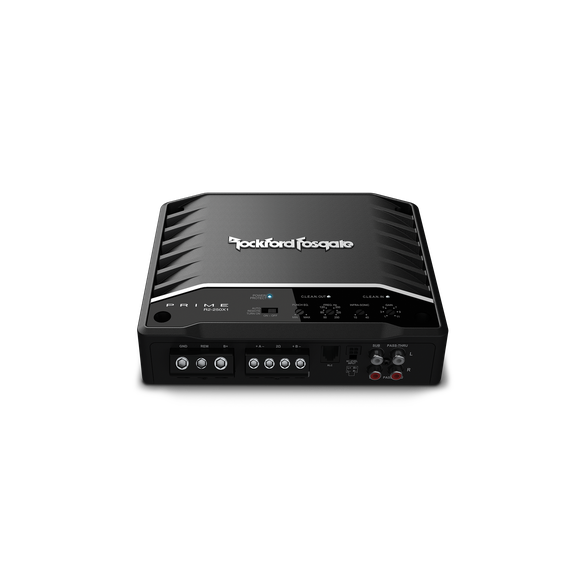

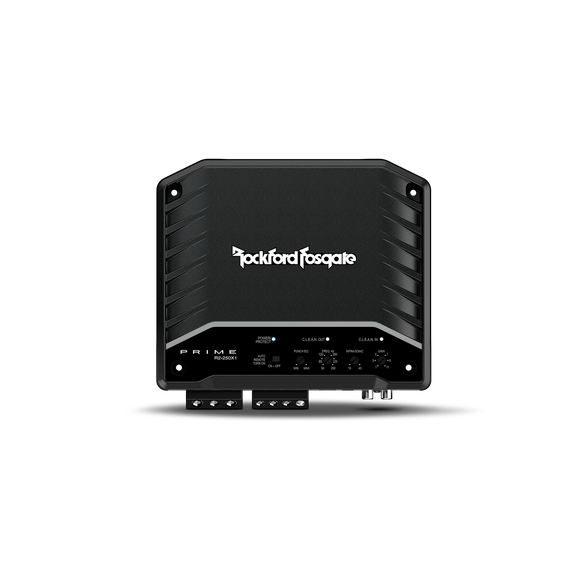

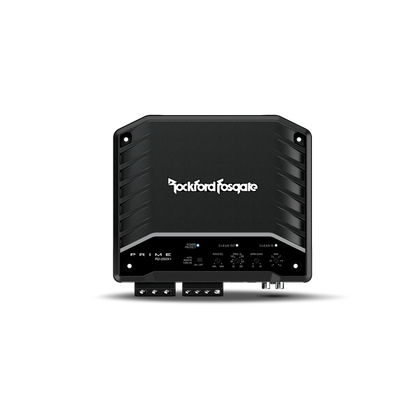

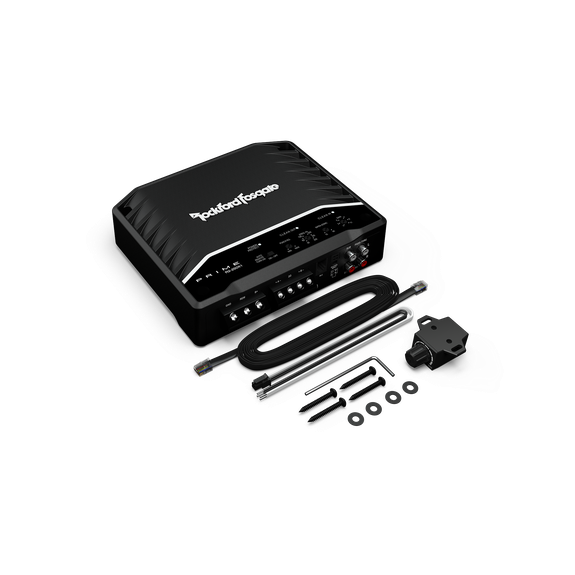

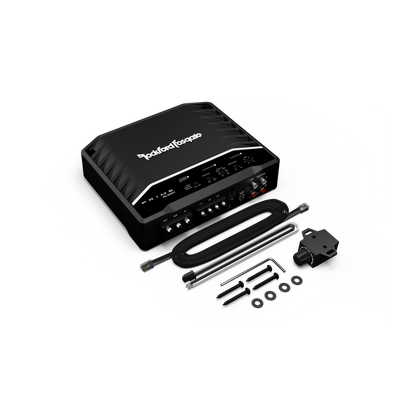

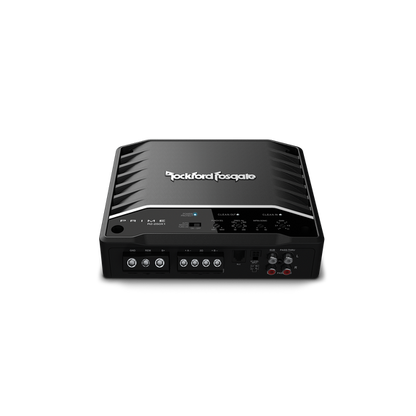

Rockford Fosgate R2-250X1
Rockford Fosgate R2-250X1
SKU:R2-250X1
Regular price
$249.99 USD
Regular price
Sale price
$249.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Prime 250 Watt Mono Amplifier
The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power | 250 Watts |
| Rated Power (RMS Continuous Power) | 150 Watts × 1 @ 4Ω250 Watts × 1 @ 2Ω |
| Dynamic Power (PVC/PowerCube®) | 209 Watts × 1 @ 4Ω328 Watts × 1 @ 2Ω |
| Bridgeable | No |
| Frequency Response | 20 Hz – 250 Hz |
| Input Sensitivity | Low-Level: 150 mV – 4 VHigh-Level: 450 mV – 12 V |
| Circuit Topology Class | Class-D |
| Efficiency (Average) | — |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |

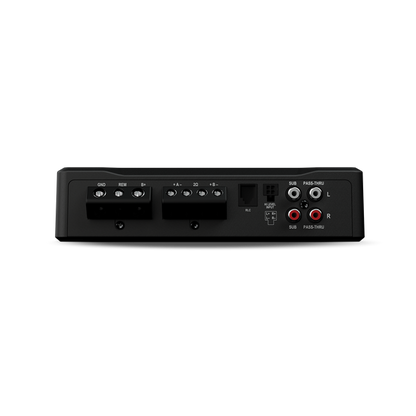

| Signal Input | Low-Level: 2 RCAHigh-Level: 4-Pin Molex |
| Signal Output | Low-Level: 2 RCA(Pass-Thru active with RCA or Hi-Level input) |
| Tone Controls | 0 to +18 dB @ 45 Hz |
| Crossover Controls | Low-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthInfrasonic: 15 Hz – 40 Hz @ 12 dB/Octave Butterworth |

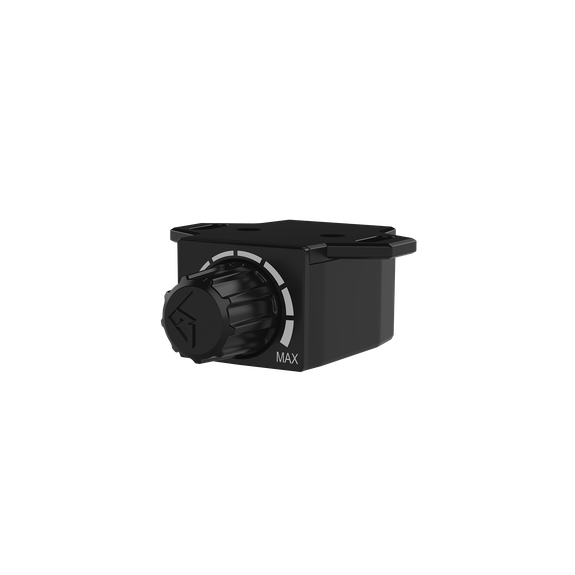

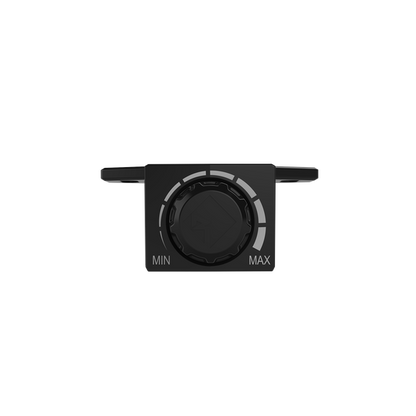

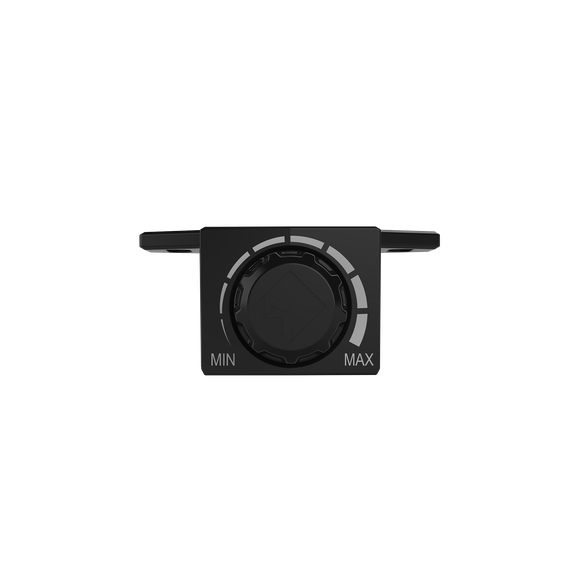

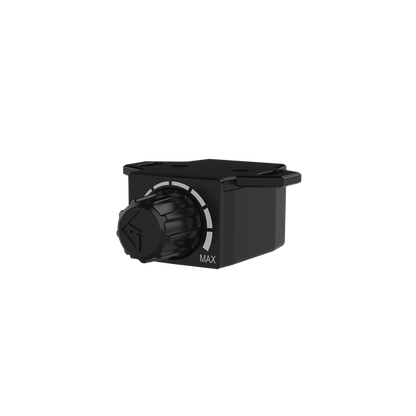

| Remote Controls | Yes |
| Visual Indicators | POWER (Blue) / PROTECT (Red)C.L.E.A.N. IN (Red)C.L.E.A.N. OUT (Blue/Red) |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse | 50 A |
| Average Current Draw (13.8 V Music) | — |
| Max. Current Draw (13.8 V Sinewave) | 30 V |
| Suggested Alternator | — |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.9" × 6.8" × 8.1"(4.9 cm × 17.3 cm × 20.5 cm) |
| Shipping Weight | — |
