Rockford Fosgate PMX-USBP
Rockford Fosgate PMX-USBP
SKU:PMX-USBP
Regular price
$49.99 USD
Regular price
Sale price
$49.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

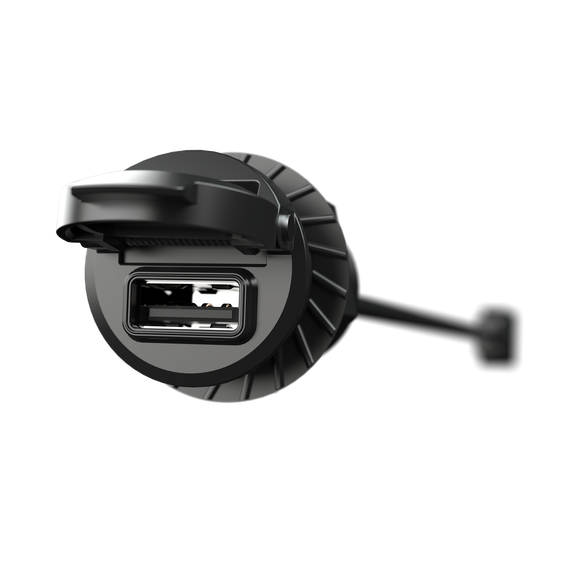

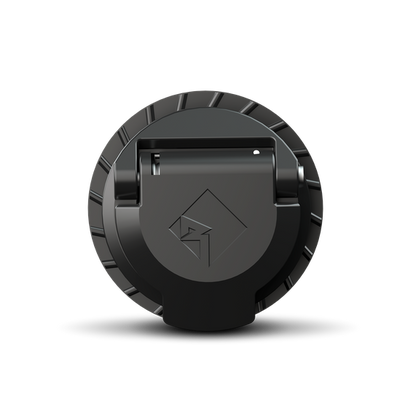

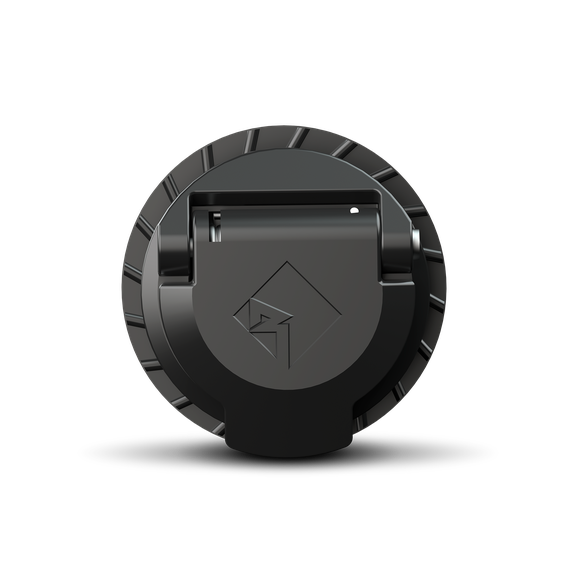

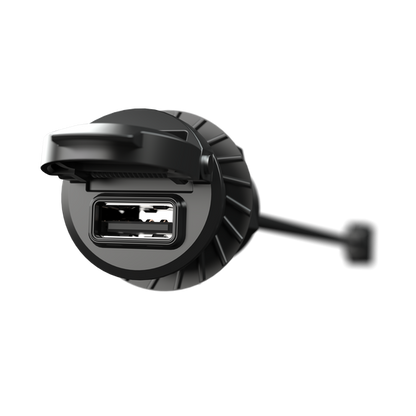

Universal USB Port with Hinged Cover
The PMX-USBP is a universal port for SXS and Marine applications that extend the USB input on Rockford Fosgate source units. It features a hinged cover to protect against water and dust intrusion. The USB input port can be used to charge your mobile device, play audio from your mobile device or USB jump drive, and update firmware on your source unit (functionality based upon supported features of source unit.)
FEATURES AT A GLANCE
- Spring Loaded Water and Dust Proof Door
- Mounting Hole Size 7/8” (23 mm)
- Material Thickness Compatibility 1/8” to 1-1/4”
Specification
| CATEGORY | SPECIFICATION |
|---|---|
| GENERAL | |
| Processor Type | USB Input |
| Mounting | 7/8" diameter holePanel Thickness up to 1-1/4" |
| LED Indicators | N/A |
| Signal Input | N/A |
| Signal Output | N/A |
| USB Charging | Passive up to 5.1V DC @ 2.1A |
| Connector Type | USB Type-A Male |
| DIMENSIONS (H × W × D) | |
| Overall | 1.34" × 1.34" × 39.37"(34 mm × 34 mm × 1000 mm) |
| Front | 1.34" × 1.34" × 0.36"(34 mm × 34 mm × 9.1 mm) |
| Body | 0.875" × 0.875" × 2.28"(23 mm × 23 mm × 58 mm) |
| Cable | 3-ft. (914 mm) |
| WEIGHT | |
| Shipping Weight | 0.2 lbs. (0.09 kg) |
Compatibility
| MODEL | SPECIFICATION |
|---|---|
| PMX-0 | Punch Marine Grade Media Receiver with 2.3" Dot Matrix DisplayAudio Input: —Charging: ✔Charging Current: 1 AmpSoftware Update: ✔ |
| PMX-1 | Punch Marine Ultra Compact Digital Media ReceiverAudio Input: ✔Charging: ✔Charging Current: 1 AmpSoftware Update: ✔ |
| PMX-2 | Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" DisplayAudio Input: ✔Charging: ✔Charging Current: 1 AmpSoftware Update: ✔ |
| PMX-3 | Compact Digital Media Receiver w/ 2.7" DisplayAudio Input: ✔Charging: ✔Charging Current: 1 AmpSoftware Update: ✔ |
| PMX-5CAN | Compact Digital Media Receiver w/ 2.7" DisplayAudio Input: ✔Charging: ✔Charging Current: 1 AmpSoftware Update: ✔ |
| PMX-8BB | Compact Digital Media Receiver w/ 2.7" DisplayAudio Input: ✔Charging: ✔Charging Current: 1 AmpSoftware Update: ✔ |
