Rockford Fosgate PMX-ANT

Rockford Fosgate PMX-ANT

PMX-ANT

$89.99 USD
$89.99 USD
Sale Sold out
Shipping calculated at checkout.
Ask A Product Expert
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

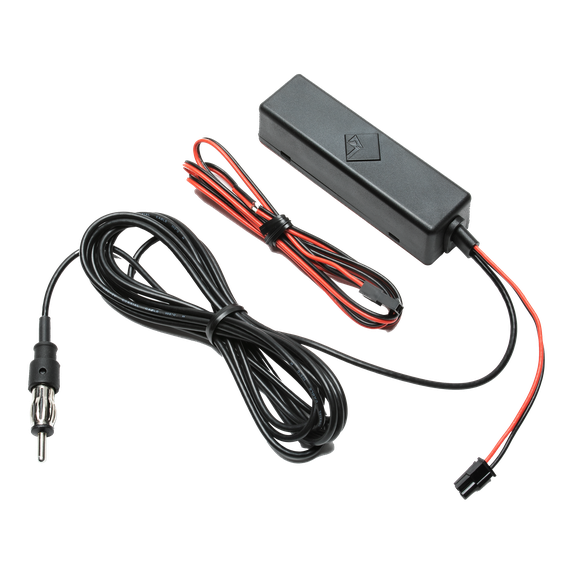

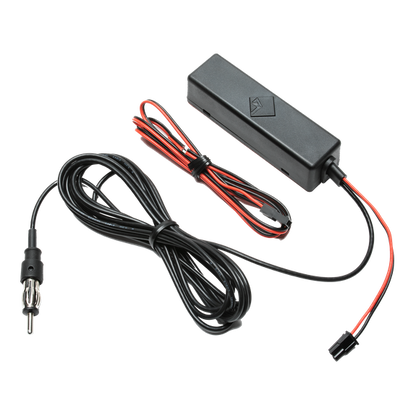

AM/FM/WB Amplified 12V Antenna

The PMX-ANT is an amplified antenna for use with Rockford Fosgate PMX source units to boost radio signals in distant areas.The PMX-ANT is a powered antenna designed to boost AM/FM and WB (weather band) stations.  It's universal connectivity allows for use in Marine or UTV installation through a quick power connector.

FEATURES AT A GLANCE

  • Universal AM/FM/WB Antenna
  • 12VDC Powered for +20dB of Signal Gain
  • Omnidirectional
  • IP67 Water & Dust Rated
  • Double Sided Tape Mounting

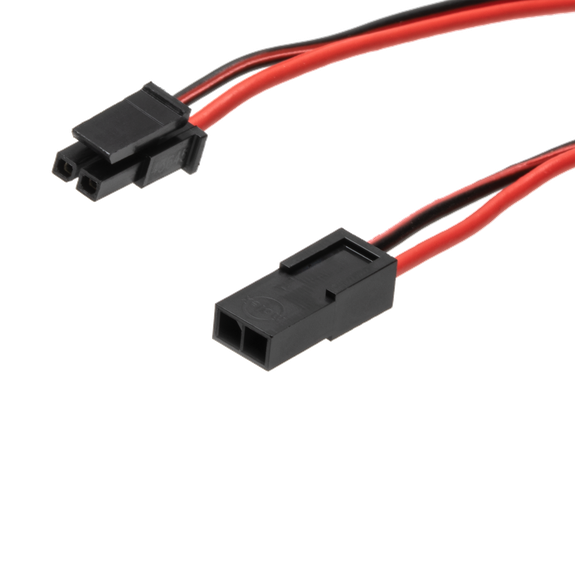

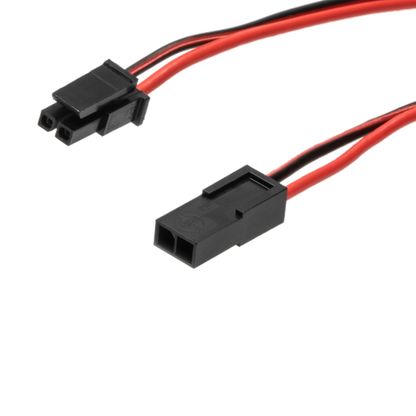

  • Quick Power Connect for Easy Installation

Specification

Category Specification
Dimensions (H × W × D) 0.96 in. × 1.11 in. × 3.89 in. (24.5 mm × 28.2 mm × 98.7 mm)
Idle Current < 20 mA
Signal Boost Range Unpowered: 0 dB / Powered: 20 dB
Operating Voltage 9–16 VDC
Operating Temperature -30℉ to 70℉ (-34℃ to 21℃)
Cable Length – Power 3.58 ft. (109 cm)
Cable Length – Antenna 8.4 ft. (256 cm)
Shipping Weight 0.5 lbs. (0.2 kg)
