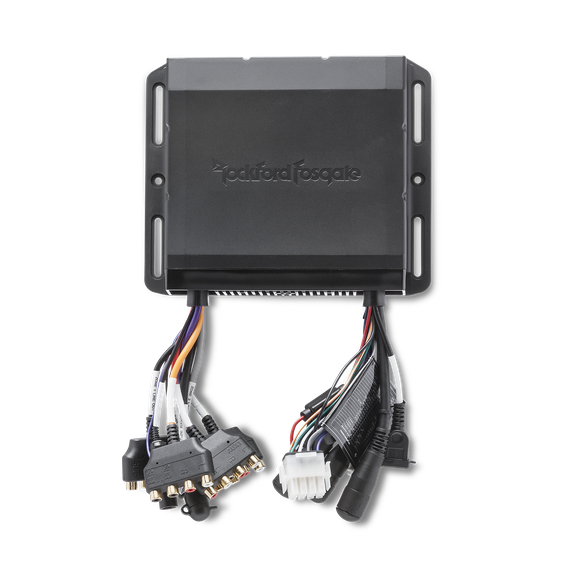

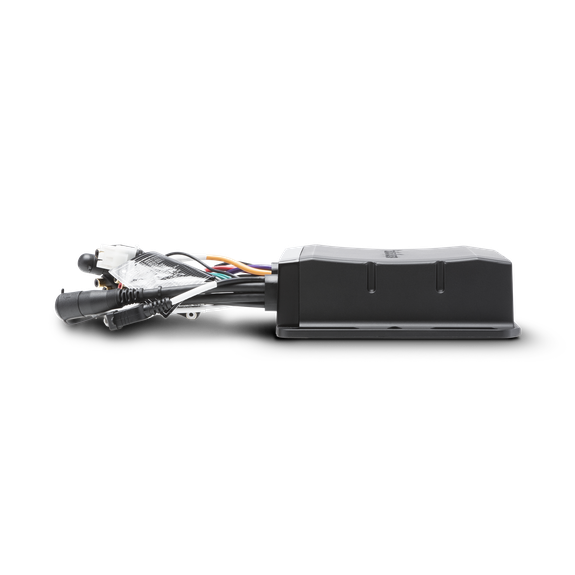

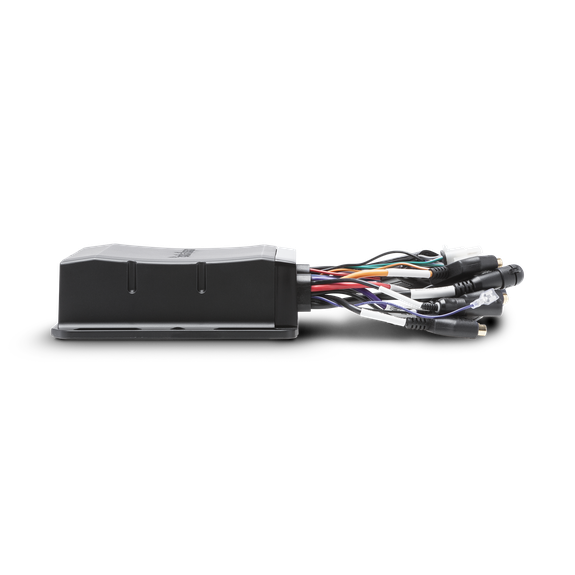

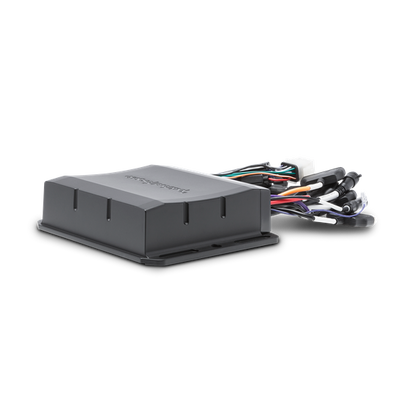

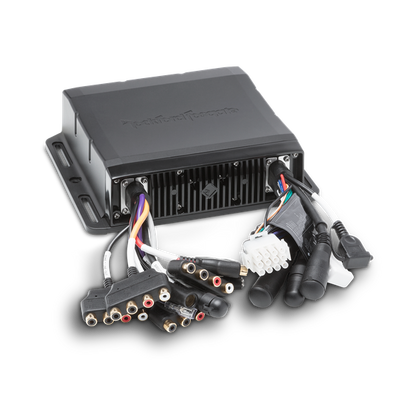

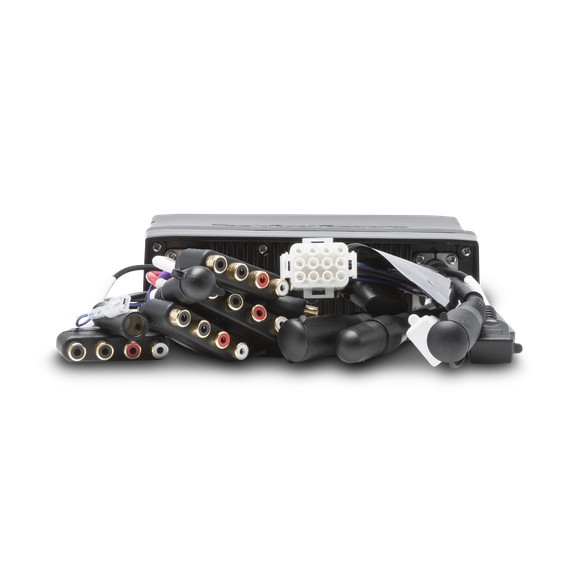

Rockford Fosgate PMX-8BB
Rockford Fosgate PMX-8BB
SKU:PMX-8BB
Couldn't load pickup availability
Punch Marine Hide-Away AM/FM/WB Multi-Zone Digital Media Receiver

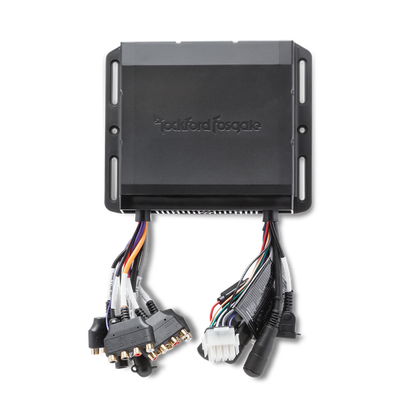

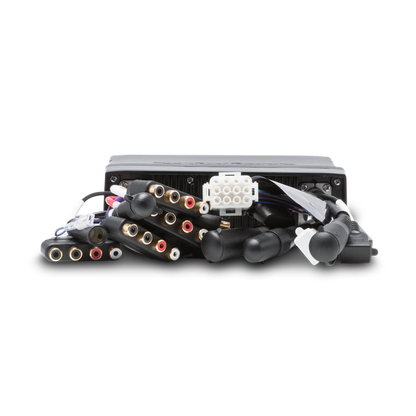

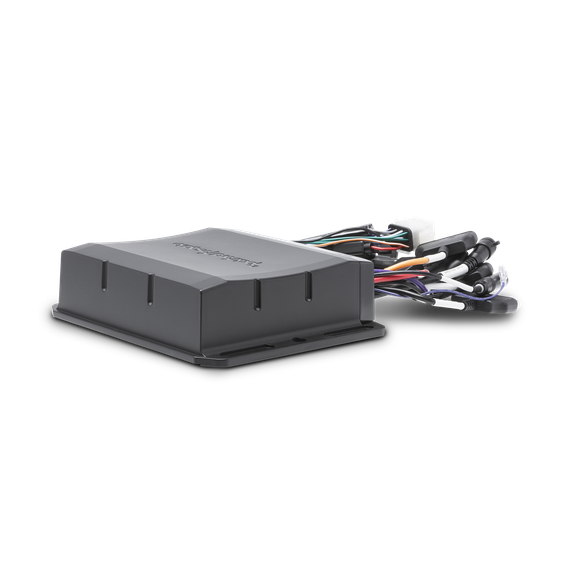

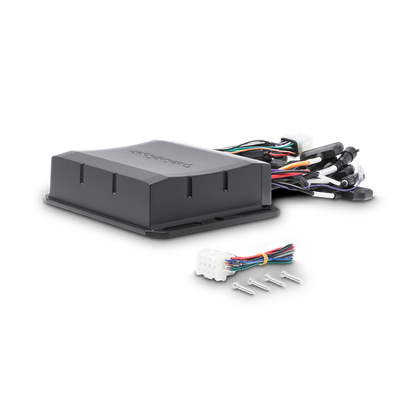

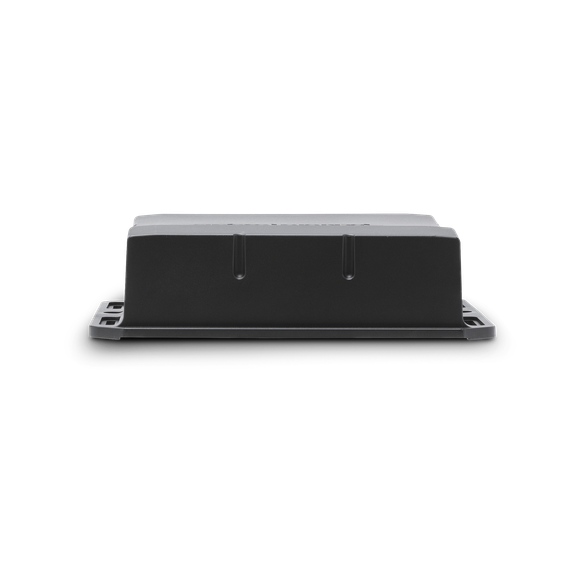

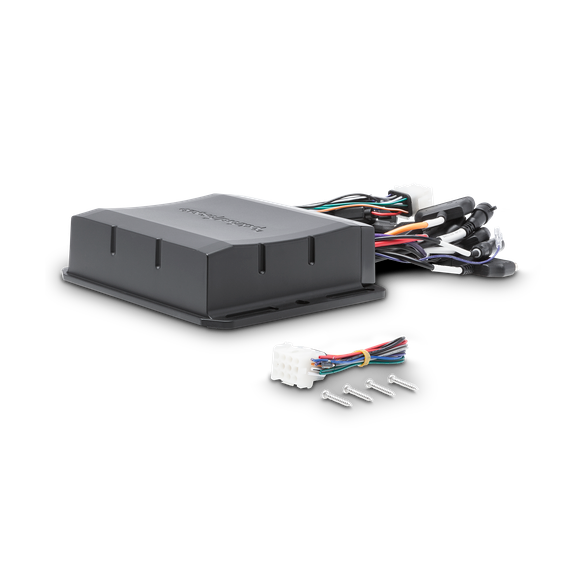

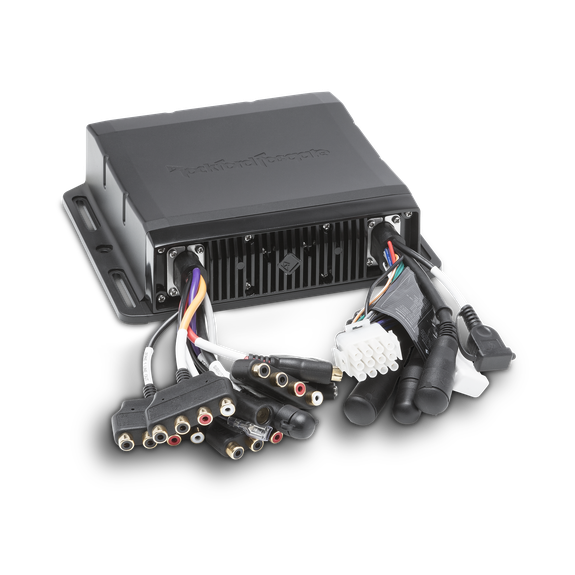

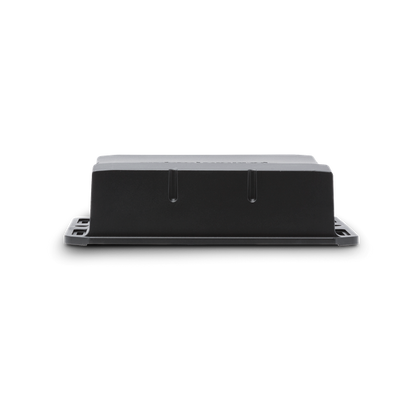

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to NMEA2K systems using PMX-CAN.Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, Bluetooth AVRCP 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Pre-outs, 2 Channel Zone 3&4 4V Pre-outs, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to NMEA2K systems using the PMX-CAN adaptor (see Accessories tab.)
Specification
| Category | Specification |
|---|---|
| GENERAL | |
| Operating Voltage | 10.5V – 16V |
| Device Type | Digital-Media Black Box |
| Fuse Rating | 15A |
| Remote Capacity | See Compatibility Chart |
| Power Output | 25W × 4 @ 4Ω RMS |
| THD+N | ≤ 1.0% |
| Frequency Response | 20 Hz – 20 kHz |
| Speaker Impedance | 2-Ohms |
| FEATURES | |
| Display Size | N/A |
| Multi-Zone / Multi-Source | Yes |
| Apple® / Android™ Compatible | Yes |
| Steering Wheel Control Ready | Yes |
| USB Charging | Yes |
| AUX Input | Yes |
| Pandora® Internet Radio | Yes |
| Speaker Outputs | Yes |
| Bluetooth® | Yes – 3.0 + EDR, A2DP 1.3 |
| SiriusXM-Ready® | Yes – Requires SXV300 |
| Clock | No |
| FM TUNER | |
| Frequency Range | 87.5 MHz – 107.9 MHz |
| AM TUNER | |
| Frequency Range | 530 kHz – 1710 kHz |
| WB TUNER | |
| Frequency Range | 162.40 – 162.55 MHz (US & Canada) |
| TUNER | |
| Number of Presets | 18 FM / 12 AM / 6 WB |
| MEDIA PLAYER | |
| Audio Format Compatibility | MP3 / WMA / FLAC |
| USB Capacity | 32 GB max / 999 folders max / 999 songs max |
| USB Version | 2.0 |
| USB Output Current | 1A |
| Media Player | N/A |
| MADE FOR iPOD MODELS | |
| iPod Touch | 5th generation / 4th generation |
| iPod Nano | 7th generation / 6th generation |
| MADE FOR iPHONE MODELS | |
| iPhone Compatibility | iPhone XS (pending), XS Max, XR (pending), X, 8, 8 Plus, 7, 7 Plus, 6s, 6s Plus, 6, 6 Plus, 5S, 5C, 5, 4, 4S, 3GS |
| ANDROID COMPATIBILITY | |
| Android | Bluetooth® Only |
| RCA OUTPUTS | |
| Zone 1 | L / R / SUB / SUB |
| Zone 2 | L / R / SUB / SUB |
| Zone 3 | L / R / SUB / SUB |
| Zone 4 | L / R / SUB / SUB |
| RCA Output Voltage | 4V |
| RCA Output Impedance | 500Ω |
| DIMENSIONS | |
| Dimensions (H × W × D) | H 4.25" × W 8.3" × D 2.2" |
| Dimensions (Metric) | 108 mm × 211 mm × 56 mm |
| CAN INTERFACE | |
| CAN Interface | Output to PMX-CAN |
Compatibility
| MODEL | DESCRIPTION |
|---|---|
| PMX-8DH ¹˒² | Punch Marine Full Function Wired 5" TFT Display Head |
| PMX-1R ¹ | Punch Marine Full Function Wired Remote 2.7" Display |
| PMX-0R ¹ | Punch Marine Wired Remote Control |
