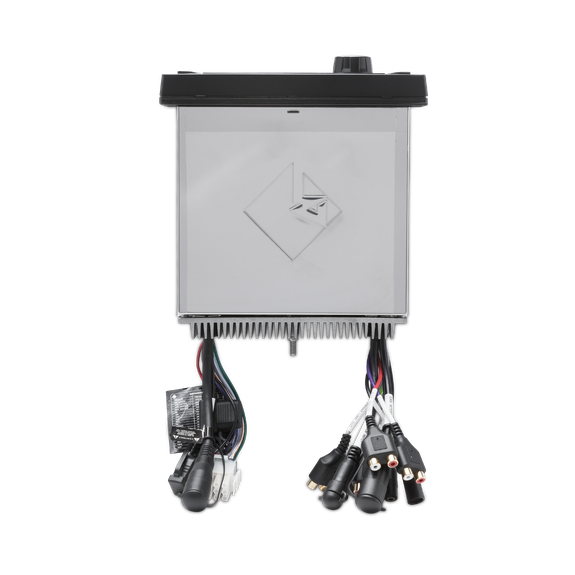

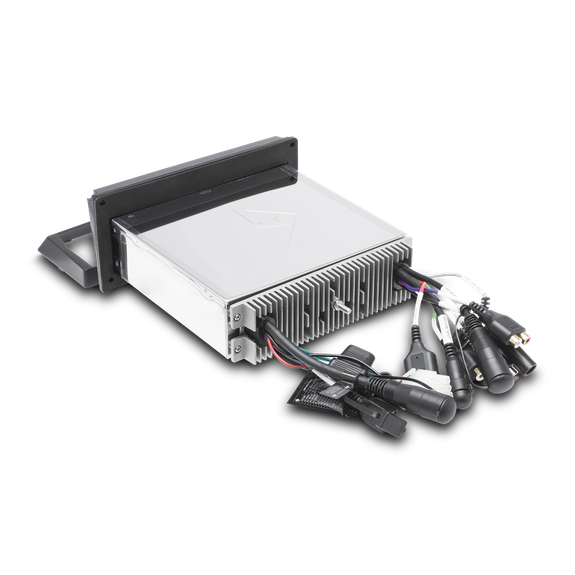

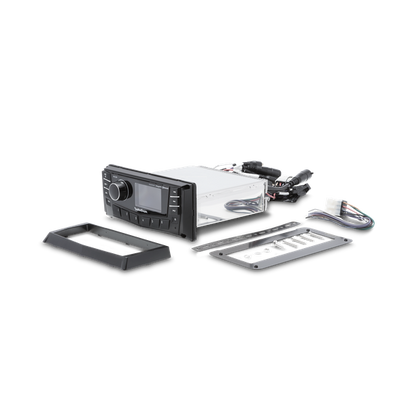

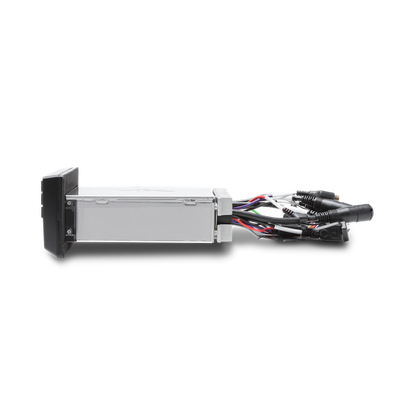

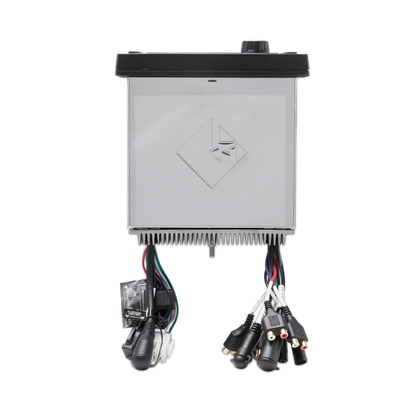

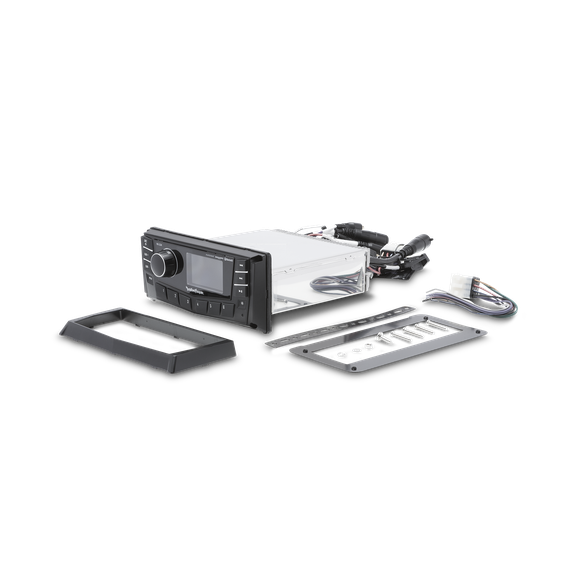

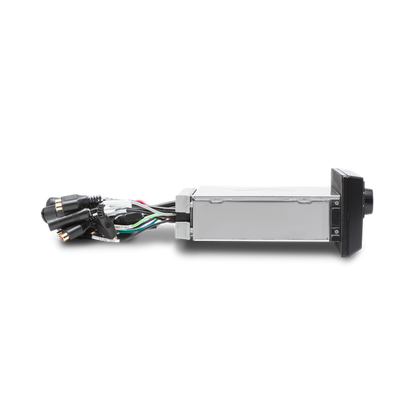

Rockford Fosgate PMX-5CAN
Rockford Fosgate PMX-5CAN
SKU:PMX-5CAN
Regular price
$489.99 USD
Regular price
Sale price
$489.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

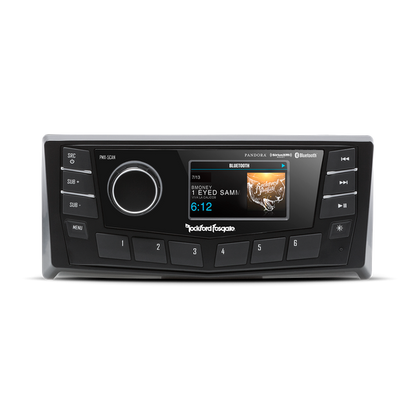

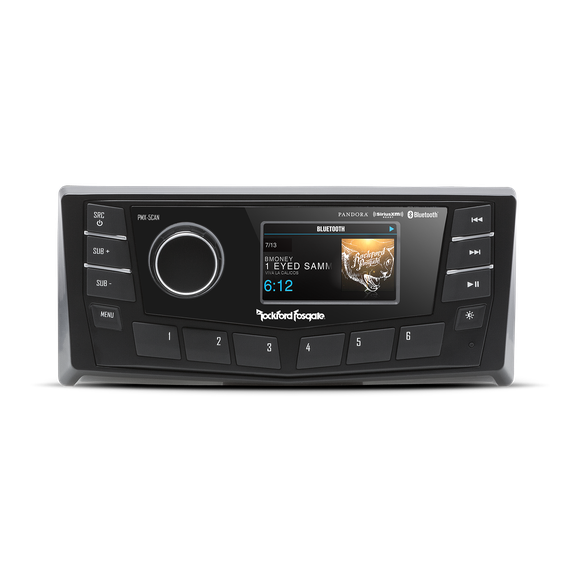

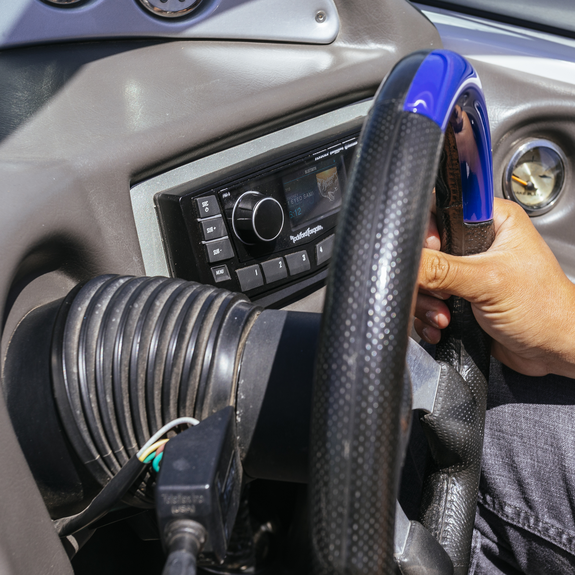

Marine AM/FM/WB Multi-Zone Digital Media Receiver 2.7" Display w/ CAN-bus
The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7" full color display. Features CAN-bus functionality for connection to NMEA 2000 systems using PMX-CAN.
Specification
| CATEGORY | SPECIFICATION |
|---|---|
| GENERAL | |
| Device Type | Digital-Media Receiver |
| Operating Voltage | 10.5 V – 16 V |
| Fuse Rating | 15 A |
| Display Size | 2.7" Color TFT |
| Dimensions (H × W × D) | Height: 3.5" (8.9 cm)Width: 8" (20.3 cm)Face Depth: 1.5" (3.8 cm)Mount Depth: 7.1" (18.2 cm)Chassis to Face Top: 0.9" (2.3 cm)Chassis to Face Bottom: 0.59" (1.5 cm) |
| AUDIO / POWER | |
| Power Output | 25W × 4 @ 4Ω RMS50W × 4 @ 2Ω Peak≤1.0% THD+N |
| Speaker Impedance | 2-Ohms |
| Speaker Outputs | Yes |
| Frequency Response | 20 Hz – 20 kHz |
| RCA Output Voltage | 4V |
| RCA Output Impedance | 500Ω |
| RCA Frequency Response | 87.5 MHz – 107.9 MHz |
| TUNER | |
| Number of Presets | 18 FM / 12 AM / 6 WB |
| Multi-Zone / Multi-Source | Yes |
| FM TUNER | |
| Frequency Range | 87.9 – 107.9 MHz |
| Sensitivity | 8 dB |
| AM TUNER | |
| Frequency Range | 530 kHz – 1710 kHz |
| Usable Sensitivity | 40 dB |
| WB TUNER | |
| Frequency Range | 162.40 – 162.55 MHz (US & Canada) |
| MEDIA PLAYER | |
| Audio Format Compatibility | MP3 / WMA / FLAC |
| USB Capacity | 32 GB max999 Folders max999 Songs max |
| USB Version | 2.0 |
| USB Output Current | 1A |
| FEATURES & CONNECTIVITY | |
| AUX Input | Yes |
| USB Charging | Yes |
| Pandora® Internet Radio | Yes |
| SiriusXM-Ready® | Yes – Requires SXV300 |
| Apple® / Android™ Compatible | Yes |
| Android Compatibility | Bluetooth® Only |
| Steering Wheel Control Ready | Yes |
| Clock | No |
| COMPATIBLE REMOTES | |
| PMX-1R | Compatible |
| PMX-0R | Compatible |
| Remote Limit | 3 Remotes |
| Maximum Wired Distance | 100 ft Total Wired Distance |
| APPLE COMPATIBILITY | |
| Made for iPod Models | iPod Touch (5th generation)iPod Touch (4th generation)iPod Nano (7th generation)iPod Nano (6th generation) |
| Made for iPhone Models | iPhone XS (pending)iPhone XS MaxiPhone XR (pending)iPhone XiPhone 8 / 8 PlusiPhone 7 / 7 PlusiPhone 6s / 6s PlusiPhone 6 / 6 PlusiPhone 5S / 5C / 5iPhone 4 / 4SiPhone 3GS |
