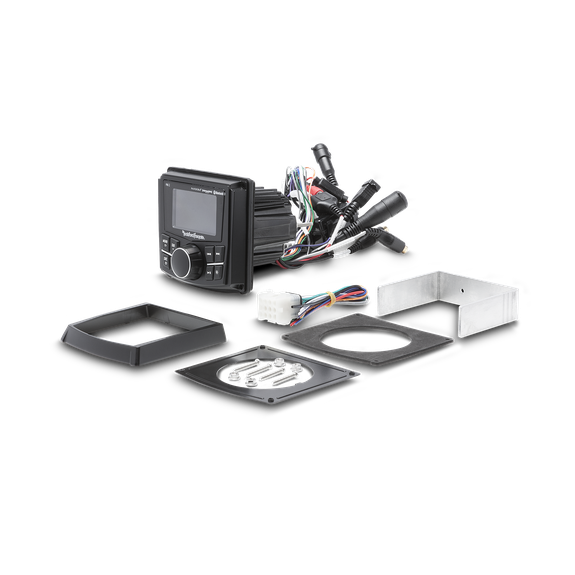

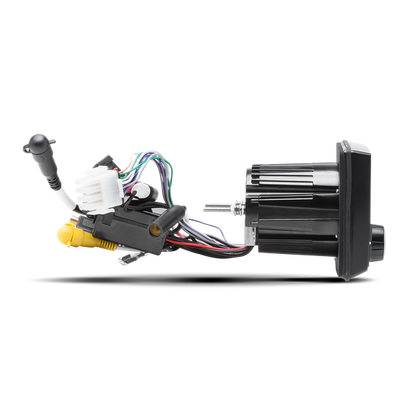

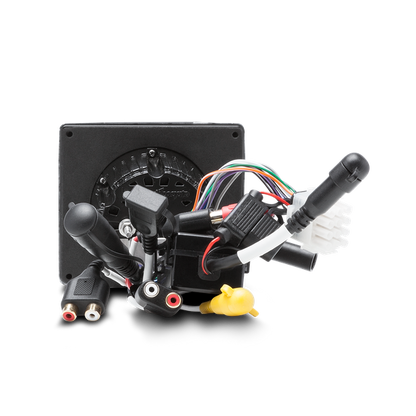

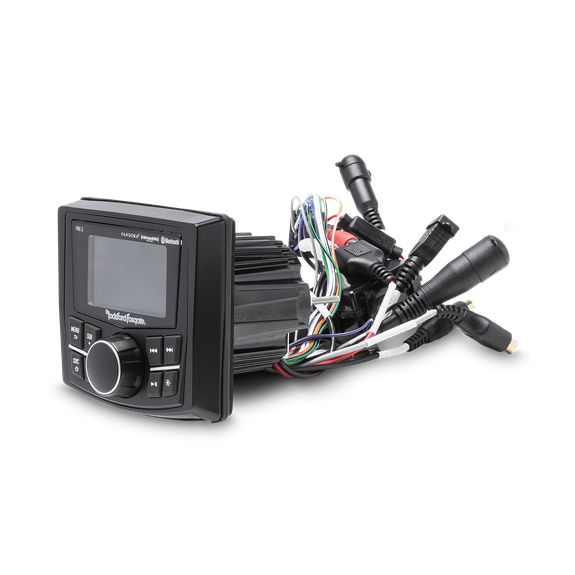

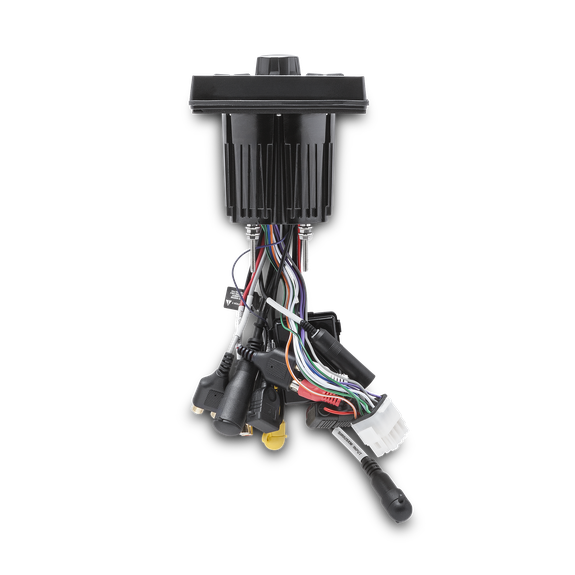

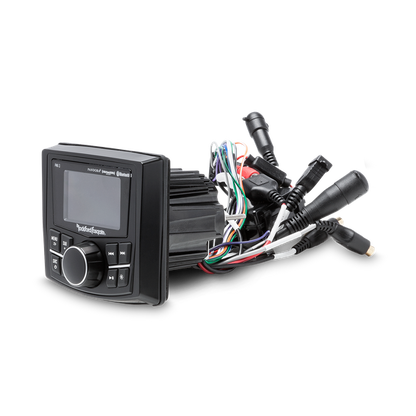

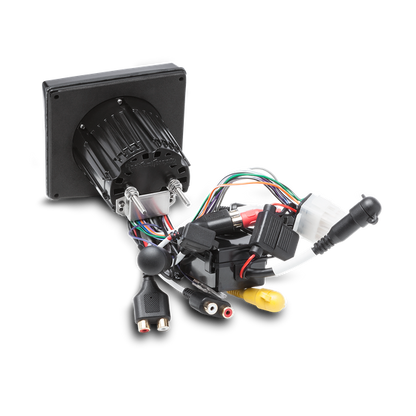

Rockford Fosgate PMX-3
Rockford Fosgate PMX-3
SKU:PMX-3
Regular price
$589.99 USD
Regular price
Sale price
$589.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

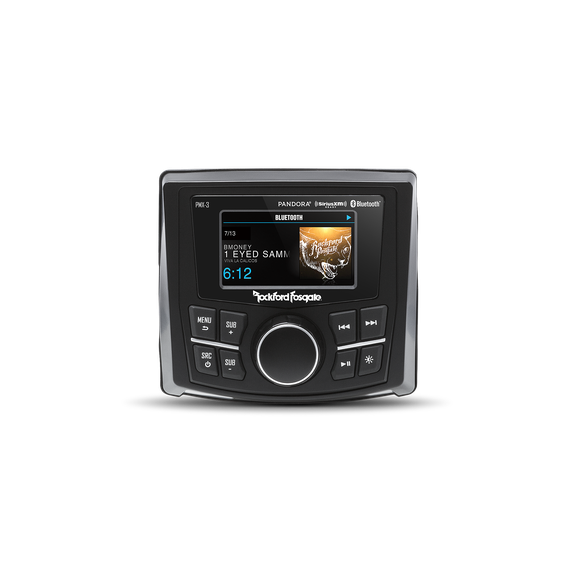

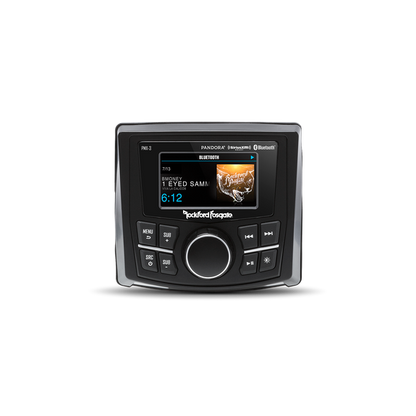

Compact Digital Media Receiver w/ 2.7" Display

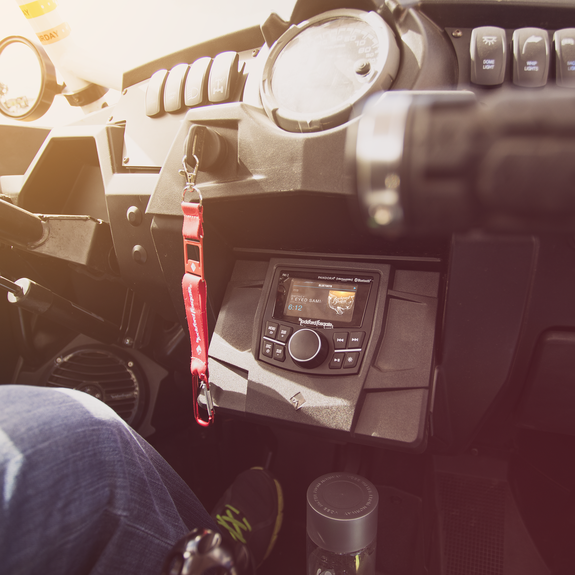

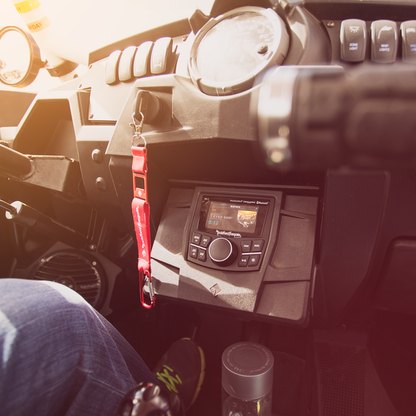

The PMX-3 is a ground up designed digital media receiver for marine and motorsports applications with full color 2.7" TFT display. This unit not only has the functionality you desire such as a custom designed GUI interface and menu system built with "ease of use" in mind, but also features SiriusXM tuner compatibility, Pandora radio control via USB or Bluetooth and full iPhone support with folder browsing capability.
Specification
| CATEGORY | SPECIFICATION |
|---|---|
| GENERAL | |
| Device Type | Digital-Media Receiver |
| Operating Voltage | 10.5 V – 16 V |
| Fuse Rating | 20 A |
| Display Size | 2.7" Color TFT |
| Dimensions (H × W × D) | Height: 4.2" (10.6 cm)Width: 4.5" (11.5 cm)Face Depth: 1.5" (3.8 cm)Mount Depth: 3.0" (76.2 mm) |
| Back Panel Cutout | 3" (77 mm) |
| Shipping Weight | 3.1 lbs. (1.41 kg) |
| POWER & AUDIO | |
| Power Output | 25W × 4 @ 4Ω RMS50W × 4 @ 2Ω Peak≤1.0% THD+N |
| Speaker Impedance | 2-Ohms |
| Frequency Response | 20 Hz – 20 kHz |
| Speaker Outputs | Yes |
| RCA Output Voltage | 2V RMSDoes not clip at full output |
| RCA Output Impedance | 500Ω |
| RCA Outputs | 1 pr Front1 pr Rear (or Sub-out) |
| BLUETOOTH® | |
| Bluetooth® | Yes – 3.0 + EDR, A2DP 1.3 |
| TUNER | |
| Number of Presets | 18 FM / 12 AM / 6 WB |
| Multi-Zone / Multi-Source | No |
| FM TUNER | |
| Frequency Range | 87.5 MHz – 107.9 MHz |
| Sensitivity | 8 dB |
| AM TUNER | |
| Frequency Range | 530 kHz – 1710 kHz |
| Usable Sensitivity | 40 dB |
| WB TUNER | |
| Frequency Range | 162.40 – 162.55 MHz (US & Canada) |
| MEDIA PLAYER | |
| Audio Format Compatibility | MP3 / WMA / FLAC |
| USB Capacity | 32 GB max999 Folders max999 Songs max |
| USB Version | 2.0 |
| USB Output Current | 1A |
| CONNECTIVITY & FEATURES | |
| AUX Input | Yes (1 pr) |
| USB Charging | Yes |
| Pandora® Internet Radio | Yes |
| SiriusXM-Ready® | Yes |
| Clock | No |
| Steering Wheel Control Ready | No |
| Apple® / Android™ Compatible | Yes |
| Android Compatibility | Bluetooth® Only |
| Android Functionality | Limited functionality on Android. See owner's manual. |
| APPLE COMPATIBILITY | |
| Made for iPod Models | iPod Touch (5th generation)iPod Touch (4th generation)iPod Nano (7th generation)iPod Nano (6th generation) |
| Made for iPhone Models | iPhone XS (pending), XS Max, XR (pending), X, 8, 8 Plus, 7, 7 Plus, 6s, 6s Plus, 6, 6 Plus, 5S, 5C, 5, 4, 4S, 3GS |
| COMPATIBLE REMOTES | |
| PMX-1R | Compatible |
| PMX-0R | Compatible |
| Remote Limit | 3 Remote Limit |
| Maximum Wired Distance | 100 ft Total Wired Distance |
