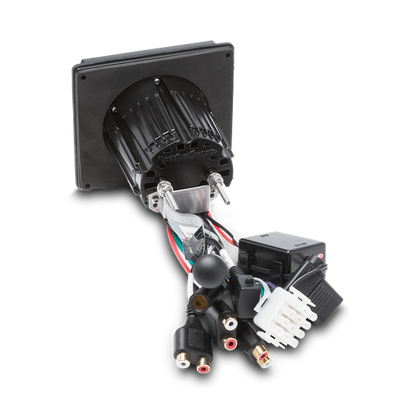

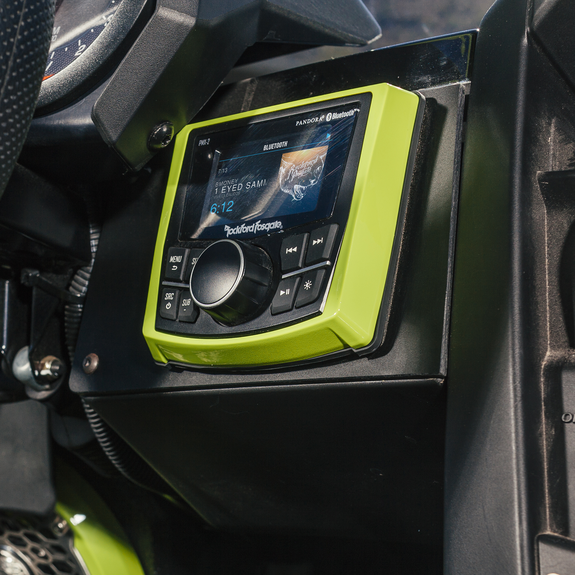

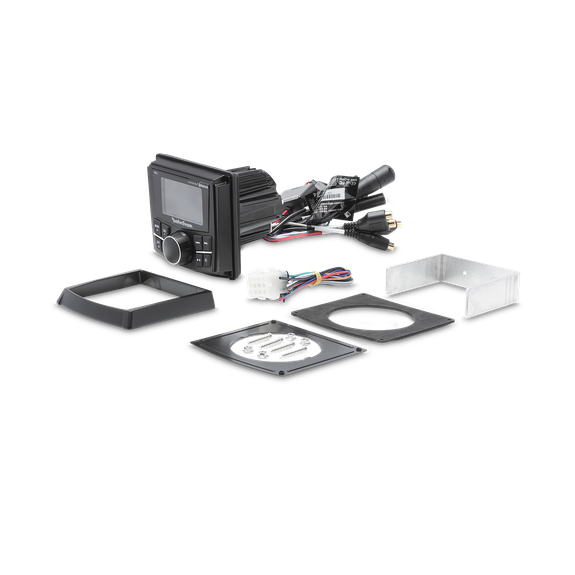

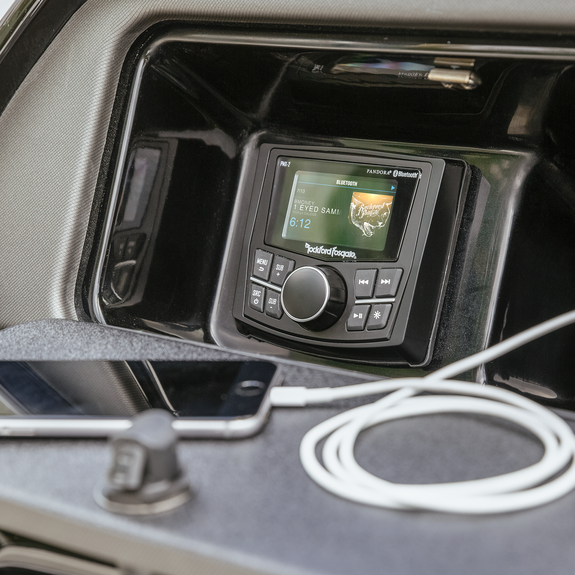

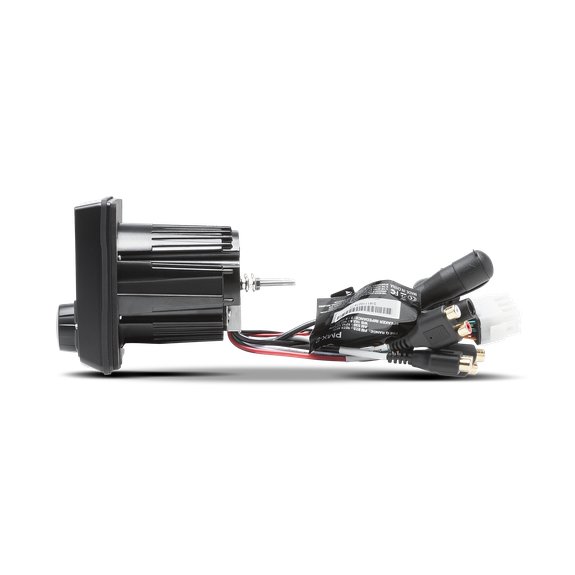

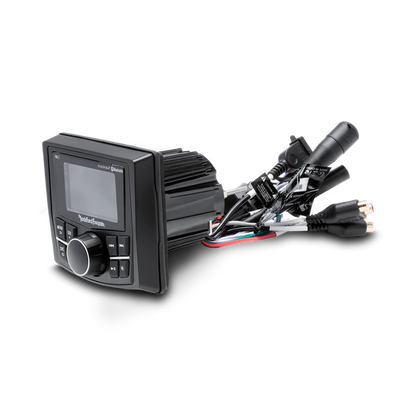

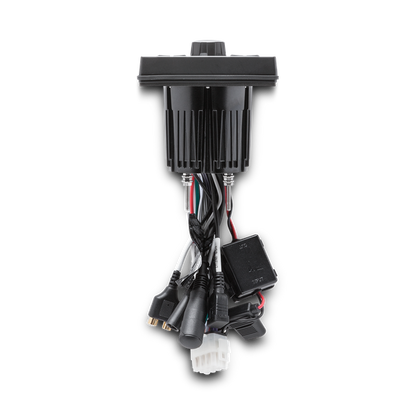

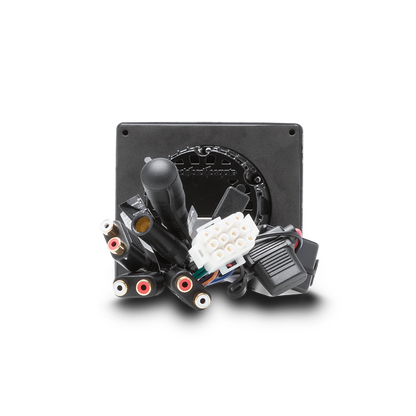

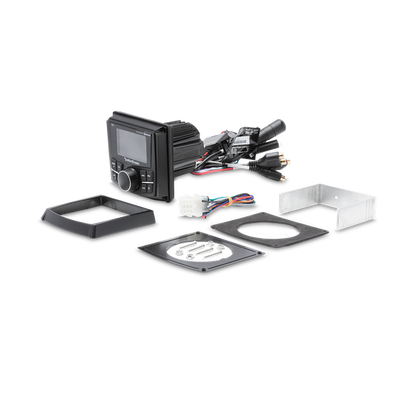

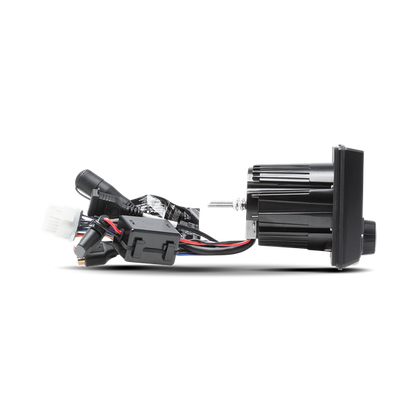

Rockford Fosgate PMX-2
Rockford Fosgate PMX-2
SKU:PMX-2
Regular price
$549.99 USD
Regular price
Sale price
$549.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

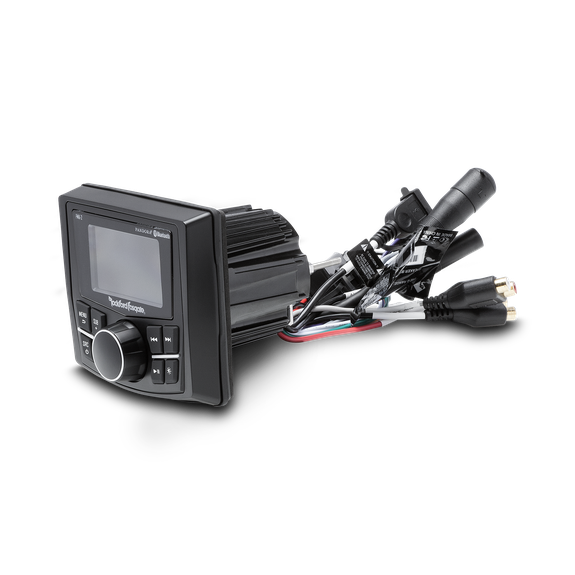

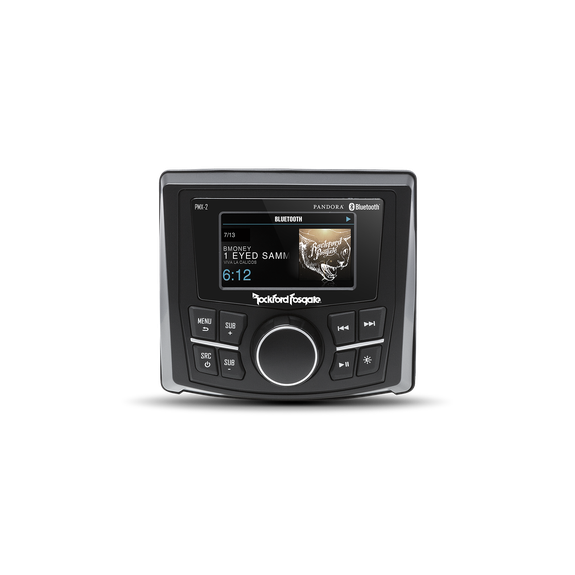

Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" Display

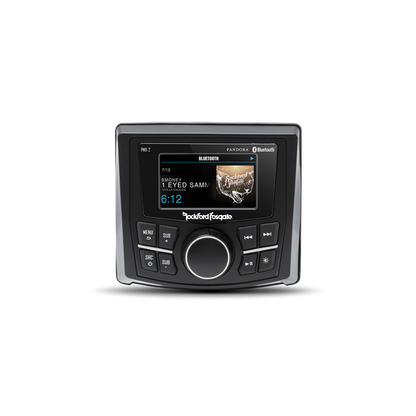

The PMX-2 is an AM/FM/WB tuner and compact digital media receiver with a 2.7" full color display.
FEATURES AT A GLANCE
- *Antenna not included
- ISO8846/SAE J1171 Ignition Protection Certified
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Multi-region radio frequencies
- Low Voltage Warning Alert
- AUX and USB Inputs with USB Charging
- On Board Punch EQ Control
Specification
| CATEGORY | SPECIFICATION |
|---|---|
| GENERAL | |
| Device Type | Digital-Media Receiver |
| Operating Voltage | 10.5 V – 16 V |
| Fuse Rating | 20 A |
| Display Size | 2.7" Color TFT |
| Dimensions (H × W × D) | Height: 4.2" (10.6 cm)Width: 4.5" (11.5 cm)Face Depth: 1.5" (3.8 cm)Mount Depth: 2.9" (7.4 cm) |
| Back Panel Cutout | 3" (77 mm) |
| Shipping Weight | 3 lbs. (1.36 kg) |
| AUDIO / POWER | |
| Power Output | 25W × 4 @ 4Ω RMS50W × 4 @ 2Ω Peak≤1.0% THD+N |
| Speaker Impedance | 2-Ohms |
| Speaker Outputs | Yes (4-channel) |
| Frequency Response | 20 Hz – 20 kHz |
| RCA Outputs | 1 pr Front1 pr Rear (or Sub-out) |
| RCA Output Voltage | 2V RMSDoes not clip at full output |
| RCA Output Impedance | 500Ω |
| BLUETOOTH® / MEDIA | |
| Bluetooth® | Yes – 3.0 + EDR, A2DP 1.3 |
| Android Compatibility | Bluetooth® Only |
| Audio Format Compatibility | MP3 / WMA / FLAC |
| USB Capacity | 32 GB max999 Folders max999 Songs max |
| USB Version | 2.0 |
| USB Output Current | 1A |
| TUNER | |
| Number of Presets | 18 FM / 12 AM / 6 WB |
| Multi-Zone / Multi-Source | No |
| FM TUNER | |
| Frequency Range | 87.5 MHz – 107.9 MHz |
| Sensitivity | 8 dB |
| AM TUNER | |
| Frequency Range | 530 kHz – 1710 kHz |
| Usable Sensitivity | 40 dB |
| WB TUNER | |
| Frequency Range | 162.40 – 162.55 MHz (US & Canada) |
| FEATURES | |
| AUX Input | Yes (1 pr) |
| USB Charging | Yes |
| Pandora® Internet Radio | Yes |
| SiriusXM-Ready® | No |
| Clock | No |
| Steering Wheel Control Ready | No |
| Apple® / Android™ Compatible | Yes |
| Android Functionality | Limited functionality on Android. See owner's manual. |
| APPLE COMPATIBILITY | |
| Made for iPod Models | iPod Touch (5th generation)iPod Touch (4th generation)iPod Nano (7th generation)iPod Nano (6th generation) |
| Made for iPhone Models | iPhone XS (pending)iPhone XS MaxiPhone XR (pending)iPhone XiPhone 8 / 8 PlusiPhone 7 / 7 PlusiPhone 6s / 6s PlusiPhone 6 / 6 PlusiPhone 5S / 5C / 5iPhone 4 / 4SiPhone 3GS |
| COMPATIBLE REMOTES | |
| PMX-1R | Compatible |
| PMX-0R | Compatible |
| Remote Limit | 3 Remotes |
| Maximum Wired Distance | 100 ft Total Wired Distance |
