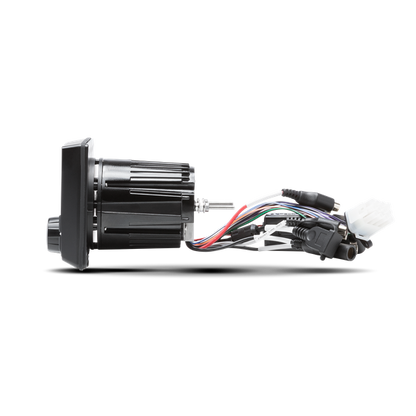

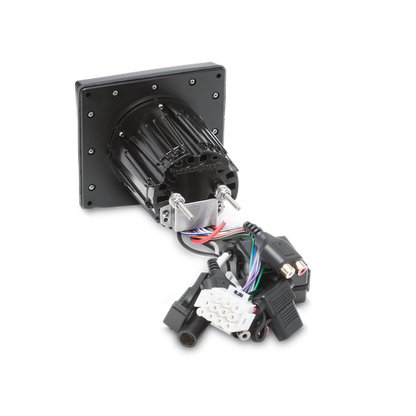

Rockford Fosgate PMX-1
Rockford Fosgate PMX-1
SKU:PMX-1
Regular price
$329.99 USD
Regular price
Sale price
$329.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

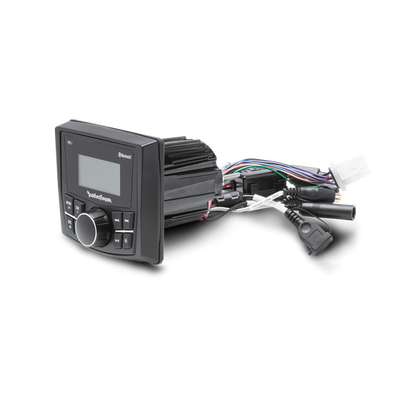

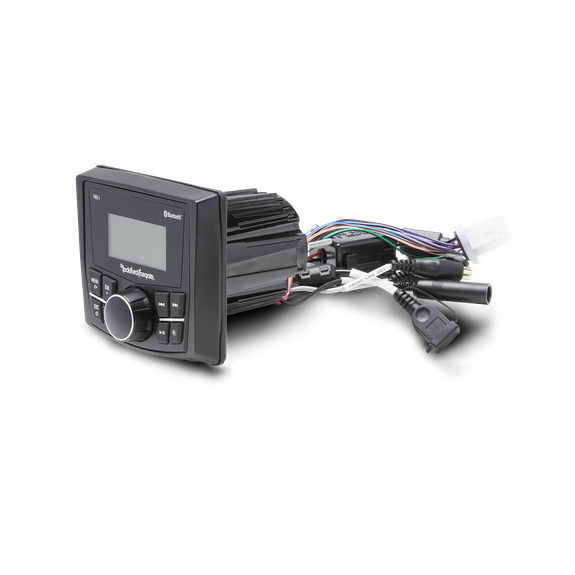

Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display
The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs. The Element Ready™ design also provides protection against water, dust, and UV rays.The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.
FEATURES AT A GLANCE
- AUX and USB Inputs with USB Charging
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- AM/FM/WB Tuner

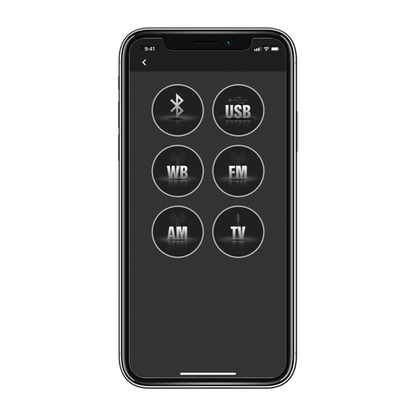

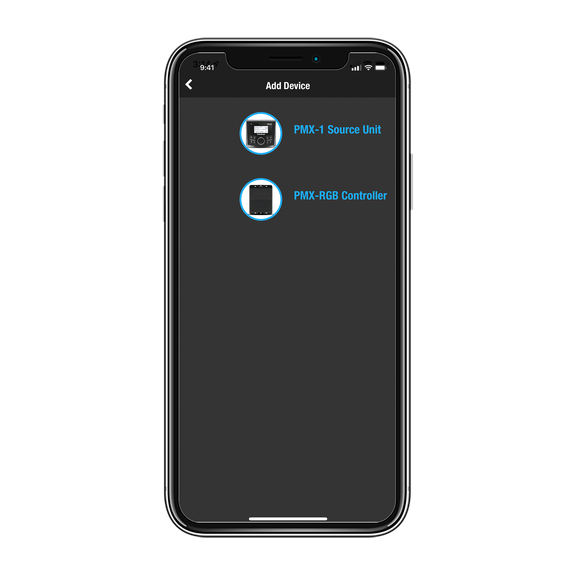

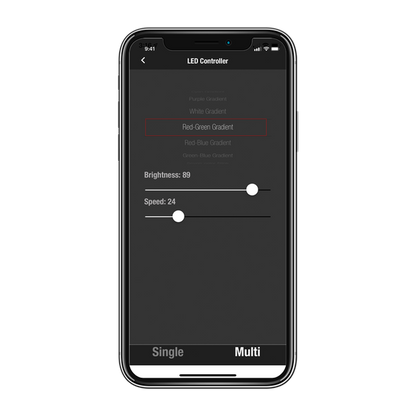

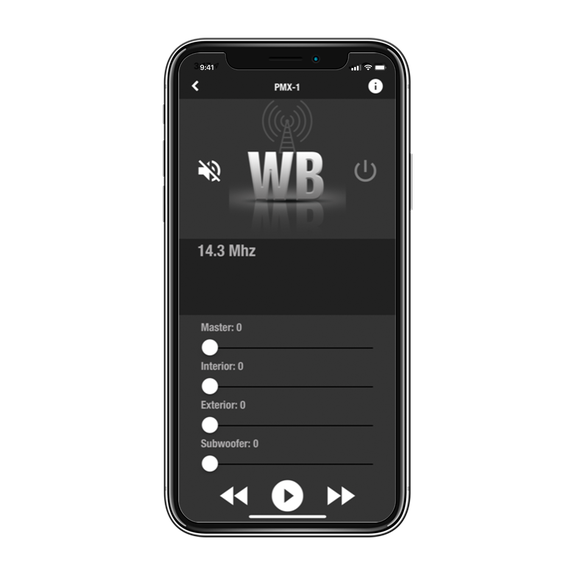

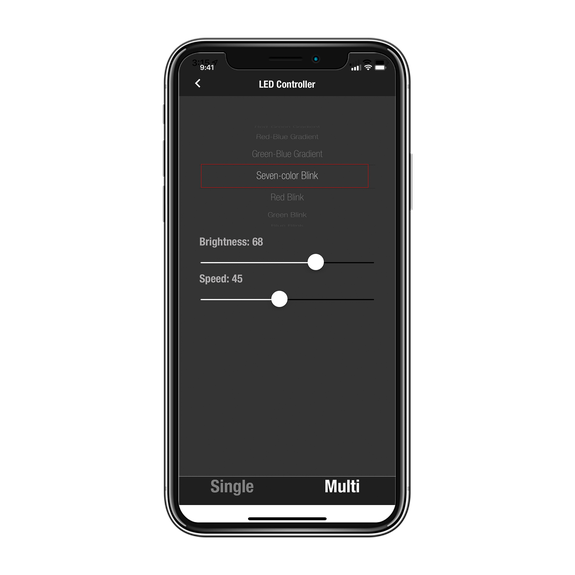

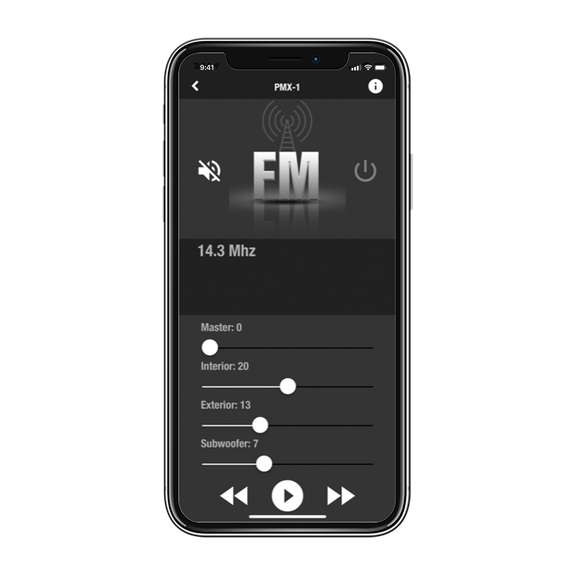

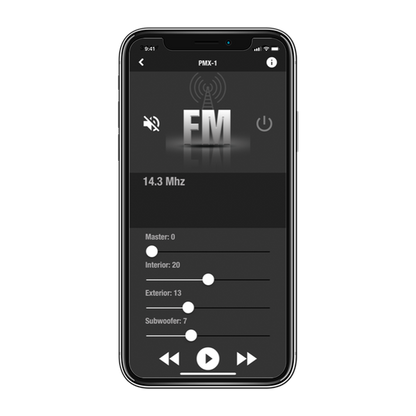

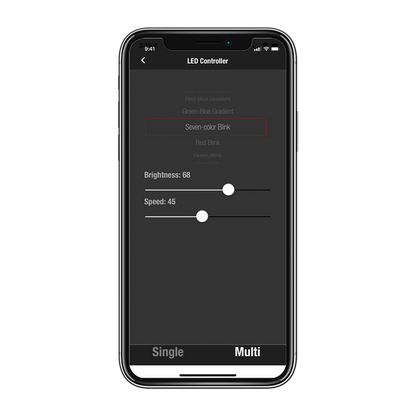

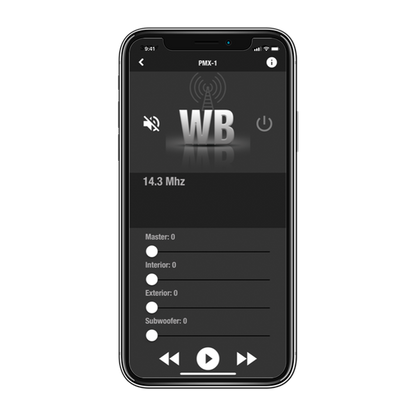

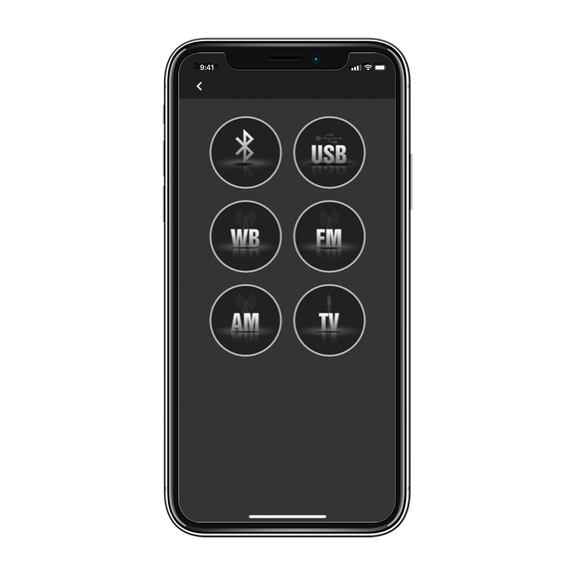

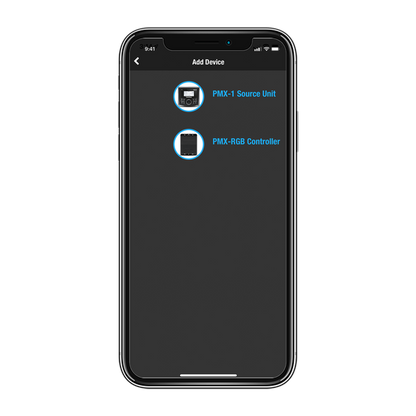

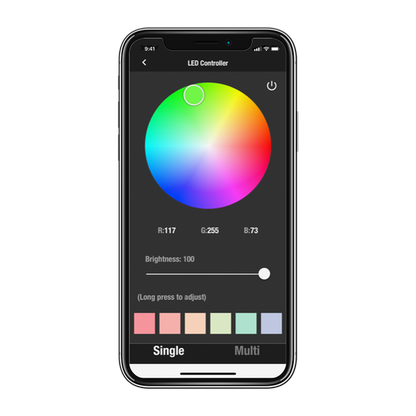

- RF Connect iOS / Android App with native control of PMX-1
- A2DP and AVRCP Bluetooth® Wireless Streaming
- Voltage gauge with Low voltage Warning
- 7-Band Graphic EQ + PEQ
- Independent Subwoofer Level Control
- Multi-region radio frequencies

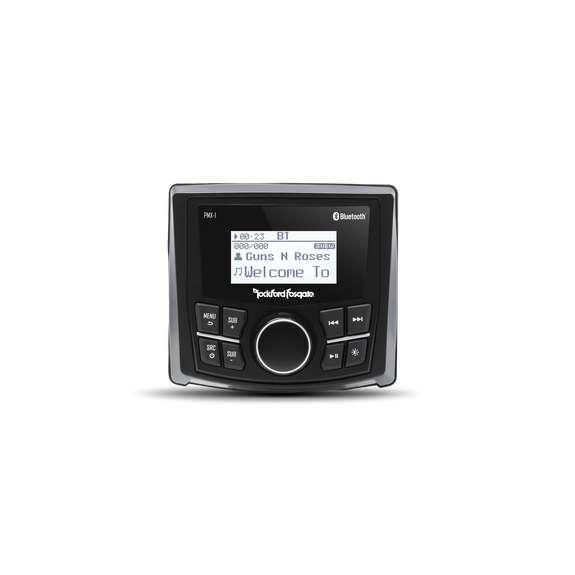

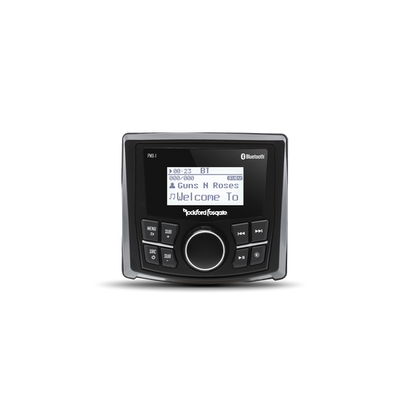

- Wet bonded 2.3" Full Dot Matrix LCD Display
- 9H Tempered Glass Screen
- Compatible with PMX-BTUR Steering Wheel Remote
- IP6 Marine Grade Front Panel
- FCC, CE and EN60945 Certified
Specification
| CATEGORY | SPECIFICATION |
|---|---|
| GENERAL | |
| Device Type | Digital-Media Receiver |
| Operating Voltage | 9 – 16 VDC |
| Idle Current | < 2 A |
| Fuse Rating | 20 A |
| Shipping Weight | 1.22 lbs. (0.55 kg) |

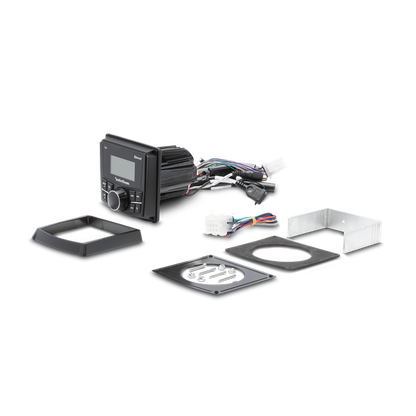

| Back Panel Cutout | 3" (77 mm) |
| Dimensions (H × W × D) | Height: 4.2" (10.6 cm)Width: 4.5" (11.5 cm)Face Depth: 1.5" (3.8 cm)Mount Depth: 3.38" (8.6 cm) |
| AUDIO / POWER | |
| Power Output (Max) | 25W × 4 @ 4Ω RMS50W × 4 @ 2Ω MAX≤ 1.0% THD+N |
| Min. Speaker Impedance | 2Ω |
| Frequency Response | RCA: 20 Hz – 20 kHzHigh-Level: 20 Hz – 20 kHz |
| Output Impedance | < 500Ω |
| Max THD+N | High-Level: < 1.0% @ 4Ω |
| Signal-to-Noise Ratio | RCA 2V: > 85 dBHigh-Level CEA-2006: > 75 dBHigh-Level Max Watts: > 85 dB |
| Channel Separation | RCA: > 70 dBHigh-Level: > 50 dB |
| Max Output Voltage | RCA Front: 2VRCA Rear/Sub: 2V |
| BLUETOOTH® | |
| Bluetooth® | Yes – 3.0 + EDR, A2DP 1.3 |
| TUNER | |
| Number of Presets | 18 FM / 12 AM / 6 WB |
| FM TUNER | |
| Frequency Range | 87.9 – 107.9 MHz |
| Sensitivity | 8 dB |
| Frequency Response | 20 Hz – 15 kHz |
| AM TUNER | |
| Frequency Range | 530 – 1710 kHz |
| Sensitivity | 40 dB |
| Frequency Response | 45 Hz – 2.4 kHz |
| FEATURES | |
| Multi-Zone / Multi-Source | No |
| Speaker Outputs | Yes |
| Pandora® Internet Radio | No |
| Steering Wheel Control Ready | No |
| AUX Input | Yes (1 RCA pair) |
| SiriusXM-Ready® | No |
| Clock | No |
| USB Charging | Yes |
| MEDIA PLAYER | |
| Media Formats | MP3 / WMA |
| USB Version | 2.0 |
| USB Output Current | 1 A |
| COMPATIBLE REMOTES | |
| Compatible Remotes | N/A |
