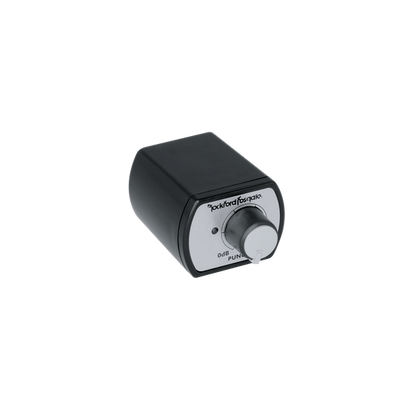

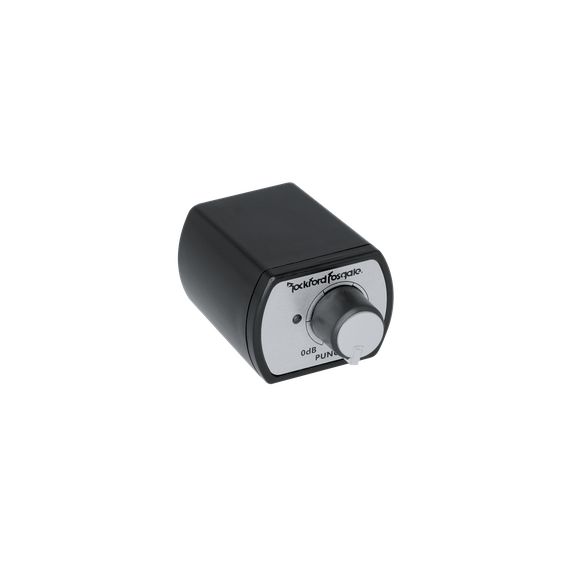

Rockford Fosgate Punch PEQ

Remote Punch EQ (2007+ Amps)

Wired remote Punch equalization control for select 2007 and newer amplifiers.  When the amplifier's crossover is in HP (High-Pass) mode, the PEQ will boost Treble only.  When the crossover is in LP (Low-Pass) mode, the PEQ will boost Bass only.  When the crossover is in AP (All-Pass) mode, the PEQ will boost both bass and treble.This remote Punch EQ offers 0dB to +18dB boost @ 45Hz and/or a hinge treble boost 0dB to +12dB @ 12kHz. Cable and mounting hardware included. For use with select 2007 and newer PUNCH & POWER amplifiers.

FEATURES AT A GLANCE

• Controls bass on rear outputs of 4-channel amplifiers

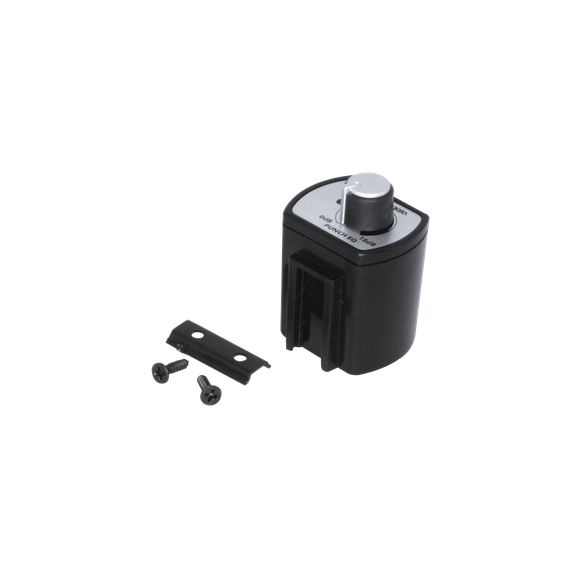

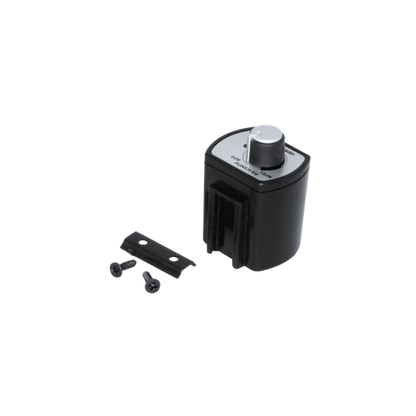

• Includes bass knob, cable, mounting clip, mounting screws
• Bass/Treble filtering based upon in-board amplifier crossover setting (HP-LP-AP)
• Conveniently mount under dash, inside center console or glovebox
• Remote wired bass/treble boost
• 0dB to +18dB bass boost @ 45 Hz
• 0dB to +12dB treble boost @ 12.5 kHz

Specification

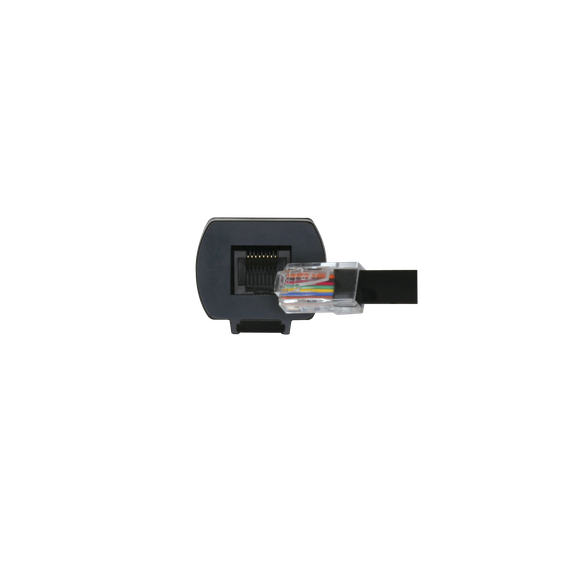

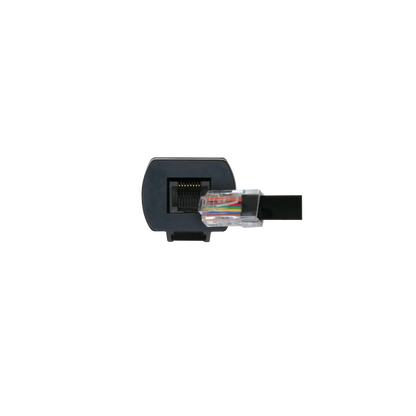

• Connector Type: RJ45 (8-conductor non-flipped)
• Mounting: Under Dash
• Bass Boost: 0 dB to +18 dB @ 45 Hz
• Treble Boost: 0 dB to +12 dB @ 12.5 kHz
• Cable Length: 16.5 feet (503 cm)
