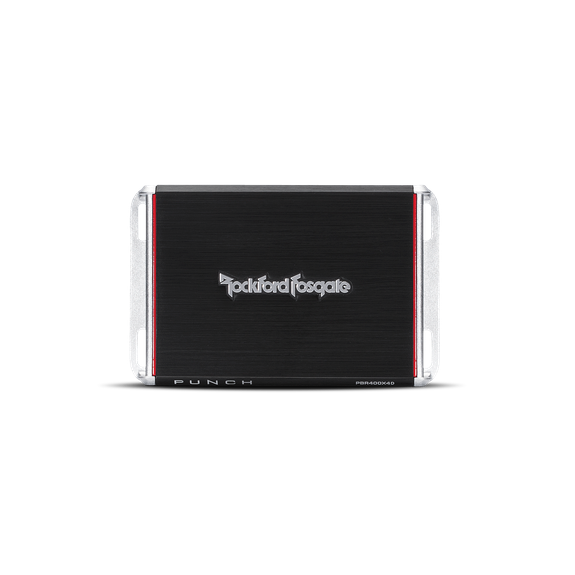

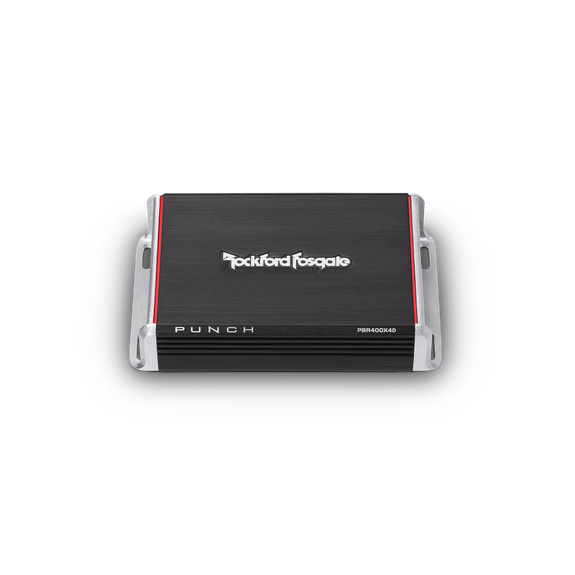

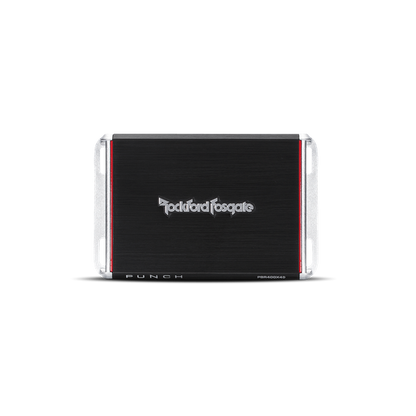

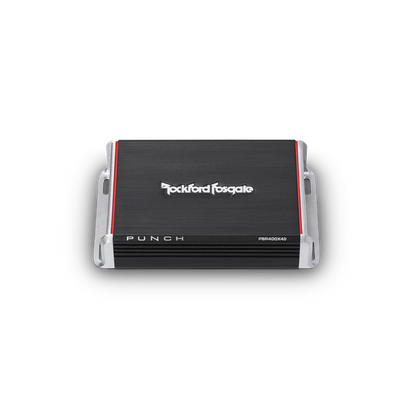

Rockford Fosgate PBR400X4D
Rockford Fosgate PBR400X4D
SKU:PBR400X4D
Regular price
$309.99 USD
Regular price
Sale price
$309.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch Boosted Rail 400 Watt Full-Range 4-Channel Amplifier
The Punch PBR400X4D is a 400 Watt full-range car audio amplifier designed for compact systems. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power | 400 Watts |
| Rated Power (RMS Continuous Power) | 50 Watts × 4 @ 4Ω100 Watts × 4 @ 2Ω200 Watts × 2 @ 4Ω Bridged |
| Dynamic Power (PVC/PowerCube®) | 75 Watts × 4 @ 4Ω130 Watts × 4 @ 2Ω270 Watts × 2 @ 4Ω Bridged |
| Bridgeable | Yes |
| Frequency Response | 20 Hz – 20 kHz ±1 dB |
| Input Sensitivity | 150 mV – 12 V |
| Circuit Topology Class | Class D |
| Efficiency (Average) | >75% |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |

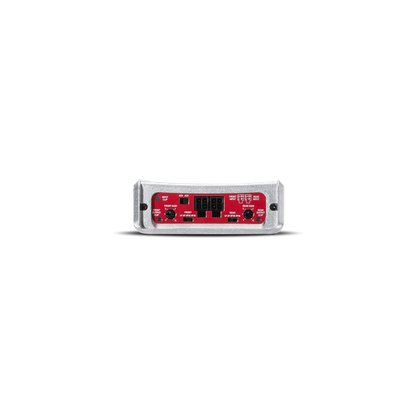

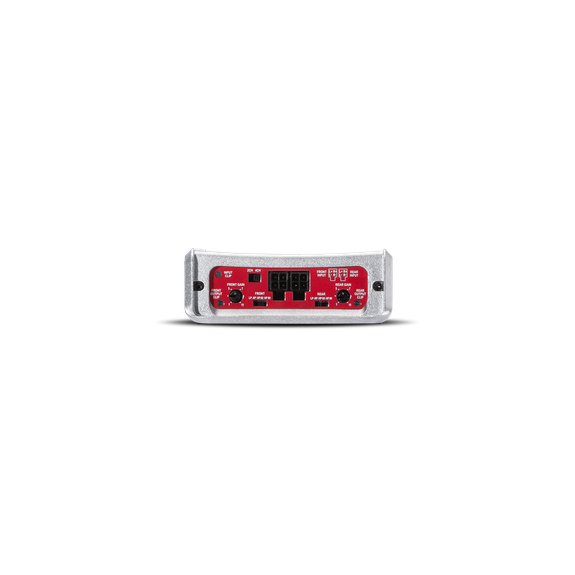

| Signal Input | Input Switch: 2CH/4CH Input SwitchHi-Level: Variable DC Offset SensitivityHigh-Level: HarnessLow-Level: 2 Pair RCA |
| Signal Output | — |
| Tone Controls | — |
| Crossover Controls | High-Pass: 60 Hz or 80 Hz @ 12 dB/OctaveLow-Pass: 80 Hz @ 12 dB/Octave |
| Remote Controls | — |
| Visual Indicators | Power: BlueProtect: RedInput Clip: RedOutput Clip: Blue/Violet/RedLED Color Legend:Blue: <0.5% THDViolet: 1% THDRed: ≥10% THD |
| Power Wire Gauge | 8 AWG |

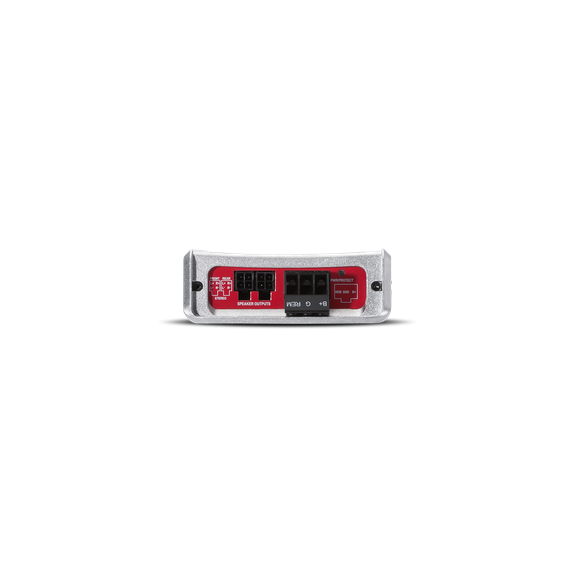

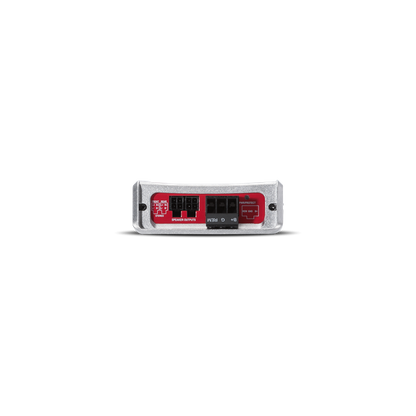

| Power Input Connector | Detachable Compression Terminal |
| Speaker Wire Gauge | 16 AWG |

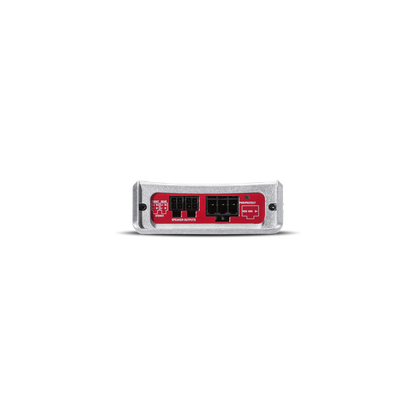

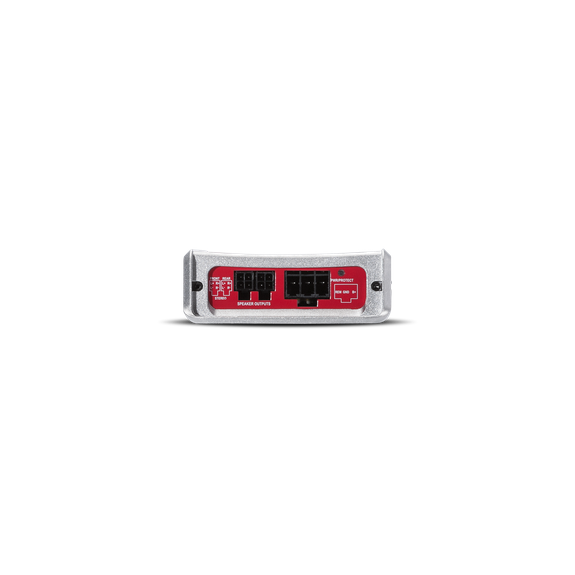

| Speaker Output Connector | Front: 4-Pin HarnessRear: 4-Pin Harness |
| Cooling | Convection |

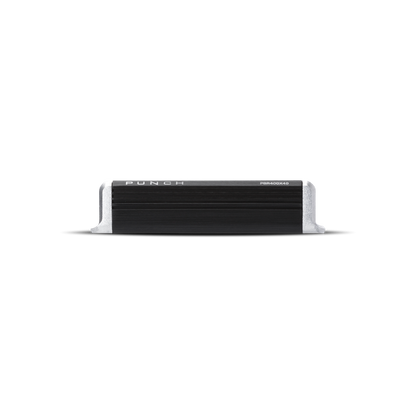

| Heatsink | Extruded Aluminum |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse | 60 A |
| Average Current Draw (13.8 V Music) | 27 A |
| Max. Current Draw (13.8 V Sinewave) | 50 A |
| Suggested Alternator | 75 A |
| Included In The Box | — |
| Dimensions (H × W × D) | 1.53" × 4.25" × 6.75"(3.9 cm × 10.79 cm × 17.16 cm) |
| Shipping Weight | 3.1 lbs. (1.4 kg) |
