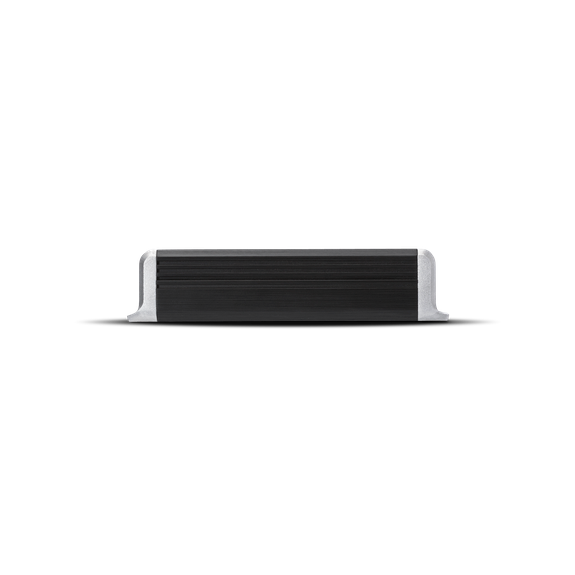

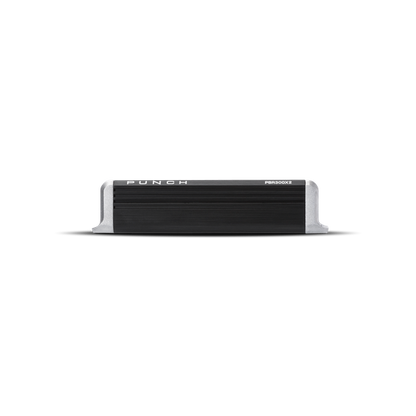

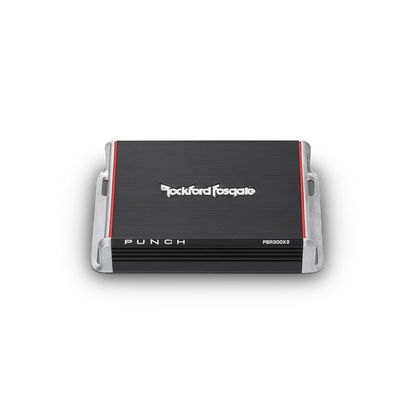

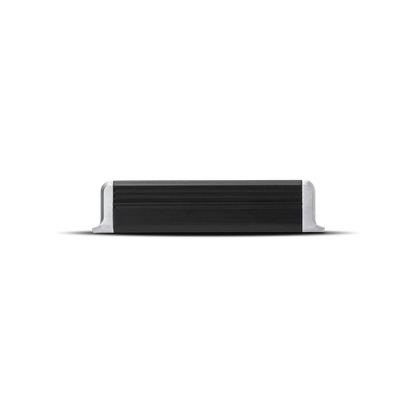

Rockford Fosgate PBR300X2

Name: Rockford Fosgate PBR300X2
Brand: Rockford Fosgate
SKU: PBR300X2
Price: 279.99 USD
Availability: OutOfStock

SKU:PBR300X2

$279.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

Punch Boosted Rail 300 Watt 2-Channel Amplifier

The PBR300X2 is a 300 Watt car audio amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	2
Total Power	300 Watts
Rated Power (RMS Continuous Power)	100 Watts × 2 @ 4Ω150 Watts × 2 @ 2Ω300 Watts × 1 @ 4Ω Bridged
Dynamic Power (PVC/PowerCube®)	114 Watts × 2 @ 4Ω160 Watts × 2 @ 2Ω387 Watts × 1 @ 4Ω Bridged
Bridgeable	Yes
Frequency Response	20 Hz – 20 kHz ±3 dB
Input Sensitivity	150 mV – 11 V
Circuit Topology Class	Class BR
Efficiency (Average)	68% @ 4Ω
Total Harmonic Distortion (THD+Noise)	4Ω: <1.0%2Ω: <1.0%
Signal Input	High/Low Level Input: 4-Pin HarnessHi-Level Sensitivity: Variable DC Offset Sensitivity
Signal Output	—
Tone Controls	Optional Remote Punch EQ
Crossover Controls	High-Pass: 50 Hz – 500 Hz @ 12 dB/Octave ButterworthLow-Pass: 50 Hz – 500 Hz @ 12 dB/Octave ButterworthAll-Pass: Yes
Remote Controls	Optional PEQ provides 0 dB to +18 dB @ 45 Hz
Visual Indicators	Power/Protect, BRT (Boost)
Power Wire Gauge	10 AWG
Power Input Connector	Detachable Compression Terminal
Speaker Wire Gauge	16 AWG
Speaker Output Connector	4-Pin Harness
Cooling	Convection
Heatsink	—
Operating Voltage	9 – 16 VDC
Recommended Fuse	50 A
Average Current Draw (13.8 V Music)	23 A
Max. Current Draw (13.8 V Sinewave)	45 A
Suggested Alternator	75 A
Included In The Box	—
Dimensions (H × W × D)	1.53" × 4.25" × 6.75"(3.90 cm × 10.8 cm × 17.2 cm)
