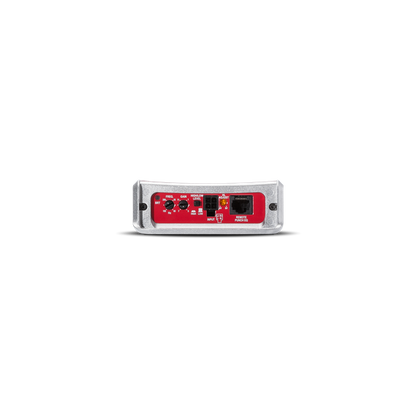

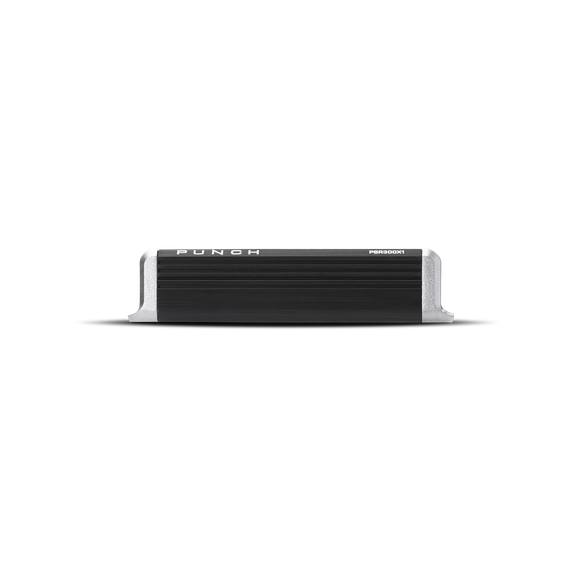

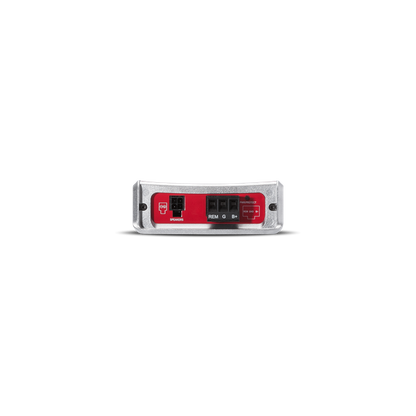

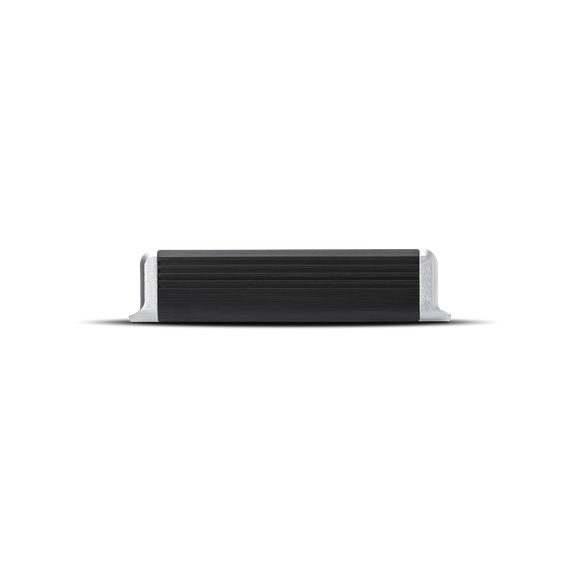

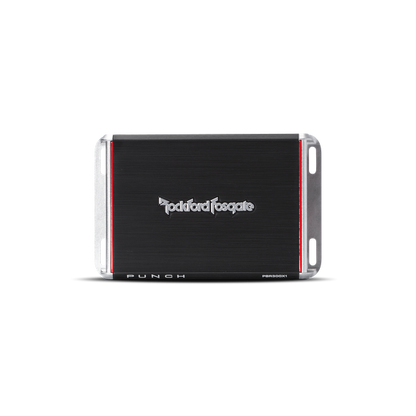

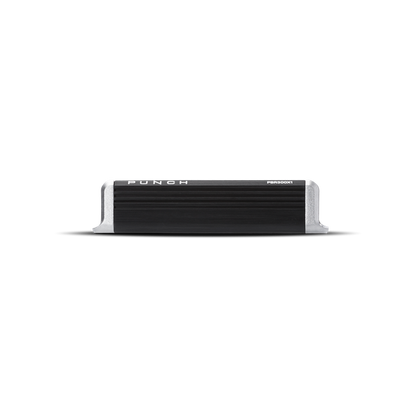

Rockford fosgate PBR300X1

Name: Rockford fosgate PBR300X1
Brand: Rockford Fosgate
SKU: PBR300X1
Price: 279.99 USD
Availability: OutOfStock

SKU:PBR300X1

$279.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

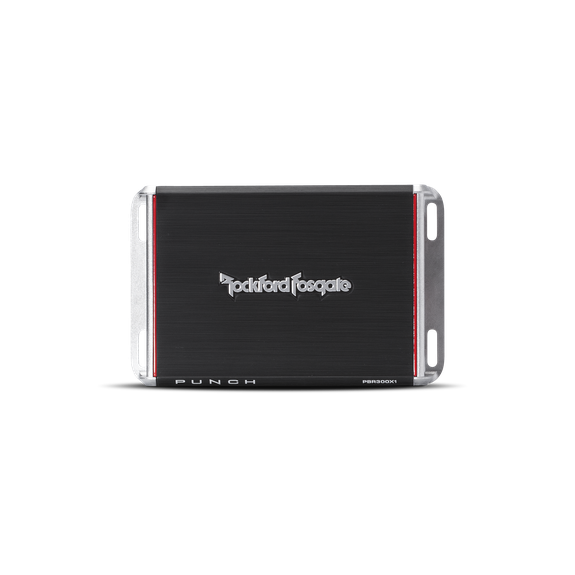

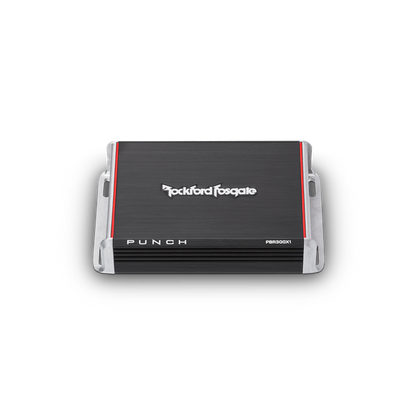

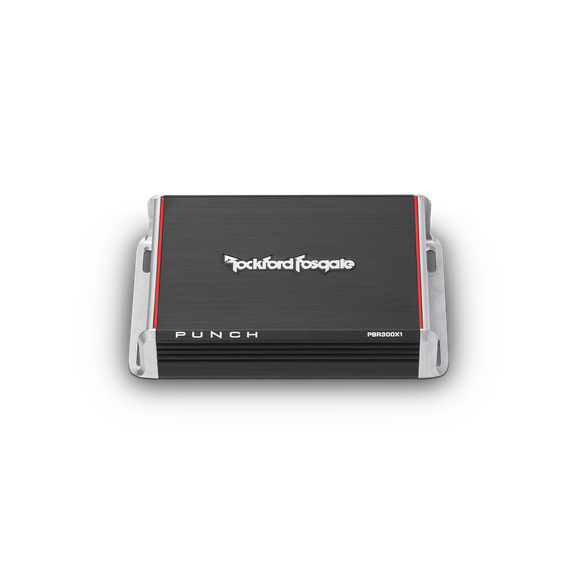

Punch Boosted Rail 300 Watt Mono Amplifier

The Punch PBR300X1 is a 300 Watt mono car audio amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in truck, sub-compact, electric, and hybrid vehicles without sucking a lot of juice from your electrical system.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	1
Total Power	300 Watts
Rated Power (RMS Continuous Power)	75 Watts × 1 @ 4Ω150 Watts × 1 @ 2Ω300 Watts × 1 @ 1Ω
Dynamic Power (PVC/PowerCube®)	96 Watts × 1 @ 4Ω189 Watts × 1 @ 2Ω326 Watts × 1 @ 1Ω
Bridgeable	No
Frequency Response	20 Hz – 250 Hz ±3 dB
Input Sensitivity	Low-Level: 150 mV – 4 VHigh-Level: 400 mV – 11 V
Circuit Topology Class	Class BR
Efficiency (Average)	75% @ 4Ω75% @ 2Ω75% @ 1Ω
Total Harmonic Distortion (THD+Noise)	4Ω: <1.0%2Ω: <1.0%

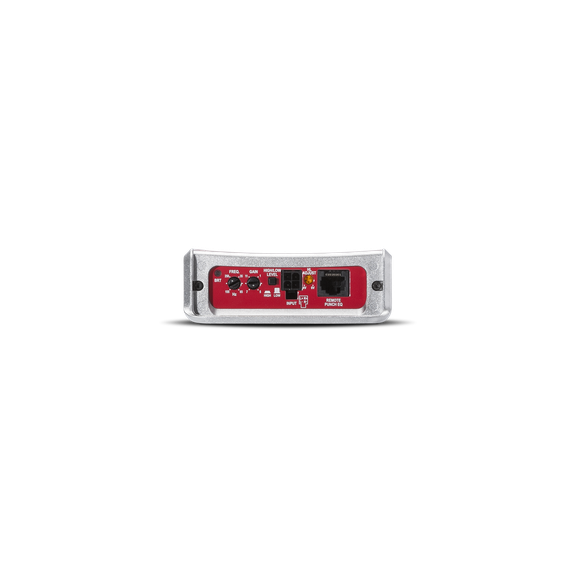

Signal Input	High/Low Input SwitchHigh/Low Level Input: 4-Pin HarnessHi-Level Sensitivity: Variable DC Offset Sensitivity
Signal Output	—
Tone Controls	External via Optional Punch EQ
Crossover Controls	Low-Pass: 35 Hz – 250 Hz @ 12 dB/Octave Butterworth
Remote Controls	Optional PEQ provides 0 dB to +18 dB @ 45 Hz
Visual Indicators	Power/Protect, BRT (Boost)
Power Wire Gauge	10 AWG

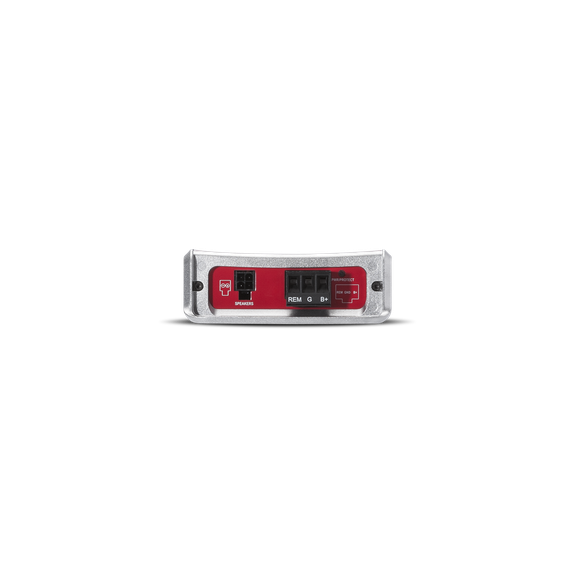

Power Input Connector	Detachable Compression Terminal
Speaker Wire Gauge	16 AWG

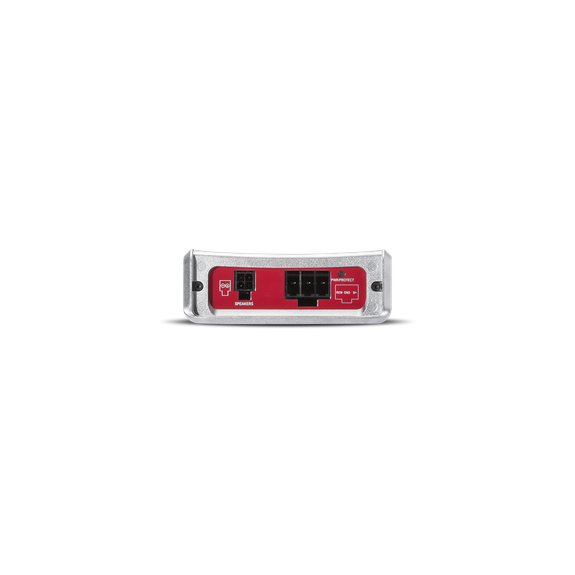

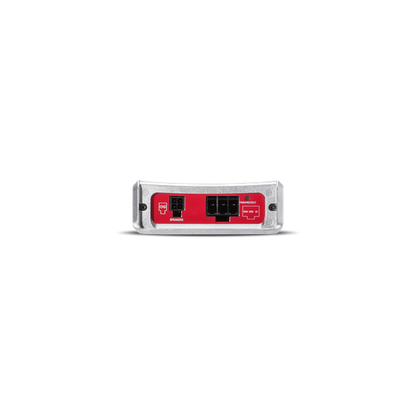

Speaker Output Connector	4-Pin HarnessWiring Convenience: 2 Negative Terminals (-)2 Positive Terminals (+)
Cooling	Convection
Heatsink	—
Operating Voltage	9 – 16 VDC
Recommended Fuse	30 A
Average Current Draw (13.8 V Music)	15 A
Max. Current Draw (13.8 V Sinewave)	30 A
Suggested Alternator	75 A
Included In The Box	—
Dimensions (H × W × D)	1.53" × 4.25" × 6.75"(3.90 cm × 10.8 cm × 17.2 cm)
Shipping Weight	2.76 lbs. (1.25 kg)
