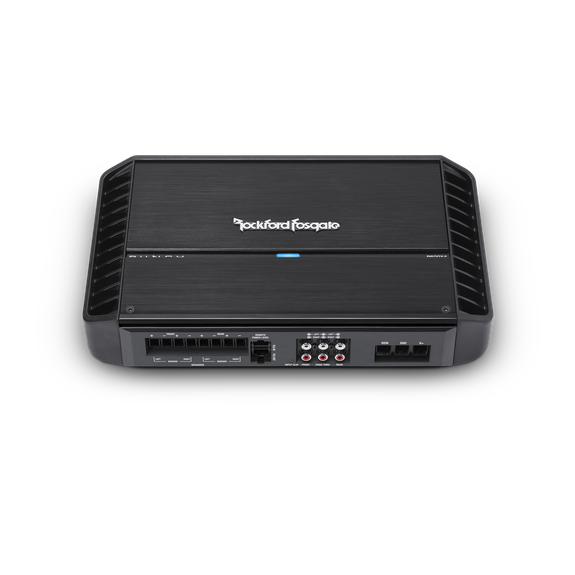

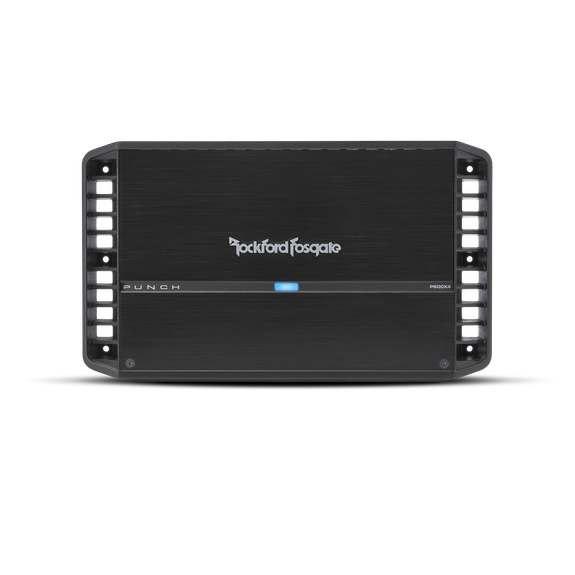

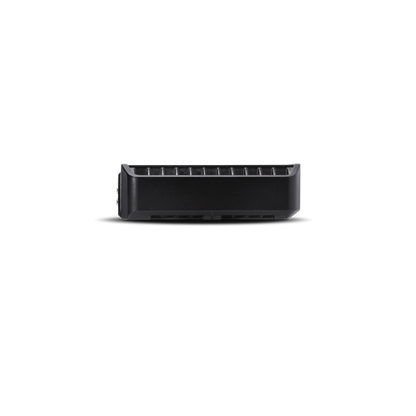

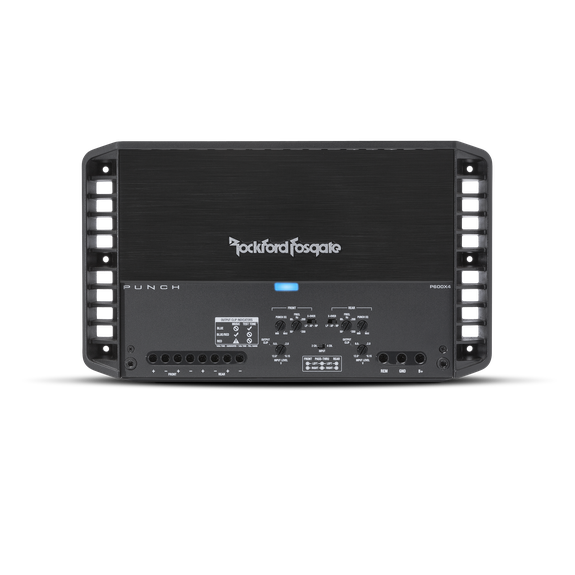

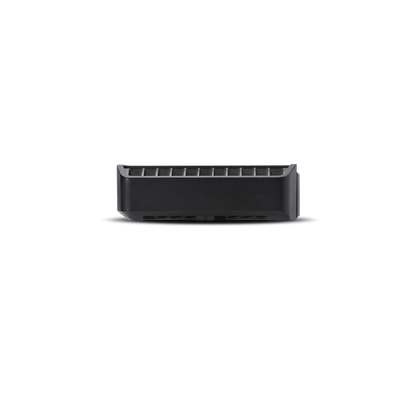

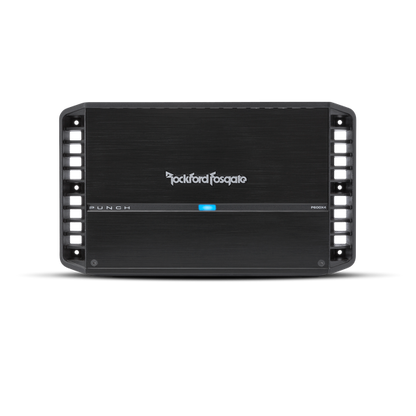

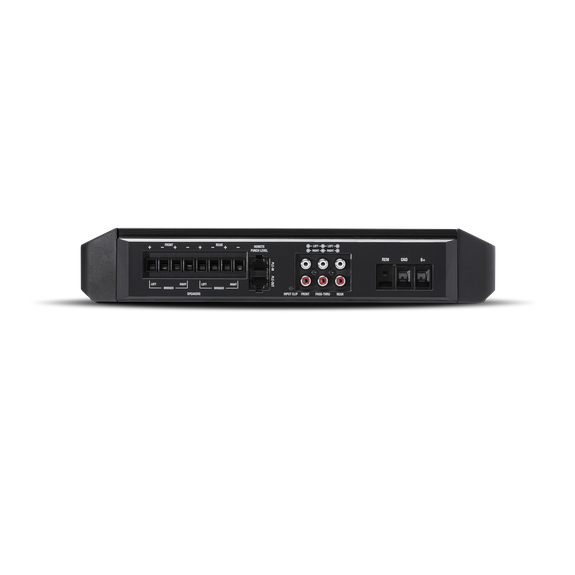

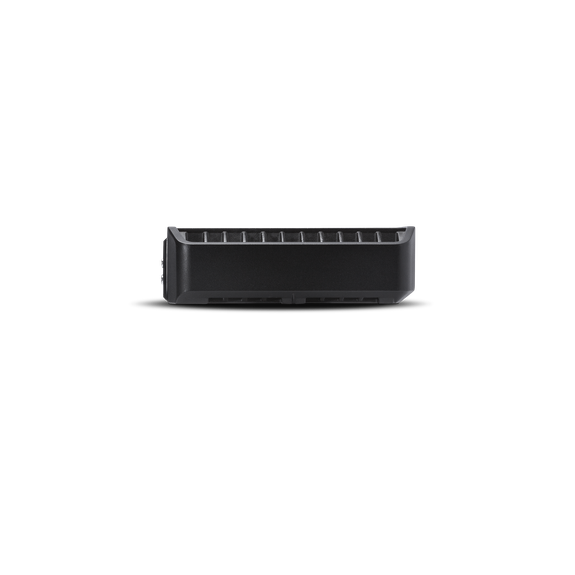

Rockford Fosgate P600X4
Rockford Fosgate P600X4
SKU:P600X4
Regular price
$509.99 USD
Regular price
Sale price
$509.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch 600 Watt 4-Channel Amplifier
The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 4 |
| Total Power | 600 Watts |
| Rated Power | 75 W × 4 @ 4 Ω150 W × 4 @ 2 Ω300 W × 2 @ 4 Ω Bridged |
| Dynamic Power | 129 W × 4 @ 4 Ω, 0° Res211 W × 4 @ 2 Ω, 0° Res |
| Bridgeable | Yes |
| Frequency Response | 20 Hz–20 kHz ±1.0 dB |
| Input Sensitivity | 150 mV–12 V |
| Circuit Topology Class | Class A/B |
| Efficiency (Average) | 68% @ 4 Ω |
| Total Harmonic Distortion (THD+Noise) | <1.0% @ 4 Ω<1.0% @ 2 Ω |
| Signal Input | Hi/Low Level: 2 RCA Pairs |
| Signal Output | Low Level: 1 RCA Pair |
| Tone Controls | Front Punch EQ2 Bass: 0 dB to +18 dB @ 45 HzFront Punch EQ2 Treble: 0 dB to +12.5 dB @ 12 kHzRear Punch EQ2 Bass: 0 dB to +18 dB @ 45 HzRear Punch EQ2 Treble: 0 dB to +12.5 dB @ 12 kHzFunction depends on LP/AP/HP switch position |
| Crossover Controls | Front/Rear HP: 50–250 Hz @ 12 dB/octave ButterworthFront/Rear LP: 50–250 Hz @ 12 dB/octave ButterworthAll-Pass: Yes |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LEDInput Clip LEDOutput Clip LEDBlue: <0.5% THD · Violet: 1% THD · Red: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8–18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9–16 VDC |
| Recommended Fuse | 100 A (Not Included) |
| Average Current Draw (13.8 V Music) | 45 A |
| Max. Current Draw (13.8 V Sinewave) | 90 A |
| Suggested Alternator | 75 A |
| Included In The Box | — |
| Dimensions (H × W × D) | 2.38 × 7.76 × 13.28 in6.05 × 19.71 × 33.73 cm |
| Shipping Weight | 12.8 lb (5.80 kg) |
