Rockford Fosgate P500X2

Name: Rockford Fosgate P500X2
Brand: Rockford Fosgate
SKU: P500X2
Price: 429.99 USD
Availability: OutOfStock

SKU:P500X2

$429.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

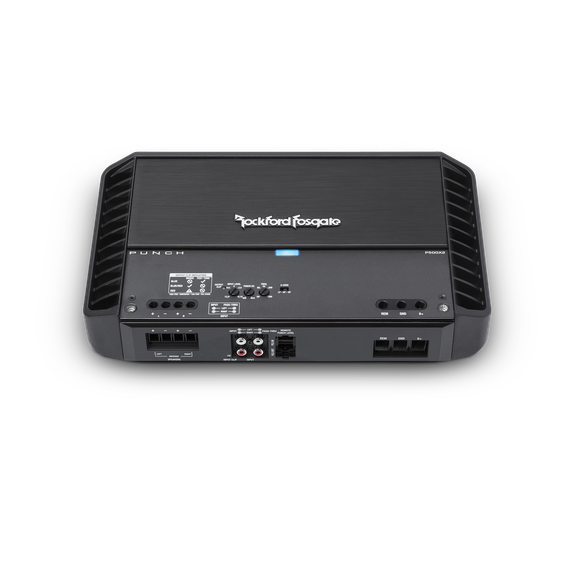

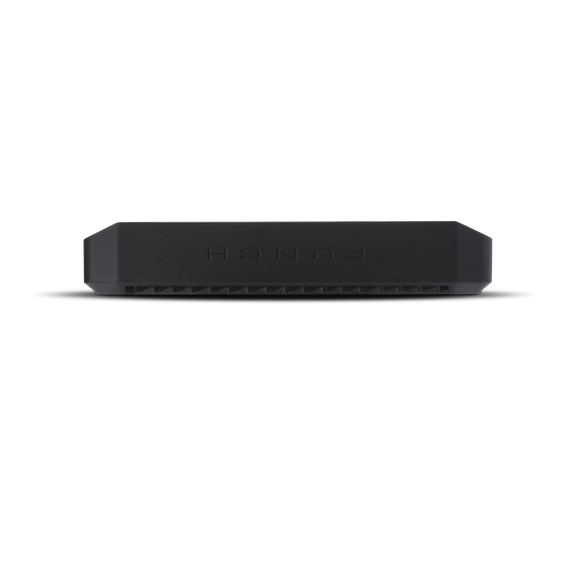

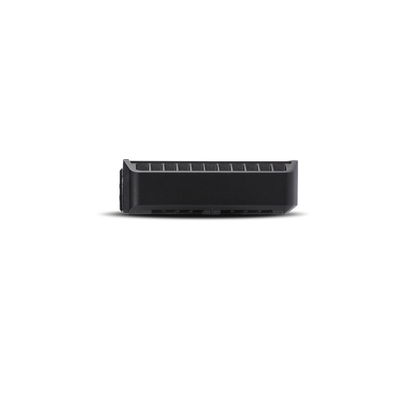

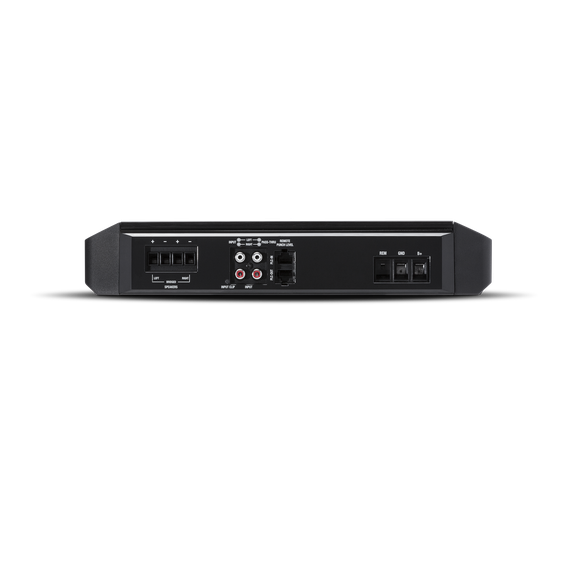

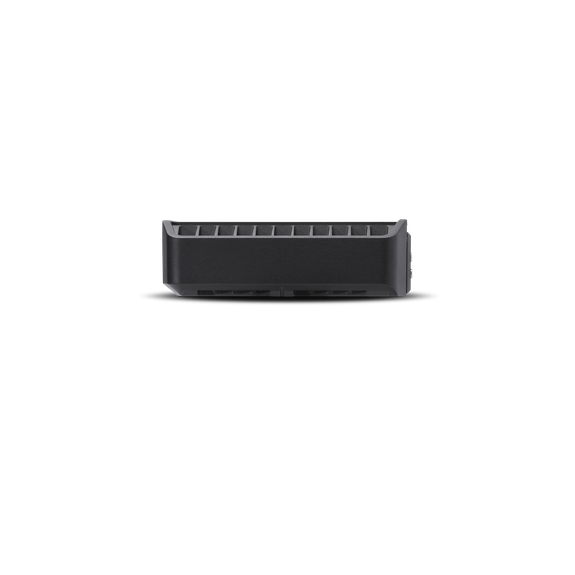

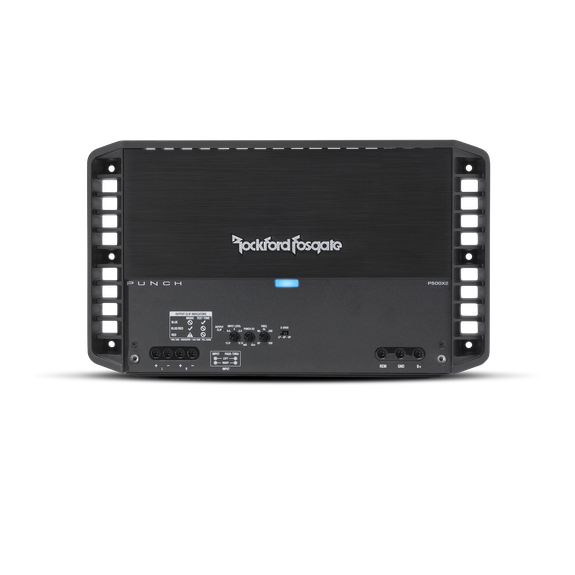

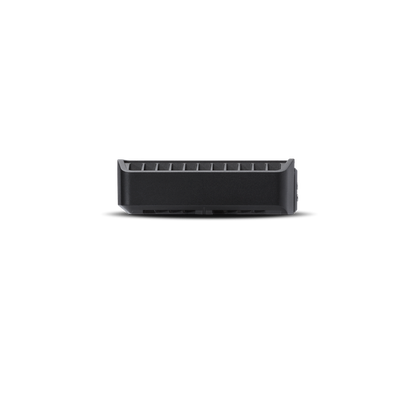

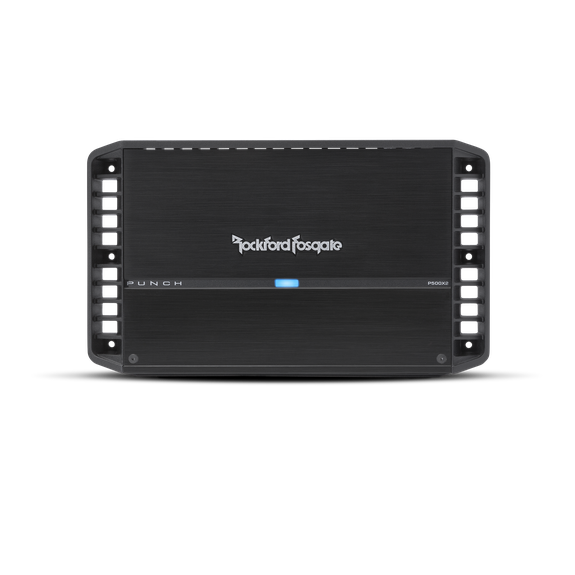

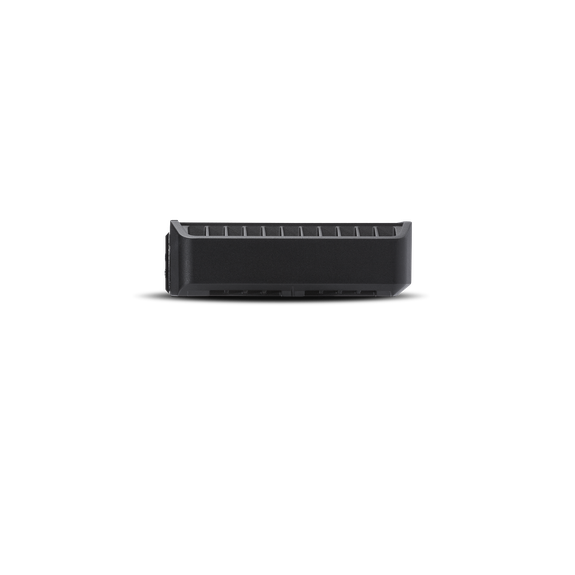

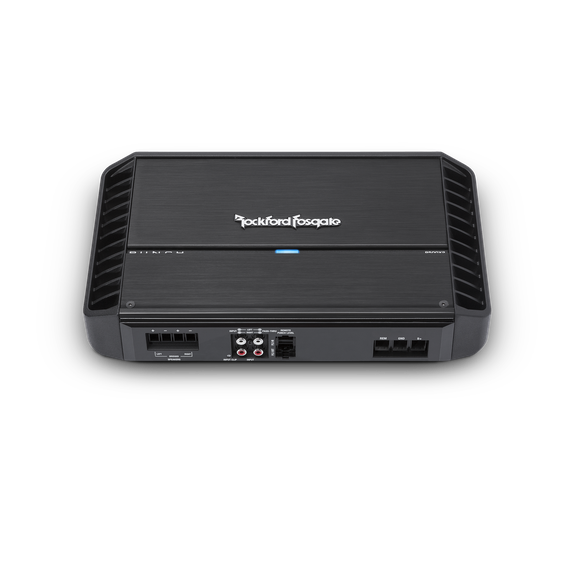

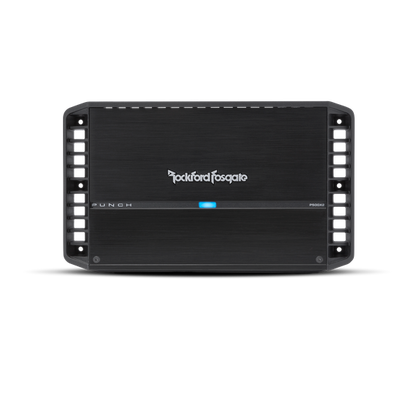

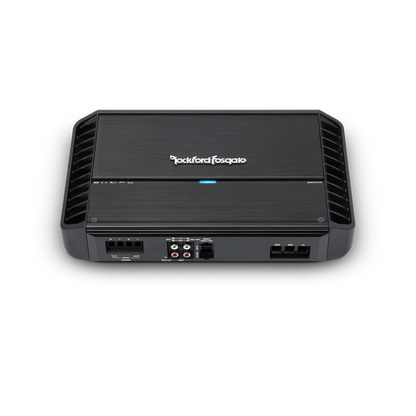

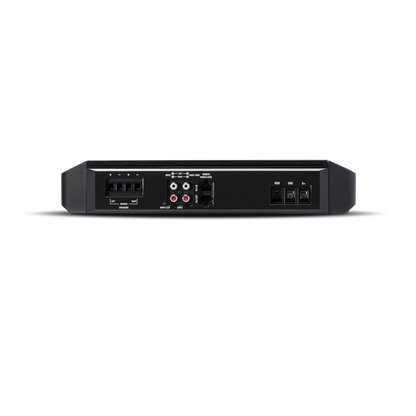

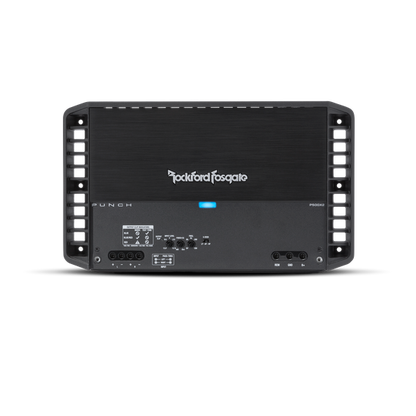

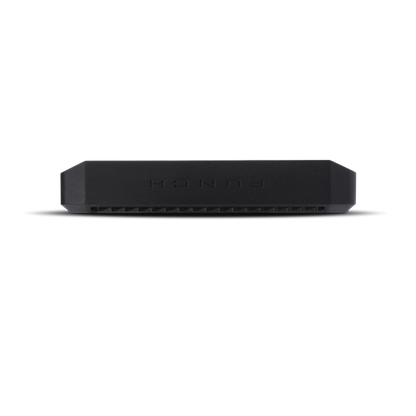

Punch 500 Watt 2-Channel Amplifier

The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	2
Total Power	500 Watts
Rated Power	150 W × 2 @ 4 Ω250 W × 2 @ 2 Ω500 W × 1 @ 4 Ω Bridged
Dynamic Power	223 W × 2 @ 4 Ω, 0° Res365 W × 2 @ 2 Ω, 0° Res
Bridgeable	Yes
Frequency Response	20 Hz–20 kHz ±1.0 dB
Input Sensitivity	150 mV–12 V
Circuit Topology Class	Class A/B
Efficiency (Average)	73% @ 4 Ω
Total Harmonic Distortion (THD+Noise)	<1.0% @ 4 Ω<1.0% @ 2 Ω
Signal Input	Hi/Low Level: 1 RCA Pair
Signal Output	Low Level: 1 RCA Pair
Tone Controls	Punch EQ2 Bass: 0 dB to +18 dB @ 45 HzPunch EQ2 Treble: 0 dB to +12 dB @ 12 kHzFunction depends on LP/AP/HP switch position
Crossover Controls	High-Pass: 50–250 Hz @ 12 dB/octave ButterworthLow-Pass: 50–250 Hz @ 12 dB/octave ButterworthAll-Pass: Yes
Remote Controls	Optional Punch Level Control (PLC2) Ready
Visual Indicators	Power/Protect/Thermal LEDInput Clip LEDOutput Clip LEDBlue: <0.5% THD · Violet: 1% THD · Red: 10%+ THD
Power Wire Gauge	4 AWG
Power Input Connector	Captive C-Clamp
Speaker Wire Gauge	8–18 AWG
Speaker Output Connector	Captive C-Clamp
Cooling	Convection
Heatsink	—
Operating Voltage	9–16 VDC
Recommended Fuse	80 A (Not Included)
Average Current Draw (13.8 V Music)	40 A
Max. Current Draw (13.8 V Sinewave)	80 A
Suggested Alternator	75 A
Included In The Box	—
Dimensions (H × W × D)	2.38 × 7.76 × 13.28 in6.05 × 19.71 × 33.73 cm
Shipping Weight	12.3 lb (5.57 kg)
