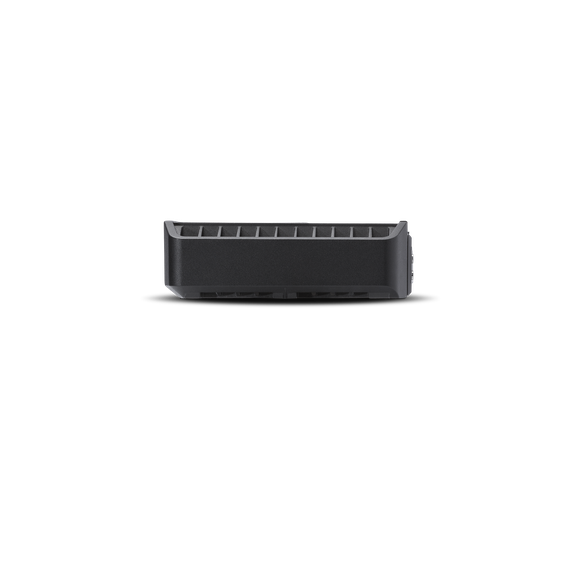

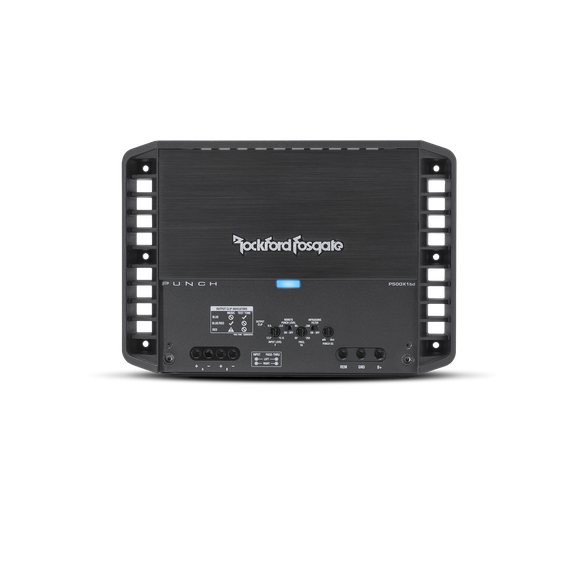

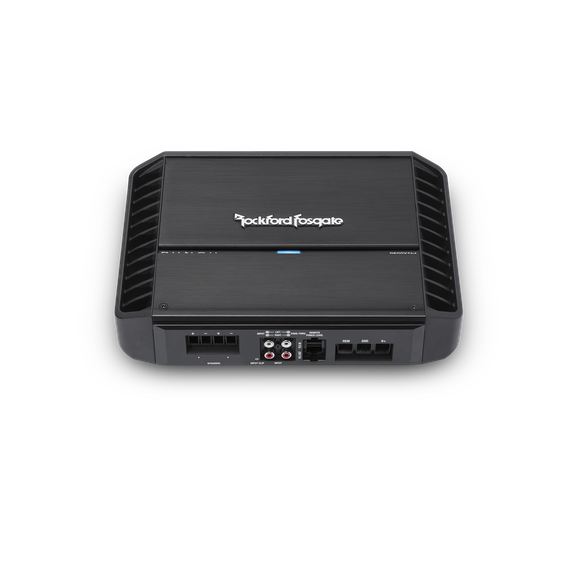

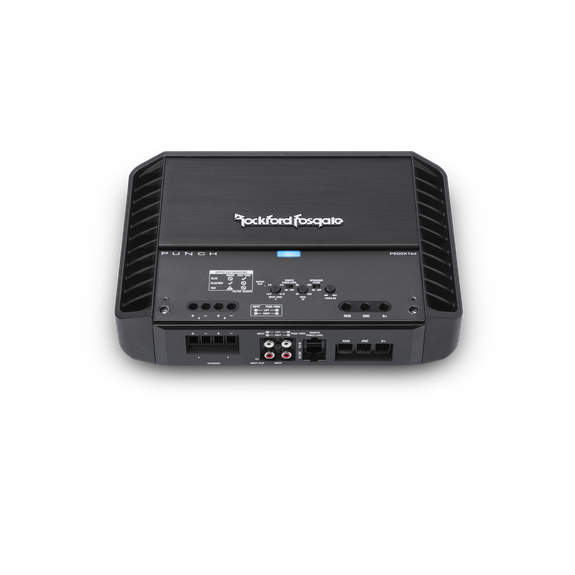

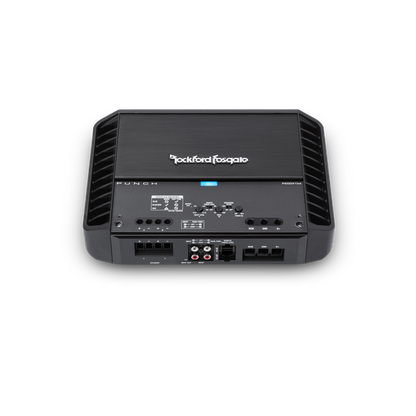

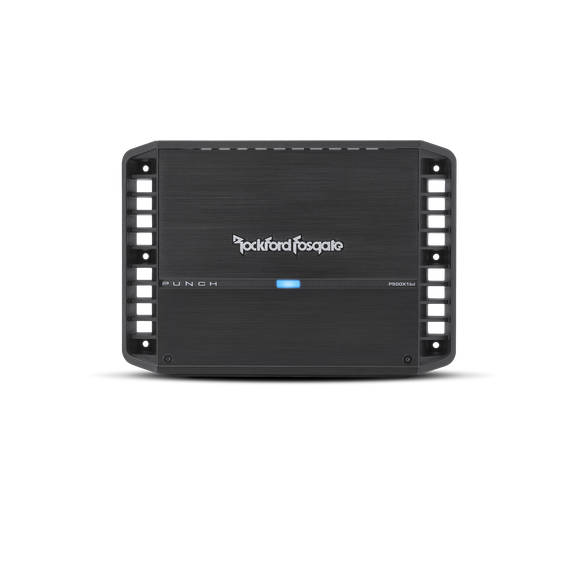

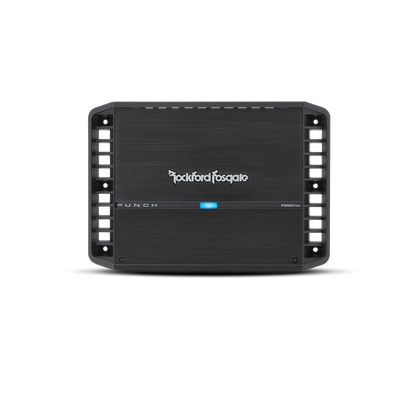

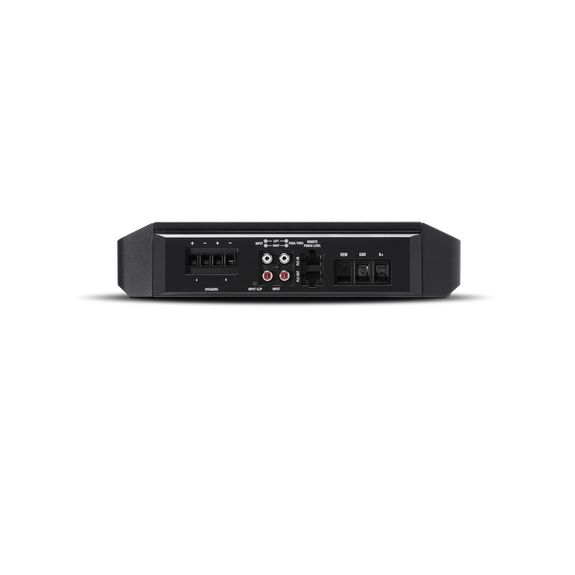

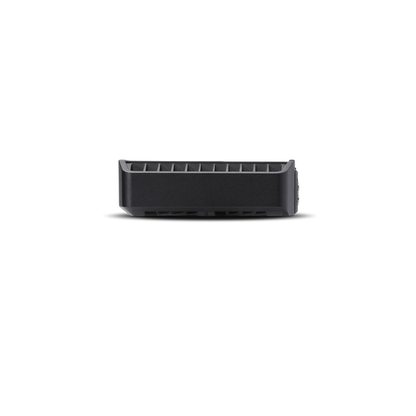

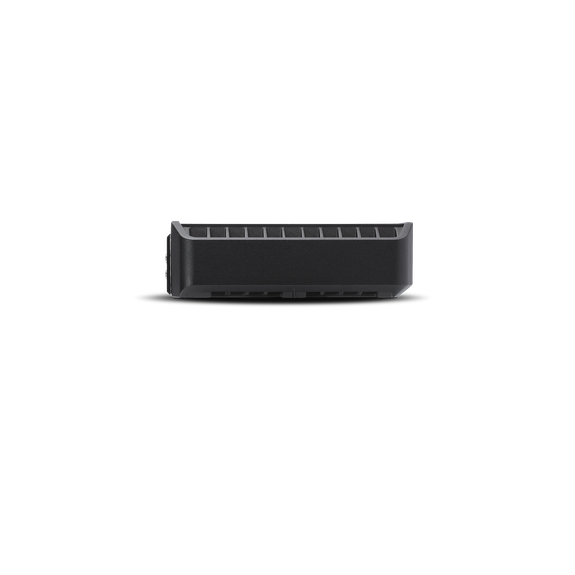

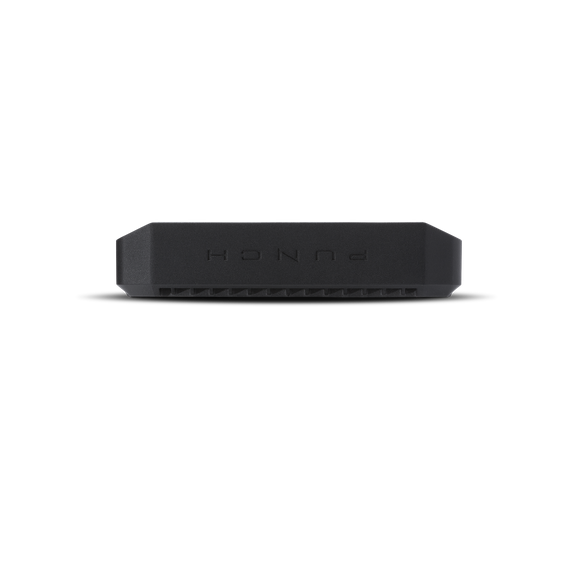

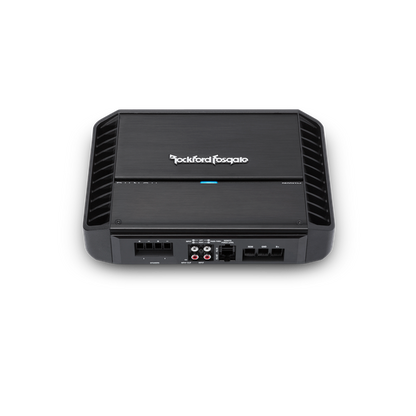

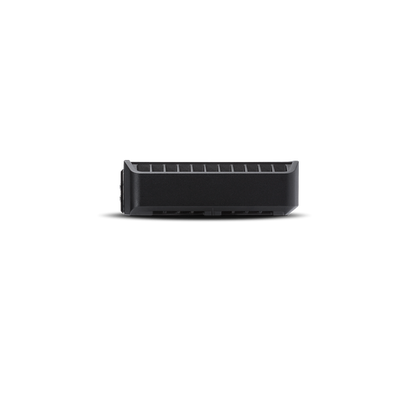

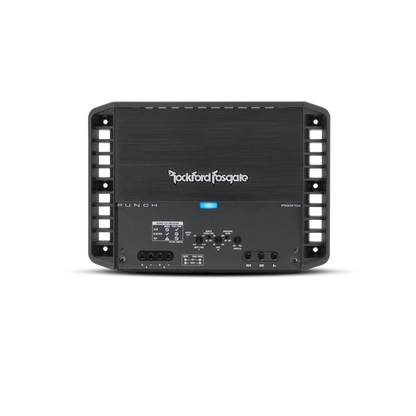

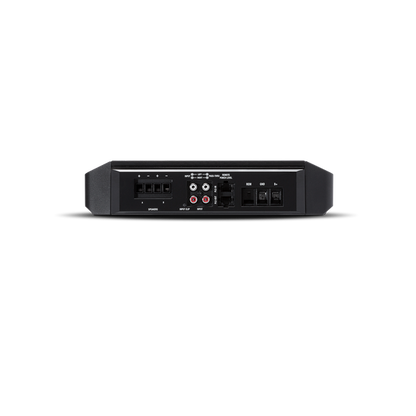

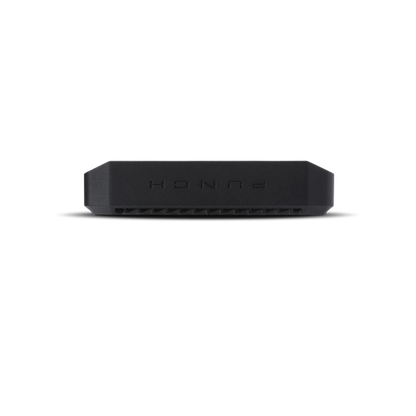

Rockford Fosgate P500X1BD

Name: Rockford Fosgate P500X1BD
Brand: Rockford Fosgate
SKU: P500X1BD
Price: 429.99 USD
Availability: OutOfStock

SKU:P500X1BD

$429.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

Punch 500 Watt Class-bd Mono Amplifier

The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	1
Total Power	500 Watts
Rated Power	150 W × 1 @ 4 Ω300 W × 1 @ 2 Ω500 W × 1 @ 1 Ω
Dynamic Power	224 W × 1 @ 4 Ω410 W × 1 @ 2 Ω787 W × 1 @ 1 Ω
Bridgeable	No
Frequency Response	20 Hz–250 Hz ±1.0 dB
Input Sensitivity	150 mV–12 V
Circuit Topology Class	Class BD
Efficiency (Average)	86% @ 4 Ω
Total Harmonic Distortion (THD+Noise)	<1.0% @ 4 Ω<1.0% @ 2 Ω<1.0% @ 1 Ω
Signal Input	Hi/Low Level: 1 RCA Pair
Signal Output	Low Level: 1 RCA Pair
Tone Controls	Punch EQ2 Bass: 0 dB to +18 dB @ 45 Hz
Crossover Controls	Low-Pass (LP): 50–250 Hz @ 12 dB/octave ButterworthInfrasonic Filter (IF): 28 Hz @ 12 dB/octaveAll-Pass (AP): No
Remote Controls	Optional Punch Level Control (PLC2) Ready
Visual Indicators	Power/Protect/Thermal LEDInput Clip LEDOutput Clip LEDBlue: <0.5% THD · Violet: 1% THD · Red: 10%+ THD
Power Wire Gauge	4 AWG
Power Input Connector	Captive C-Clamp
Speaker Wire Gauge	8–18 AWG
Speaker Output Connector	Captive C-Clamp
Cooling	Convection
Heatsink	—
Operating Voltage	9–16 VDC
Recommended Fuse	80 A (Not Included)
Average Current Draw (13.8 V Music)	35 A
Max. Current Draw (13.8 V Sinewave)	70 A
Suggested Alternator	75 A
Included In The Box	—
Dimensions (H × W × D)	2.38 × 7.76 × 11.03 in6.05 × 19.71 × 28.02 cm
Shipping Weight	10.8 lb (4.89 kg)
