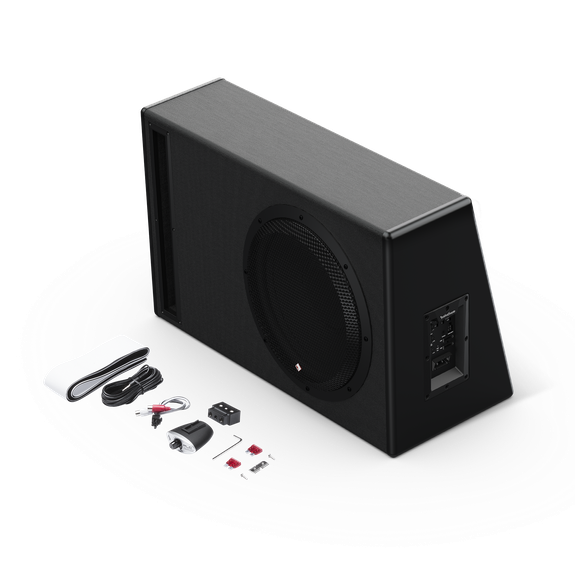

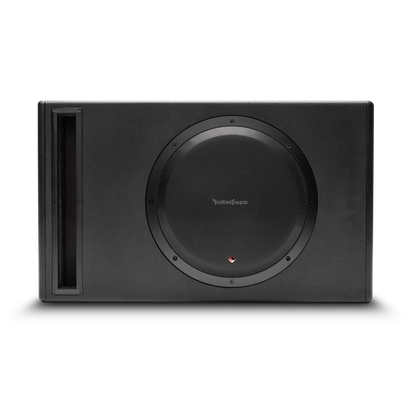

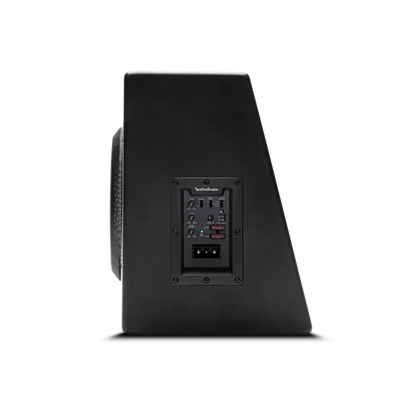

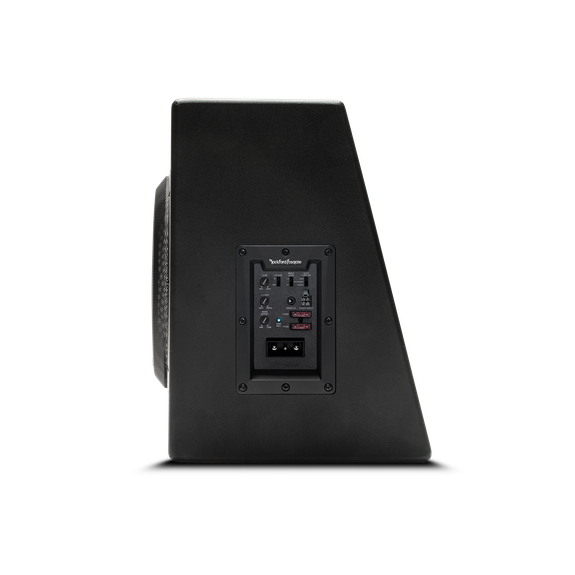

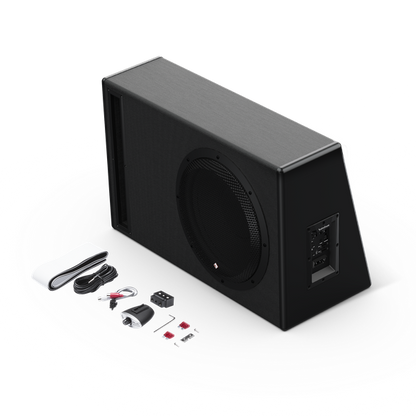

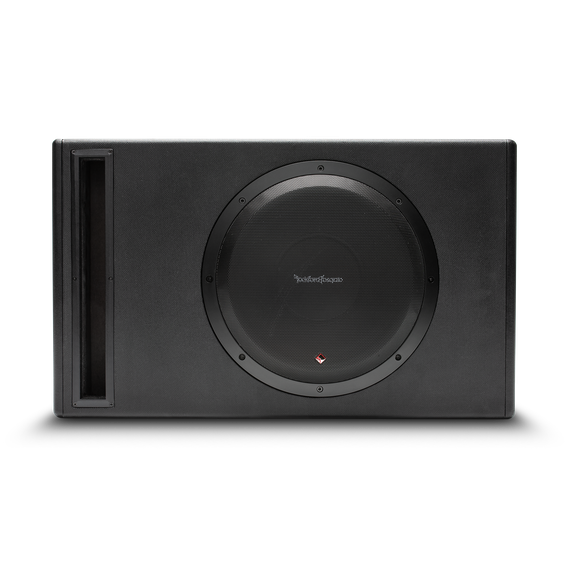

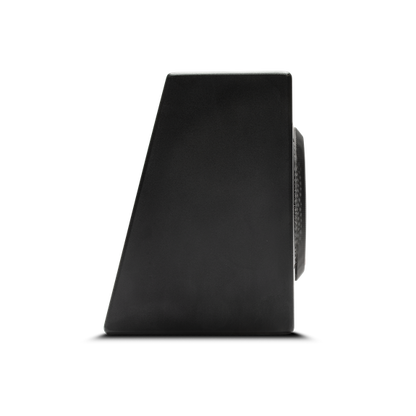

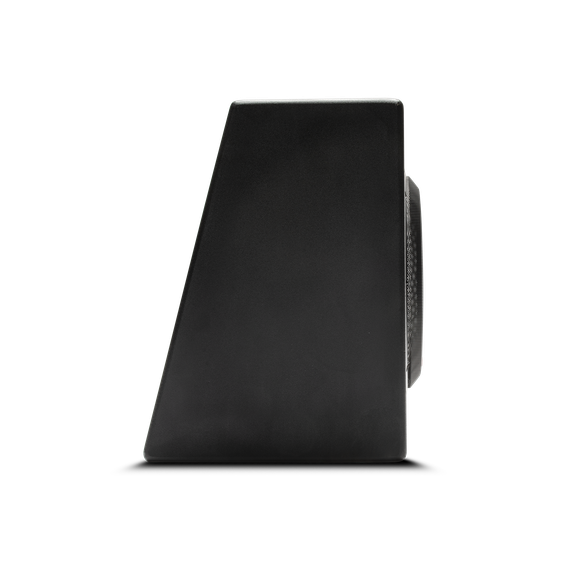

Punch 12" 500-Watt Powered Enclosure
The Punch P500-12P is an "all in one" solution for adding serious bass to Hatchbacks, Sedans, and SUVs. This model features a 12" high output woofer with a 500-watt internal amplifier and a high output vented enclosure that's great for sedan and hatchback applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
FEATURES AT A GLANCE
- Designed For Hatchback, Sedan, and SUV Applications
- Optimized 12" Low Impedance Woofer
- Remote bass level control included
- Thermal and over/under voltage protection
- Intelligent auto turn on/off function
- Robust Power/Ground connections
- Adjustable 12db/Octave low pass crossover
- On Board Phase Switch
- 500 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- On Board Adjustable Bass EQ
- Quick Input Connections for Easy Removal
- Separate low level and speaker level inputs
Specification
| Specification | Value |
|---|---|
| Woofer Size | 12" |
| Woofer Quantity | 1 |
| Woofer Series | Proprietary |
| CEA-2031 Compliant | Yes |
| Nominal Impedance | — |
| Enclosure Material | 5/8" MDF |
| Power Handling (RMS) | 500 W |
| Speaker Connector | — |
| Enclosure Type | Ported |
| Crossover Controls | Variable 50–200 Hz, 12 dB/Octave Butterworth |
| Input Switch | High-Level (Speaker Line) / Low-Level (RCA) |
| Power Wire Gauge | B+/GND: 8 AWG; REM: 18 AWG |
| Power Input Connector | Quick Disconnect |
| Input Sensitivity | Low-Level: 150 mV–6 V; High-Level: 300 mV–12 V |
| Phase Control | 0°–180° |
| Tone Controls | Bass Boost, 0 dB to +12 dB @ 45 Hz |
| Heatsink Type | Extruded Aluminum |
| Input Impedance | 20 kΩ |
| Remote Control | Punch Level Control (Included) |
| Auto Turn-On Selector | Remote Trigger / DC Offset Sense / Audio Sense |
| Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) |
| Frequency Response | 30–200 Hz |
| CEA-2006 Compliant | Yes |
| Integrated Amplifier | 500 W RMS |
| Circuit Topology Class | Class-D |
| Visual Indicators | Power/Protect LED |
| Fuses | 30 A (2 × 15 A ATO Fuse) |
| Cooling | Convection |
| Box Dimensions (H × W × D) | 15.00" × 24.76" × 10.91" (38.1 × 62.9 × 27.7 cm) |
| Wedge Dimensions (H × W × D1 × D2) | 15.00" × 24.76" × 10.91" × 7.71" |
| Shipping Weight | 48.2 lb (21.9 kg) |
