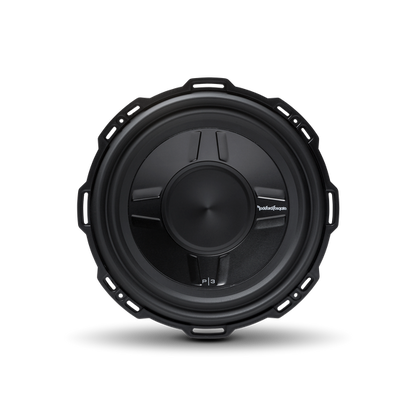

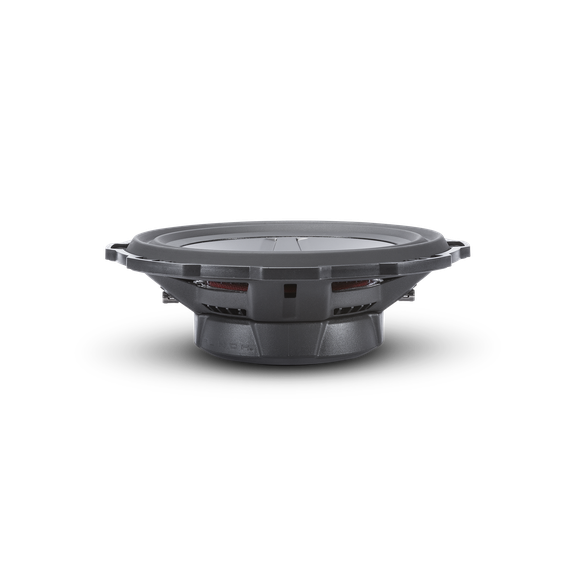

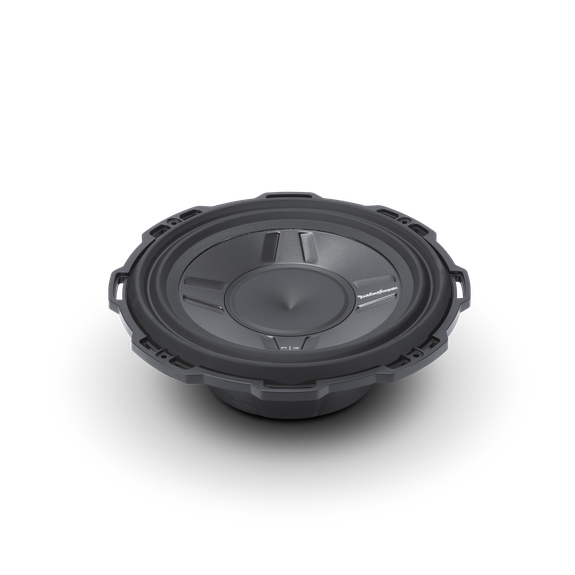

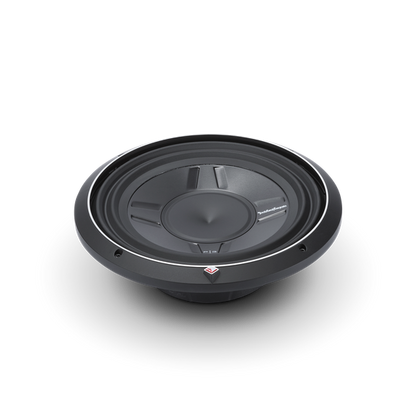

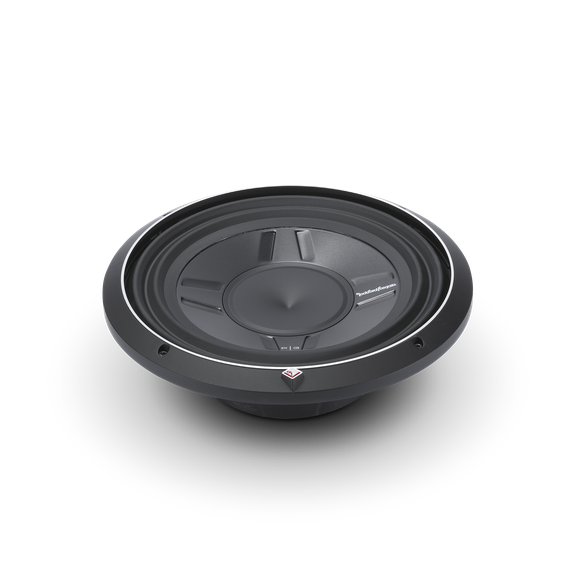

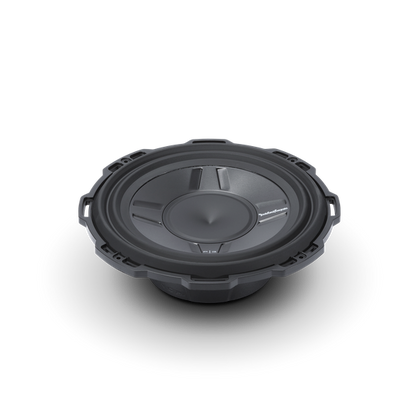

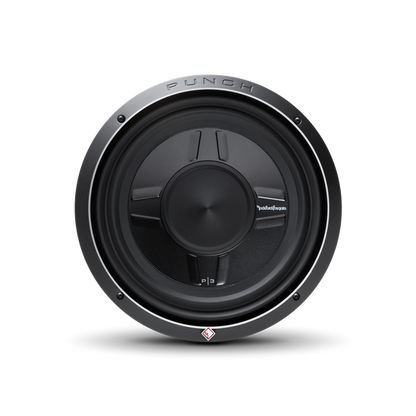

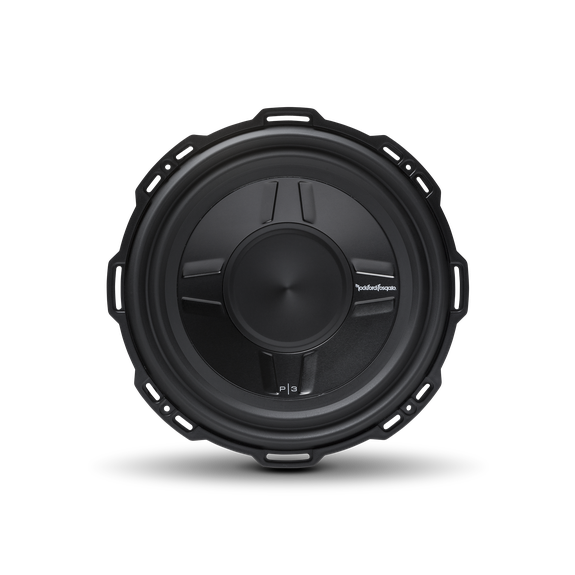

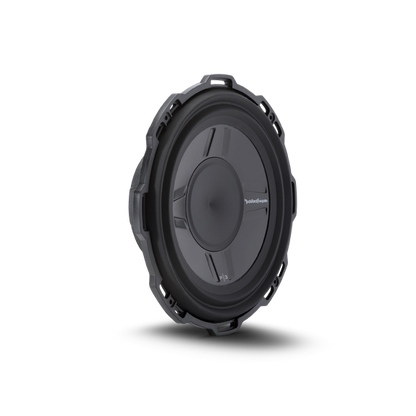

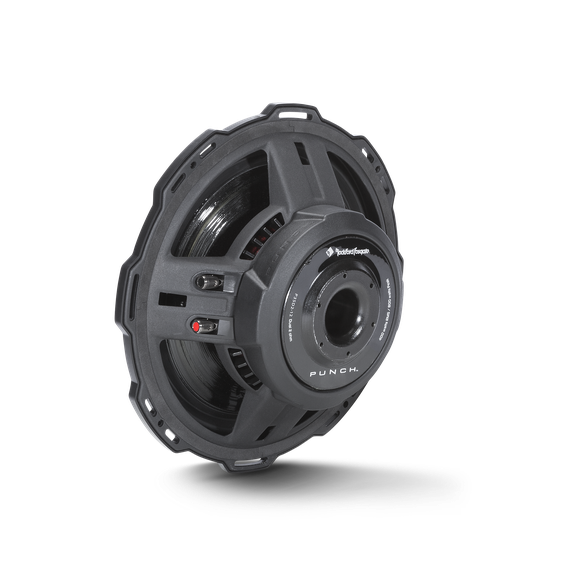

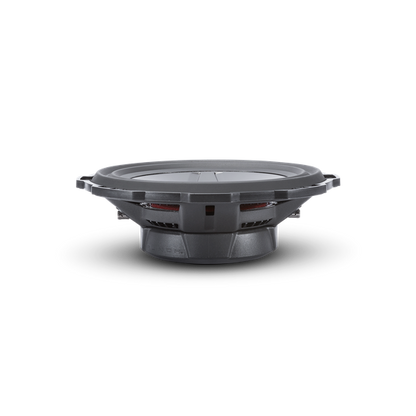

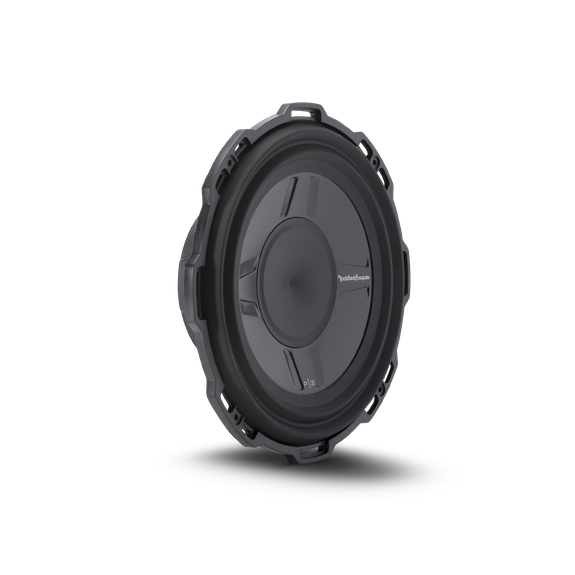

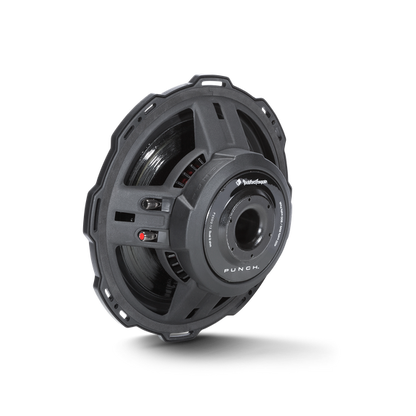

Rockford Fosgate Punch P3SD4-12
Rockford Fosgate Punch P3SD4-12
SKU:P3SD4-12
Regular price
$239.99 USD
Regular price
Sale price
$239.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch 12" P3S Shallow 4-Ohm DVC Subwoofer
Rockford Fosgate P3S 12" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-12 features Dual 4-Ohm voice coils for wiring flexibility and 400 Watts RMS power handling.
FEATURES AT A GLANCE
- M-Roll Santoprene™ surround
- Anodized aluminum cone and dustcap

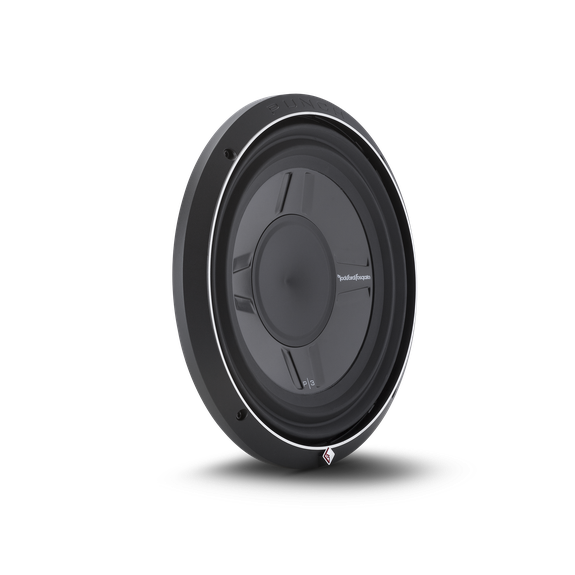

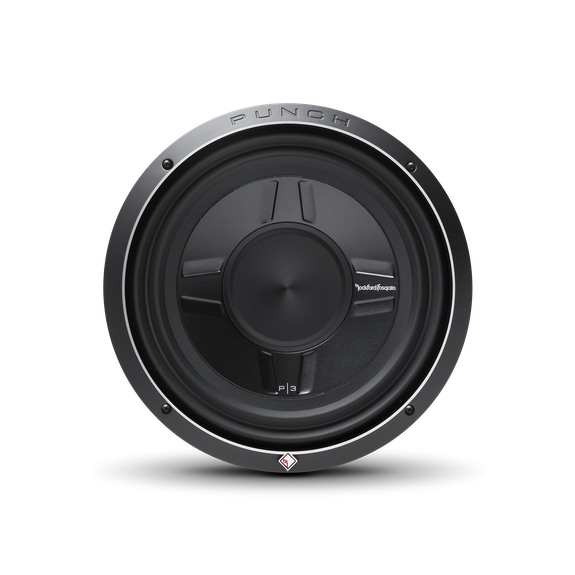

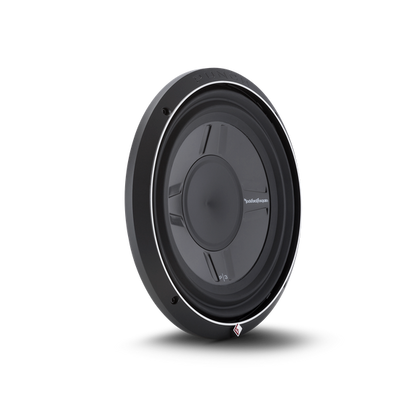

- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Optimized for both sealed and vented enclosures
- Dual linear spider with embedded 16 AWG tinsel leads
- Shallow Motor Assembly
Specification
| Specification | Details |
|---|---|
| Power Handling (Watts RMS) | 400 Watts RMS / 800 Watts Max |
| Size | 12" |
| Nominal Impedance | Dual 4-Ohm |
| Speaker Connector | Dual 10 AWG Compression |
| Magnet Weight (oz) | 51 oz. (1.45 kg.) |
| Voice Coil Diameter | 2.5" (65.5 mm) |
| Shipping Weight | 13.25 Lbs. (6.01 kg.) |
| SPL (dB @ 1w/1m) | 85 |
| Cutout Diameter | 11.22 in. (285.0 mm) |
| Woofer Displacement | 0.086 cu. ft. (2.45 Liters) |
| Fs (Hz) | 35.4 |
| Qts | 0.72 |
| Vas (Liters) | 35.3 |
| Qes | 0.83 |
| Qms | 5.70 |
| Xmax (mm) | 8.1 |
| Mounting Depth | 3.65 in. (92.5 mm) |
| CEA-2031 Compliant | Yes |
| CEA-2031 Guidelines | CEA-2031 Guidelines |
| Re (Ohms) | 6.80 |
| Le (mH) | 4.4 |
| Sd (cm²) | 500 |
| Subwoofer Type | Shallow |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 1.0 cu. ft. (28.3 Liters) |
| Vented Box Volume (Vb) | 1.25 cu. ft. (35.3 Liters) |
