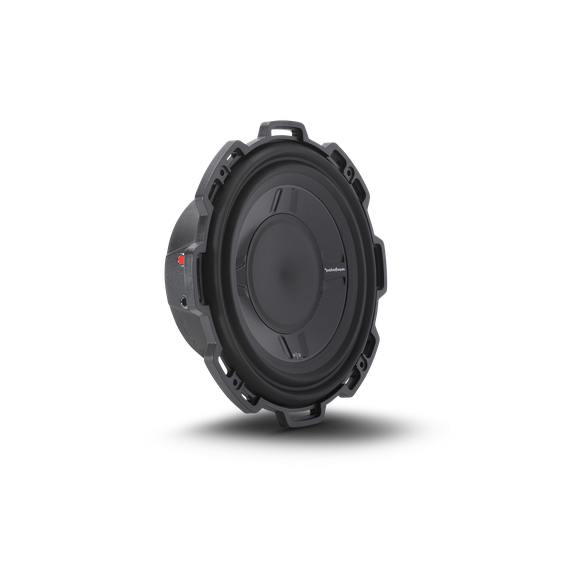

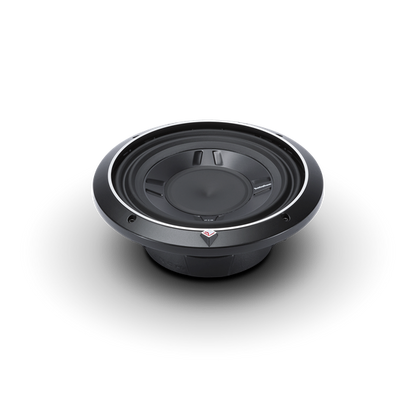

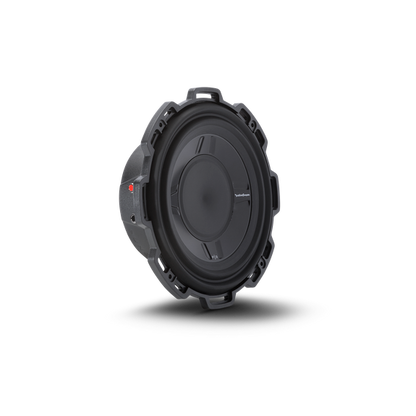

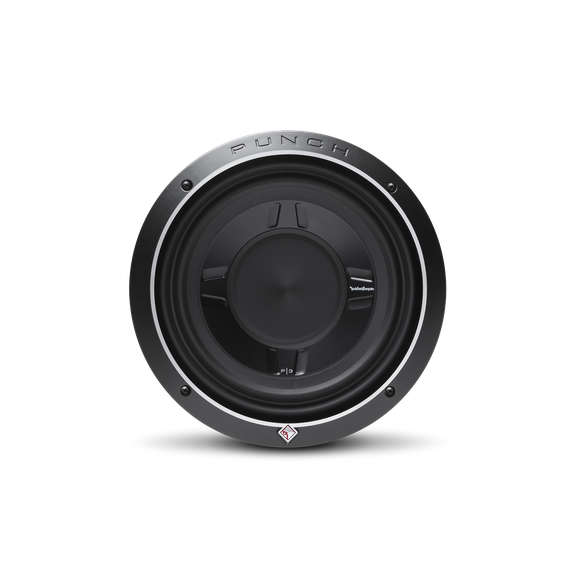

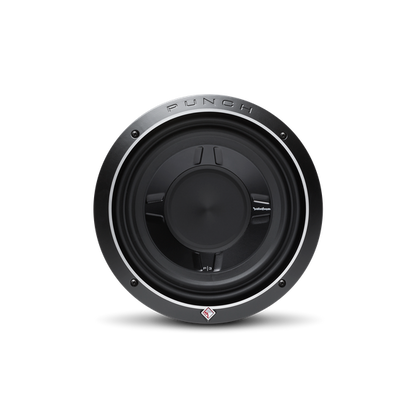

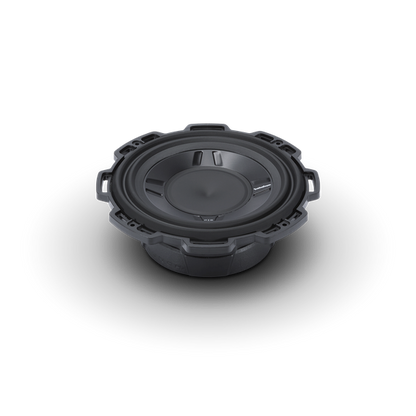

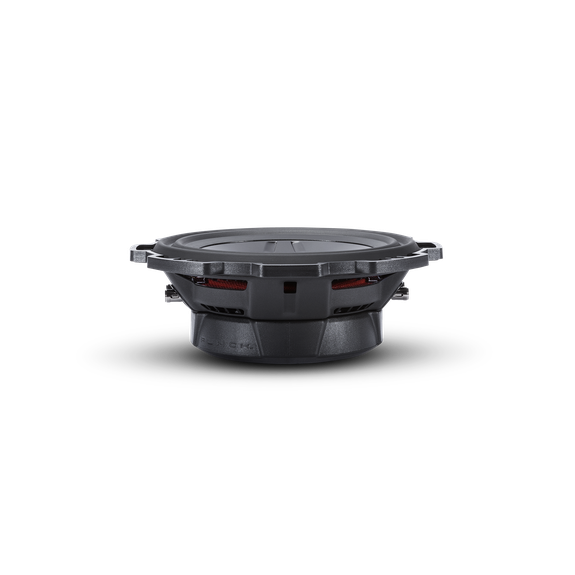

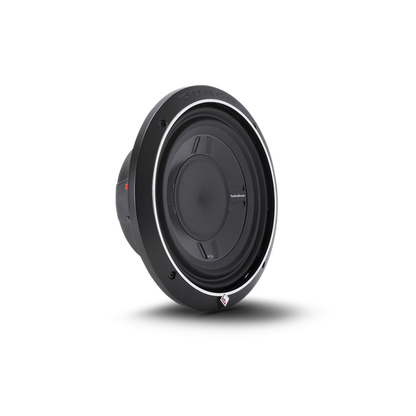

Rockford Fosgate Punch P3SD2-10
Rockford Fosgate Punch P3SD2-10
SKU:P3SD2-10
Regular price
$229.99 USD
Regular price
Sale price
$229.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

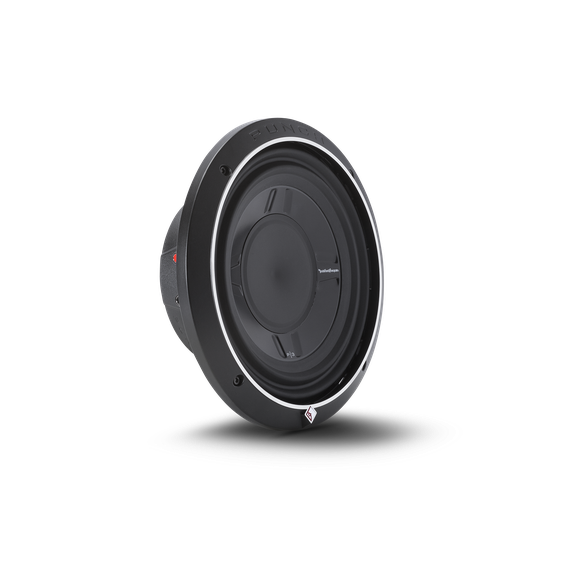

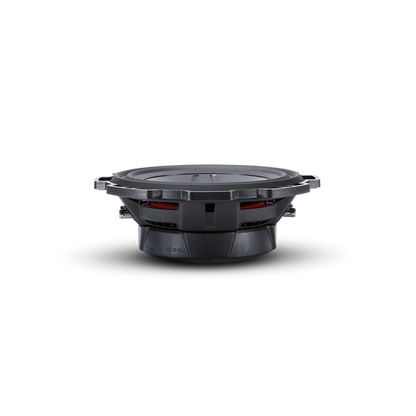

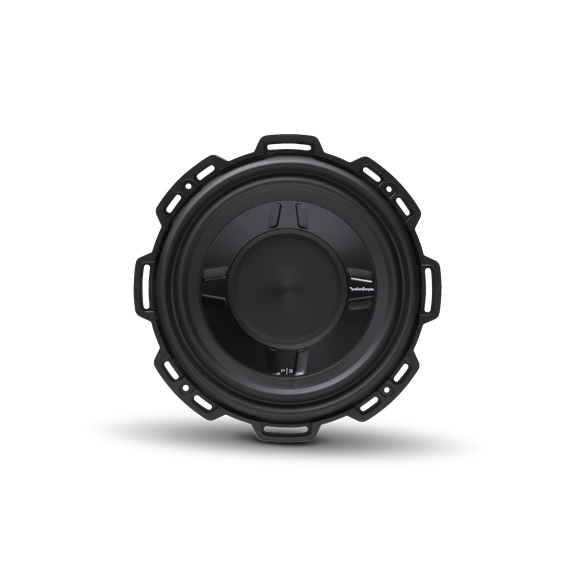

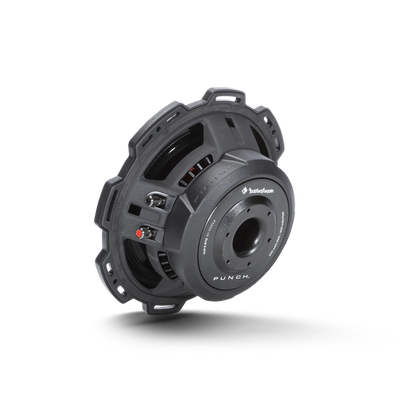

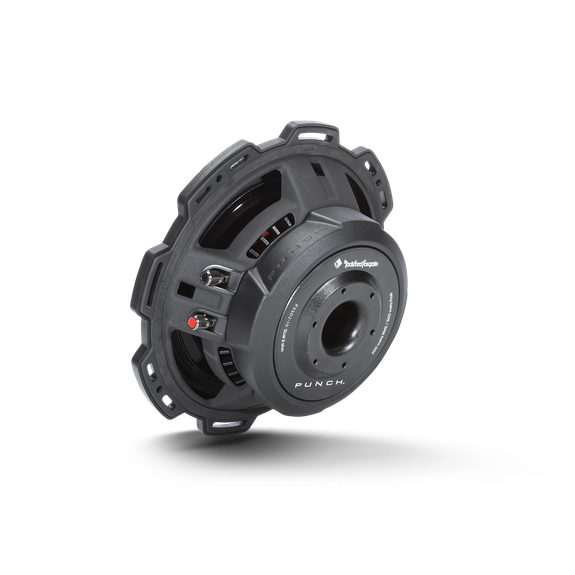

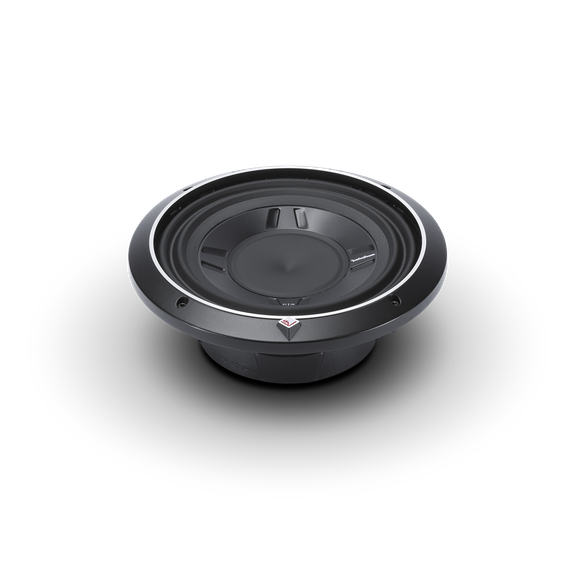

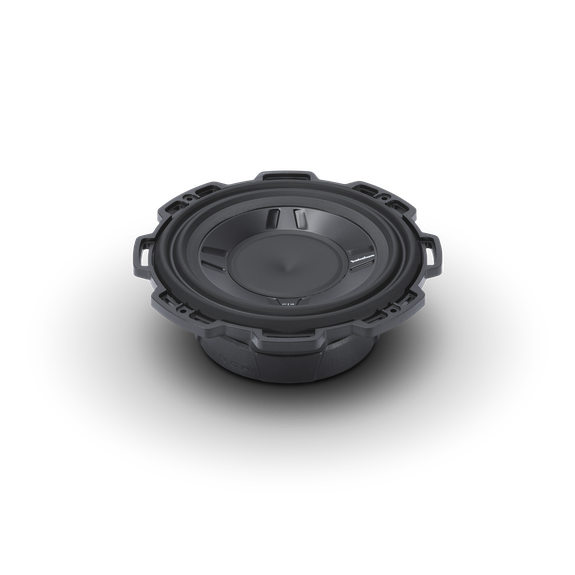

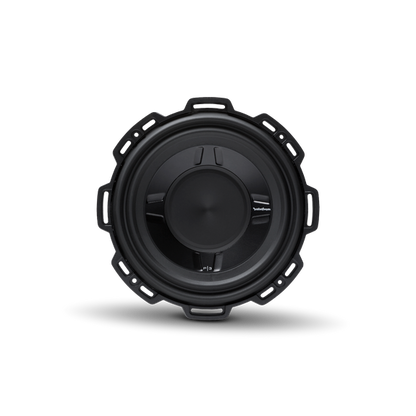

Punch 10" P3S Shallow 2-Ohm DVC Subwoofer
Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD2-10 features Dual 2-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.
FEATURES AT A GLANCE
- M-Roll Santoprene™ surround
- Anodized aluminum cone and dustcap
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Optimized for both sealed and vented enclosures
- Dual linear spider with embedded 16 AWG tinsel leads
- Shallow Motor Assembly
Specification
| Specification | Details |
|---|---|
| Power Handling (Watts RMS) | 300 Watts RMS / 600 Watts Max |
| Size | 10" |
| Nominal Impedance | Dual 2-Ohm |
| Speaker Connector | Dual 10 AWG Compression |
| Magnet Weight (oz) | 1.32 oz. (47 kg) |
| Voice Coil Diameter | 2.5" (65.5 mm) |
| Shipping Weight | 11.9 Lbs. (5.39 kg.) |
| SPL (dB @ 1w/1m) | 83 |
| Cutout Diameter | 9.06 in. (230.0 mm) |
| Woofer Displacement | 0.074 cu. ft. (2.1 Liters) |
| Fs (Hz) | 40 |
| Qts | 0.64 |
| Vas (Liters) | 14.3 |
| Qes | 0.71 |
| Qms | 6.20 |
| Xmax (mm) | 8.4 |
| Mounting Depth | 3.50 in. (89.0 mm) |
| CEA-2031 Compliant | Yes |
| CEA-2031 Guidelines | CEA-2031 Guidelines |
| Re (Ohms) | 3.40 |
| Le (mH) | 2.8 |
| Sd (cm²) | 333 |
| Subwoofer Type | Shallow |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.5 cu. ft. (14.1 Liters) |
| Vented Box Volume (Vb) | 1.0 cu. ft. (28.3 Liters) |
