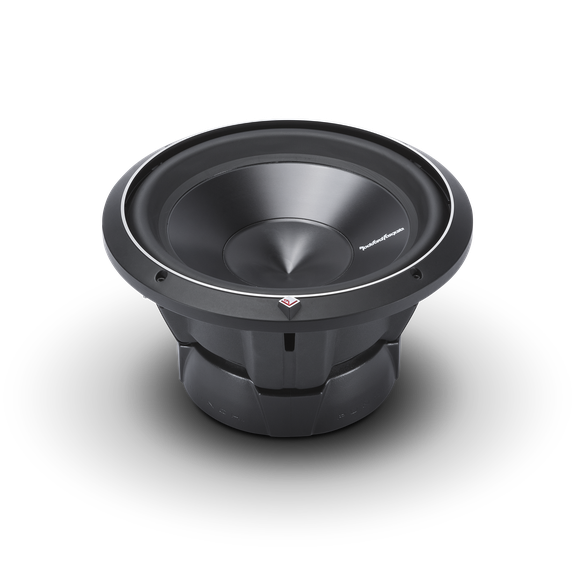

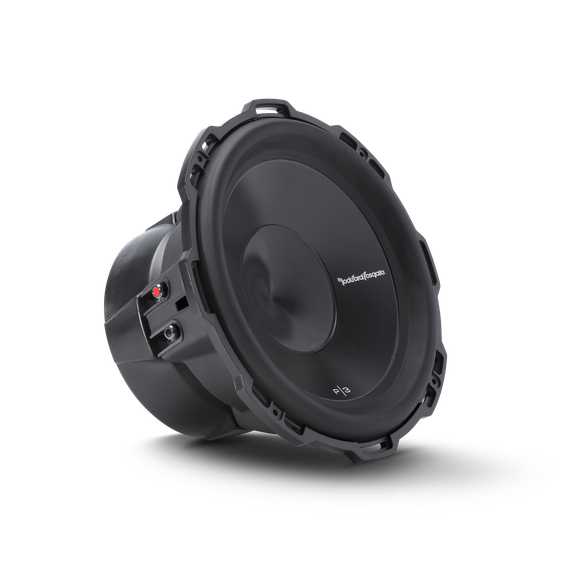

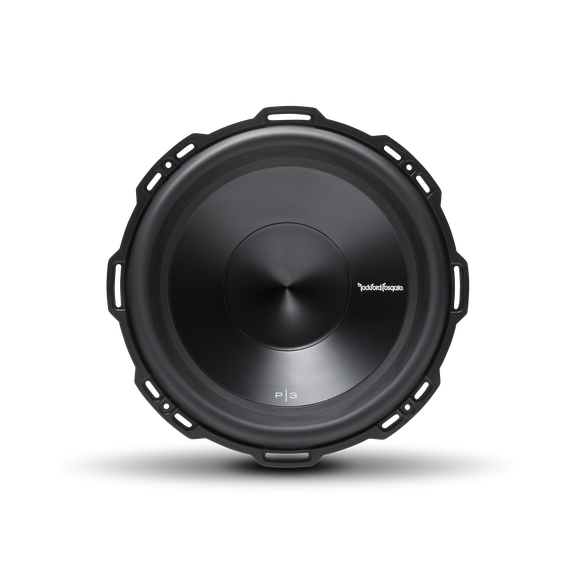

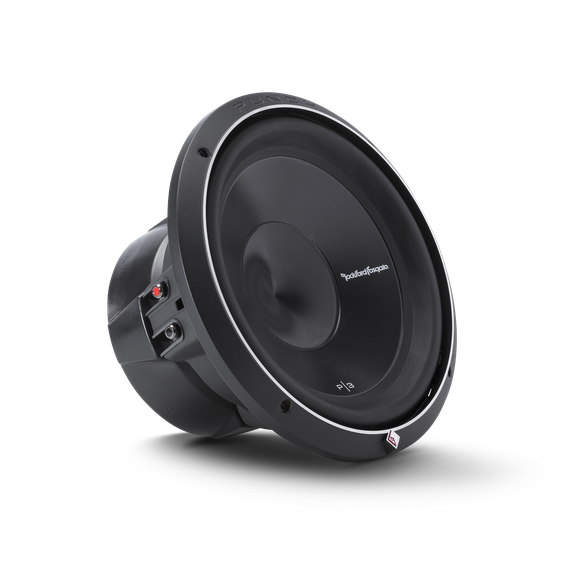

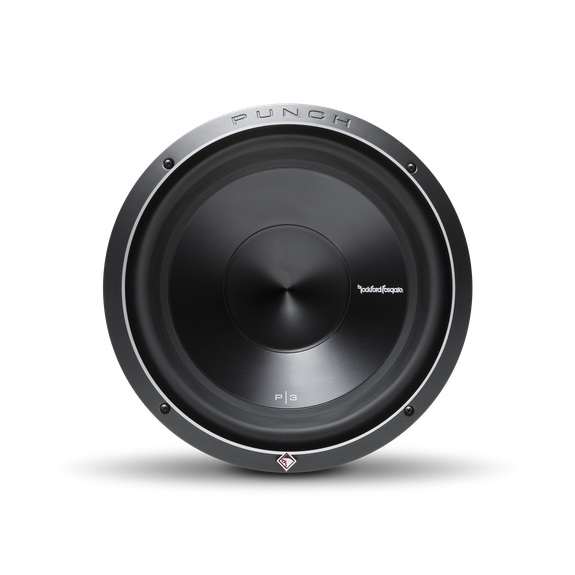

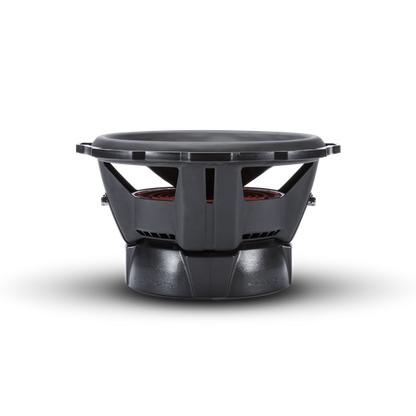

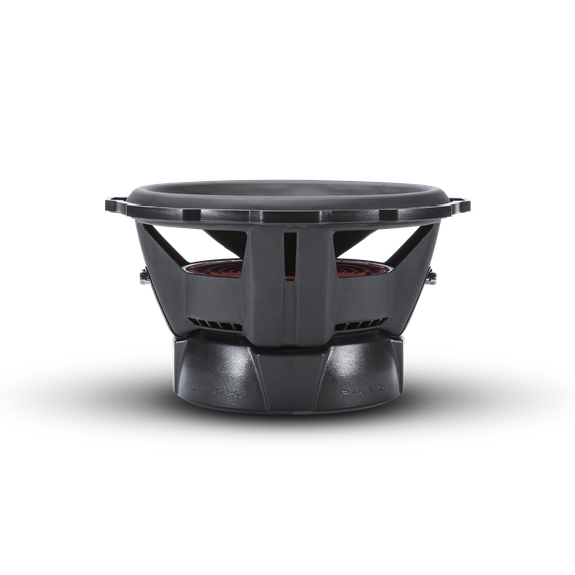

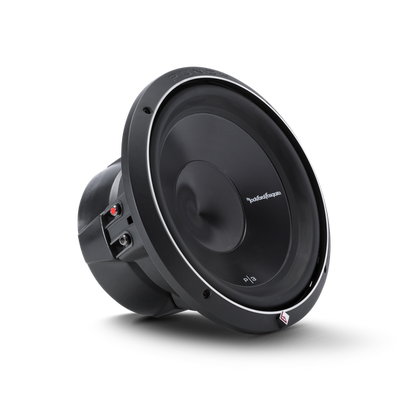

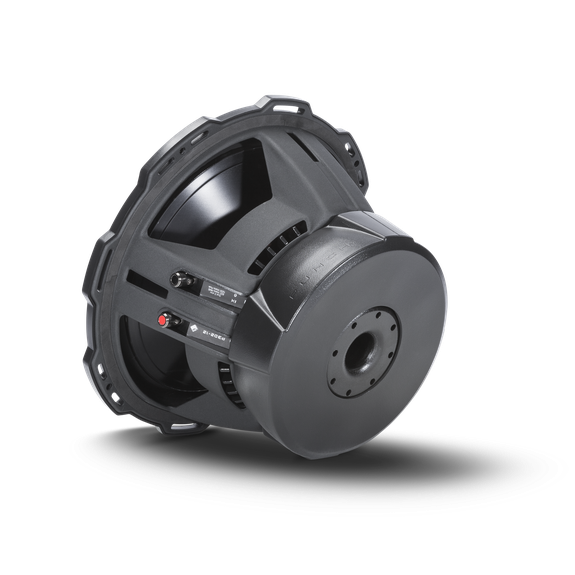

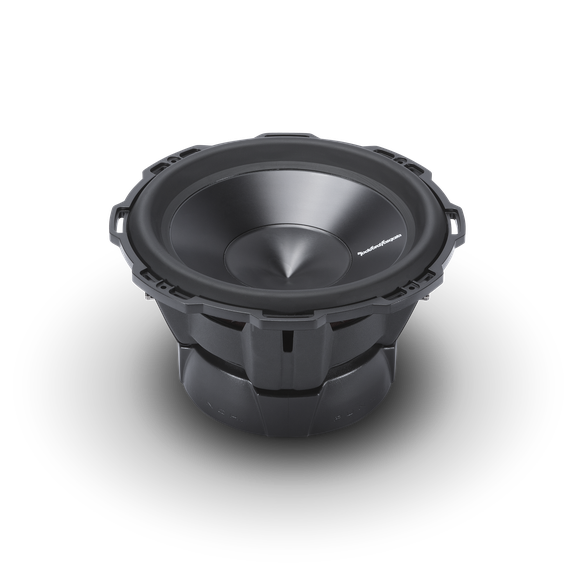

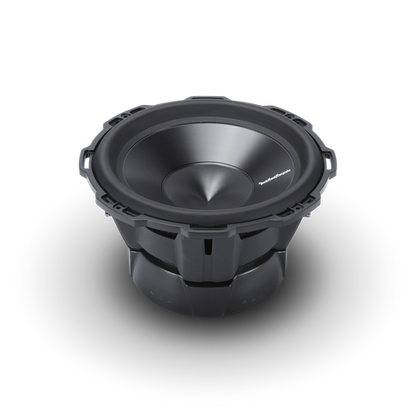

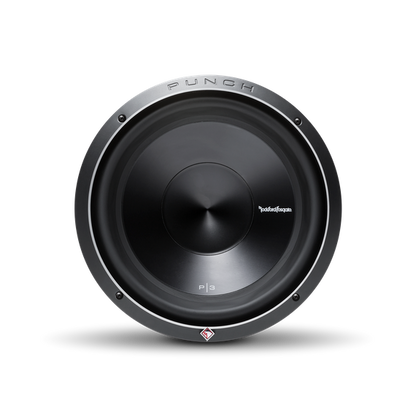

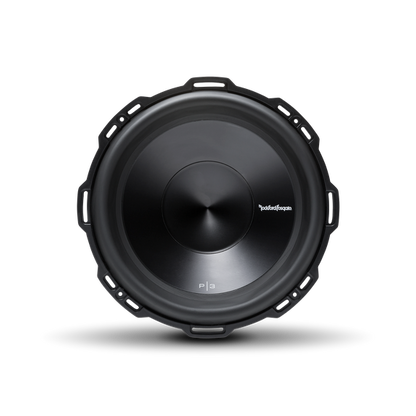

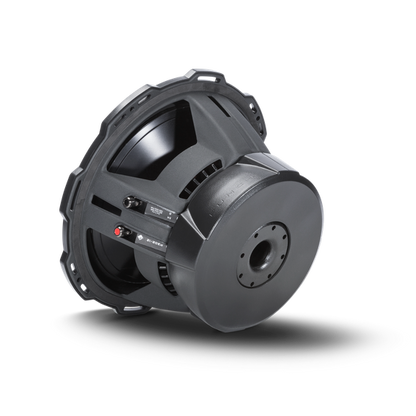

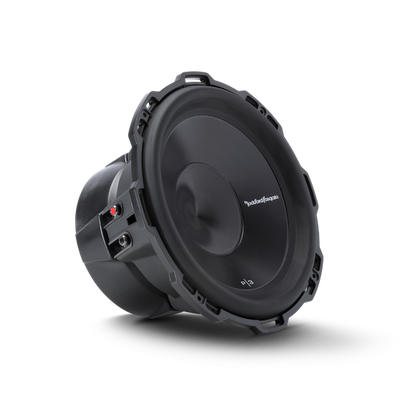

Rockford Fosgate Punch P3D4-12
Rockford Fosgate Punch P3D4-12
SKU:P3D4-12
Couldn't load pickup availability
Punch 12" P3 4-Ohm DVC Subwoofer

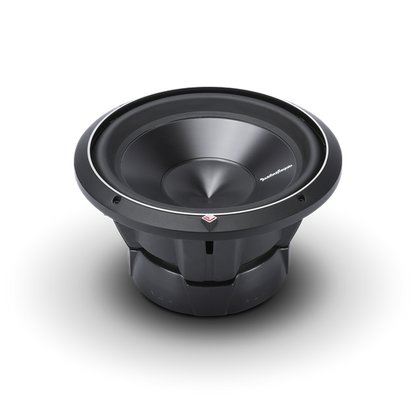

The P3D4-12 is the best performing Rockford Fosgate Punch series subwoofer for cars and trucks. The P3 12” features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D4-12 12-inch subwoofer is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
Specification
| Specification | Details |
|---|---|
| CEA-2031 Compliant | Yes |
| CEA-2031 Guidelines | CEA-2031 Guidelines |
| Size | 12" |
| Speaker Connector | Dual 10 AWG compression |
| Voice Coil Type | Dual Voice Coil |
| Subwoofer Type | Standard |
| Voice Coil Diameter | 2.5" (65.5 mm) |
| Power Handling | 600 Watts RMS / 1200 Watts Max |
| Magnet Weight (oz) | 96 oz. (2.73 kg.) |
| Nominal Impedance | Dual 4-Ohm |
| Qts | 0.52 |
| Qes | 0.57 |
| Fs (Hz) | 27.7 |
| Le (mH) | 6.94 |
| Re (Ohms) | 6.40 |
| Sd (cm²) | 570 |
| Vas (Liters) | 57.7 |
| Qms | 5.60 |
| SPL (dB @ 1w/1m) | 85 |
| Mounting Depth | 6.66 in. (169.3 mm) |
| Woofer Displacement | 0.106 cu. ft. (3.0 Liters) |
| Xmax (mm) | 15.9 |
| Cutout Diameter | 11.25 in. (285 mm) |
| Shipping Weight | 20.9 Lbs. (9.48 kg) |
| Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
| Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
