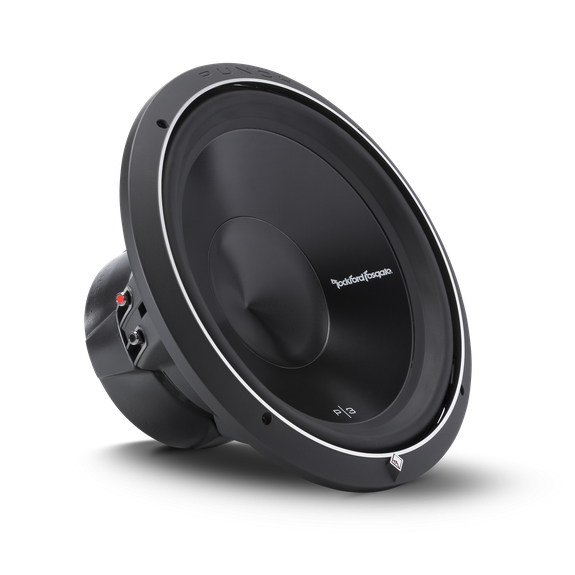

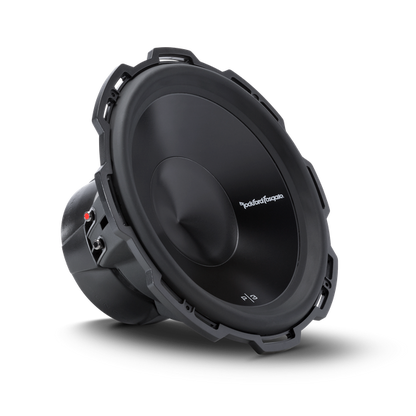

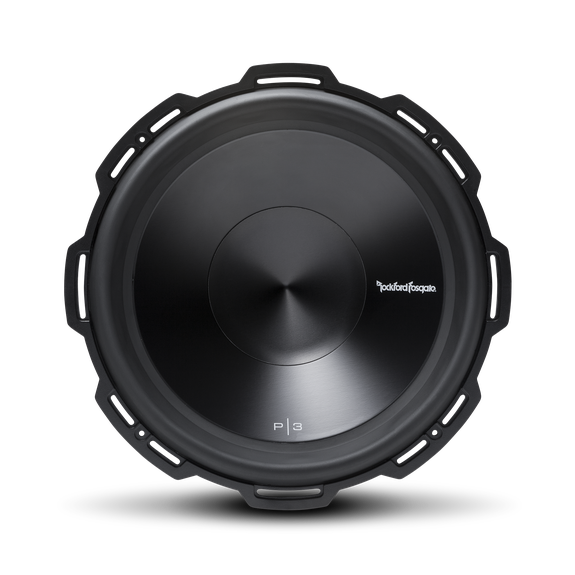

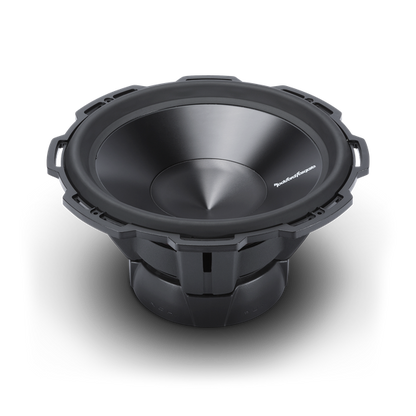

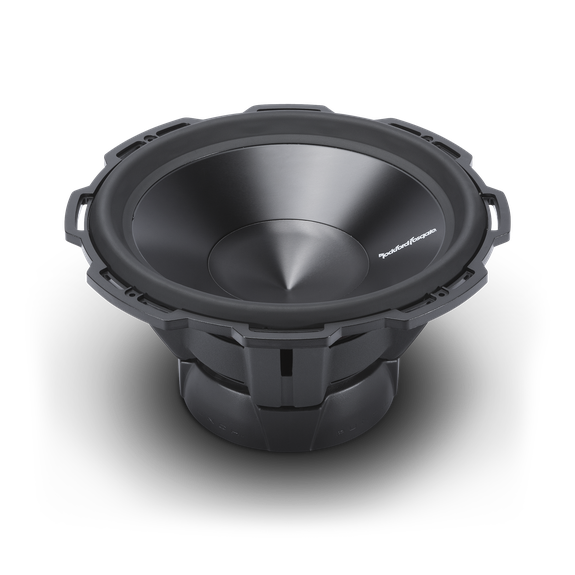

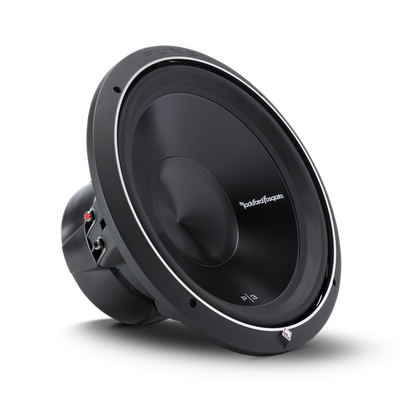

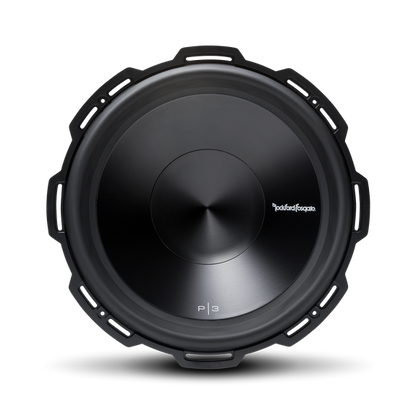

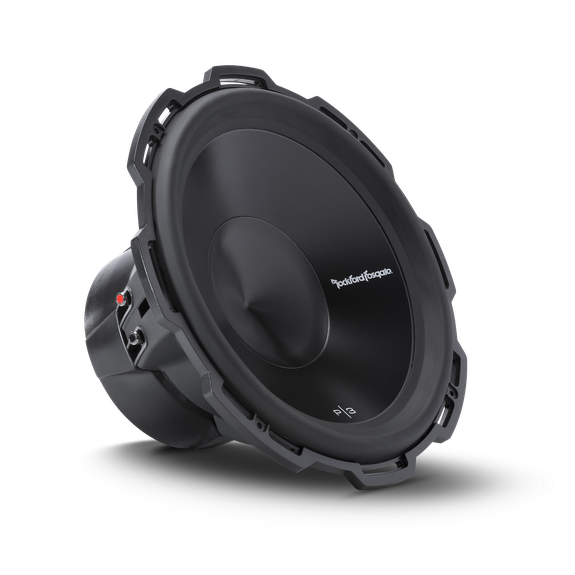

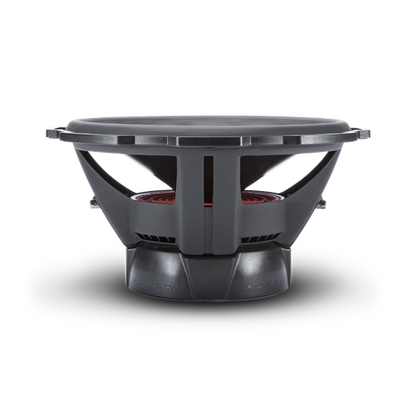

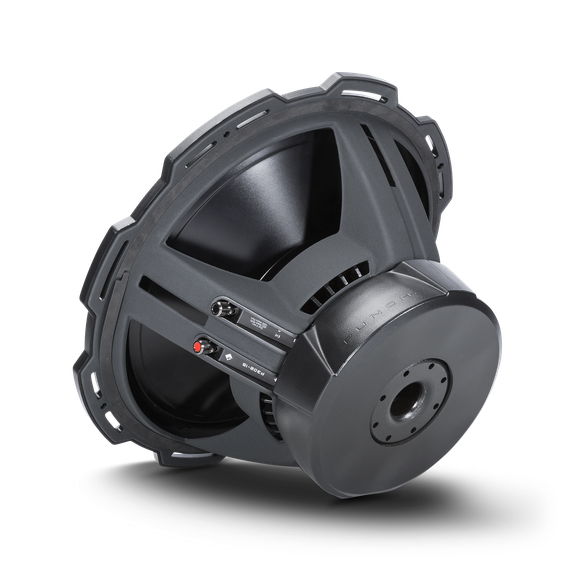

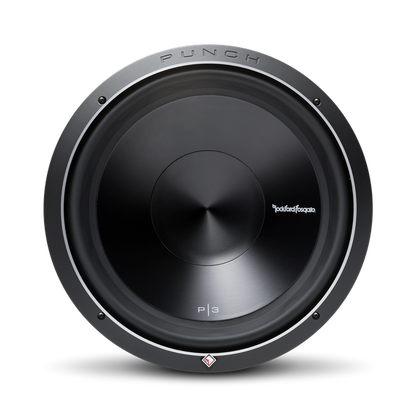

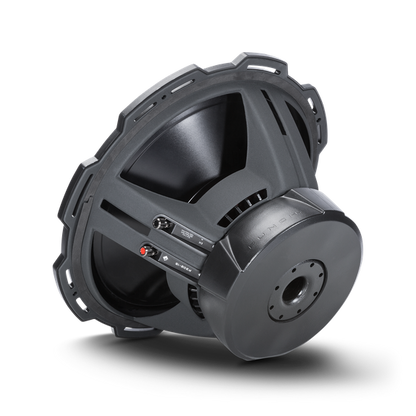

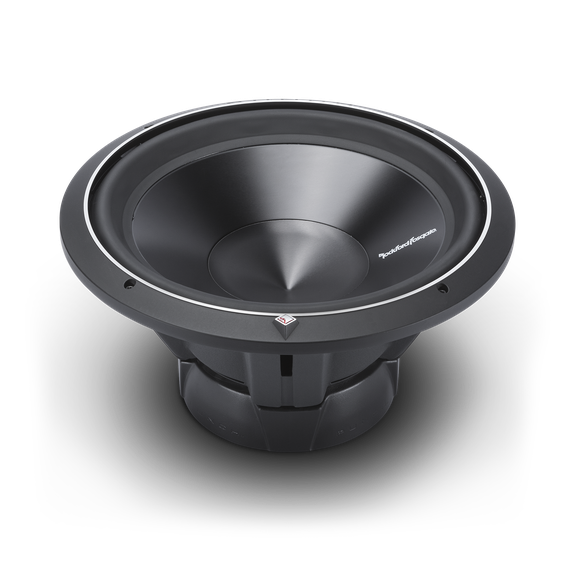

Rockford Fosgate Punch P3D2-15
Rockford Fosgate Punch P3D2-15
SKU:P3D2-15
Couldn't load pickup availability
Punch 15" P3 2-Ohm DVC Subwoofer

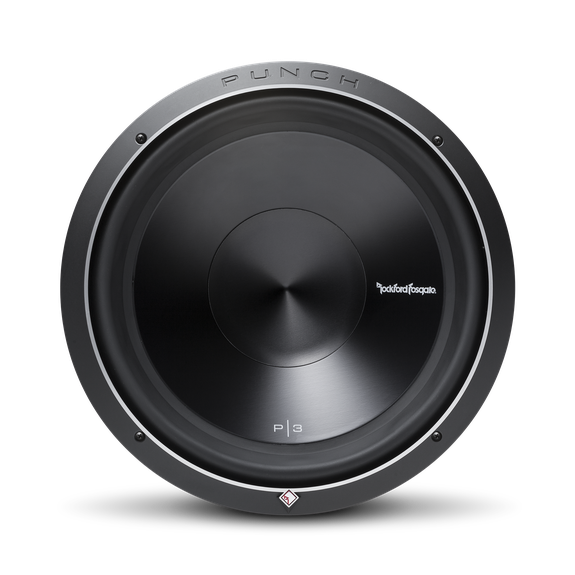

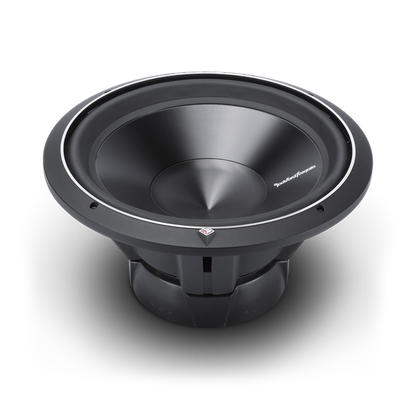

The P3D2-15 is the best performing Rockford Fosgate Punch series subwoofer. The P3 15” features Dual 2-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

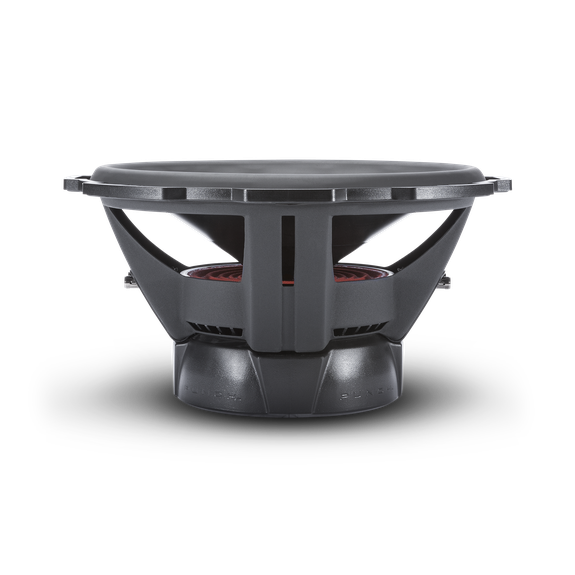

The P3D2-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
Specification
| Specification | Details |
|---|---|
| Power Handling (Watts RMS) | 600 Watts RMS / 1200 Watts Max |
| Speaker Connector | Dual 10 AWG compression |
| Magnet Weight (oz) | 96 oz. (2.73 kg.) |
| Shipping Weight | 23.3 Lbs. (10.56 kg) |
| Size | 15" |
| Nominal Impedance | Dual 2-Ohm |
| Mounting Depth | 7.58 in. (192.5 mm) |
| Voice Coil Diameter | 2.5" (65.5 mm) |
| Cutout Diameter | 13.94 in. (353 mm) |
| Woofer Displacement | 0.148 cu. ft. (4.2 Liters) |
| Qts | 0.54 |
| Vas (Liters) | 155.8 |
| Fs (Hz) | 21.7 |
| Le (mH) | 4.06 |
| Qes | 0.58 |
| Qms | 7.20 |
| SPL (dB @ 1w/1m) | 86 |
| CEA-2031 Compliant | Yes |
| CEA-2031 Guidelines | CEA-2031 Guidelines |
| Xmax (mm) | 15.2 |
| Re (Ohms) | 3.20 |
| Sd (cm²) | 894 |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Vented Box Volume (Vb) | 2.66 cu. ft. (75.3 Liters) |
| Sealed Box Volume (Vb) | 1.58 cu. ft. (44.7 Liters) |
