Rockford Fosgate P300X2

Name: Rockford Fosgate P300X2
Brand: Rockford Fosgate
SKU: P300X2
Price: 279.99 USD
Availability: OutOfStock

SKU:P300X2

$279.99 USD

Sale Sold out

Shipping calculated at checkout.

Ask A Product Expert

Estimated delivery: 2–5 business days

Free shipping & returns on all orders

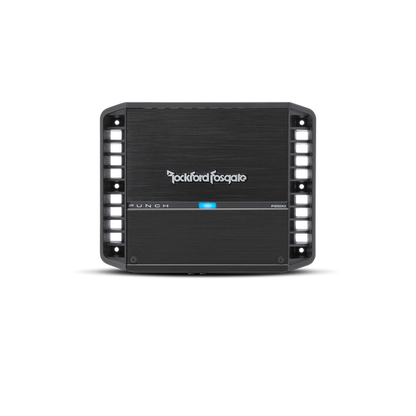

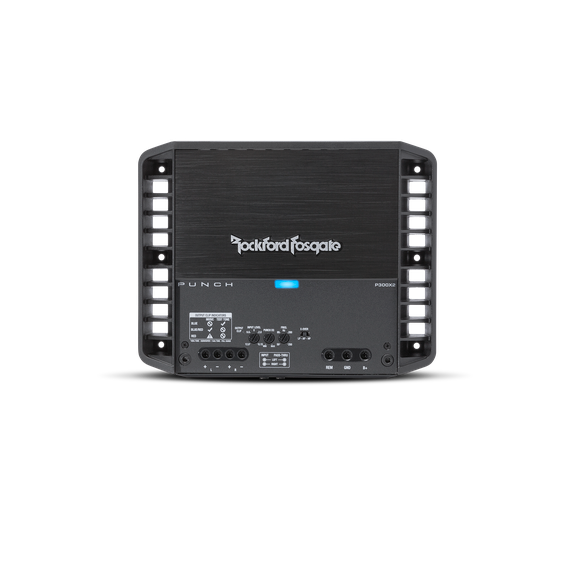

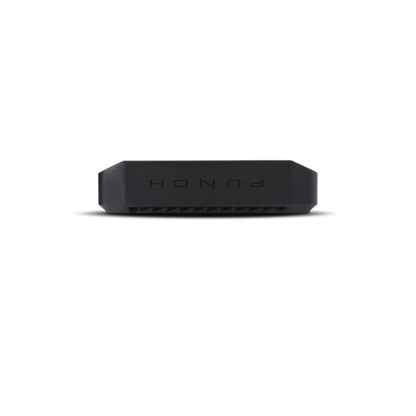

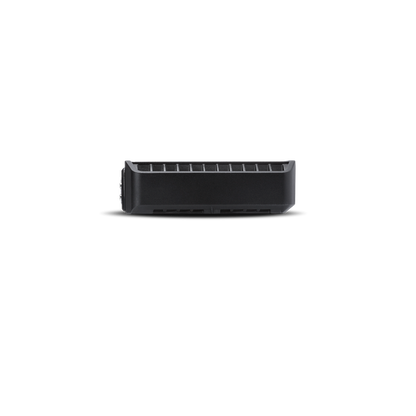

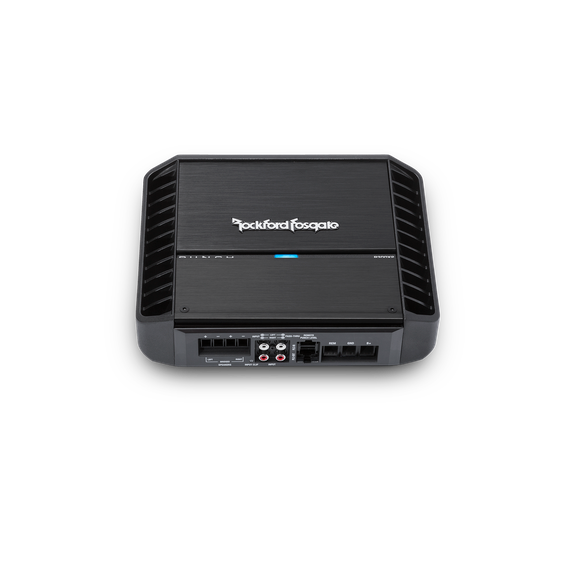

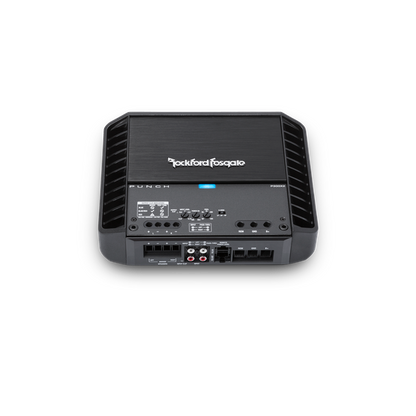

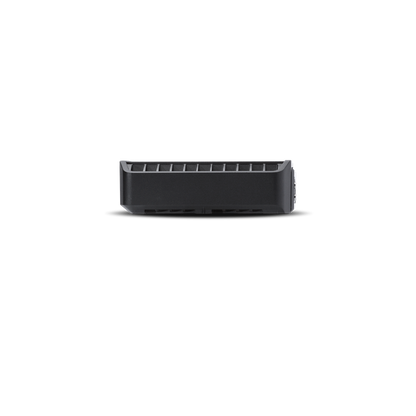

Punch 300 Watt 2-Channel Amplifier

The Punch P300X2 is a 2-channel stereo amplifier capable of producing 150 Watts into each channel at 2-Ohms. The P300X2 amplifier is great with full-range or component systems and can be bridged for use with smaller subwoofers.

Specification

Specification	Details
CTA-2006 Compliant	Yes
Number of Channels	2
Total Power	300 Watts
Rated Power (RMS Continuous Power)	100 Watts × 2 @ 4Ω150 Watts × 2 @ 2Ω300 Watts × 1 @ 4Ω Bridged
Dynamic Power (PVC/PowerCube®)	122 Watts × 2 @ 4Ω 0° Res215 Watts × 2 @ 2Ω 0° Res435 Watts × 1 @ 4Ω Bridged 0° Res
Bridgeable	Yes
Frequency Response	20 Hz – 20 kHz
Input Sensitivity	150 mV – 12 V
Circuit Topology Class	Class A/B
Efficiency (Average)	69% @ 4Ω
Total Harmonic Distortion (THD+Noise)	4Ω: <1.0%2Ω: <1.0%
Signal Input	Hi/Low Level: 1 RCA Pair
Signal Output	Low Level: 1 RCA Pair
Tone Controls	0 dB to +14 dB @ 12.5 kHz0 dB to +18 dB @ 45 Hz
Crossover Controls	High-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthLow-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthAll-Pass: Yes
Remote Controls	Optional Punch Level Control (PLC2) Ready
Visual Indicators	Power/Protect/Thermal LEDInput Clip LED³Output Clip LED¹,²,³LED Color Legend:¹ Blue: <0.5% THD² Violet: 1% THD³ Red: 10%+ THD
Power Wire Gauge	8 AWG to 4 AWG
Power Input Connector	Captive C-Clamp
Speaker Wire Gauge	8 AWG to 18 AWG
Speaker Output Connector	Captive C-Clamp
Cooling	Convection
Heatsink	—
Operating Voltage	9 – 16 VDC
Recommended Fuse	50 A
Average Current Draw (13.8 V Music)	23 A
Max. Current Draw (13.8 V Sinewave)	45 A
Suggested Alternator	75 A
Included In The Box	—
Dimensions (H × W × D)	2.38" × 7.76" × 9.86"(6.05 cm × 19.71 cm × 25.04 cm)
Shipping Weight	9.5 lbs. (4.3 kg)
