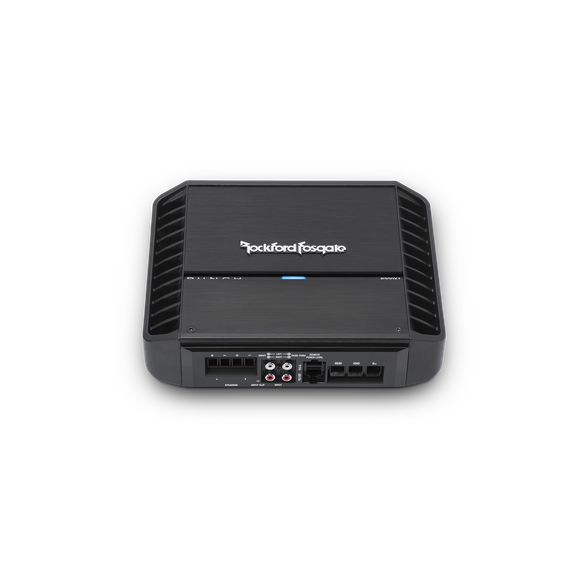

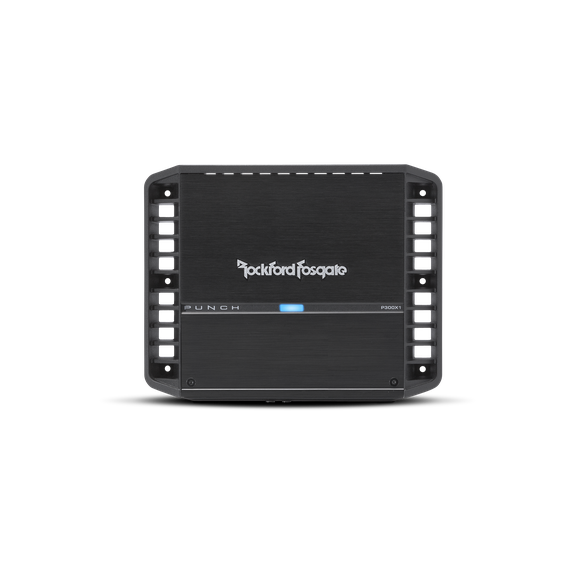

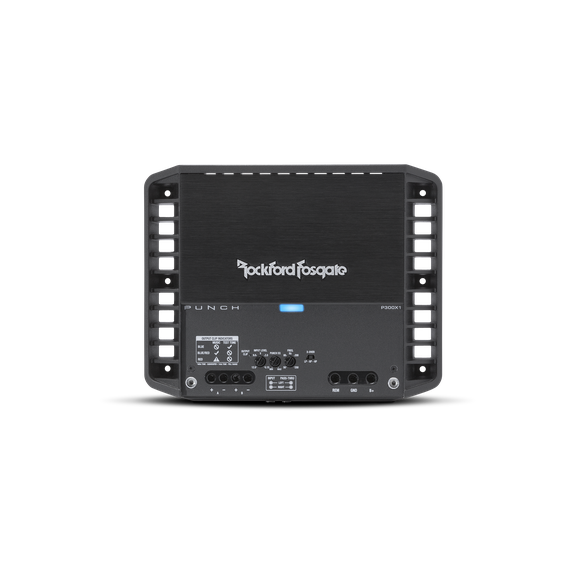

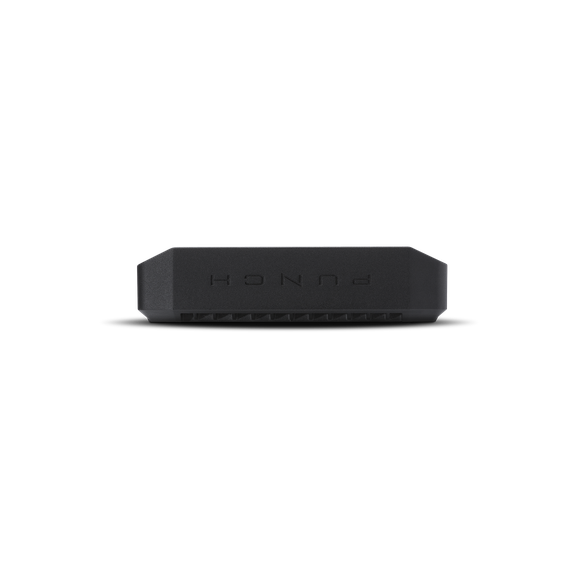

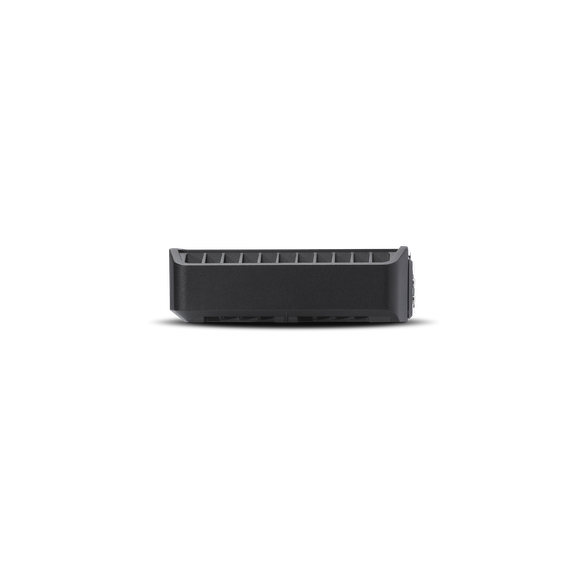

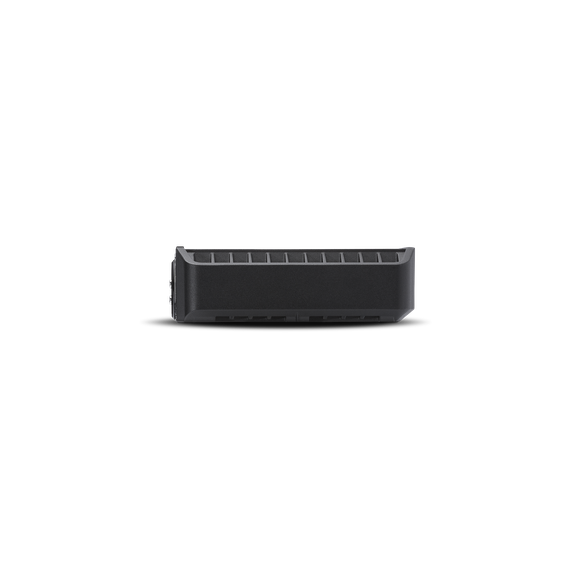

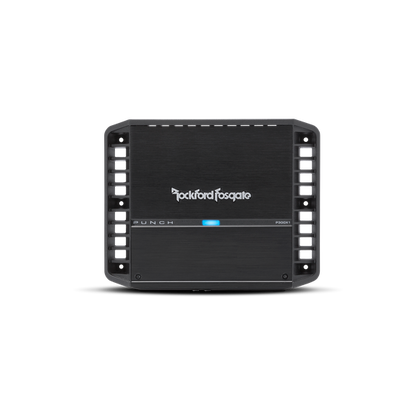

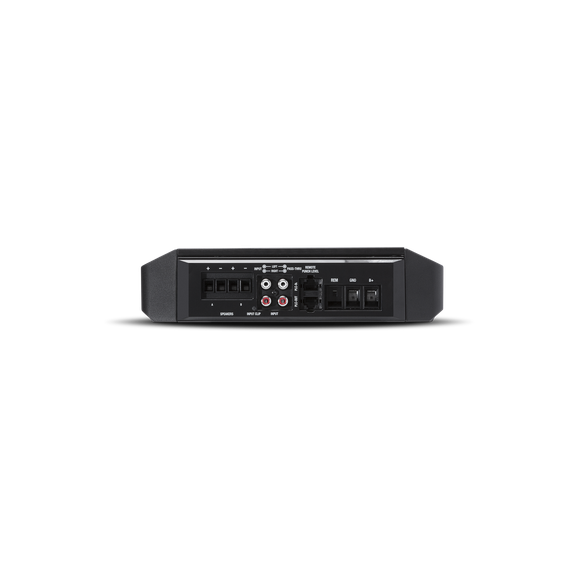

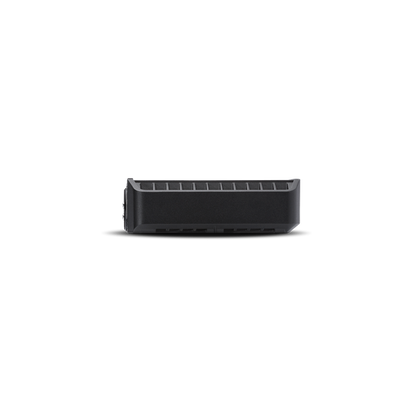

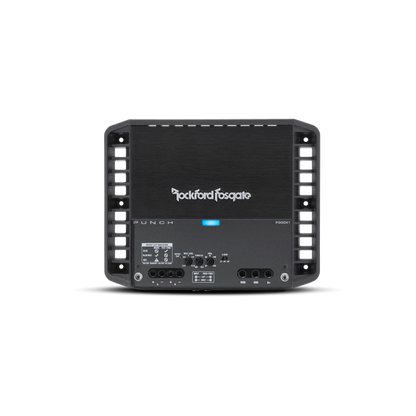

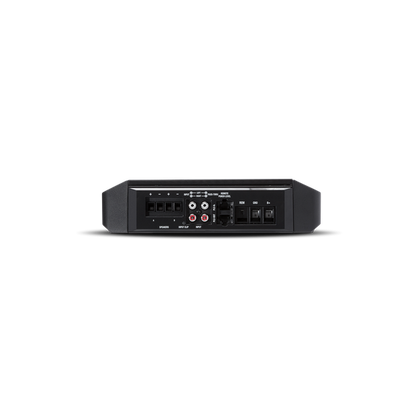

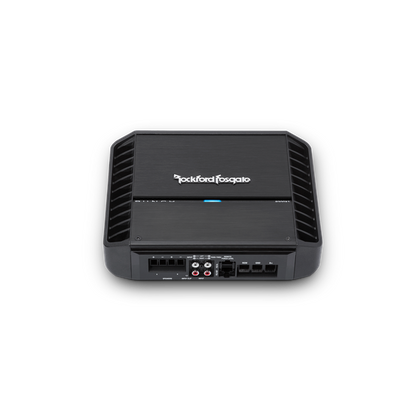

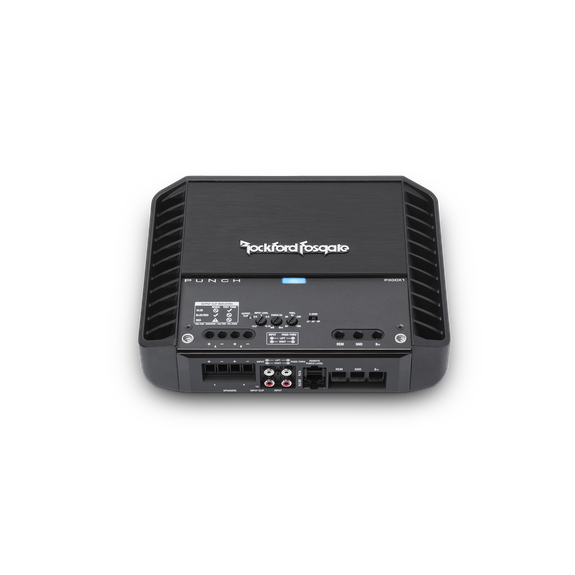

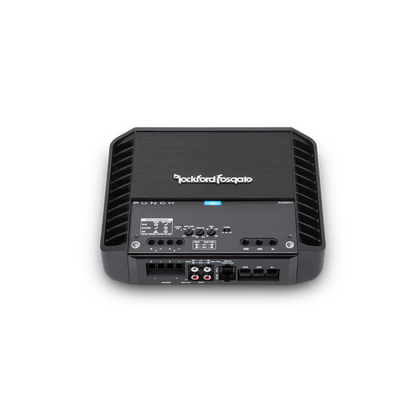

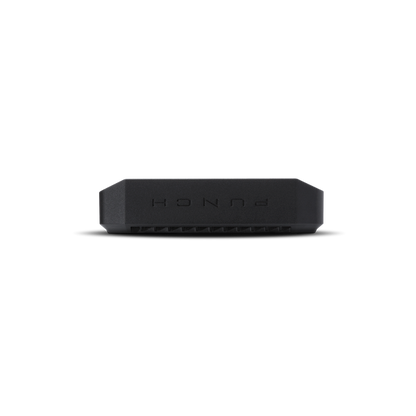

Rockford Fosgate P300X1
Rockford Fosgate P300X1
SKU:P300X1
Regular price
$279.99 USD
Regular price
Sale price
$279.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Estimated delivery: 2–5 business days
Free shipping & returns on all orders
Punch 300 Watt Full-Range Mono Amplifier
The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.
Specification
| Specification | Details |
|---|---|
| CTA-2006 Compliant | Yes |
| Number of Channels | 1 |
| Total Power | 300 Watts |
| Rated Power (RMS Continuous Power) | 200 Watts × 1 @ 4Ω300 Watts × 1 @ 2Ω |
| Dynamic Power (PVC/PowerCube®) | 260 Watts × 1 @ 4Ω 0° Res444 Watts × 1 @ 2Ω 0° Res |
| Bridgeable | No |
| Frequency Response | 20 Hz – 20 kHz ±1.0 dB |
| Input Sensitivity | 150 mV – 12 V |
| Circuit Topology Class | Class A/B |
| Efficiency (Average) | 74% @ 4Ω |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0%2Ω: <1.0% |
| Signal Input | Hi/Low Level: 1 RCA Pair |
| Signal Output | Low Level: 1 RCA Pair |
| Tone Controls | Punch EQ2 Bass: 0 dB to +18 dB @ 45 HzPunch EQ2 Treble: 0 dB to +12.5 dB @ 12 kHzFunction depends upon LP/AP/HP switch position |
| Crossover Controls | High-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthLow-Pass: 50 Hz – 250 Hz @ 12 dB/Octave ButterworthAll-Pass: Yes |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LEDInput Clip LED³Output Clip LED¹,²,³LED Color Legend:¹ Blue: <0.5% THD² Violet: 1% THD³ Red: 10%+ THD |
| Power Wire Gauge | 8 AWG to 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Heatsink | — |
| Operating Voltage | 9 – 16 VDC |
| Recommended Fuse | 50 A |
| Average Current Draw (13.8 V Music) | 23 A |
| Max. Current Draw (13.8 V Sinewave) | 45 A |
| Suggested Alternator | 75 A |
| Included In The Box | — |
| Dimensions (H × W × D) | 2.38" × 7.76" × 9.86"(6.05 cm × 19.71 cm × 25.04 cm) |
| Shipping Weight | 9.5 lbs. (4.30 kg) |
