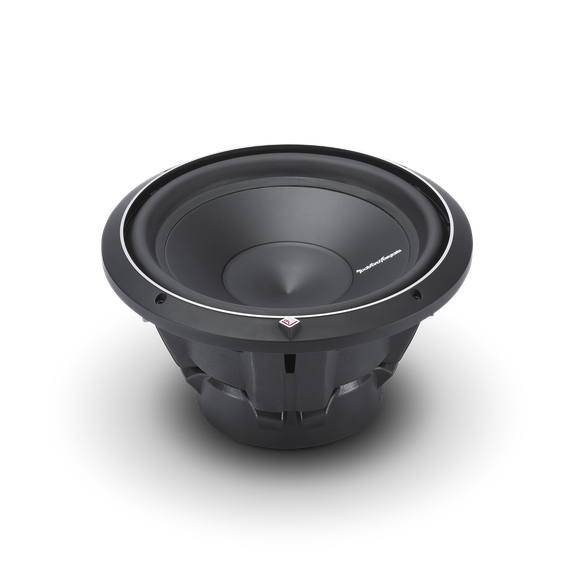

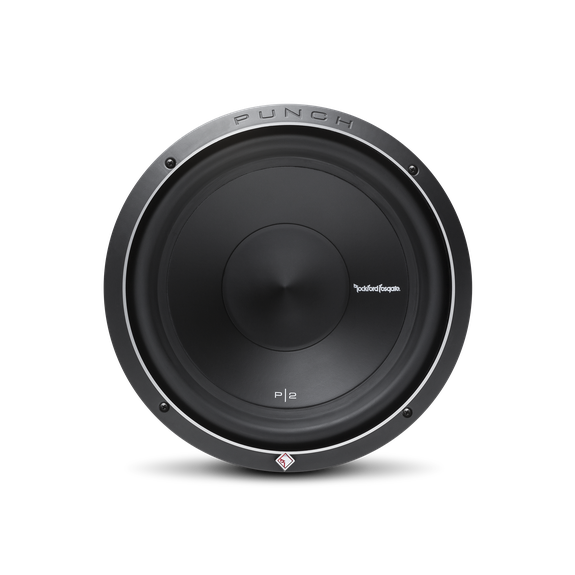

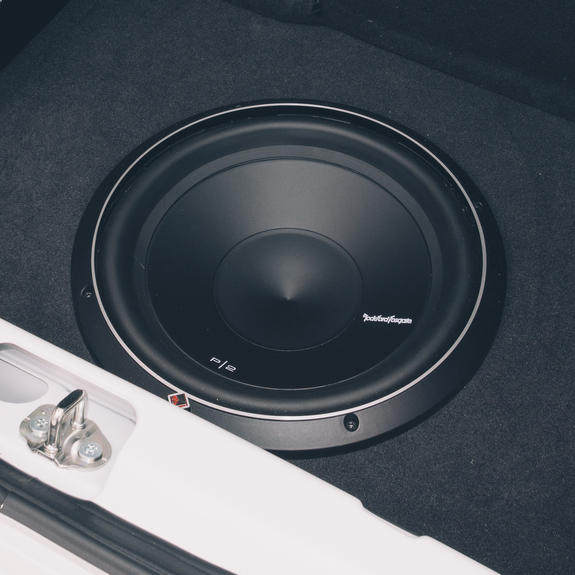

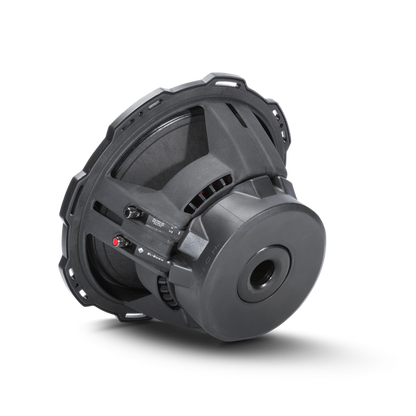

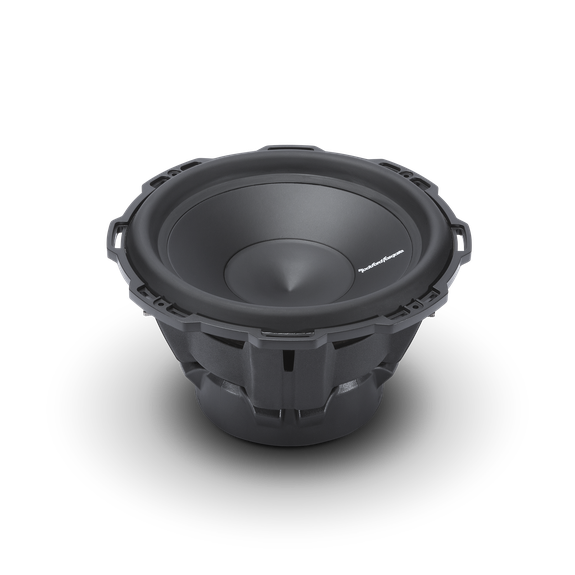

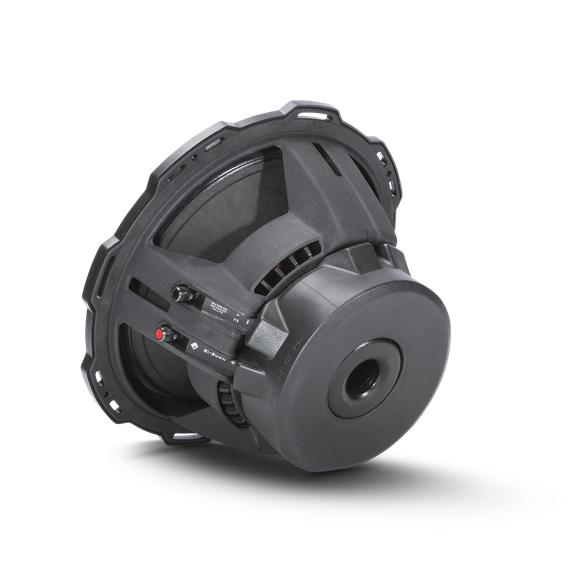

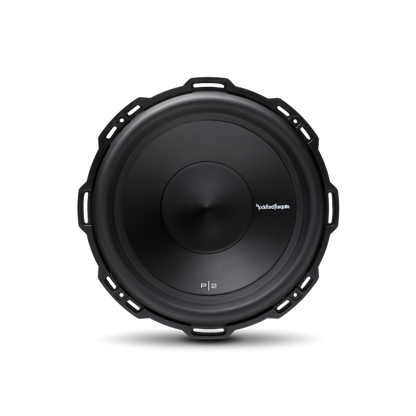

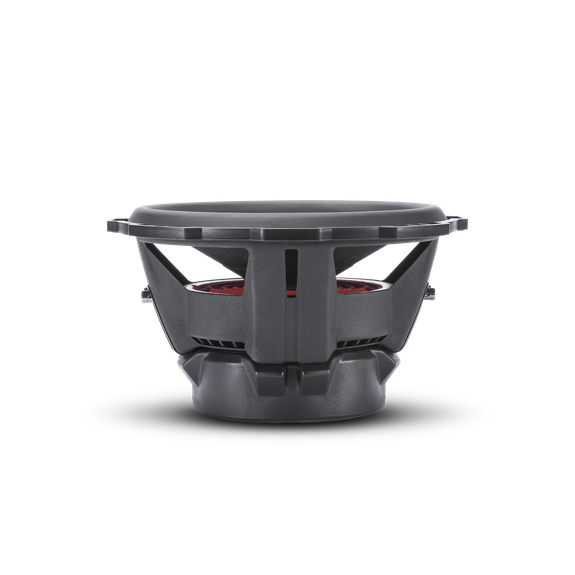

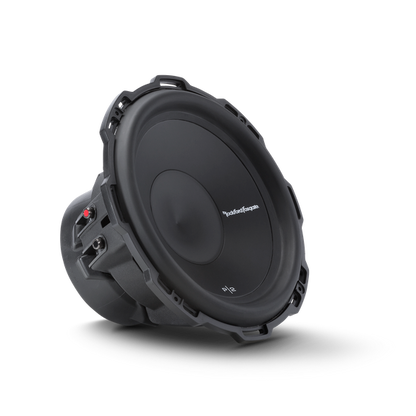

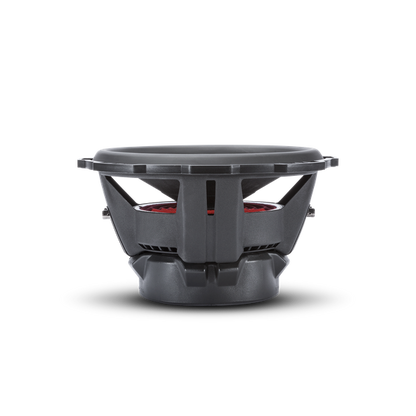

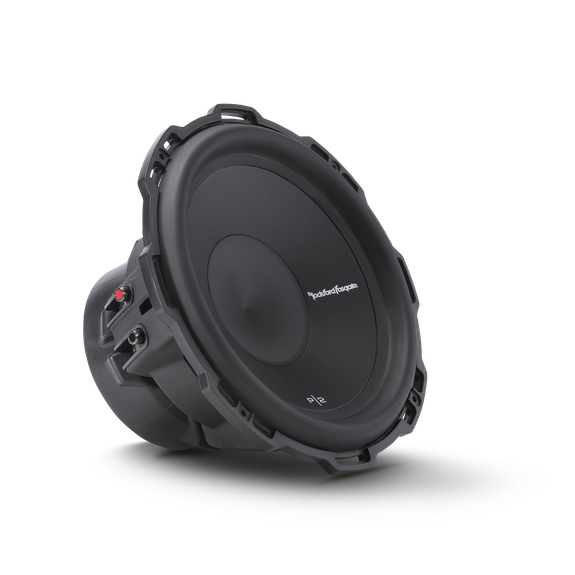

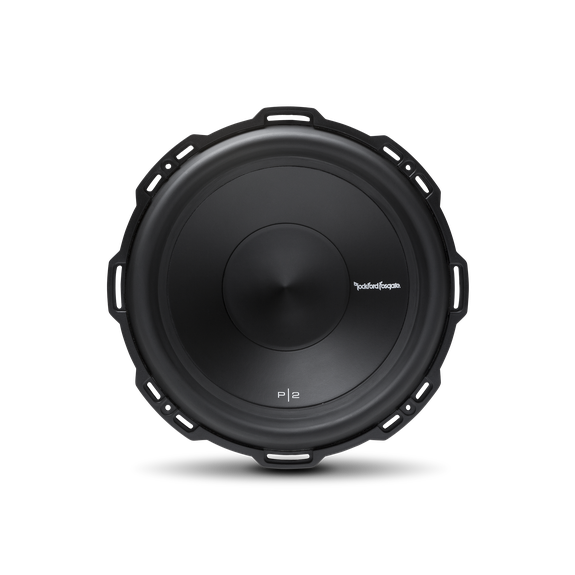

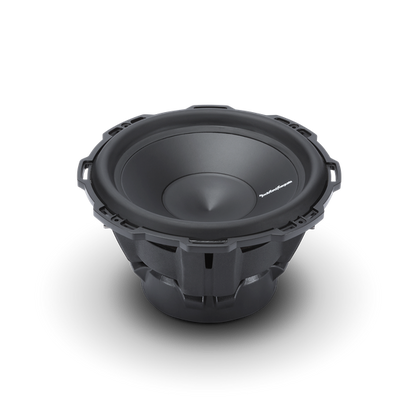

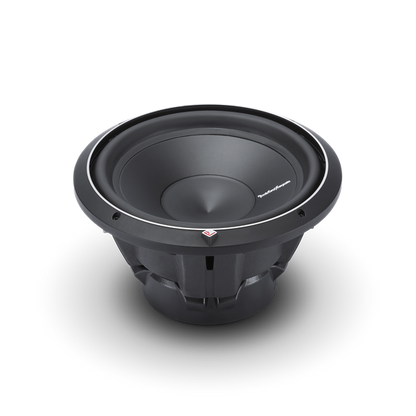

Rockford Fosgate Punch P2D2-12

Rockford Fosgate Punch P2D2-12

SKU:P2D2-12

Regular price $199.99 USD
Regular price Sale price $199.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
Ask A Product Expert
Estimated delivery: 2–5 business days
Free shipping & returns on all orders

Punch 12" P2 2-Ohm DVC Subwoofer

The Rockford Fosgate P2 12” subwoofer continues “The PUNCH” tradition of generating powerful car and truck audio. The P2D2-12 features a 2-Ohm Dual voice coil (DVC), 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring. The P2D2 12 inch car subwoofer also includes: Rockford Fosgate has always been known as "The PUNCH" and the P2 12 inch car subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area of your sub up to 25%. The P2 Punch subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available. Looking for more options?

FEATURES AT A GLANCE

  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • Kevlar fiber reinforced paper cone

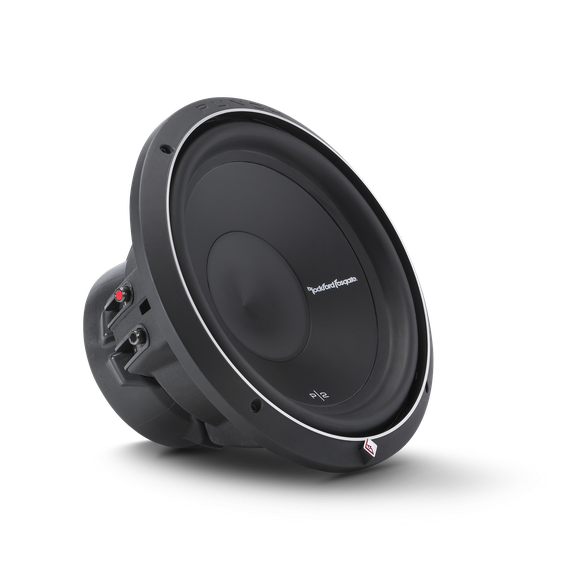

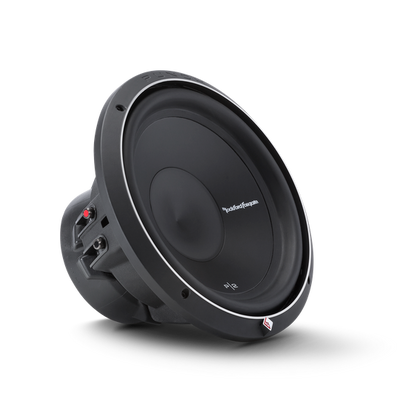

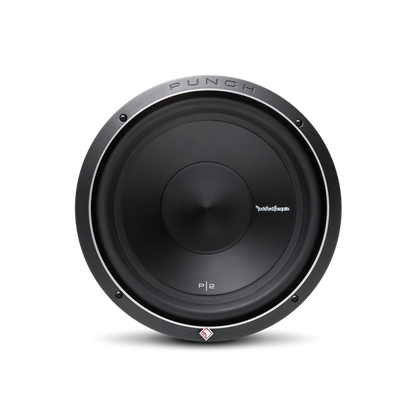

  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting

Specification

Specification Details
Power Handling (Watts RMS) 400 Watts RMS / 800 Watts Max
Size 12"
Nominal Impedance Dual 2-Ohm
Speaker Connector Dual 10 AWG compression
Magnet Weight (oz) 72.8 oz. (2.06 kg.)
Voice Coil Diameter 2.25" (57.15 mm)
Shipping Weight 15.6 Lbs. (7.07 kg)
SPL (dB @ 1w/1m) 86
Cutout Diameter 11.22 in. (285 mm)
Woofer Displacement 0.085 cu. ft. (2.4 Liters)
Fs (Hz) 26
Qts 0.52
Vas (Liters) 81.5
Qes 0.56
Qms 6.50
Xmax (mm) 13.3
Mounting Depth 6.40 in. (162 mm)
CEA-2031 Compliant Yes
CEA-2031 Guidelines CEA-2031 Guidelines
Re (Ohms) 3.30
Le (mH) 3.7
Sd (cm²) 570
Subwoofer Type Standard
Voice Coil Type Dual Voice Coil
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)
